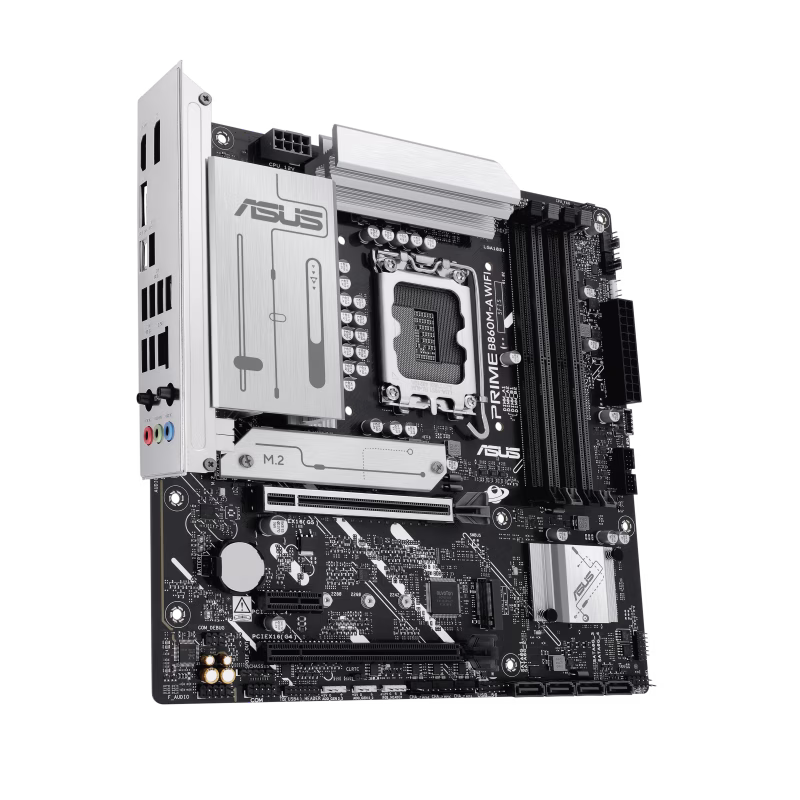

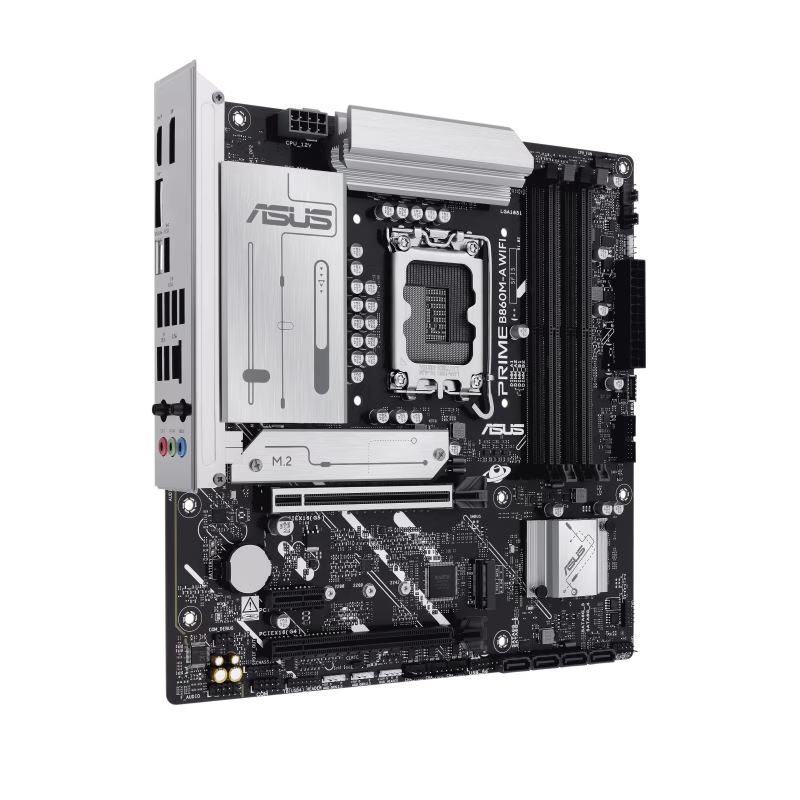

ASUS PRIME B860M-A WIFI DDR5 micro-ATX Motherboard, 4x DIMM slots, max. 256GB, up to 8666+MT/s (OC), Non-ECC, 2 x M.2 slots and 4 x SATA 6Gb/s ports, Wi-Fi 6E & BT v5.3, ASUS 5X PROTECTION III | 90MB1JY0-M0EAY0
Model :
SKU : MB-ASUS PRIME B860M-A WI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME B860M-A WIFI is designed to meet the needs of high-core-count CPUs. It features 7(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.
Specification
| Model | PRIME B860M-A WIFI |
| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB DDR5 Supports up to 8666+ MT/s (OC), Non-ECC, Un-buffered DIMM Dual Channel Memory Architecture Supports Intel® XMP & ASUS Enhanced Memory Profile III (AEMPIII) |
| Graphics | 2 x DisplayPort (max. 4K@120Hz) 1 x HDMI™ port (max. 4K@60Hz) 1 x USB Type-C® with DisplayPort output |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (CPU) 1 x PCIe 4.0 x16 slot (x4 mode, Chipset) 1 x PCIe 4.0 x1 slot (Chipset) |
| Storage | 2 x M.2 slots (PCIe 5.0 / 4.0) 4 x SATA 6Gb/s ports Supports RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2x2, 2.4/5/6GHz) Bluetooth® v5.3 |
| USB (Rear) | 1 x USB 20Gbps (Type-C® DP Alt mode) 1 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) |
| USB (Front) | 1 x USB 10Gbps (Type-C®) 1 x USB 5Gbps header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC Premium audio capacitors, Audio shielding, Dedicated PCB layers |

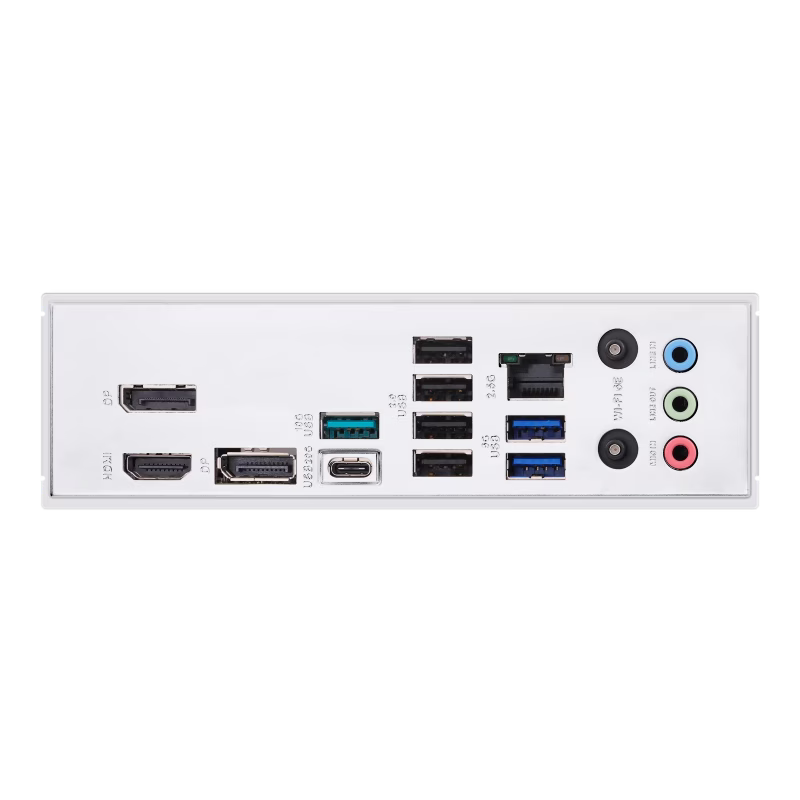

| Back Panel I/O | 1 x USB 20Gbps (Type-C® DP Alt mode) 1 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 2 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks |
| Internal I/O | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 2 x M.2 slots 4 x SATA ports Multiple fan, USB, RGB, COM, TPM, and S/PDIF headers |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, ESD Guards, LANGuard, Overvoltage, SafeSlot) Q-Design (Q-Antenna, Q-DIMM, Q-Slot, Q-LED Core) ASUS Thermal Solution (M.2 & VRM heatsinks) ASUS EZ DIY (Pre-mounted I/O shield, ProCool) Aura Sync RGB (Aura RGB + Addressable Gen2 headers) |
| Software Features | Armoury Crate, Aura Sync, Fan Xpert 2+, ASUS CPU-Z, Norton 360 (60 Days), WinRAR (40 Days) |
| BIOS | 256 Mb (128+128) Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x M.2 screw package 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | micro-ATX (24.4 cm x 24.4 cm) |
