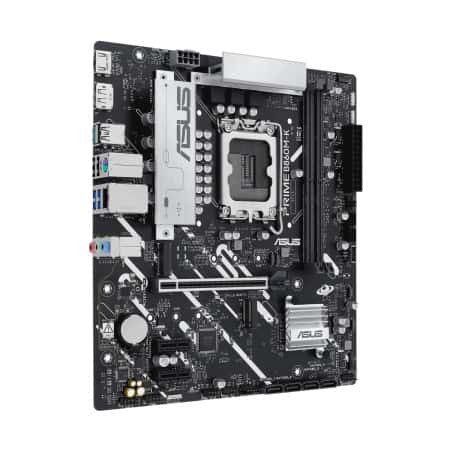

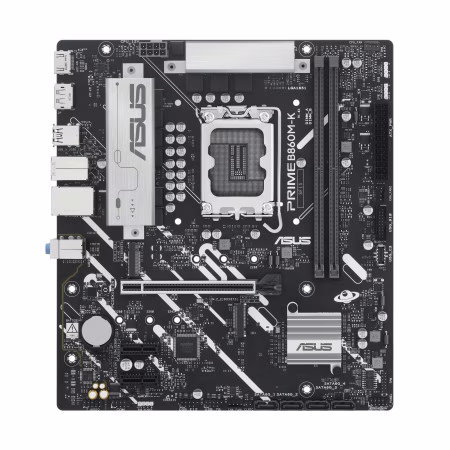

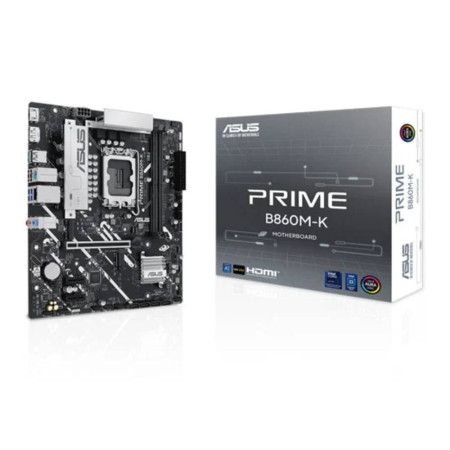

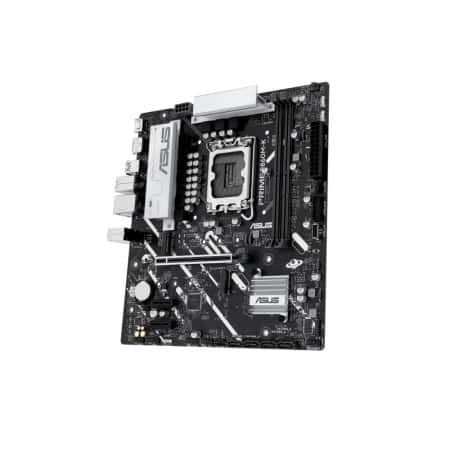

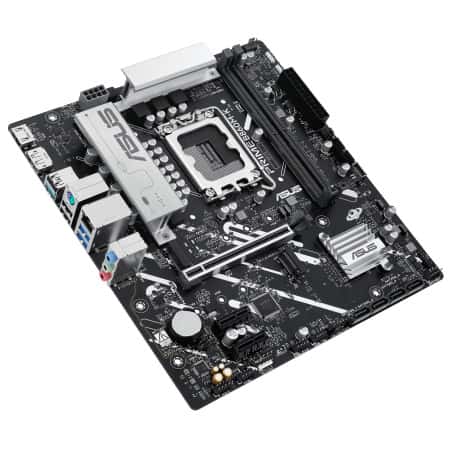

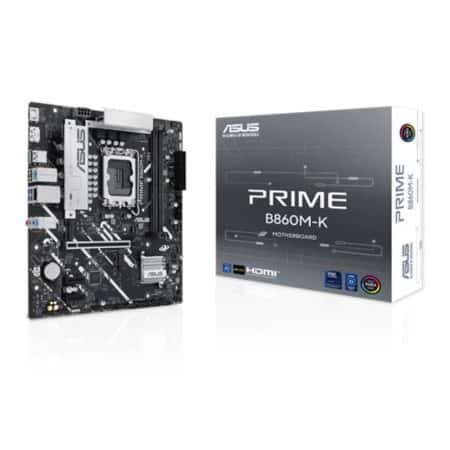

ASUS PRIME B860M-K LGA 1851 micro-ATX Motherboard, 2x DIMM slots, max. 128GB, DDR5, 2x M.2 slots and 4 x SATA 6Gb/s ports, 2.5Gb Ethernet, PCIe 5.0 | 90MB1JT0-M0EAY0
Model :
SKU : MB-ASUS PRIME B860M-K
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME B860M-K features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.
Specification
| CPU Support | Supports Intel?? Core??? Ultra Processors (Series 2), LGA1851 |
| Turbo Boost Technology | Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0 |
| Chipset | Intel?? B860 Chipset |
| Memory Slots | 2 x DIMM slots, max. 128GB, DDR5 |
| Memory Speed | Supports up to 8800+ MT/s (OC) |
| Memory Type | Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) |
| Dual Channel Memory | Yes |
| Graphics Ports | 1 x DisplayPort, 1 x HDMI??? port |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots |
| Storage | 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB Ports | 6 rear USB ports (1 x 10Gbps, 2 x 5Gbps, 3 x 2.0), 7 front USB ports (1 x USB 5Gbps Type-C, 1 x USB 5Gbps header, 2 x USB 2.0 headers) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |

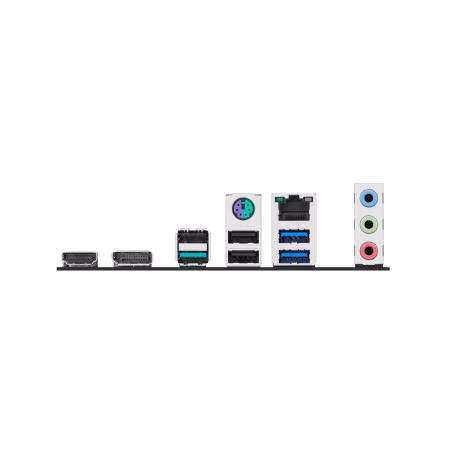

| Back Panel I/O Ports | 1 x USB 10Gbps port, 2 x USB 5Gbps ports, 3 x USB 2.0 ports, 1 x DisplayPort, 1 x HDMI??? port, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector |
| Special Features | ASUS 5X PROTECTION III, DIGI+VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O, ASUS Q-Design, ASUS Thermal Solution, Aura Sync RGB, ProCool |
| Software Features | Armoury Crate, Aura Sync, Fan Xpert 2+, ASUS AI Advisor, ASUS DriverHub, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial) |
| BIOS | 256(128+128) Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor | micro-ATX, 9.6 inch x 8.75 inch (24.4cm x 22.2cm) |

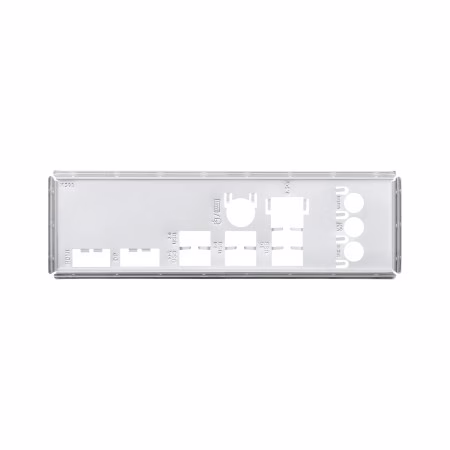

| Package Contents | 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 anchor package, 1 x Quick start guide |
