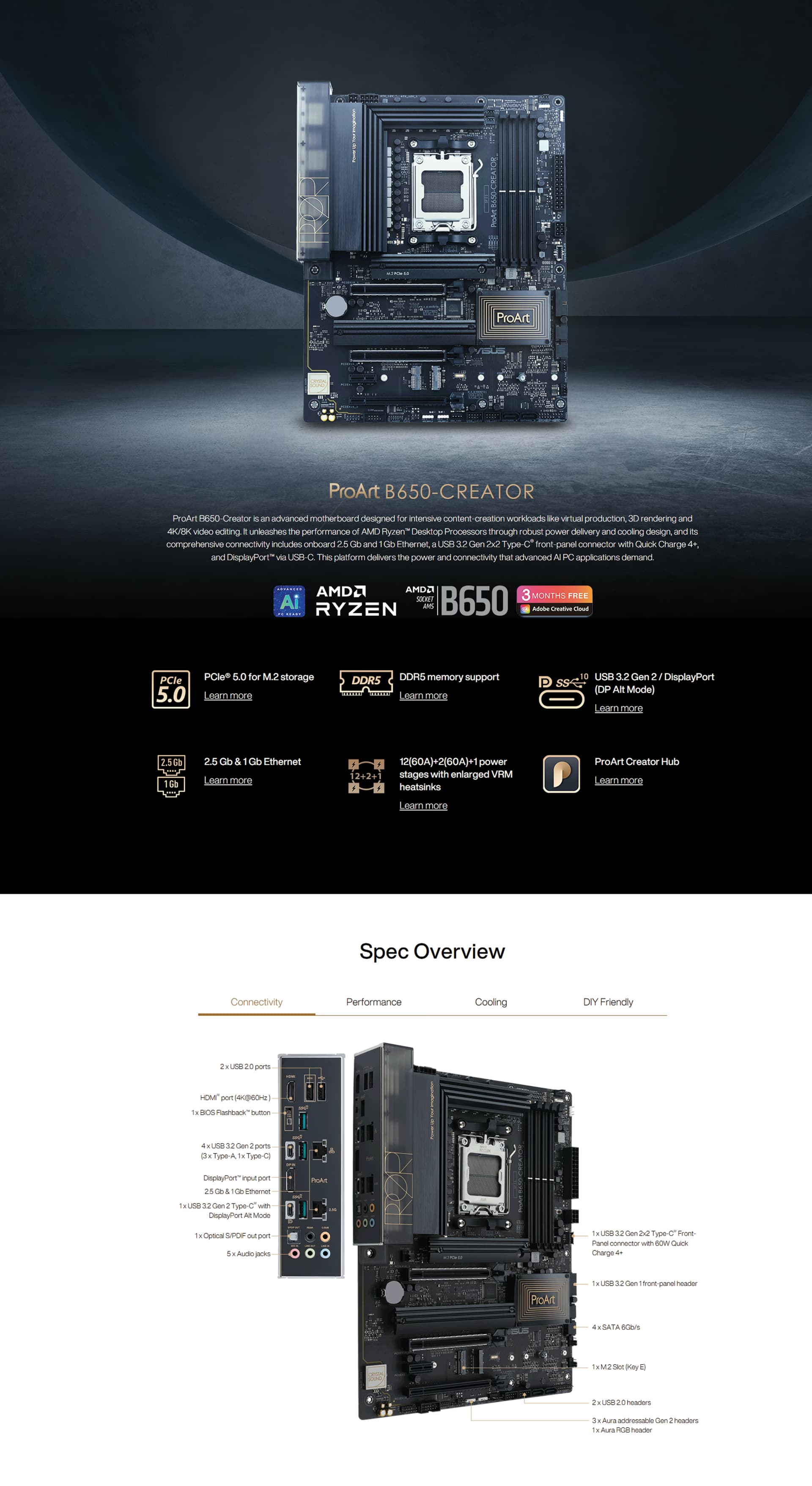

Asus ProArt B650-Creator ATX AMD Motherboard, AMD B650 Chipset, 4x DDR5 DIMM Slot, 192GB Max Memory, 3x M.2 Slots, Realtek 2.5Gb Ethernet, 2x PCIe 4.0 x16, Black | 90MB1C40-M0EAY0
Model :
SKU : MB-ASUS PROART B650 CREAT
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Model | ProArt B650-CREATOR |
| CPU | AMD Socket AM5 for AMD Ryzen??? 7000 Series/ 8000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. AMD Socket AM5 for AMD Ryzen??? 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO???) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. 4 x DIMM, Max. 128GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO???) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function. |
| Graphics | 1 x HDMITM port** 1 x USB Type-C?? port supports DisplayPort output*** * Graphics specifications may vary between CPU types. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards??? resolution. 1 x HDMI?? port** 1 x USB Type-C?? port supports DisplayPort output*** * Graphics specifications may vary between CPU types. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards??? resolution. |
| Expansion Slots | AMD Ryzen??? 7000 Series/ 8000 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)*** 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. *** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. AMD Ryzen??? 7000 Series Desktop Processors* 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)** 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen??? 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. *** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, PCIe)* *Wi-Fi module is sold separately. |
| USB | Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2 port (1 x USB Type-C??, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C??) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 1 x USB 3.2 Gen 2 port (1 x USB Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback* Audio Features: - SupremeFX Shielding Technology - ESS?? SABRE9023P DAC/AMP - Gold-Plated Audio Jacks - Rear Optical S/PDIF out port - Premium Japanese audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/384 kHz is not supported for 7.1-Channel audio. ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback* Audio Features: - SupremeFX Shielding Technology - ESS?? SABRE9023P DAC/AMP - Gold-Plated Audio Jacks - Rear Optical S/PDIF out port - Premium Japanese audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/384 kHz is not supported for 7.1-Channel audio. |
| Back Panel I/O Ports | 1 x USB4?? 40Gbps port (USB Type-C??) 1 x USB 3.2 Gen 2 port (1 x USB Type-C??, shared with display port) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI?? port 1 x Wi-Fi Module socket 1 x Realtek 2.5Gb Ethernet port 1 x Realtek 1Gb Ethernet port 1 x Optical S/PDIF out port 5 x Audio jacks 1 x BIOS FlashBack??? button 1 x USB4?? 40Gbps port (USB Type-C??) 1 x USB 3.2 Gen 2x2 port (USB Type-C??) 1 x USB 3.2 Gen 2 port (1 x USB Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI?? port 1 x Wi-Fi Module socket 1 x Realtek 2.5Gb Ethernet port 1 x Realtek 1Gb Ethernet port 1 x Optical S/PDIF out port 5 x Audio jacks 1 x BIOS FlashBack??? button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 1 x 4-pin High AMP Fan header 1 x W_PUMP+ header 1 x Water In header 1 x Water Out header 1 x Water Flow header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 8-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 front panel connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 20-3 pin System Panel header with Chassis intrude function 1 x 14-1 pin TPM header 1 x 10-1 pin System Panel header 1 x 3-pin Addressable Gen 2 header 1 x 4-pin Aura RGB header 1 x CPU Over Voltage jumper 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Mono out header 1 x S/PDIF out header 1 x SPI TPM header (14-1pin) 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 4 x 4-pin Chassis Fan headers 1 x 4-pin High AMP Fan header 1 x W_PUMP+ header 1 x Water In header 1 x Water Out header 1 x Water Flow header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 8-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 front panel connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 20-3 pin System Panel header with Chassis intrude function 1 x 14-1 pin TPM header 1 x 10-1 pin System Panel header 1 x 3-pin Addressable Gen 2 header 1 x 4-pin Aura RGB header 1 x CPU Over Voltage jumper 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Mono out header 1 x S/PDIF out header 1 x SPI TPM header (14-1pin) 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
| Special Features | - 16 + 2 power stages - ProCool II power connectors - Alloy Choke & Capacitor - Digi+ VRM ASUS Exclusive Software Features Armoury Crate - Aura Sync - Two-Way AI Noise Cancelation - Fan Xpert 4 with AI Cooling II - AI Suite 3 - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - DTS Headphone:X - GPU Tweak III ASUS Exclusive Software Features Armoury Crate - Aura Sync - Two-Way AI Noise Cancelation - Fan Xpert 4 with AI Cooling II - AI Suite 3 - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - DTS Headphone:X - GPU Tweak III |
| BIOS | 1 x 256 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.4, ACPI 6.2, Multilingual BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 hotkey, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information 1 x 256 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.4, ACPI 6.2, Multilingual BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 hotkey, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 3.0, WOL by PME, PXE WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Form Factor | ATX Form Factor 30.5 cm x 24.4 cm ATX Form Factor 30.5 cm x 24.4 cm |
Are you Building a Powerful Gaming PC with the Asus ProArt B650-Creator ATX AMD Motherboard?
The Asus ProArt B650-Creator ATX AMD is a high-performance motherboard. The Asus ProArt B650-Creator ATX AMD Motherboard is designed to cater to the needs of gamers who demand top-notch performance, reliability, and versatility. With its advanced features and cutting-edge technology, this motherboard is a game-changer in the world of gaming PCs. Get ready to unleash your gaming potential with the Asus ProArt B650-Creator ATX AMD Motherboard.
