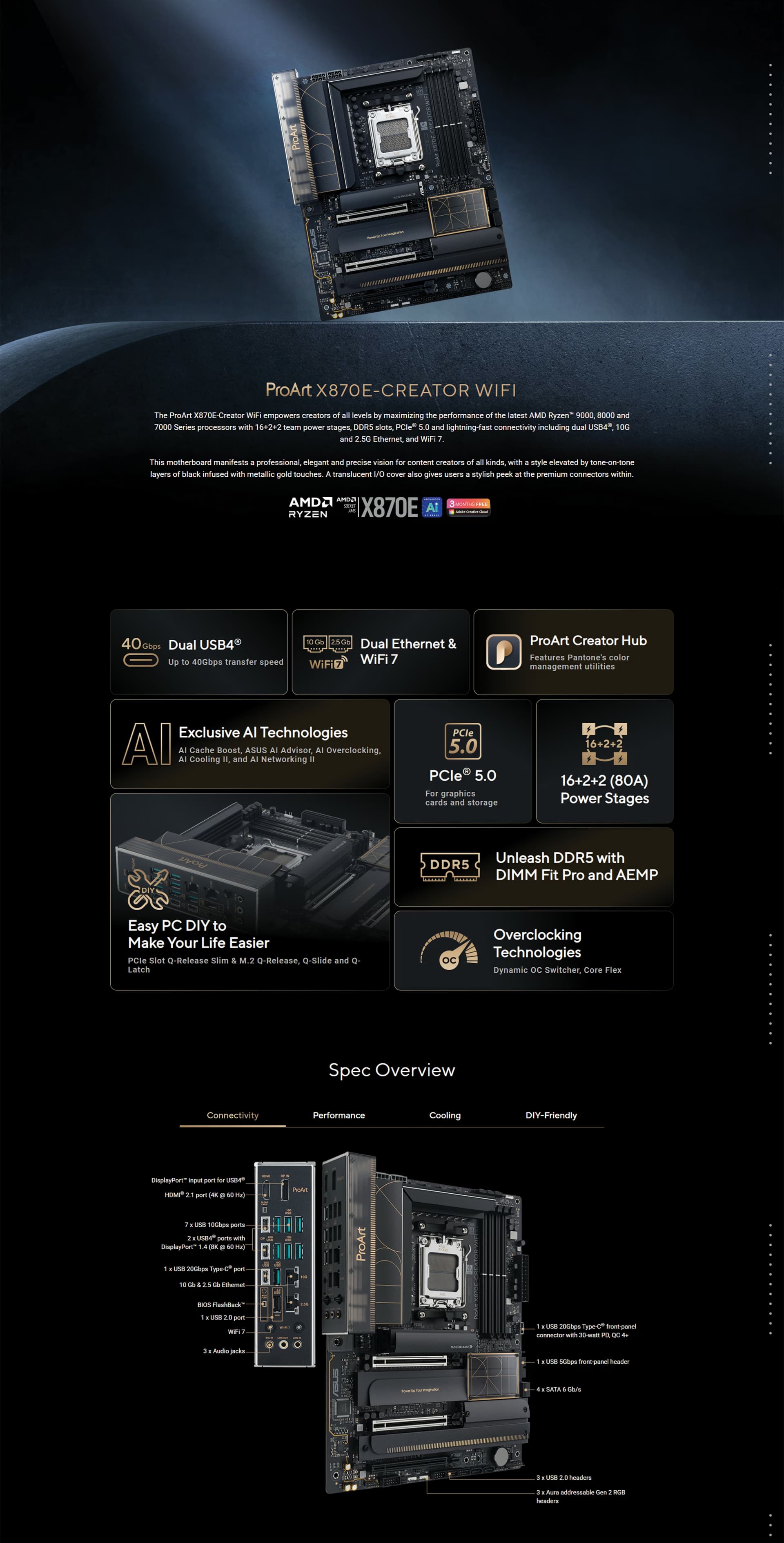

ASUS ProArt X870E-CREATOR WIFI AM5 DDR5 Motherboard, 4 x DIMM slots, max. 192GB, 4 x M.2 and 4 x SATA, PCIe 5.0, Dual USB4, Dual Ethernet & WiFi 7, AI Technologies, ProArt Creator Hub | 90MB1IG0-M0EAY0
Model :
SKU : MB-ASUS PROA X870E CRE WI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Model | ProArt X870E-CREATOR WIFI |
|---|---|
| CPU | AMD Socket AM5 for Ryzen??? 9000, 8000, 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 192GB DDR5, Dual Channel Memory Architecture Up to 8000+MT/s (OC) with Ryzen??? 9000, 8000, 7000 Series Processors Supports ECC and Non-ECC Un-buffered DIMM, AMD EXPO???, ASUS AEMP |
| Graphics | 1 x HDMI??? port (Supports 4K@60Hz, HDMI 2.1) 2 x USB4?? (40Gbps) Type-C (Supports up to 8K@60Hz DisplayPort 1.4) |
| Expansion Slots | Ryzen??? 9000 & 7000: 2 x PCIe 5.0 x16 slots with Q-Release Slim Ryzen??? 8700 & 8600 & 8400: 1 x PCIe 4.0 x16 slot Ryzen??? 8500 & 8300: 1 x PCIe 4.0 x16 slot Chipset: 1 x PCIe 4.0 x16 slot |
| Storage | 4 x M.2 slots (PCIe 5.0 & 4.0 support depending on CPU) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Marvell?? AQtion 10Gb Ethernet 1 x Intel?? 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be) 2x2, up to 6.5Gbps Bluetooth?? v5.4 |
| USB Ports | Rear: 2 x USB4?? (40Gbps), 1 x USB 20Gbps (Type-C), 7 x USB 10Gbps (Type-A), 1 x USB 2.0 Front: 1 x USB 20Gbps Type-C (with up to 30W PD), 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Supports up to 32-Bit/192 kHz playback |
| Back Panel I/O Ports | 2 x USB4?? (40Gbps), 1 x USB 20Gbps (Type-C), 7 x USB 10Gbps (Type-A), 1 x USB 2.0, 1 x DisplayPort (Input only), 1 x HDMI??? port, 1 x Wi-Fi Module, 1 x 10Gb Ethernet, 1 x 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack??? button, 1 x Clear CMOS button |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors 4 x M.2 slots, 4 x SATA 6Gb/s ports |
| Form Factor | ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/PC Components/Motherboards/ASUS ProArt X870E-CREATOR WIFI AM5 DDR5 Motherboar...
Similar Products

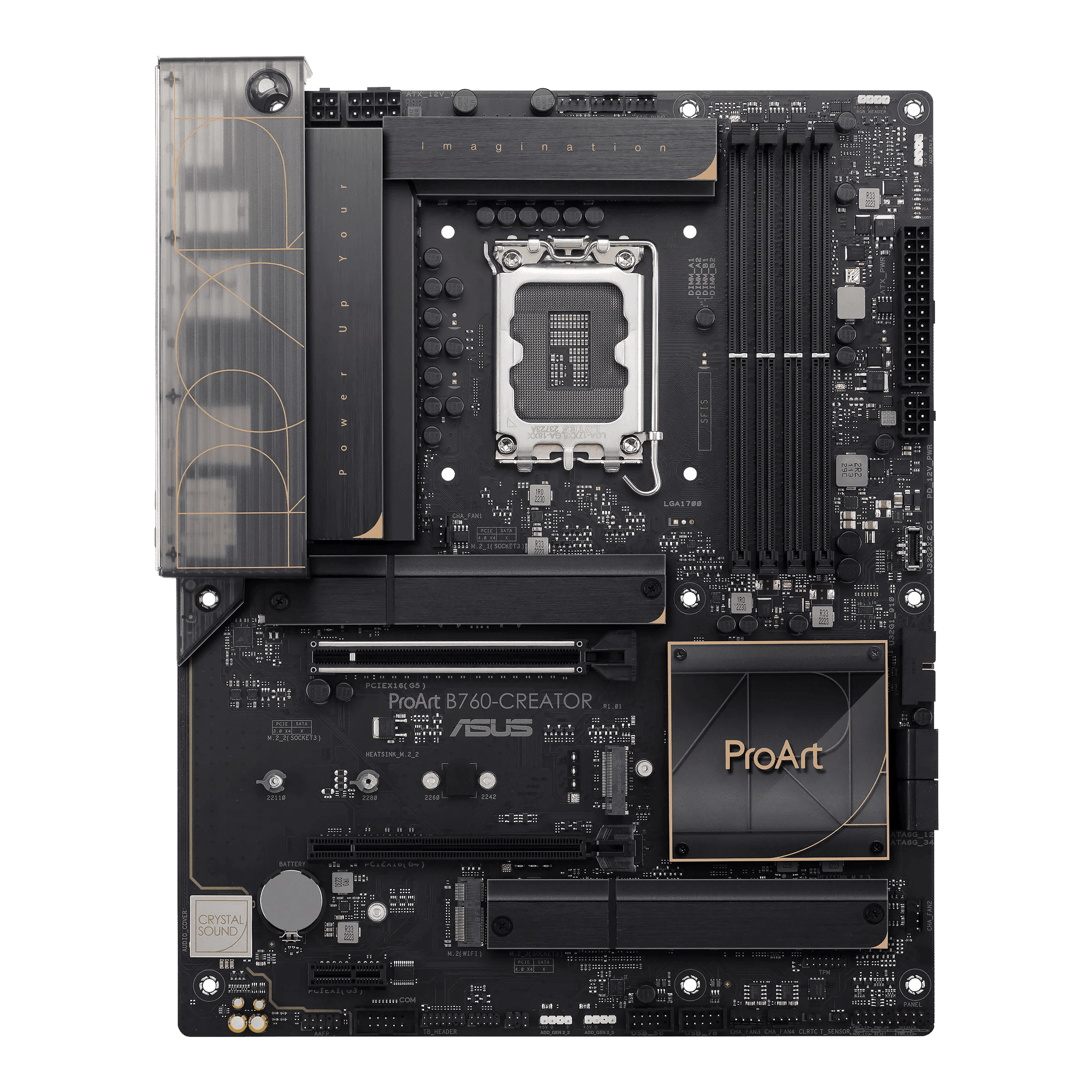

Asus ProArt B760-CREATOR DDR5 Motherboard, LGA1700 Socket, Intel B760 Chipset, M.2 Heatsink, PCIe 5.0, Thunderbolt 4 Header, 2.5G + 1G LAN, Max Memory 128GB 4xDIMM | 90MB1F20-M1EAY0
