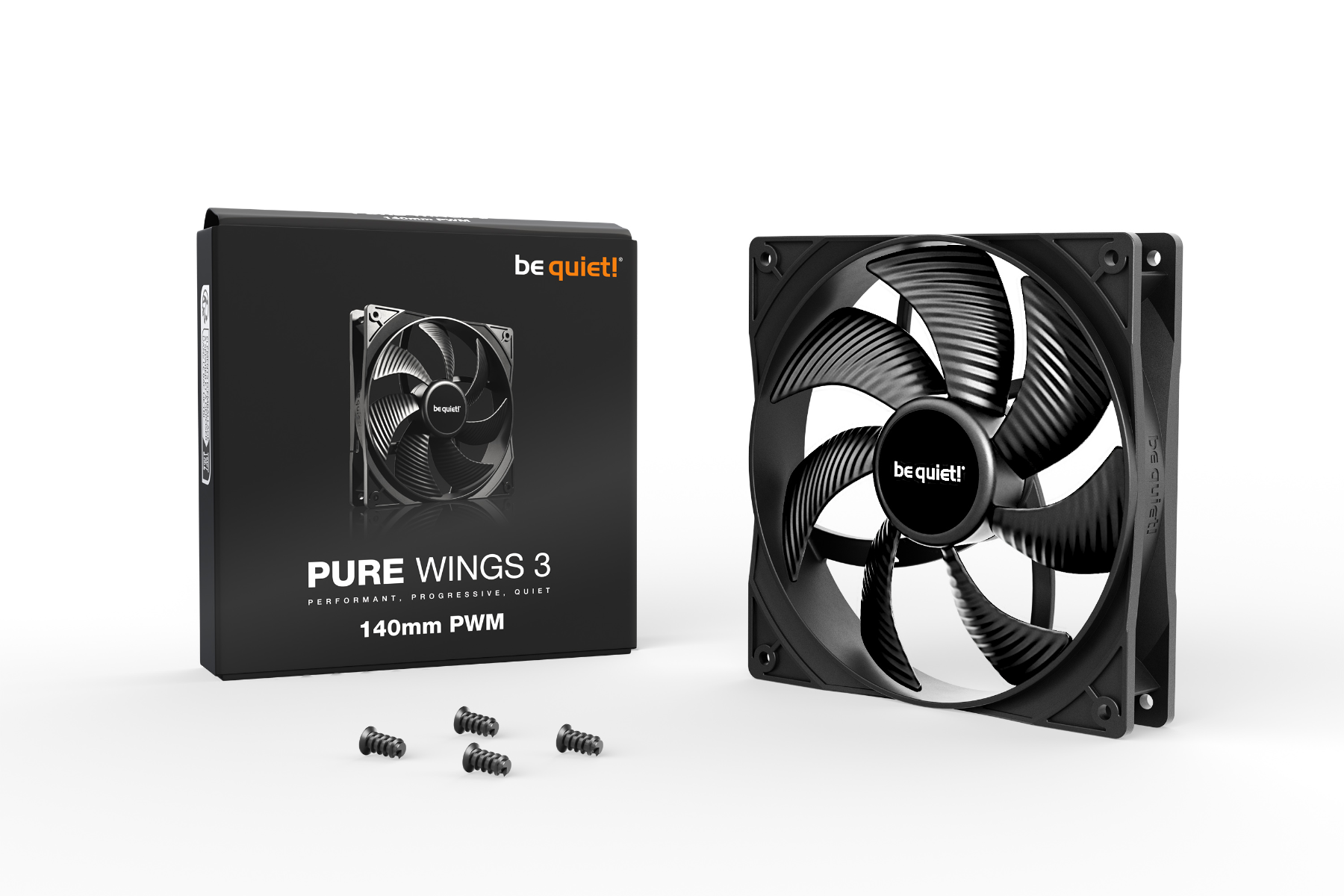

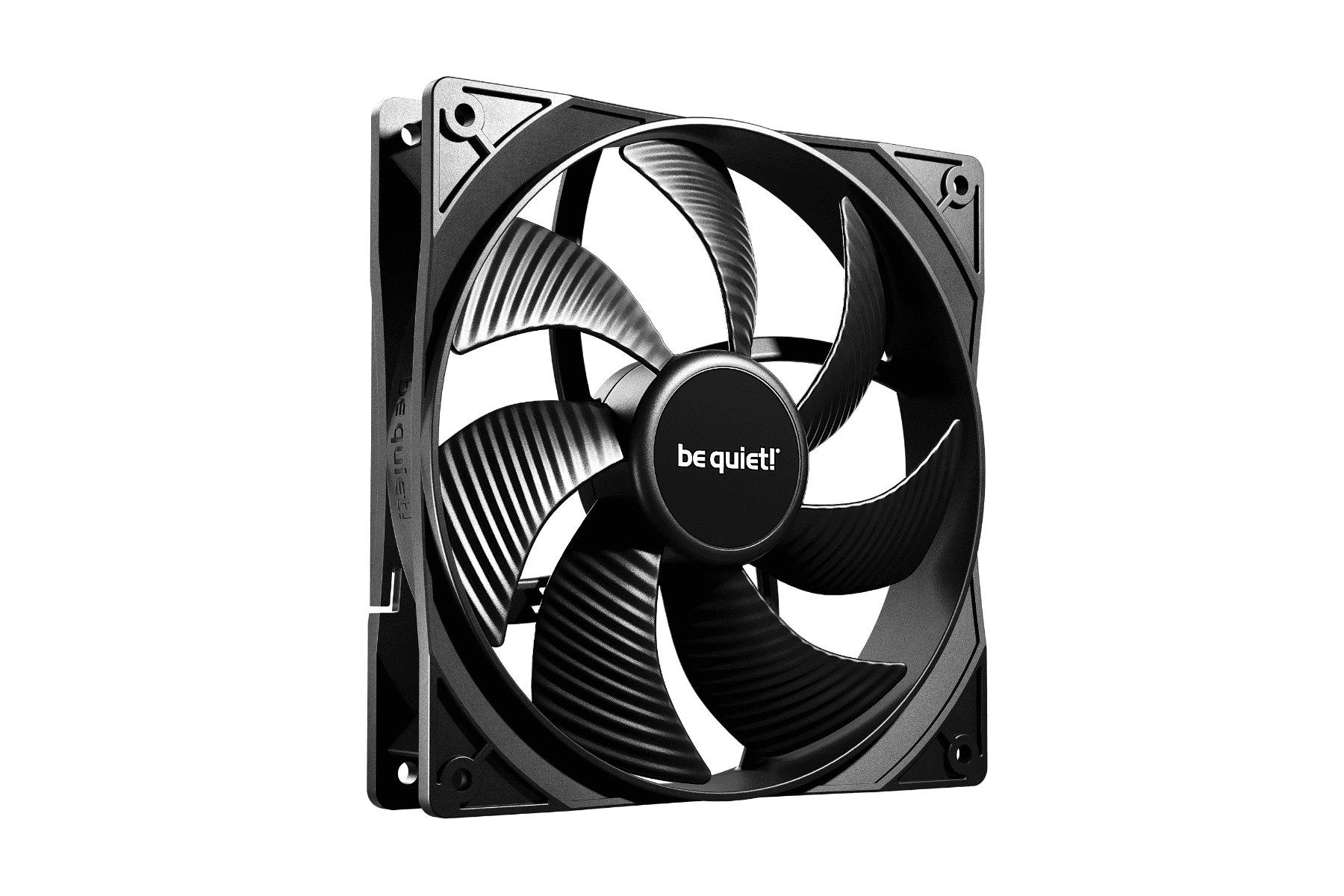

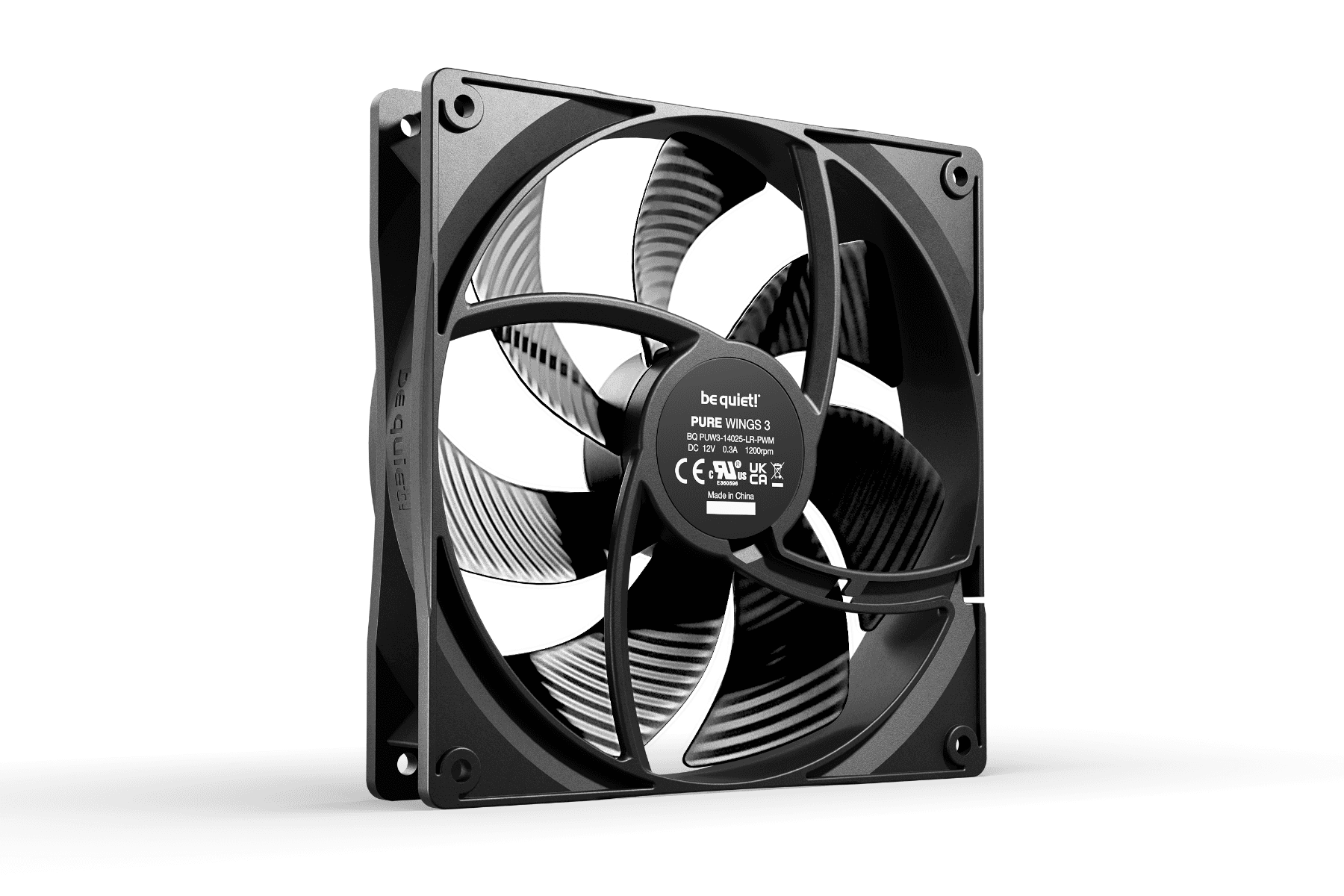

Be quiet! PURE WINGS 3 140mm PWM High-Speed Case Fans, 7 Airflow-Optimized Fan Blades, 1200RPM Fan Speed, Up to 57.4 CFM Airflow, Rifle Bearing Technology, Black | BL108
Model :
SKU : CF-BE QUIET BL108 140MM B
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Pure Wings 3 140mm PWM Specifications
General Data
| Model | Pure Wings 3 140mm PWM |
| Dimensions (mm) | 140 |
| Color Option | Black |
| Lighting | - |
| Fan Speed at 100% PWM / 12V (rpm) | 1200 |
| Noise Level at 100% PWM / 12V (dB(A)) | 21.9 |
| Airflow at 100% PWM / 12V (CFM / m??/h) | 57.4 / 97.5 |
| Air Pressure at 100% PWM / 12V (mm H???O) | 0.96 |
Mechanical Specifications
| Dimensions (L x W x H) (mm) | 140 x 25 x 140 |
| Weight incl. fixed cables (g) | 180 |
| Bearing Technology | Rifle |
| Motor Technology | 4-pole fan motor |
| Push Pin Fixing | - |
| Screw Fixing | ??? |
Cables / Connectors
| Daisy-Chain Compatible | - |
| Lighting Connector | - |
| Connector | 4-pin PWM |
| Cable Length (mm) | 460 |
| Cable Sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m??/h) | 57.4 / 97.5 |
| Air Pressure at 100% PWM / 12V (mm H???O) | 0.96 |
| Noise Level at 100% PWM / 12V (dB(A)) | 21.9 |
| Lifespan (h / 25??C) | 80,000 |
| Zero RPM Mode | - |
Electrical Specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input Current (A) | 0.06 |
| Safety Current (A) | 0.30 |
| Input Power (W) | 3.6 |
Accessories
| 3-pin to 4-pin 12V Connector | - |
| 12V to 7V Adapter | - |
| 12V to 5V Adapter | - |
| Screws | 4 |
| Push Pins | - |
| Hard Plastic Washer | - |
Safety Certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental Directives
| RoHS | ??? |
| WEEE | ??? |
| Triman | ??? |
Service
| Warranty (Years) | 3 |
| International Hotline / Free of Charge | ??? / DE, FR, US |
Logistics Data and RRP
| Article Number | BL108 |
| EAN Code | 4260052190807 |
| Dimensions, Package (L x W x H) (mm) | 174 x 27 x 142 |
| Gross Weight, Package (kg) | 0.21 |
| Pieces per Packaging Unit | 72 |
| Dimensions, Shipping Box (L x W x H) (mm) | 482 x 395 x 370 |
| Gross Weight, Shipping Box (kg) | 16.86 |
| RRP (???) | 14.90 |
