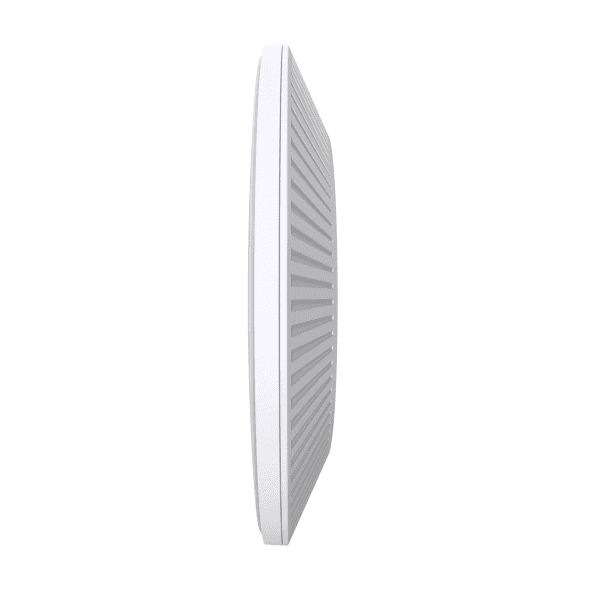

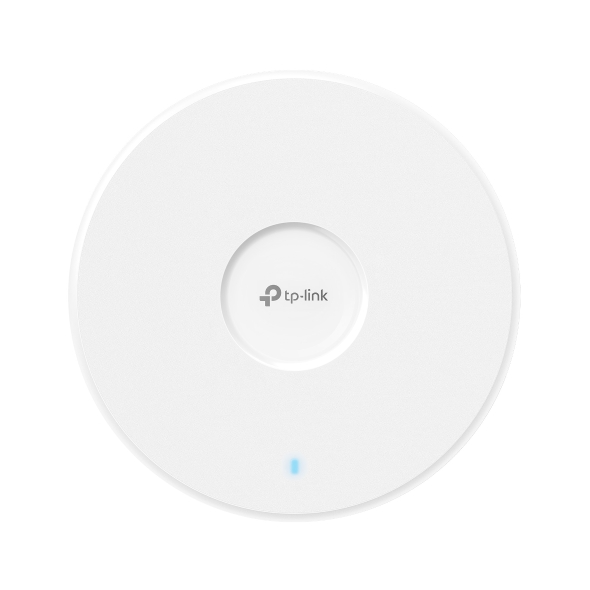

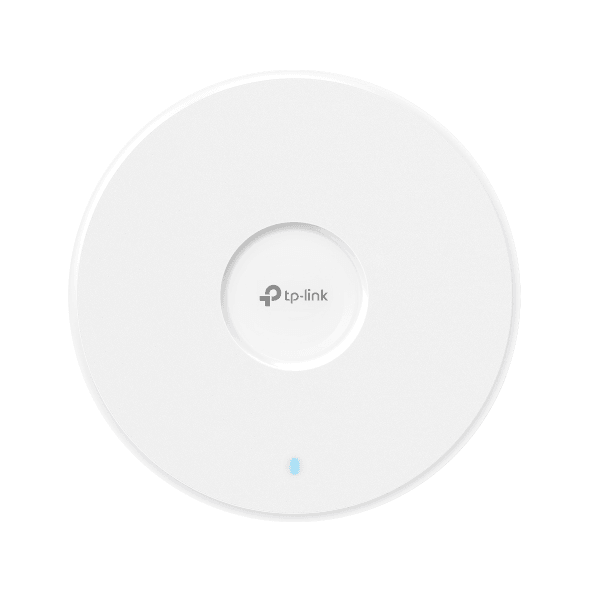

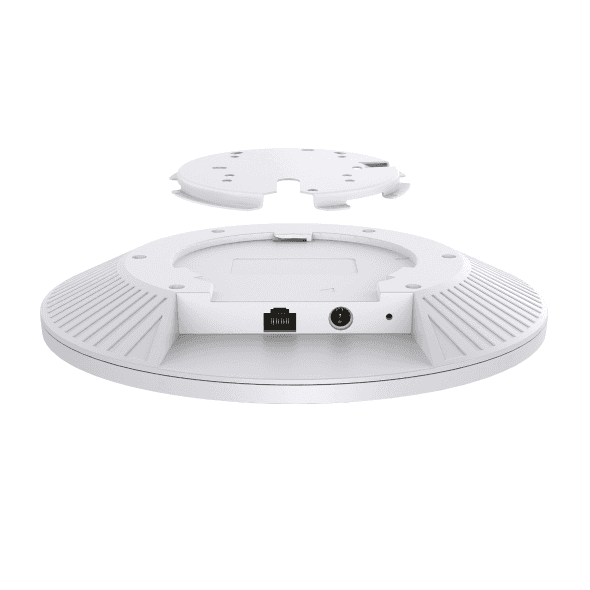

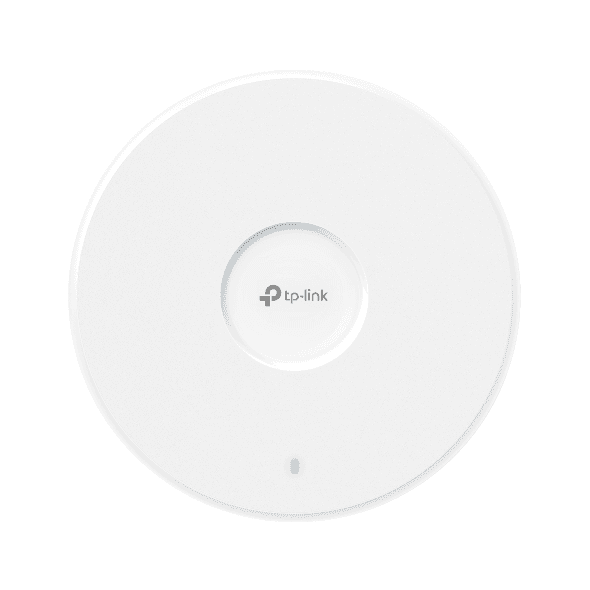

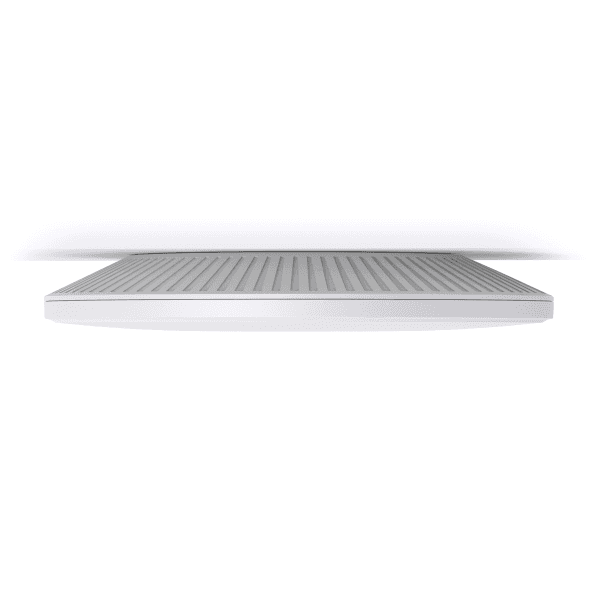

tp-link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, Tri-Band, 1x 2.5G Port, Low Latency and Interference
Model :
SKU : WAP-TPLINK EAP772 BE9300
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
tp-link EAP772 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, Tri-Band, 1x 2.5G Port, Low Latency and Interference Specifications
| Interface | 1?? 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Power Consumption | Support Smart Power Consumption Management ??? 24.05 W (802.3bt, full functionality) ??? 20.92 W (12/2.5A, full functionality) ??? 22.4 W (802.3at decrease 6GHz Power) ??? 10.1 W (802.3af, radio off, only main chip and LAN working) |
| Dimensions (W x D x H) | 8.7 ?? 8.7 ?? 1.3 in (220 ?? 220 ?? 32.5 mm) |
| Antenna Type | ??? 2.4 GHz: 2?? 3.0 dBi ??? 5 GHz: 2?? 3.0 dBi ??? 6 GHz: 2?? 3.0 dBi |
| Bluetooth | 1 ?? 4.0 dBi, Bluetooth 5.2 *Firmware update may be required. |
| Mounting | Ceiling / Wall Mounting (Kits Included) |
| Coverage | 140??? (1500 ft??) |
| Wireless Client Capacity | 2 GHz: 128 5 GHz: 128 6 GHz: 128 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz) |
| Wireless Functions | ??? MLO, 4K-QAM, MU-MIMO, HE320, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs (24 total, 8 per band), Wireless Schedule, Reboot Schedule, QoS (WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication |
| Wireless Security | ??? Captive Portal Authentication, Access Control, MAC Filter (max 4,000), Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1 & 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) < 23 dBm (6 GHz, EIRP) |
| Management | Omada App, Omada Cloud-Based Controller, Omada Hardware Controllers (OC300, OC200), Omada Software Controller, Cloud Access (requires OC300, OC200, Software Controller, or Cloud Controller), Email Alerts, LED ON/OFF Control, Management MAC Access Control, SNMP (v1, v2c, v3), Local/Remote Syslog, Web-based Management |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | ??? EAP773 ??? Installation Guide ??? Ceiling/Wall Mounting Kits Note: Power Adapter is NOT included. |
| Environment | ??? Operating Temperature: 0 ??C???40 ??C (32 ??F???104 ??F) ??? Storage Temperature: -40 ??C???70 ??C (-40 ??F???158 ??F) ??? Operating Humidity: 10%???90% non-condensing ??? Storage Humidity: 5%???90% non-condensing |
