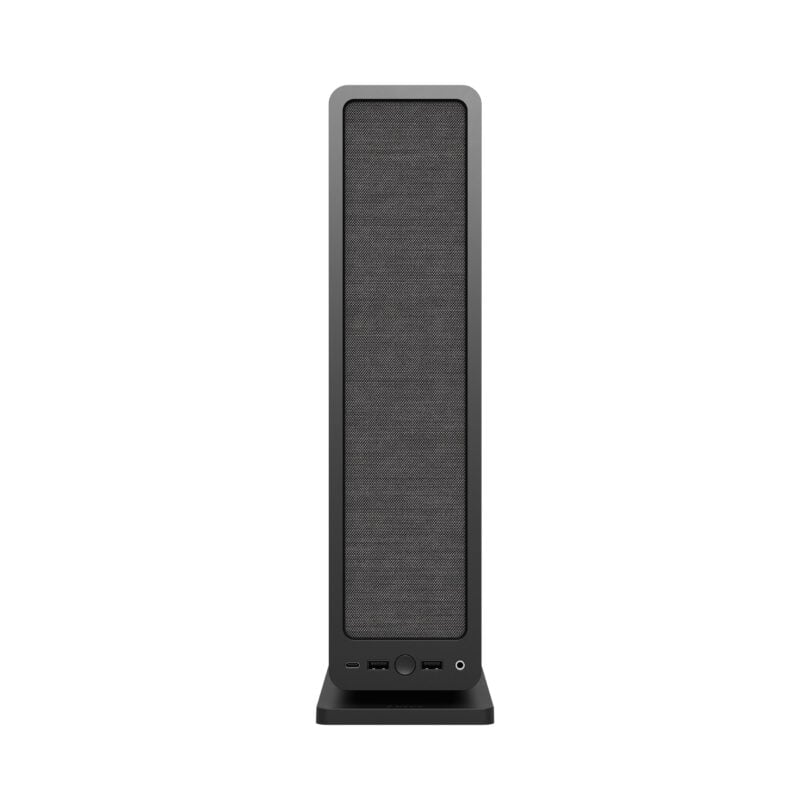

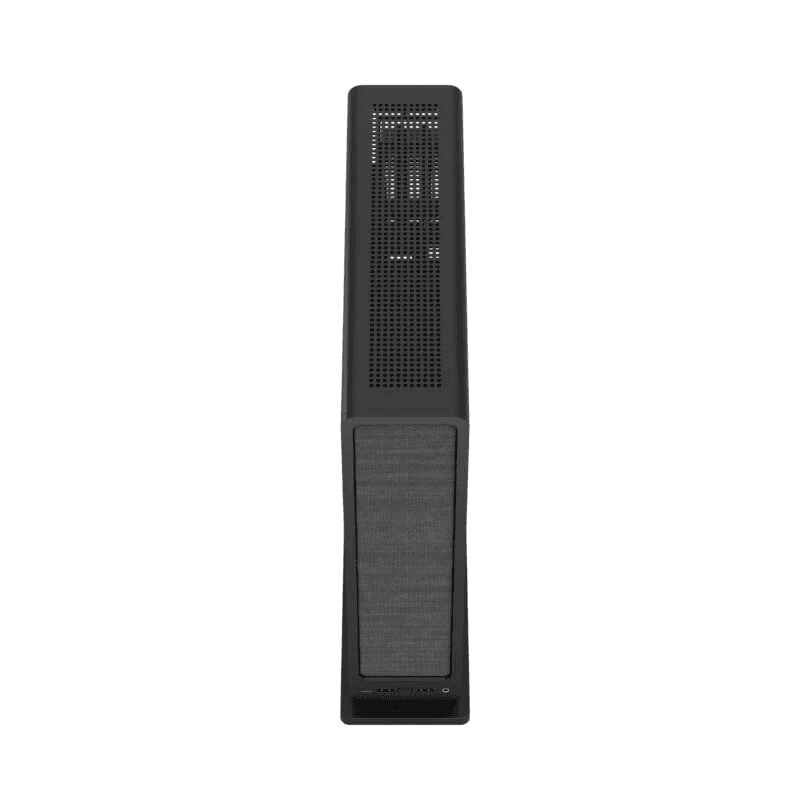

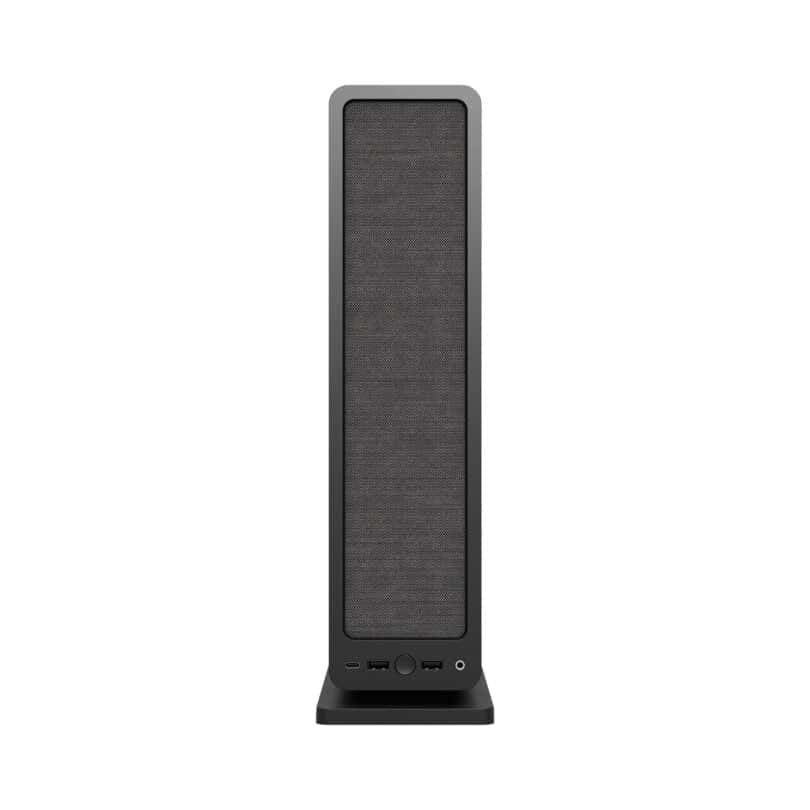

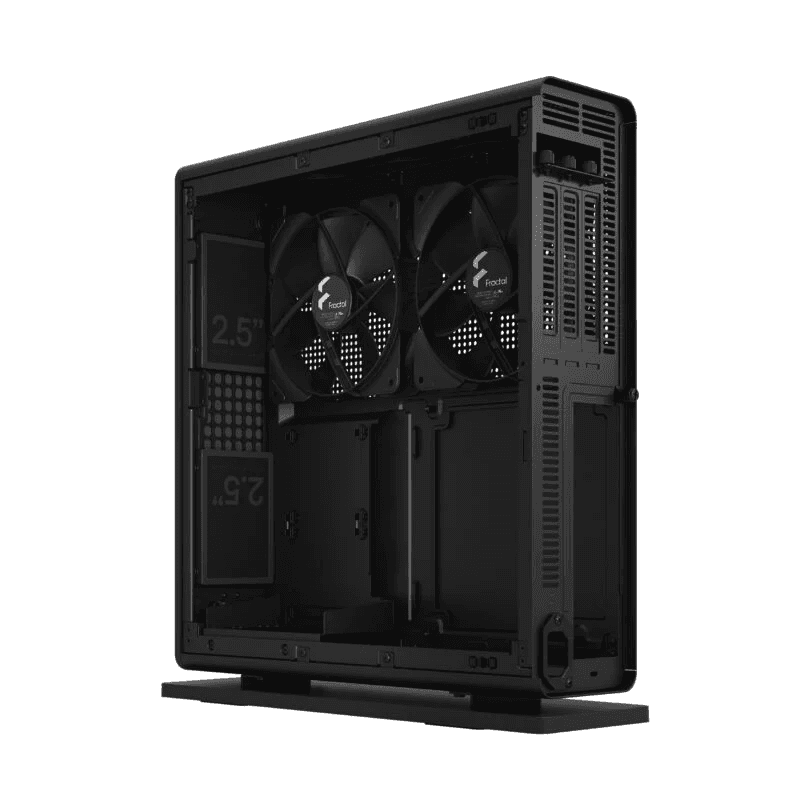

Fractal Design Ridge Black Mini ITX PC Case, PCIe 4.0, Small Form Factor Case With A Volume Of 12.6 Liters, Steel | FD-C-RID1N-11

Model :

SKU : ATX-FRACTAL RIDGE BLACK

About this item

??? Supports GPUs up to a length of 335 mm
??? All panels are removable, enabling maximum accessibility
??? Available with either PCIe 4.0 or PCIe 3.0 riser card

dirham-symbol0

Inclusive of VAT

Delivery to

FREE scheduled delivery as soon as Loading...

Sold and shipped by: Adarc computers

1

AED 0.00

stock : 1

About this item

Description

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }

Fractal Design Ridge Black Mini ITX PC Case, PCIe 4.0, Small Form Factor Case With A Volume Of 12.6 Liters, Steel | FD-C-RID1N-11

Dedicated 2.5" drive mounts4x included, 4x positions total
Expansion slots3-slot
Front interface1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack ??? Audio/Microphone, power button, power LED
Total fan mounts2x 120/140 mm and 3x 80 mm
Side fan2x 120/140 mm (2x PWM Aspect fan 140 mm included)
Top fan3x 80 mm (not included)
Cable routing space13.8 mm (behind PSU)
Tool-less slide with thumbscrew lockYes
Side panels
  • Left side panel: Steel
  • Right side panel: Steel
Compatibility
  • Motherboard compatibility: Mini ITX
  • Power supply type: SFX, SFX-L
  • Side radiator: 120 mm when ???175mm long GPUs are installed (280 mm without GPU)
  • PSU max length: SFX-L
  • GPU max length: 325 mm with SSD installed. 335 mm without SSD installed.
  • GPU max height: 125 mm with top fan(s) installed, 137 mm without top fans
  • GPU max thickness: 57 mm with 2x 140 mm fans installed, 82 mm without side fans
  • CPU cooler max height: 70 mm
Dimensions
  • Case dimensions: Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
  • Case dimensions w/o feet/protrusions/screws: 355 x 95 x 375 mm
Net weight4.3 kg
Package dimensions (LxWxH)426 x 167 x 431 mm
Gross weight5.5 kg
Volume12.6 liter
Other
  • Package contents: Case, Accessory box, Manual
  • SKU (Ridge): Black: FD-C-RID1N-01, White: FD-C-RID1N-02
  • SKU (Ridge PCIe 4.0): Black: FD-C-RID1N-11, White: FD-C-RID1N-12
  • EAN (Ridge): Black: 7340172703969, White: 7340172703976
  • EAN (Ridge PCIe 4.0): Black: 7340172706090, White: 7340172706106
  • UPC (Ridge): Black: 843276103965, White: 843276103972
  • UPC (Ridge PCIe 4.0): Black: 843276106096, White: 843276106102
  • JAN (Ridge): Black: 4537694302494, White: 4537694302500
  • JAN (Ridge PCIe 4.0): Black: 4537694323123, White 4537694323130
  • Warranty: 2 Years

Specification

table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }

Fractal Design Ridge Black Mini ITX PC Case, PCIe 4.0, Small Form Factor Case With A Volume Of 12.6 Liters, Steel | FD-C-RID1N-11

Dedicated 2.5" drive mounts4x included, 4x positions total
Expansion slots3-slot
Front interface1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack ??? Audio/Microphone, power button, power LED
Total fan mounts2x 120/140 mm and 3x 80 mm
Side fan2x 120/140 mm (2x PWM Aspect fan 140 mm included)
Top fan3x 80 mm (not included)
Cable routing space13.8 mm (behind PSU)
Tool-less slide with thumbscrew lockYes
Side panels
  • Left side panel: Steel
  • Right side panel: Steel
Compatibility
  • Motherboard compatibility: Mini ITX
  • Power supply type: SFX, SFX-L
  • Side radiator: 120 mm when ???175mm long GPUs are installed (280 mm without GPU)
  • PSU max length: SFX-L
  • GPU max length: 325 mm with SSD installed. 335 mm without SSD installed.
  • GPU max height: 125 mm with top fan(s) installed, 137 mm without top fans
  • GPU max thickness: 57 mm with 2x 140 mm fans installed, 82 mm without side fans
  • CPU cooler max height: 70 mm
Dimensions
  • Case dimensions: Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
  • Case dimensions w/o feet/protrusions/screws: 355 x 95 x 375 mm
Net weight4.3 kg
Package dimensions (LxWxH)426 x 167 x 431 mm
Gross weight5.5 kg
Volume12.6 liter
Other
  • Package contents: Case, Accessory box, Manual
  • SKU (Ridge): Black: FD-C-RID1N-01, White: FD-C-RID1N-02
  • SKU (Ridge PCIe 4.0): Black: FD-C-RID1N-11, White: FD-C-RID1N-12
  • EAN (Ridge): Black: 7340172703969, White: 7340172703976
  • EAN (Ridge PCIe 4.0): Black: 7340172706090, White: 7340172706106
  • UPC (Ridge): Black: 843276103965, White: 843276103972
  • UPC (Ridge PCIe 4.0): Black: 843276106096, White: 843276106102
  • JAN (Ridge): Black: 4537694302494, White: 4537694302500
  • JAN (Ridge PCIe 4.0): Black: 4537694323123, White 4537694323130
  • Warranty: 2 Years
