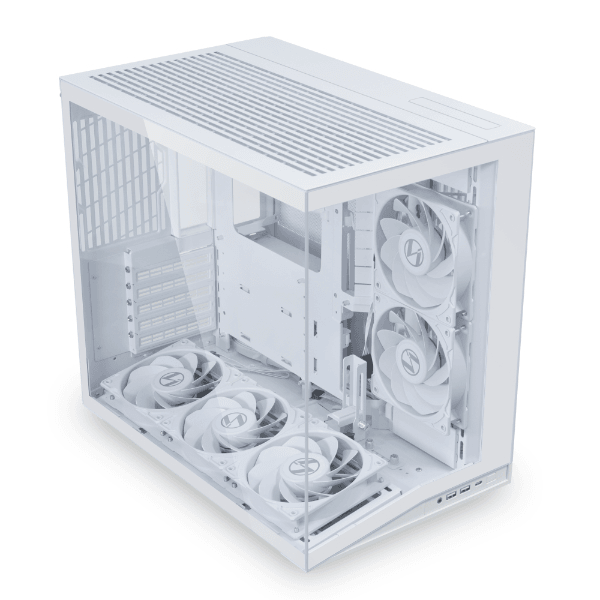

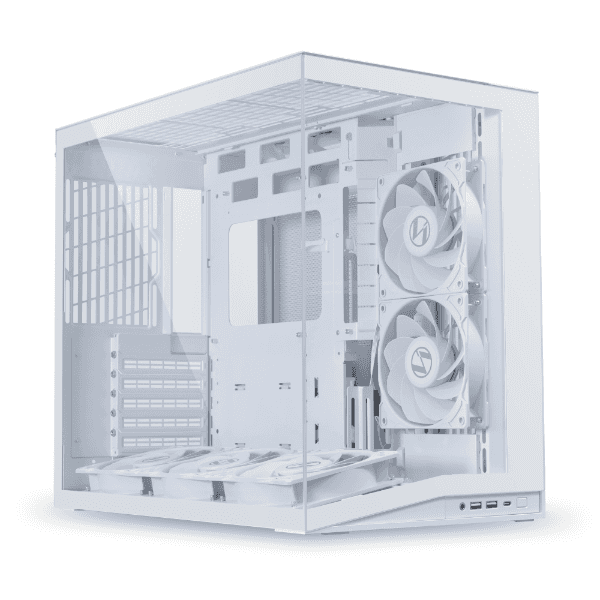

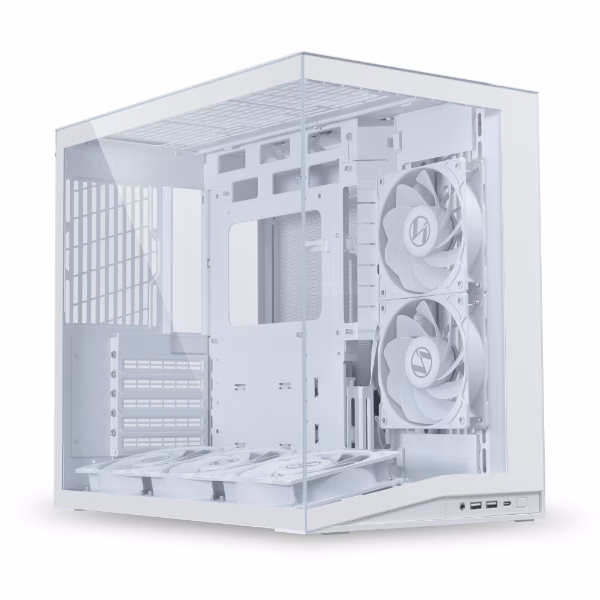

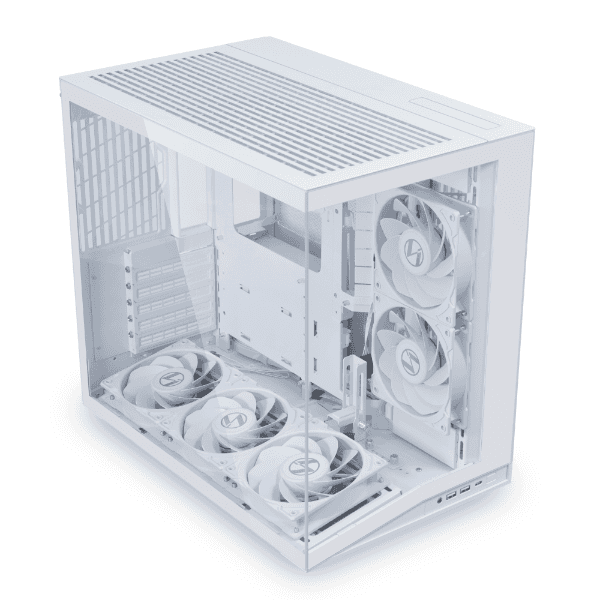

Home/Gaming ATX Cases/Lian Li O11D mini V2 Flow White Computer Case, 5x ...
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
A compact chassis refined for serious performance, offering smart cooling, modular flexibility, and clean aesthetics in one sleek build.
Extended Side Mesh for ATX PSU
10° Slanted Bottom
Dual m-ATX Mounting Levels for AIO
5 Pre-Installed Reverse Blade Fans
Optimized GPU Cooling
Top or Bottom I/O Placement
Adjustable Vertical GPU Bracket
FOUR STYLISH OPTIONS, ONE PERFECT FIT
Available in black or white, with or without pre-installed fans. Four SKUs to match your build preferences.
ATX BACK-CONNECT MOTHERBOARD SUPPORT
The case offers broad motherboard support, including standard ATX, M-ATX, and Mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards.
Important Notice: Typical ATX motherboards with an NVMe M.2 between the CPU and first PCIe slot are generally compatible as they will line up with PCIe slot 2. The O11D Mini V2 has only 5 PCIe slots due to a compact design, so motherboards with the PCIe slot directly under the CPU will need to use the included vertical GPU mount for installation, and a 200mm riser cable (sold separately). All m-ATX and ITX motherboards are compatible, as the standoffs can be moved down by one PCIe slot.
| Product Name | O11D MINI V2 Flow |
| Model No. | O11DMIV2FX / O11DMIV2FW |
| Color | Black / White |
| Dimensions (D x W x H) | 423.6mm x 273.3mm x 391.95mm |
| Materials | 2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass |
| Motherboard Support | Back-Connect ATX / ATX / Micro-ATX / Mini-ITX |
| Expansion Slot | 5 |
| Storage | Drive Cage: 2.5” SSD x 2 or 3.5” HDD x 2 Behind MB Tray: 2.5” SSD x 2 |
| GPU Length Clearance | 400 mm |
| CPU Cooler Height Clearance | 160 mm |
| PSU Support | ATX (Under 200mm) |
| Top | 240mm / 280mm / 360mm (Note: 280mm radiator requires mounting motherboard one slot lower) |
| Side | 240mm |
| Top | 120mm x 3 or 140mm x 2 |
| Side | 120mm x 2 |
| Bottom | 120mm x 3 |
| Rear | 120mm x 1 |
| Included Fans | Side: Reverse blade 120mm PWM fan x2 Bottom: Reverse blade 120mm PWM fan x3 |
| Dust Filter | Bottom x 1 |
| I/O Ports | USB 3.0 x 2 USB 3.2 Type-C x 1 Audio x 1 Power Button x 1 |
| Warranty | Case: 1 Year Fans: 3 Years |
