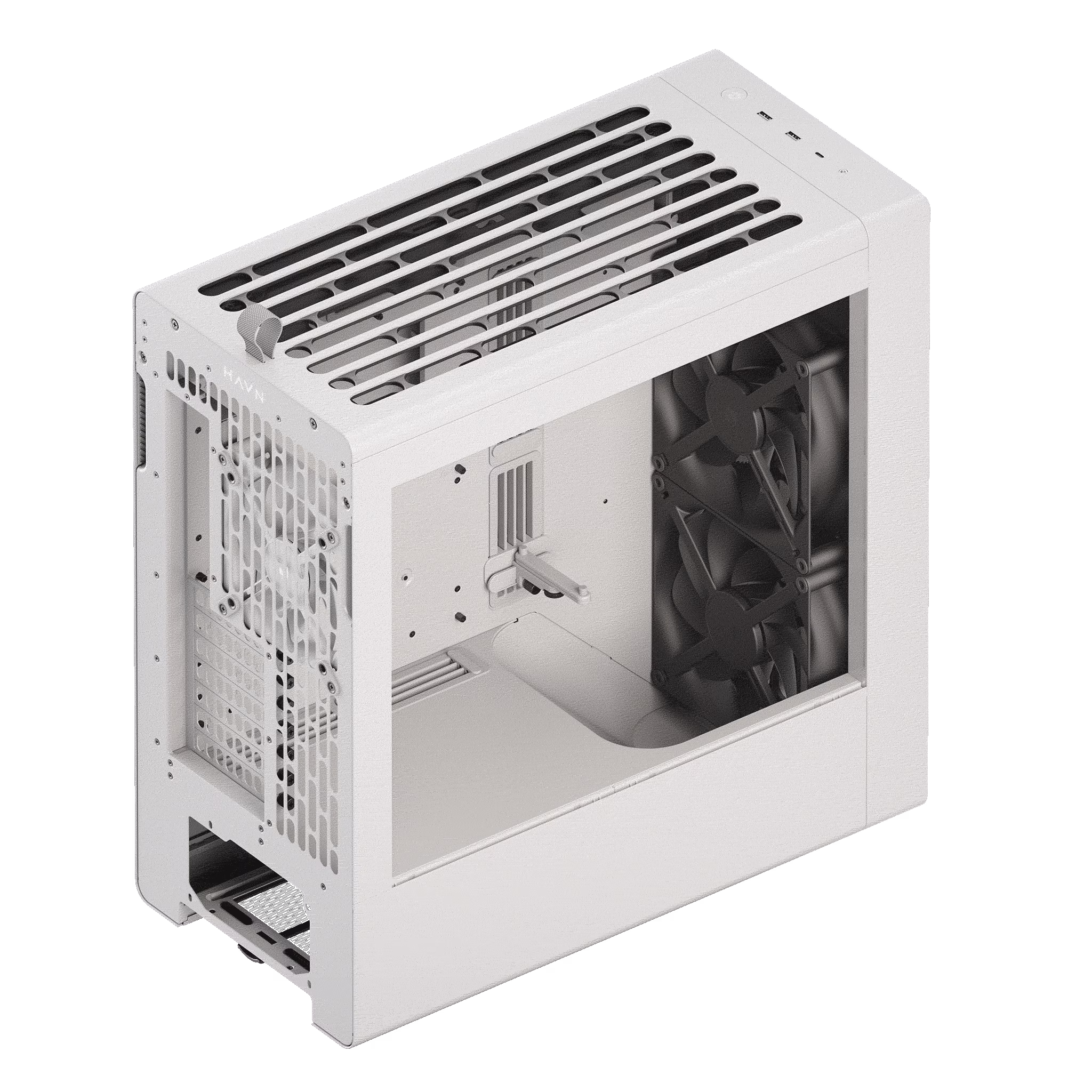

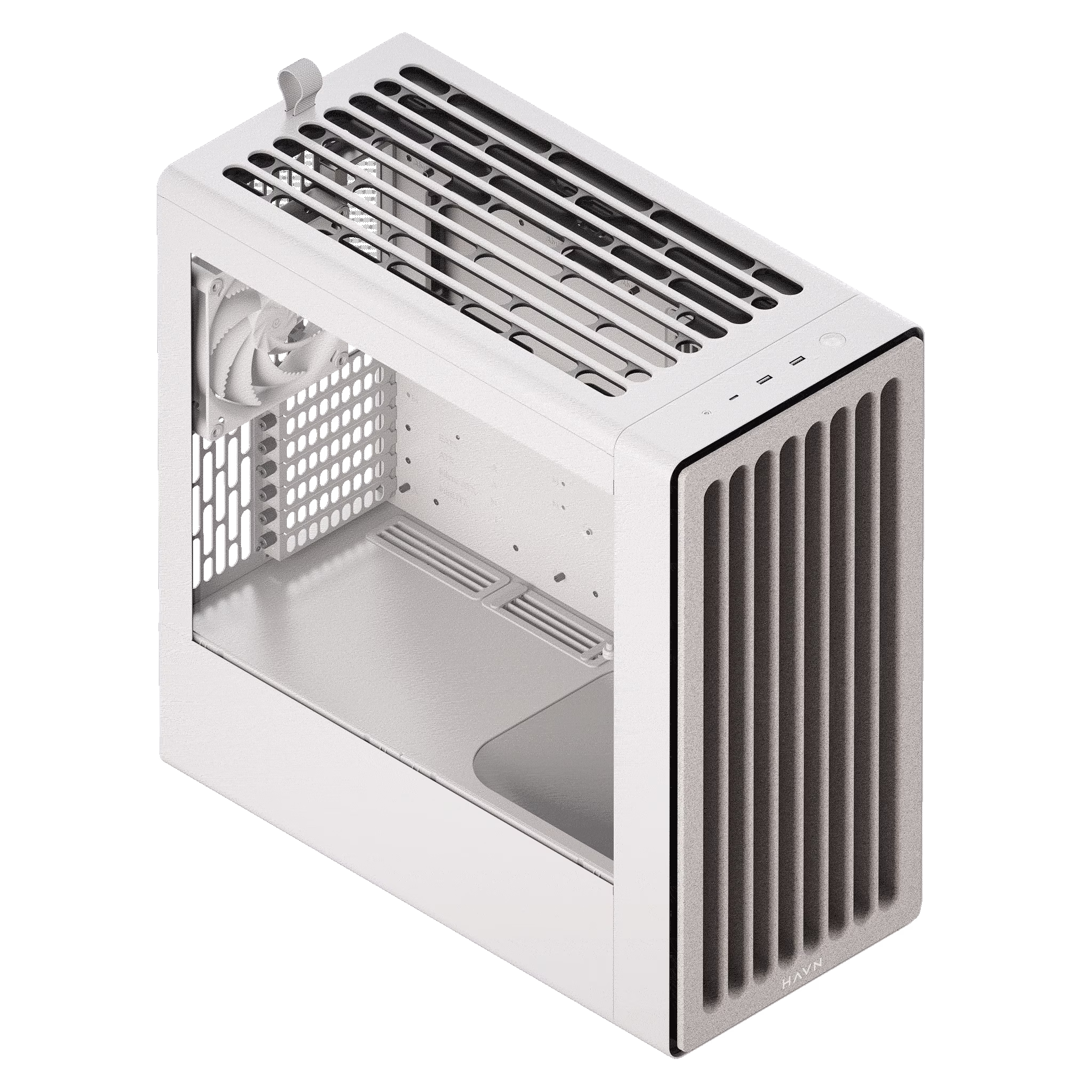

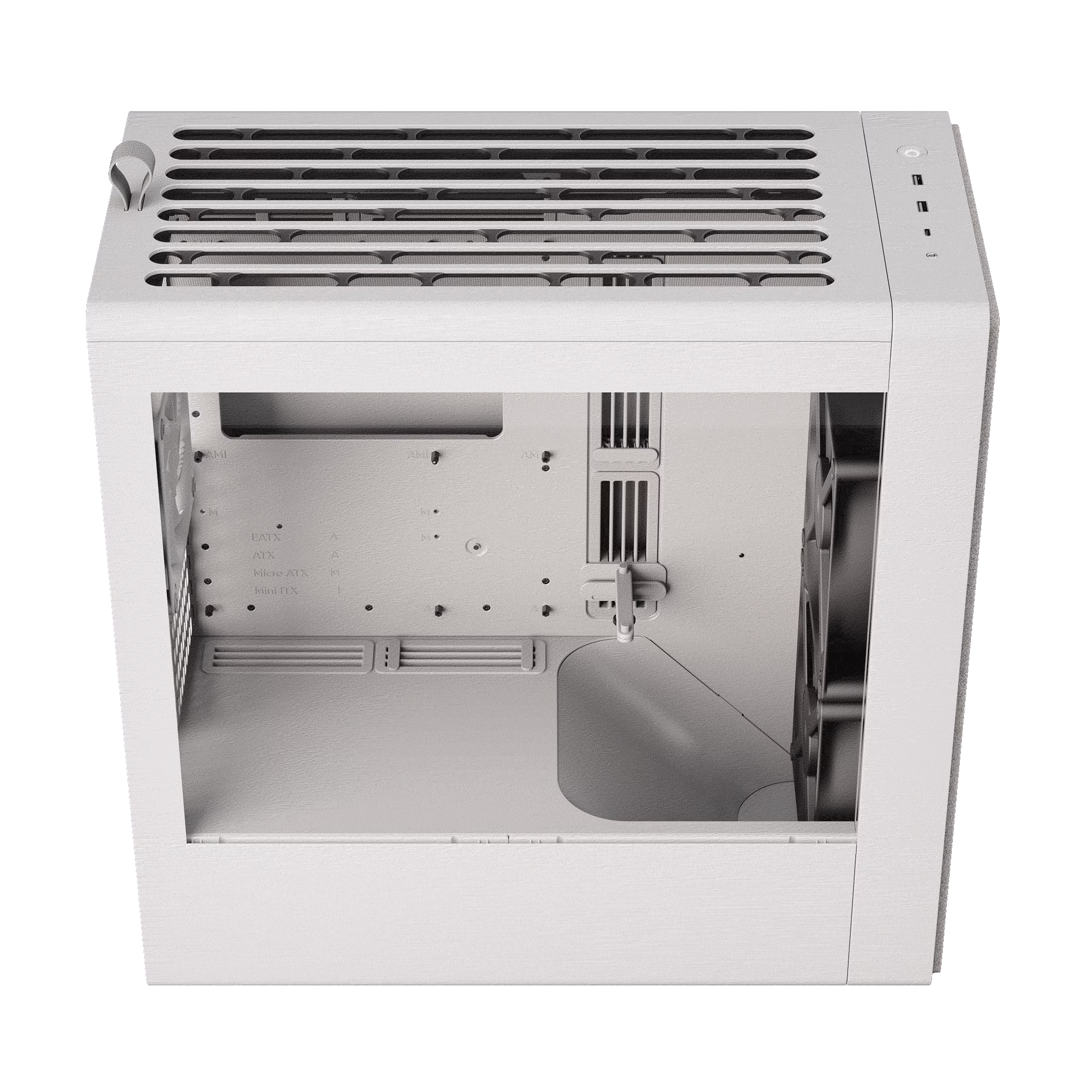

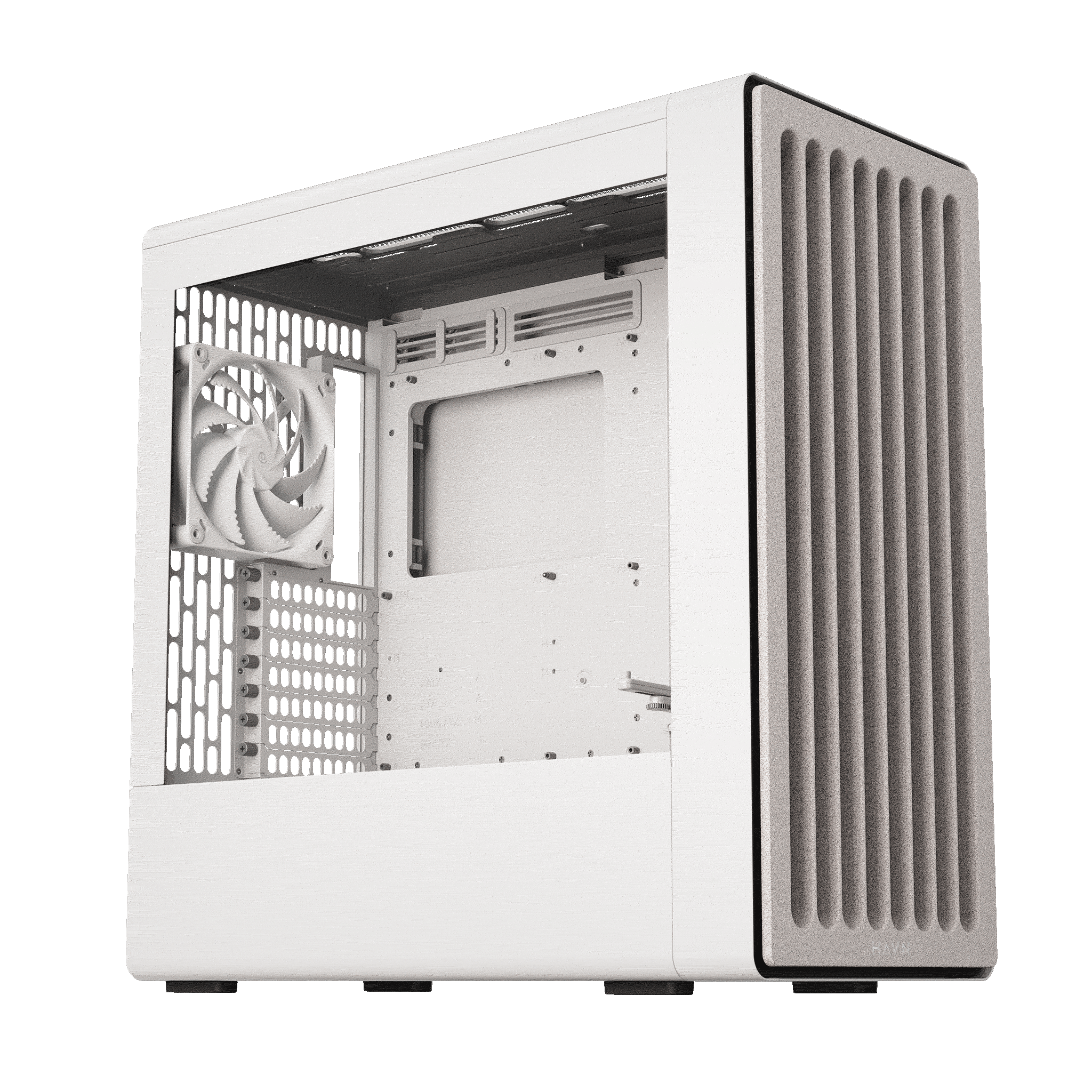

HAVN BF 360 Flow White Mid-Tower Computer Case, Dual 180mm FDB Fans, GPU Air Guide Ramp, E-ATX Support, 360mm AIO Support
Model : HAVN BF 360 FLOW
SKU : ATX-HAVN BF 360 FLOW WHIT
Color :
WHITE
About this item
About this item
Description
Maximum Airflow, Minimalist Design: HAVN BF 360 Flow White PC Case
The HAVN BF 360 Flow White is engineered to house the most powerful modern hardware while maintaining optimal cooling and whisper-quiet operation. It perfectly blends high-performance features with a sophisticated, minimalist design.
Unrivaled Cooling Performance:

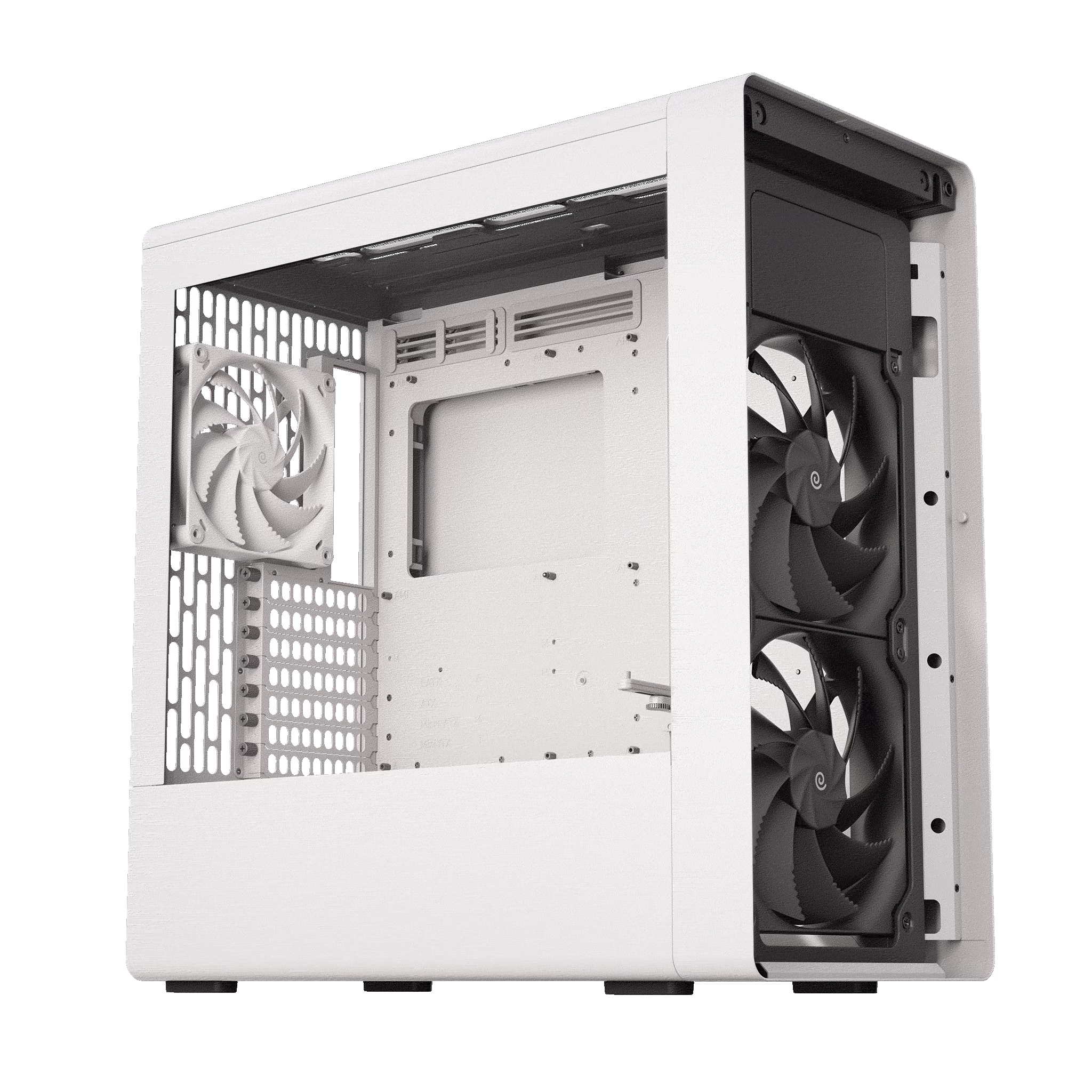

- Dual 180mm Front Fans: Comes pre-installed with two large 180mm high-airflow fans (Case Version) designed to pull massive amounts of cool air directly into the system.
- FDB Bearing Technology: All pre-installed fans use premium Fluid Dynamic Bearings and vibration isolation for incredibly quiet performance under load.
- GPU-Focused Air Guide: Features an internal ramp designed to direct airflow specifically towards the graphics card, significantly improving GPU cooling efficiency.
360mm AIO Support: Dedicated top mounting supports radiators up to 360mm for high-end liquid CPU cooling.
Builder-Centric Design:
- SimpliCable Routing System: Integrated cable management solutions help builders achieve a cleaner interior and better airflow paths.
- Spacious Interior: Supports motherboards up to E-ATX (max 277mm width), massive GPUs up to 410mm long, and tall CPU coolers up to 195mm high.
- Storage Options: Features multiple storage bays, supporting 3 x 3.5'' HDDs or up to 8 x 2.5'' SSDs.
- PWM Repeater Included: Features a 6-port PWM repeater for easy fan speed synchronization from a single motherboard header.
Specification
| Form Factor | Mid Tower |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| PC Case Dimensions (L x W x H) | 515 x 254 x 522.6 mm |
| Net Weight | 14.79 kg |
| Warranty | 1 year Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported. |

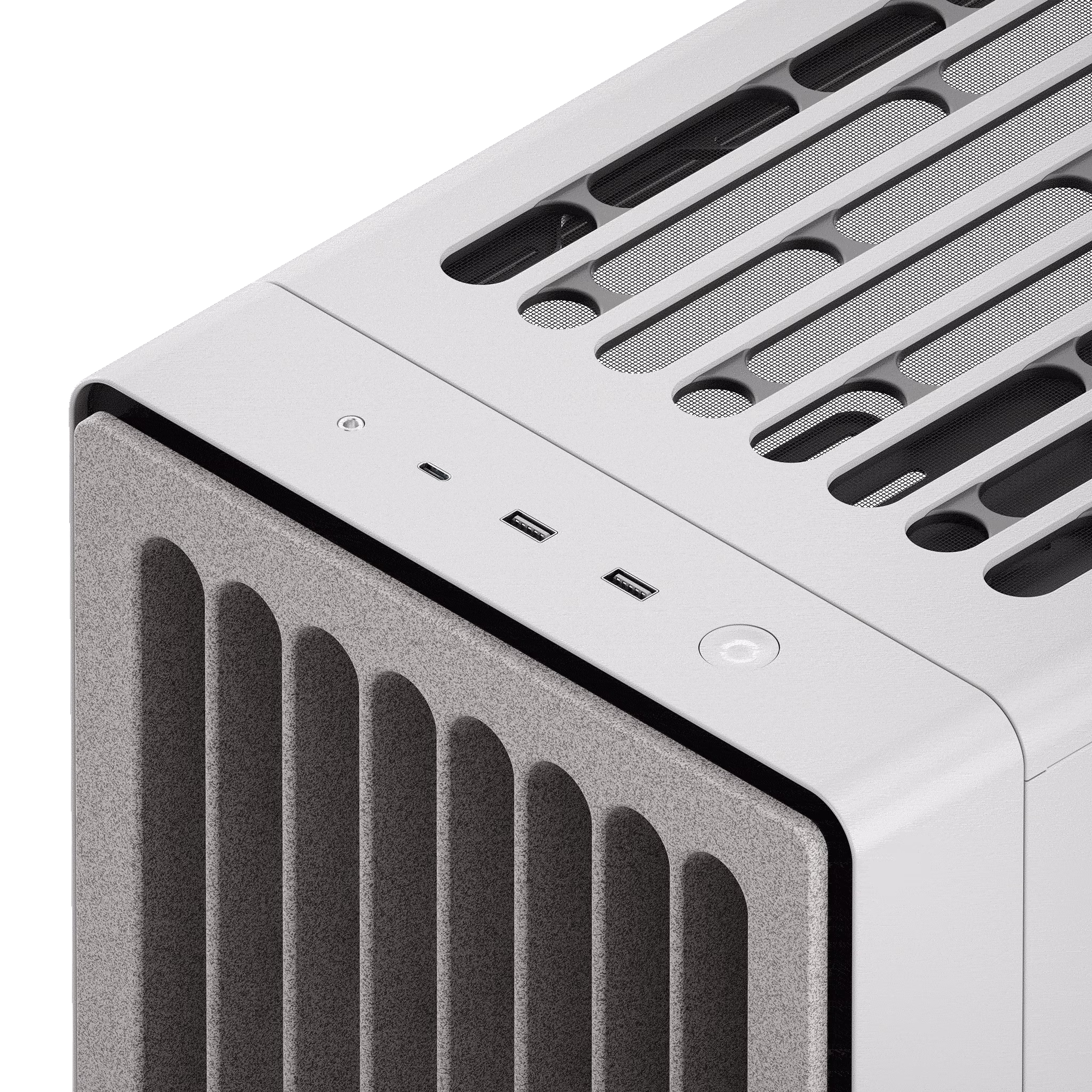

| Front I/O | USB 3.2 Gen 2 Type-C x1 USB 3.2 Gen 1 Type-A x2 Audio Jack x1 Power & Reset Button x1 |
| Motherboard Support | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | 7 |
| Fan Support | Maximum Amount: 6 Top: 2 × 180 mm / 2 × 140 mm / 3 × 120 mm Front: 2 × 180 mm Rear: 1 × 140 mm / 1 × 120 mm |
| Fan PWM Repeater | Fan Ports: 1 × PWM repeater (6 ports) Location: Cable Management Tray Fan Connectors: 6 ports × 4-pin PWM (Primary fan to white port for PWM signal control) Fan Rated Voltage: 12V Fan Safety Current: Up to 2.6A across 6 ports Power Connector: SATA Power (12V → 2.6A max) |
| CPU Tower Cooler Clearance | Up to 195 mm |
| Liquid Cooling Support | Top: 240 / 280 / 360 mm Front / Left / Right / Bottom: N/A |
| Graphics Card Clearance | Length: Up to 410 mm Width: Up to 195 mm GPU Support: 1 - 4.5 Slots |
| RAM Clearance | If radiator & fan thickness > 80 mm: 280 mm - 40 mm / 360 mm - 60 mm |
| Power Supply Support | ATX, Length Up to 200 mm (Clearance: 260 mm) |
| Storage | Right Mount: 2 Bays → 2 × 3.5'' / 8 × 2.5'' Cable Management Tray: 1 Bay → 1 × 3.5'' / 2 × 2.5'' Included: 2 × (2 × 3.5'' / 4 × 2.5'') |
| Dust Filter | Front: Built-in Top: Built-in Rear Bottom: Removable |
| Pre-installed Fans | 2 × H18 Fan (Front) – Case Version 1 × H14 Fan (Rear) – Case Version (Loopin™ System available on Retail Version only. Case fans use single-female connectors.) |
