Asus ProArt B760-Creator D4 DDR4 Motherboard, LGA1700 Socket, Intel B760 Chipset, M.2 Heatsink, PCIe 5.0, Thunderbolt 4 Header, 2.5G + 1G LAN, Max Memory 128GB 4xDIMM , 90MB1DU0-M0EAY0
Model :
SKU : MB-ASUS PROART B760-CR D4
About this item
About this item
Description
The ProArt B760-Creator D4 is more than a motherboard; it is a professional hub for content creation. By utilizing the Intel B760 chipset, ASUS provides a stable and feature-rich platform for video editing, 3D rendering, and AI-assisted design. Unlike flashy gaming boards, the ProArt series focuses on minimalist elegance and maximum functionality, ensuring that your hardware stays out of the way of your creative process.
Optimized Power & Thermal Architecture
Creative workloads often involve sustained CPU usage. The ProArt B760-Creator D4 features 12+1 teamed power stages rated for 50 amperes, ensuring clean and efficient power delivery to multi-core Intel processors. To maintain peak performance, the board is equipped with enlarged VRM heatsinks and dedicated M.2 heatsinks that protect your NVMe SSDs from thermal throttling during massive file exports or real-time 3D previews.
Connectivity Tailored for Content Creators
Efficient data transfer is critical for modern workflows. This board features Dual Ethernet ports (2.5Gb + 1Gb), allowing you to use one for high-speed internet and the other for low-latency communication with a NAS (Network Attached Storage) device. The rear I/O includes a USB 3.2 Gen 2x2 Type-C® port for 20Gbps transfers, and the onboard Thunderbolt™ 4 header allows you to add high-bandwidth daisy-chained storage or professional 8K monitors via an optional add-on card.
Smart Management & ProArt Hub
Managing your system is intuitive with the ProArt Creator Hub. This software provides a centralized dashboard to monitor system status, optimize fan profiles, and manage CreationFirst—an AI-driven networking tool that prioritizes your creative applications over background tasks. Additionally, Two-Way AI Noise Cancelation filters out distracting background noise during client meetings or recording sessions, ensuring crystal-clear audio at both ends.
Specification
| Model | ProArt B760-CREATOR D4 |
|---|---|
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® 10 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics | 1 x HDMI® port (Supports 4K@60Hz as specified in HDMI 2.1) 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4) |
| Expansion Slots | Intel® Processors: ** PCIe X1 shares bandwidth with M.2_2. |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* *** M.2_2 shares bandwidth with PCIe X1 and WiFi Key E. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | M.2 slot only (Key E, PCIe)* *Wi-Fi module sold separately. |
| USB | Rear: 1 x USB 3.2 Gen 2 (Type-C®), 4 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 Front: 1 x USB 3.2 Gen 2x2 (Type-C®), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Premium audio capacitors, Dedicated PCB layers, Unique de-pop circuit - Supports up to 24-Bit/192 kHz playback |

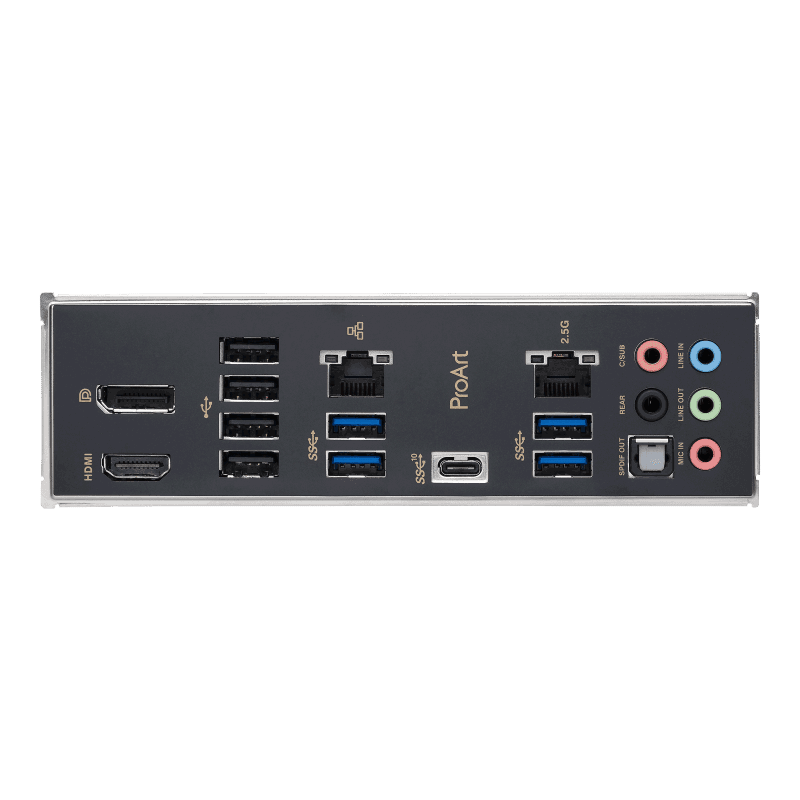

| Back Panel I/O | 1 x USB 3.2 Gen 2 (Type-C®), 4 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x DP, 1 x HDMI®, 1 x Realtek 2.5Gb Ethernet, 1 x Intel® 1Gb Ethernet, 5 x Audio jacks, 1 x Optical S/PDIF out |
| Special Features | ASUS 5X PROTECTION III, ASUS Q-Design (Q-Latch, Q-Connector, Q-LED, Q-Slot), ASUS Thermal Solution, ASUS EZ DIY (ProCool, Pre-mounted I/O shield), AURA Sync |
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
