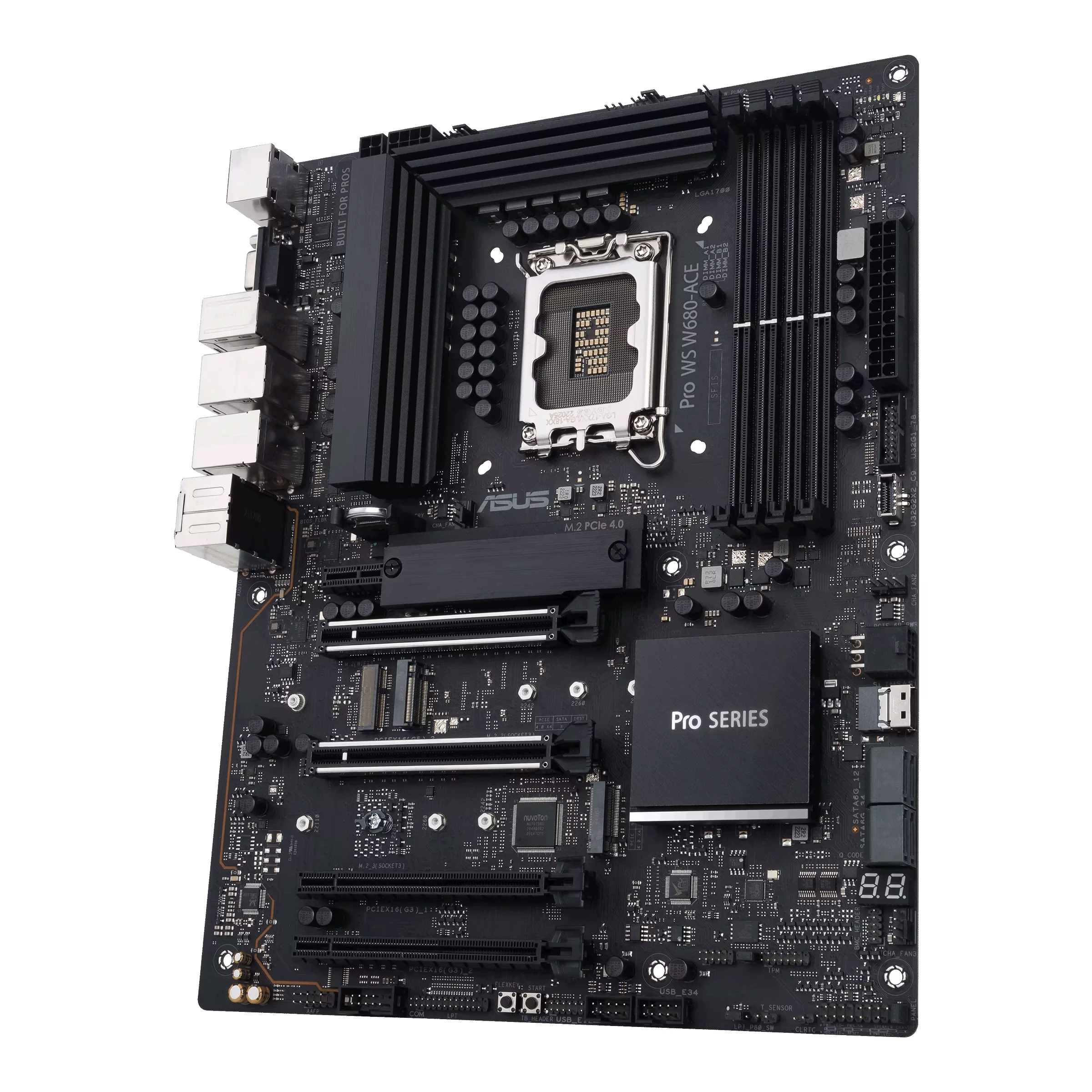

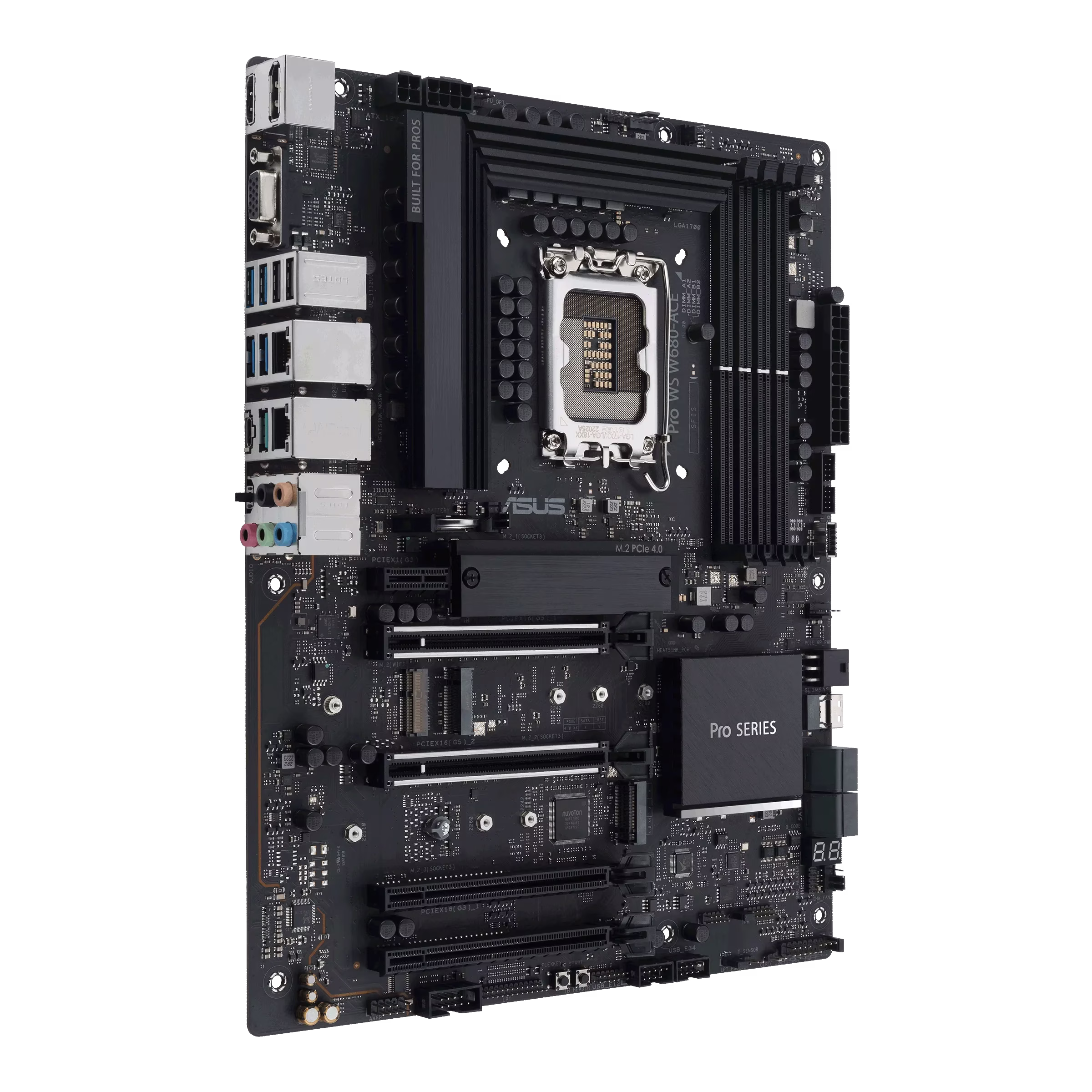

ASUS Pro WS W680-ACE Workstation Motherboard, Intel LGA1700, PCIe 5.0, DDR5, Dual 2.5G LAN, Triple M.2, BMC Header | 90MB1DZ0-M0EAY0

PRO WORKSTATION MOTHERBOARD
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators.

ECC Memory Support
Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.

Dual 2.5G Ethernet
Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos.

ASUS Control Center Express
The best business performance requires smart IT management. ASUS Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, ASUS Control Center Express is compatible with over 100 ASUS motherboards to give you more upgrade flexibility and less compatibility issues.

Multi-GPU Support
Two PCIe 5.0 x16 slots provide flexible system configurability and expandability — including support for NVIDIA® Quadro® — for enhanced performance in modelling, simulation, and rendering applications.

The ASUS Pro WS W680-ACE is built for professionals who cannot afford downtime. Utilizing the Intel W680 chipset, this motherboard bridges the gap between consumer ease-of-use and enterprise-level reliability. It is specifically validated for long-duration workloads like 3D rendering, AI training, and data analysis, ensuring your system remains stable under 100% load.

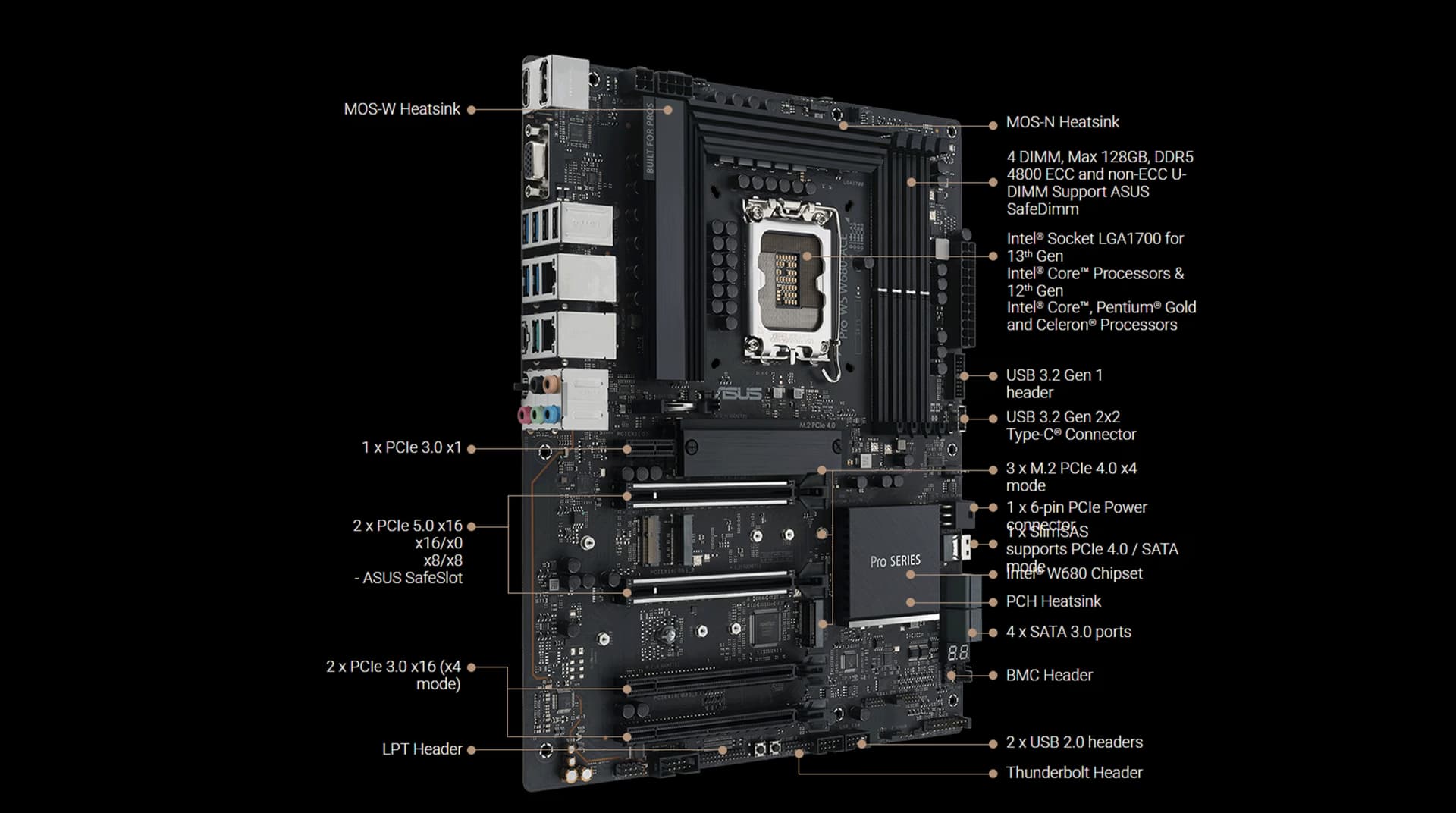

Memory & Storage: Enterprise-Grade Data Integrity
A standout feature is the support for DDR5 ECC memory, which automatically detects and repairs single-bit memory errors to prevent system crashes and data corruption. For storage enthusiasts, the board offers triple M.2 slots (PCIe 4.0) and a SlimSAS connector, supporting a wide variety of high-speed NVMe and SATA storage configurations for large datasets.

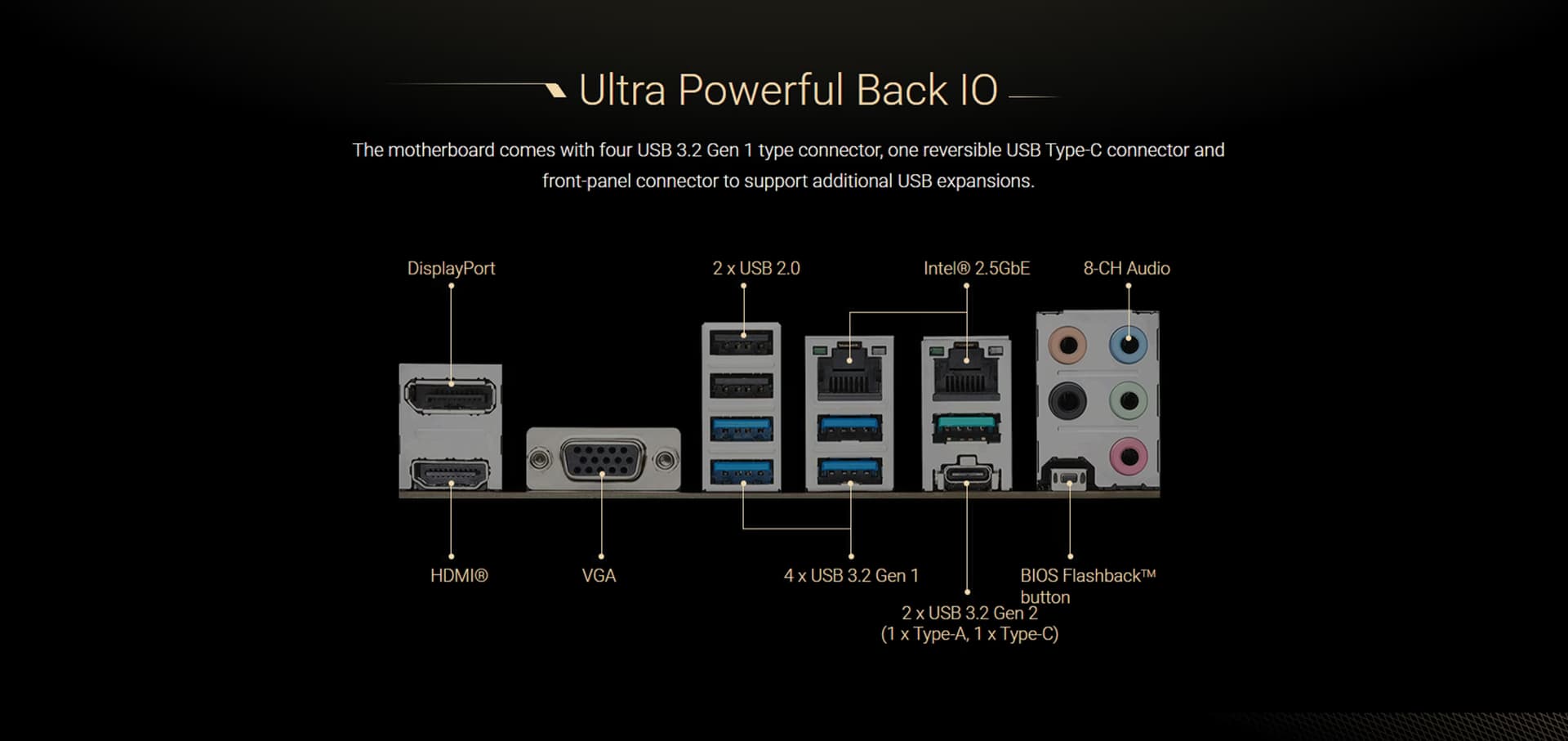

Connectivity: Dual 2.5G LAN & BMC Support
Networking is handled by dual Intel 2.5Gb Ethernet ports, providing high-bandwidth data transfers and the ability to set up redundant connections or load balancing. For remote management, the W680-ACE includes a dedicated BMC header, allowing for enterprise-level out-of-band management via an IPMI card, making it ideal for remotely managed workstations or server environments.


Expansion: PCIe 5.0 & Multi-GPU Support
Future-proof your workstation with two PCIe 5.0 x16 slots, offering double the bandwidth of the previous generation. This allows for peak performance from the latest professional GPUs and high-speed networking cards. The board also features ASUS Control Center Express, a centralized IT management software that enhances security and streamlines inventory tracking.


Why This Workstation Board Stands Out
24/7 Reliability: Extensively tested for temperature and humidity to ensure performance in harsh environments.

ECC Memory Support: Professional-grade stability for mission-critical applications.

SlimSAS & Triple M.2: Versatile storage options for fast data access and backup.

Enhanced Security: Features like USB port management and BIOS lockdowns to protect sensitive data.
