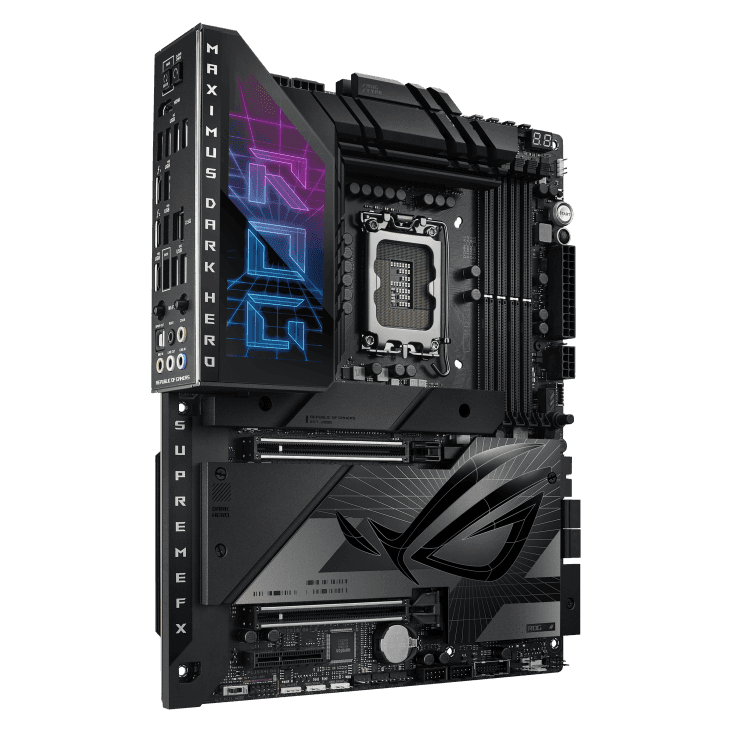

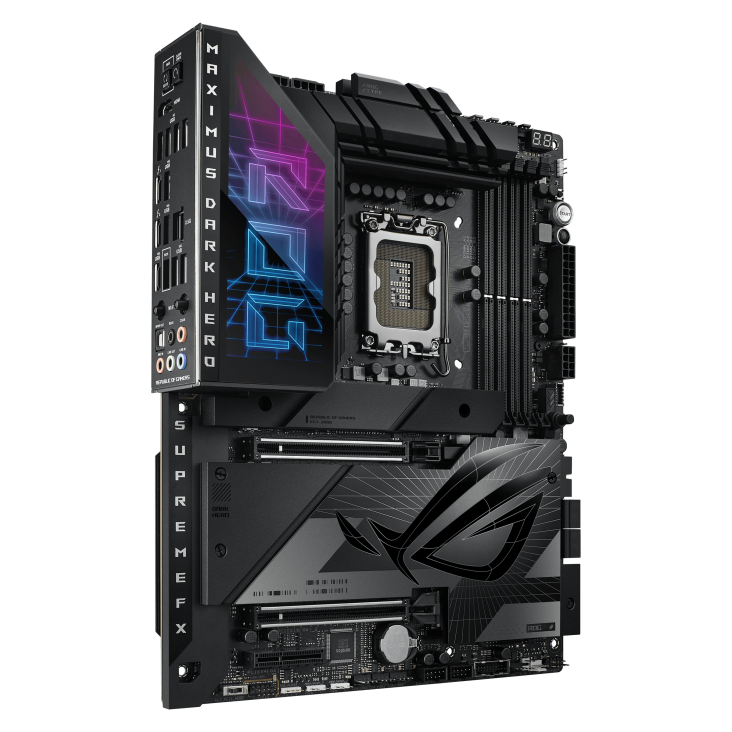

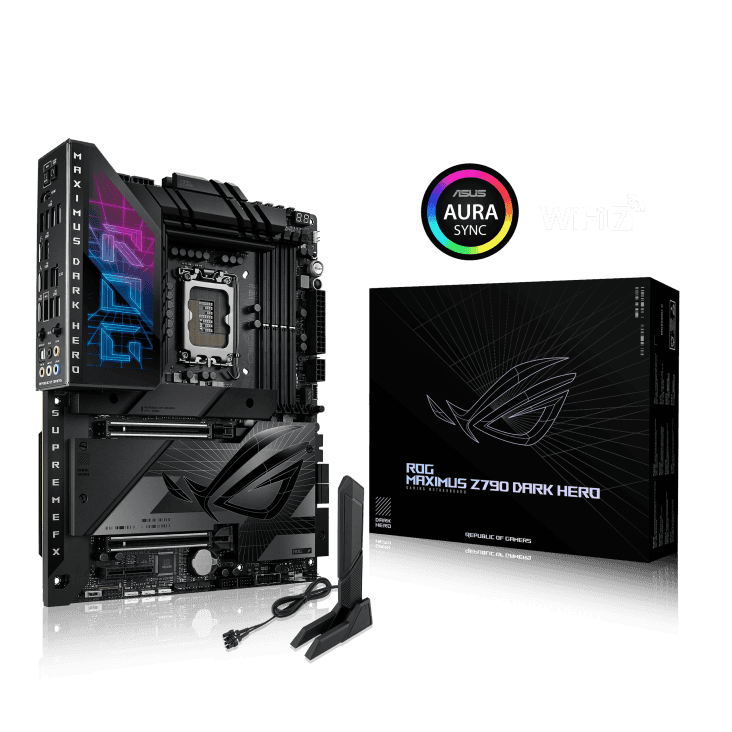

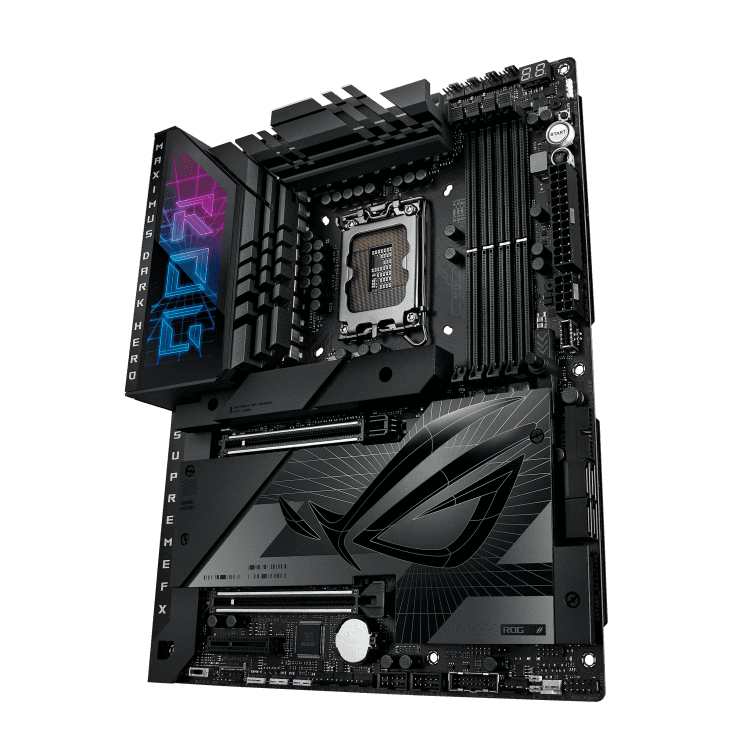

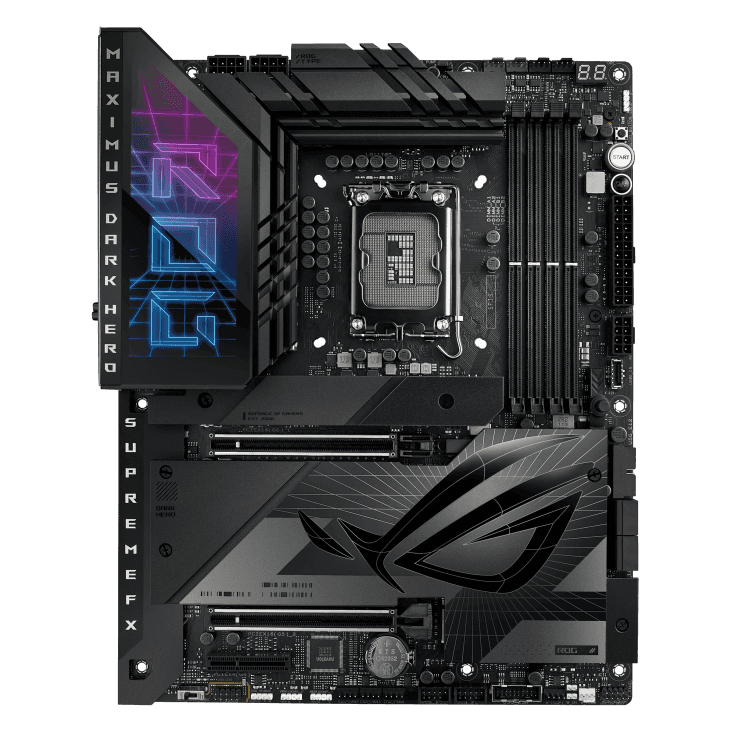

ASUS ROG MAXIMUS Z790 DARK HERO LGA1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5 DIMM, 192GB Max Memory, Intel WiFi 7, BTv5.4, 2.5Gb ETH, PCIe 5.0 x16, HDMI/Thunderbolt 4/USB-C | 90MB1F90-M0EAY0

Description for ASUS ROG MAXIMUS Z790 DARK HERO Gaming Mainboard Sockel Intel LGA 1700

• CPU

  Intel^?? Socket LGA1700 for Intel^?? Core??? 14^th & 13^th Gen Processors, Intel^?? Core??? 12^th Gen, Pentium^?? Gold and Celeron^?? Processors
  Supports Intel^?? Turbo Boost Technology 2.0 and Intel^?? Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list.
  ** Intel^?? Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

  Intel^?? Z790 Chipset

• Memory

  4 x DIMM slots, max. 192GB, DDR5
  8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
  Dual channel memory architecture
  Supports Intel^?? Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile II (AEMP II)
  Supports DIMM Flex
  * Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

  1 x HDMI^TM port**
  2 x Intel^?? Thunderbolt??? 4 ports (USB Type-C^??) support DisplayPort and Thunderbolt??? video outputs***
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Support 4K@60Hz as specified in HDMI 2.1.
  *** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

  Intel^?? Core^TM Processors (14^th & 13^th & 12^th Gen)*
  2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
  Intel^?? Z790 Chipset
  1 x PCIe 4.0 x4 slot
  * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
  - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage

  Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel^?? Core^TM Processors (14^th & 13^th & 12^th Gen)
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)**
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)
  Intel^?? Z790 Chipset**
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * Intel^?? Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
  ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.

• Ethernet

  1 x Intel^?? 2.5Gb Ethernet
  ASUS LANGuard

• Wireless & Bluetooth

  Intel^?? Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)**
  Supports 2.4/5/6GHz frequency band***
  Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.
  Bluetooth^?? v5.4****
  * Compatible with Windows 11 or later.
  ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
  *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

  Rear USB (Total 12 ports)
  2 x Thunderbolt??? 4 ports (2 x USB Type-C^??)
  6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C^??)
  4 x USB 5Gbps ports (4 x Type-A)
  Front USB (Total 9 ports)
  1 x USB 20Gbps connector (supports USB Type-C^?? with up to 60W PD/QC4+)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Audio

  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
  - Impedance sense for front and rear headphone outputs
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  - Supports up to 32-Bit/384 kHz playback
  Audio Features
  - SupremeFX Shielding Technology
  - ESS^?? ES9218 QUAD DAC
  - Gold-plated audio jacks
  - Rear optical S/PDIF out port
  - Premium audio capacitors
  *The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

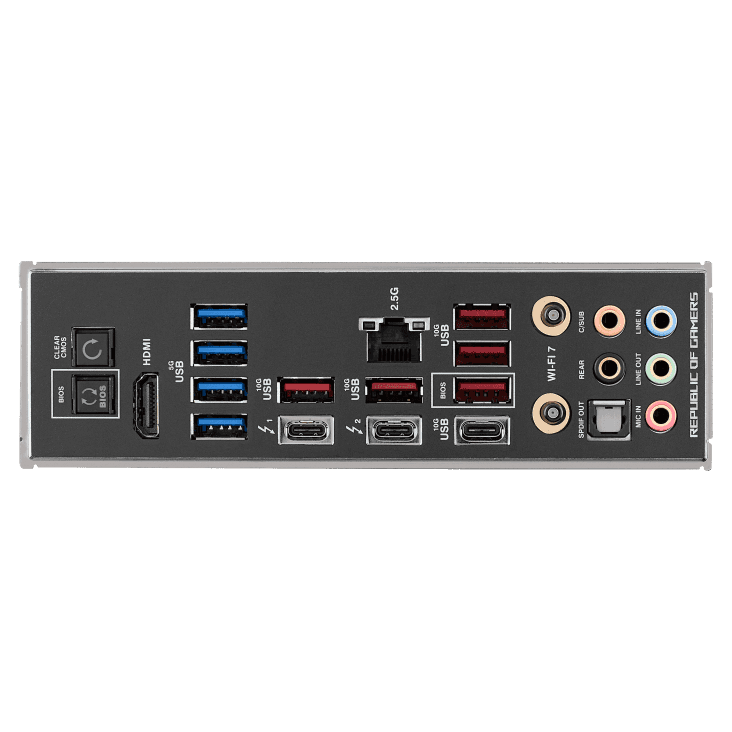

• Back Panel I/O Ports

  2 x Thunderbolt??? 4 USB Type-C^?? ports
  6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C^??)
  4 x USB 5Gbps ports (4 x Type-A)
  1 x HDMI^TM port
  1 x Wi-Fi Module
  1 x Intel^?? 2.5Gb Ethernet port
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack???  button
  1 x Clear CMOS button

• Internal I/O Connectors

  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  1 x W_PUMP+ header
  1 x 2-pin Water In header
  1 x 2-pin Water Out header
  1 x 3-pin Water Flow header
  Power related
  1 x 24-pin main power connector
  2 x 8-pin +12V power connector
  1 x 8-pin PCIe power connector
  Storage related
  5 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 20Gbps connector (supports USB Type-C^??)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x AURA RGB header
  1 x FlexKey button
  1 x Front panel audio header (F_AUDIO)
  1 x Start button
  1 x ReTry button
  1 x 10-1 pin system panel header
  1 x Thermal sensor header
  1 x CPU over voltage jumper
  1 x Alternative PCIe mode switch

• Special Features

  Extreme OC Kit
  - FlexKey button
  - ReTry button
  - Start button
  Extreme Engine Digi+
  - 10K Black metallic capacitors
  - MicroFine alloy choke
  ASUS Q-Design
  - M.2 Q-Latch
  - PCIe Slot Q-Release

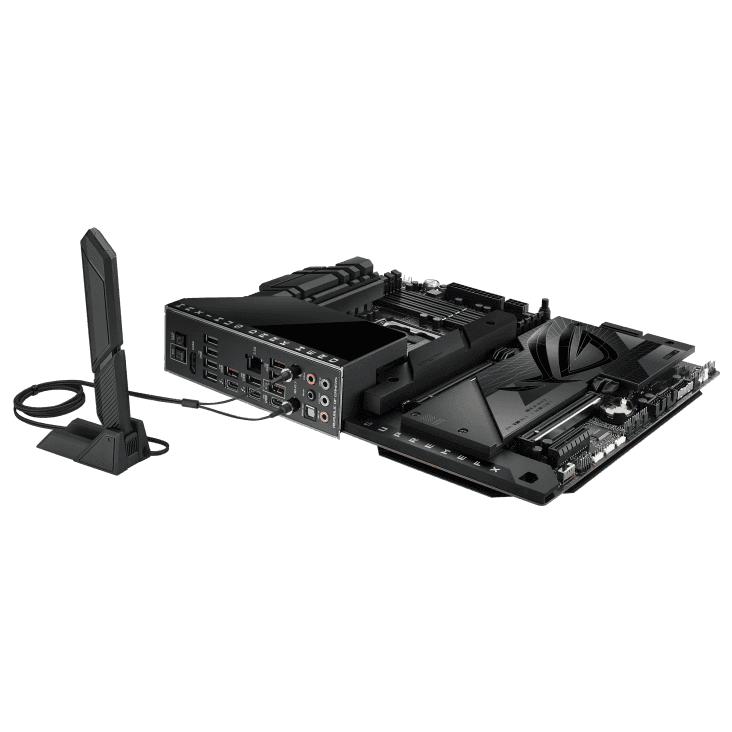

  - Q-Antenna
  - Q-Code
  - Q-Connector
  - Q-DIMM
  - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection
  - Q-Slot
  ASUS Thermal Solution
  - M.2 heatsink backplate
  - M.2 heatsink
  - Metal backplate
  - VRM heatsink design
  ASUS EZ DIY
  - BIOS FlashBack??? button
  - Clear CMOS button
  - CPU Socket lever protector
  - ProCool II
  - Pre-mounted I/O shield
  - SafeSlot
  - SafeDIMM
  AURA Sync
  - AURA RGB header(s)
  - Addressable Gen 2 header(s)
  Front Panel USB 20G with Quick Charge 4+ Support
  - Support: up to 60W fast charging and USB Wattage Watcher*
  - Output: 5/9/15/20V max. 3A, PPS:3.3???21V max. 3A
  - Compatible with PD3.0 and PPS
  * To support 60W, please install the power cable to 8-pin PCIe power connector or else only 27W will be supported.

• Software Features

  ROG Exclusive Software
  - ROG CPU-Z
  - DTS^?? Sound Unbound
  - Internet Security (1 year full version)
  ASUS Exclusive Software
  Armoury Crate
  - AIDA64 Extreme (1 year full version)
  - Aura Creator
  - Aura Sync
  - Fan Xpert 4 (with AI Cooling II)
  - GameFirst
  - Two-Way AI Noise Cancelation
  - Power Saving
  - Sonic Studio
  AI Suite 3
  - Easy Optimization with AI Overclocking
  - TPU
  - DIGI+ Power Control
  - Turbo app
  - PC Cleaner
  MyAsus
  USB Wattage Watcher
  Intel^?? Unison???
  Adobe Creative Cloud (Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  AI Overclocking Guide
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - ASUS MyHotkey
  MemTest86

• BIOS

  256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

  WOL by PME, PXE

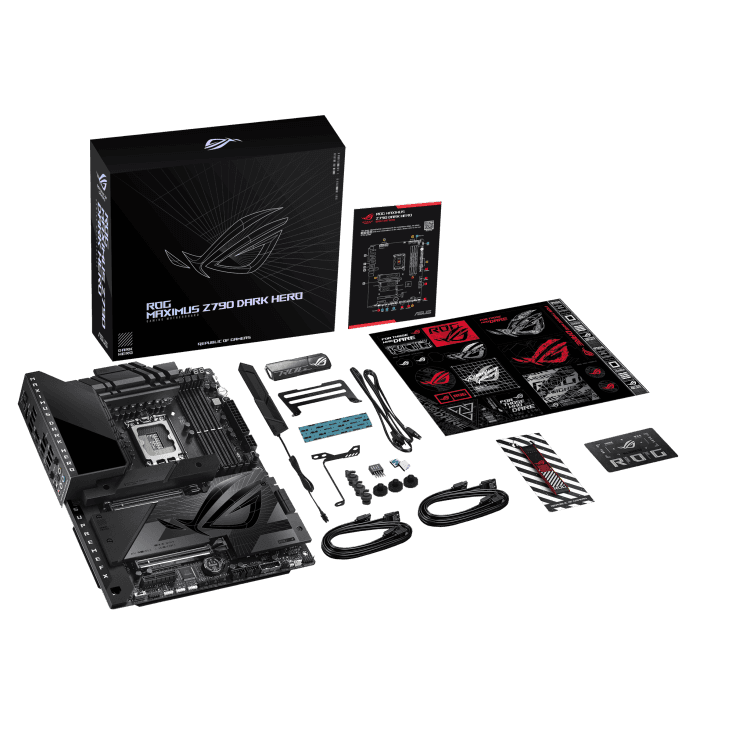

• Accessories

  Cables
  1 x ARGB RGB extension cable
  4 x SATA 6Gb/s cables
  Additional Cooling Kit
  1 x Thermal pad for M.2
  1 x DDR5 fan holder
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  3 x M.2 backplate Q-Latch packages
  3 x M.2 backplate Rubber Packages
  1 x Q-connector
  1 x ROG stickers
  1 x ROG key chain
  1 x M.2 rubber package
  1 x ROG VIP card
  Installation Media
  1 x USB drive with utilities and drivers
  Documentation
  1 x Quick start guide

• Operating System

  Windows^?? 11, Windows^?? 10 64-bit

• Form Factor

  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
