Home/Network Products/Network Camera/HIKVISION, 2-inch 4 MP 4x Zoom IR Mini PT Dome Net...

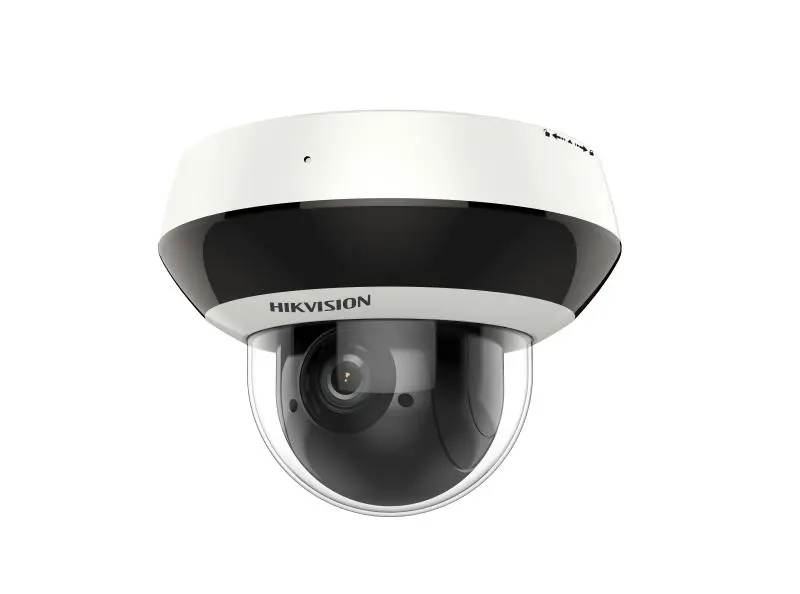

HIKVISION, 2-inch 4 MP 4x Zoom IR Mini PT Dome Network Camera | DS-2DE2A404IW-DE3
Model :
SKU : DS-2DE2A404IW-DE3
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
#customers { font-family: Arial, Helvetica, sans-serif; border-collapse: collapse; width: 100%; } #customers td, #customers th { border: 1px solid #ddd; padding: 8px; } #customers tr:nth-child(even){background-color: #f2f2f2;} #customers tr:hover {background-color: #ddd;} #customers th { padding-top: 12px; padding-bottom: 12px; text-align: left; background-color: #EBF4F1; color: red; }
| Camera | |
|---|---|
| Lens | |
| Illuminator | |
| PTZ | |
| Video | |
| Audio | |
| Network | |
| Image | |
| Interface | |
| Event | |
| General | |
| Approval | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 2560 ?? 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 4x optical, 16x digital |
| Slow Shutter | yes |
| Focal Length | 2.8 to 12 mm |
| FOV | Horizontal FOV 96.796?? to 31.68??, vertical FOV 51.16?? to 17.798??, diagonal FOV 115.13?? to 36.32?? |
| Focus | Auto, semi-auto, manual |
| Aperture | Max. F1.5 |
| Zoom Speed | Approx. 2 s |
| Supplement Light Type | IR |
| Supplement Light Range | IR Distance: up to 20 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Movement Range (Pan) | 0?? to 355?? |
| Movement Range (Tilt) | 0?? to 90?? |
| Pan Speed | Pan speed: configurable from 0.1?? to 100??/s; preset speed: 100??/s |
| Tilt Speed | Tilt speed: configurable from 0.1?? to 100??/s, preset speed 100??/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Park Action | Preset |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, dome reboot, dome adjust |
| Power-Off Memory | Yes |
| Main Stream | 50 Hz: 25 fps (2560 ?? 1440, 1920 ?? 1080, 1280 ?? 960, 1280 ?? 720); 60 Hz: 30 fps (2560 ?? 1440, 1920 ?? 1080, 1280 ?? 960, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (704 ?? 576, 640 ?? 480, 352 ?? 288); 60 Hz: 30 fps (704 ?? 480, 640 ?? 480, 352 ?? 240) |
| Third Stream | 50 Hz: 25 fps (704 ?? 576, 640 ?? 480, 352 ?? 288); 60 Hz: 30 fps (704 ?? 480, 640 ?? 480, 352 ?? 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 8 fixed regions for each stream |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC) |
| Audio Sampling Rate | AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz |
| Environment Noise Filtering | yes |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE 10-11, Chrome 57+, Firefox 52+, Safari 11+ |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browse |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ???52dB |
| Defog | Digital Defog |
| Image Stabilization | No |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | yes |
| Regional Exposure | Yes |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Built-In Microphone | 1 built-in microphone, picking up sounds in the radius up to 5 meters |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 K?? ?? 10%; 1 output (line out), line level, output impedance: 600 ?? |
| Reset | Yes |
| Power Output | 12 VDC, max. 60 mA |
| Basic Event | Motion detection, video tampering alarm, exception |
| Smart Event | Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Alarm Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset) |
| Power | 12 VDC, Max. 9.2 W; PoE (802.3af) |
| Dimension | ?? 130.7 mm ??101.7 mm (?? 5.15" ?? 4.00") |
| Weight | Approx. 530 g (1.17 lb.) |
| Operating Condition | -20 ??C to 60 ??C (-4 ??F to 140 ??F). Humidity 90% or less (non-condensing)td> |
| General Function | Mirror, password protection |
| Protection | IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection |
