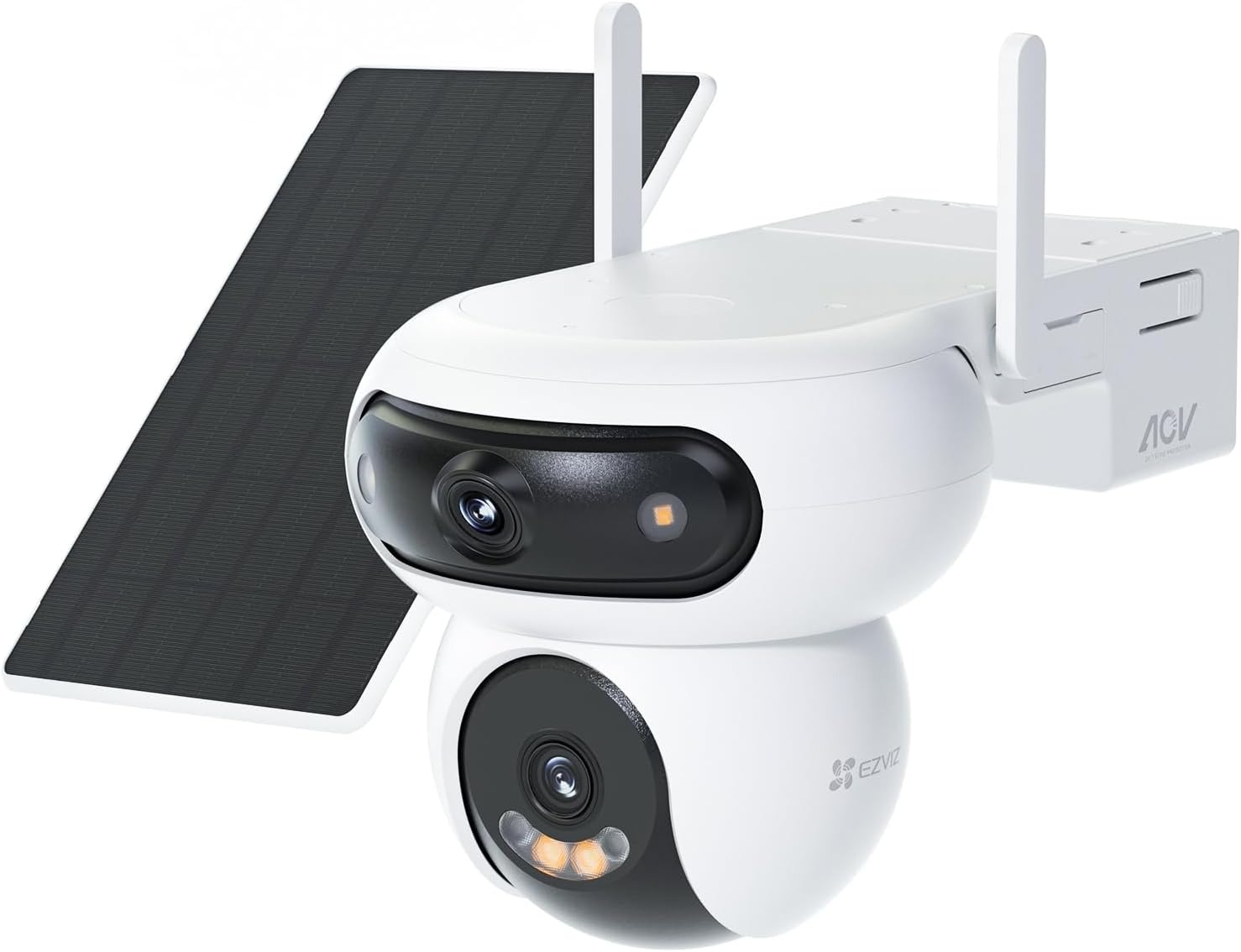

EZVIZ HB90x Dual 4G Kit Dual Lens Outdoor Security Camera, 8W Solar Panel 4MP+4MP 360 Wireless Wifi Surveillance Camera on 10400mAh Motorized Dual Lens Battery, Always-on Mode, Person/Vehicle Detection, Auto Tracking | CS-HB90X(4MP+4MP)
Model :
SKU : EZVIZ HB90X DUAL 4G-WIFI
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
EZVIZ CS-HB90x/SP-R100 Dual 4G Camera & Solar Panel Specifications
| Model | CS-HB90x/SP-R100 (4MP+4MP W4GA) |
| Image Sensor | 1/2.8” 4-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed | Self-adaptive shutter |
| Lens | Top Lens: 2.8mm @ F1.2, Diagonal 122°, Horizontal 105°, Vertical 58° Bottom Lens: 6mm @ F1.2, Diagonal 65°, Horizontal 56°, Vertical 30° |

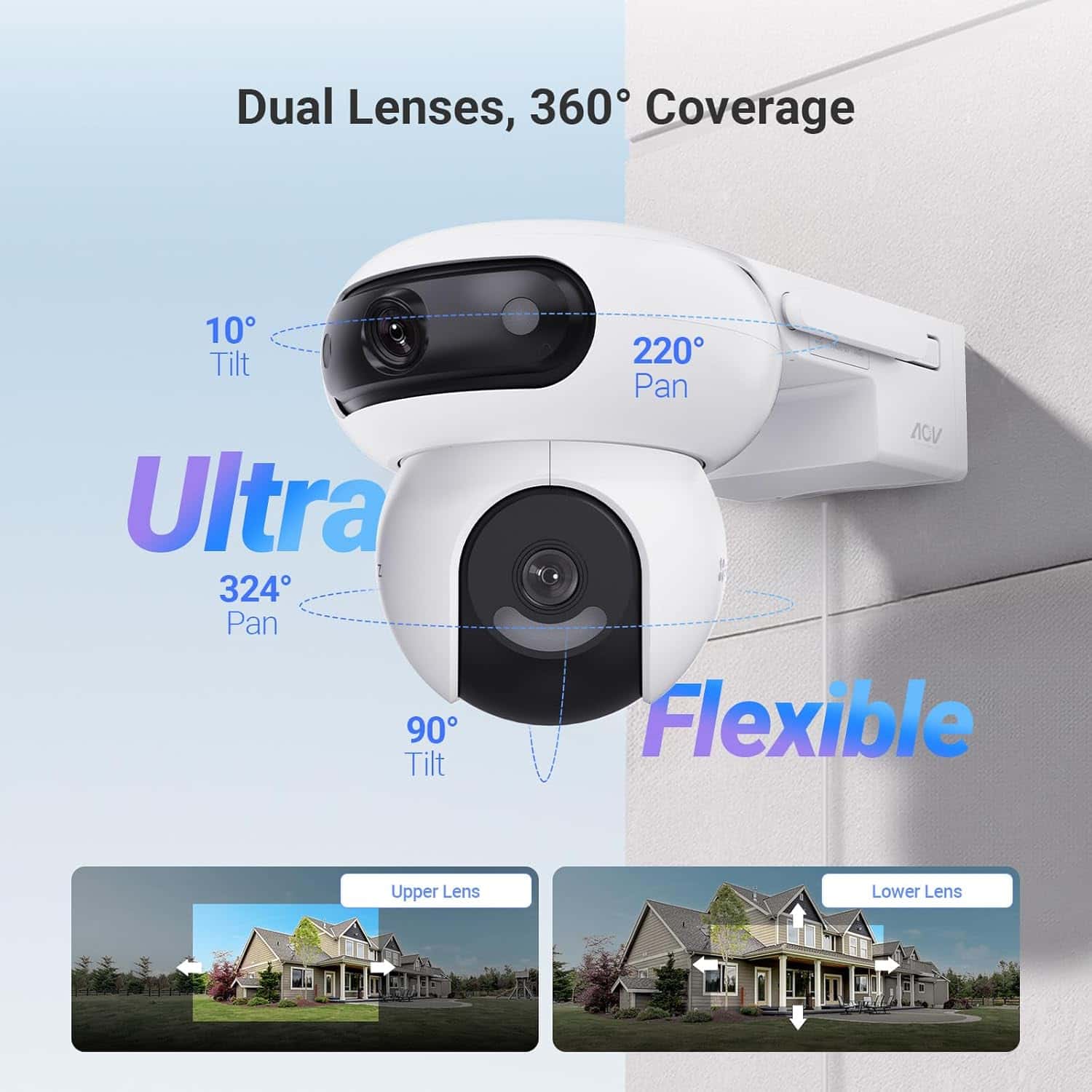

| PT Angle | Top Lens: Pan 220°, Tilt 10° Bottom Lens: Pan 324°, Tilt 90° |
| Minimum Illumination | 0.01 Lux @ F1.2, AGC ON; 0 Lux with IR |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| Night Vision Distance | 35 m (when both lenses point in same direction) |

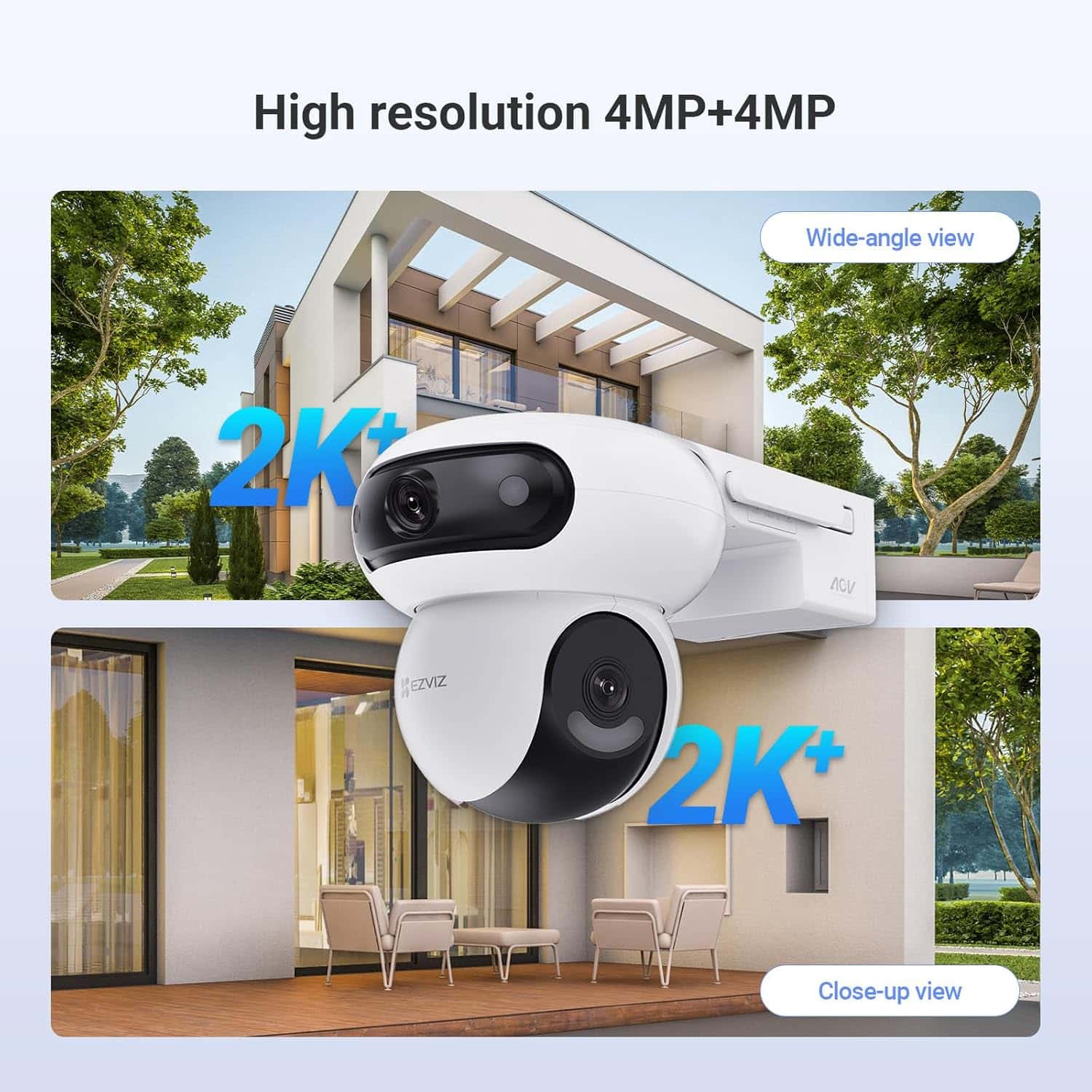

| Max Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Max 15fps; self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; HD; Standard; Adaptive |
| Audio Bit Rate | Self-adaptive |
| Max. Bitrate | 2 Mbps (Total) |
| Wi-Fi Standard | IEEE802.11b/g/n/ax |
| Frequency Range | 2.4 GHz – 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
| Wi-Fi Pairing | AP pairing |
| Minimum Network Requirement | 4 Mbps |
| Bluetooth | Supported |
| Frequency Bands | IN LTE-FDD: B1/B3/B5/B8 IN LTE-TDD: B34/B38/B39/B40/B41 EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 |

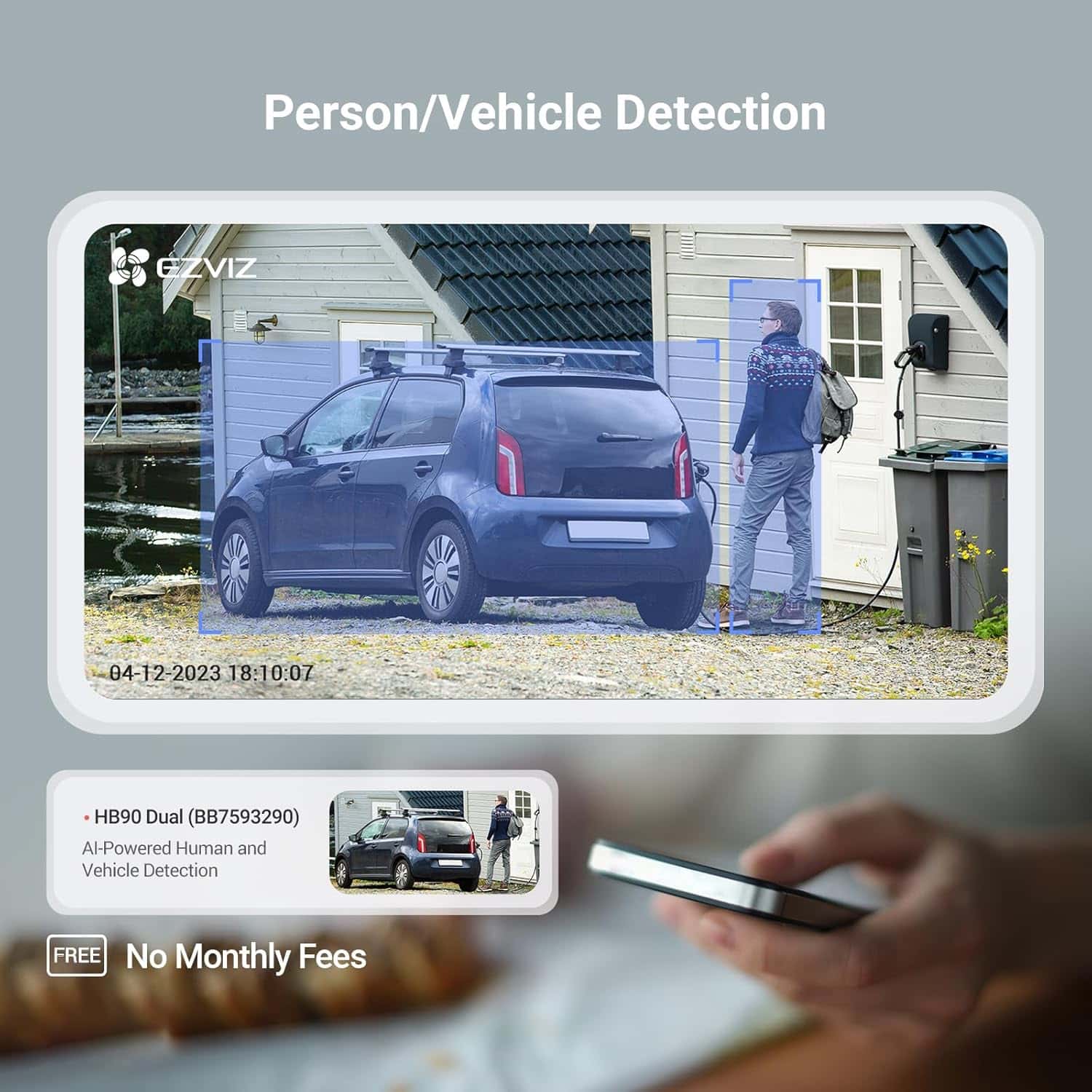

| Smart Alarm | AI-Powered Human & Vehicle Shape Detection |

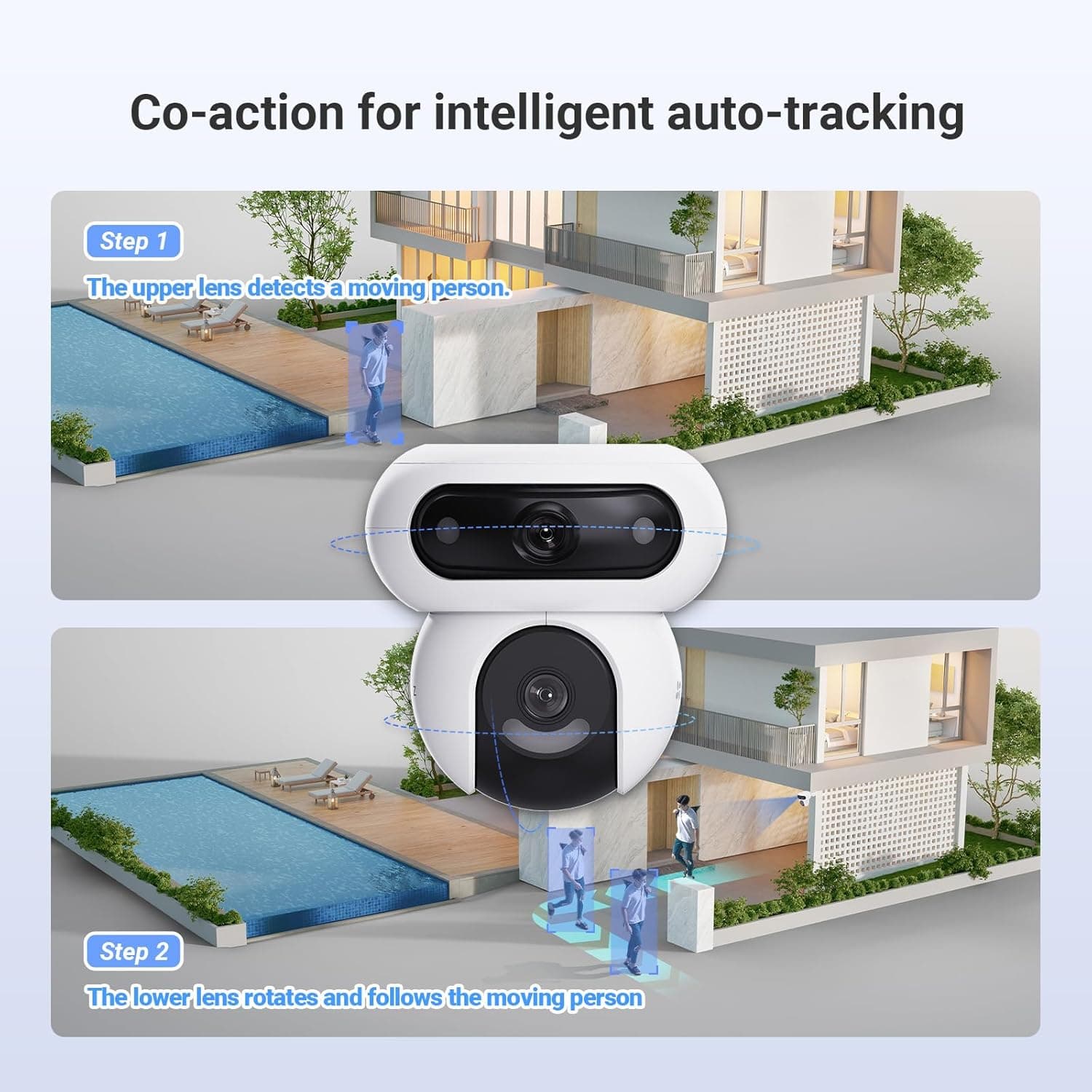

| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| General Functions | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Local Storage | microSD card (max. 512 GB) |
| Cloud Storage | EZVIZ CloudPlay (subscription required) |
| Operating Conditions | -20°C to 50°C, Humidity ≤ 95% (non-condensing) |

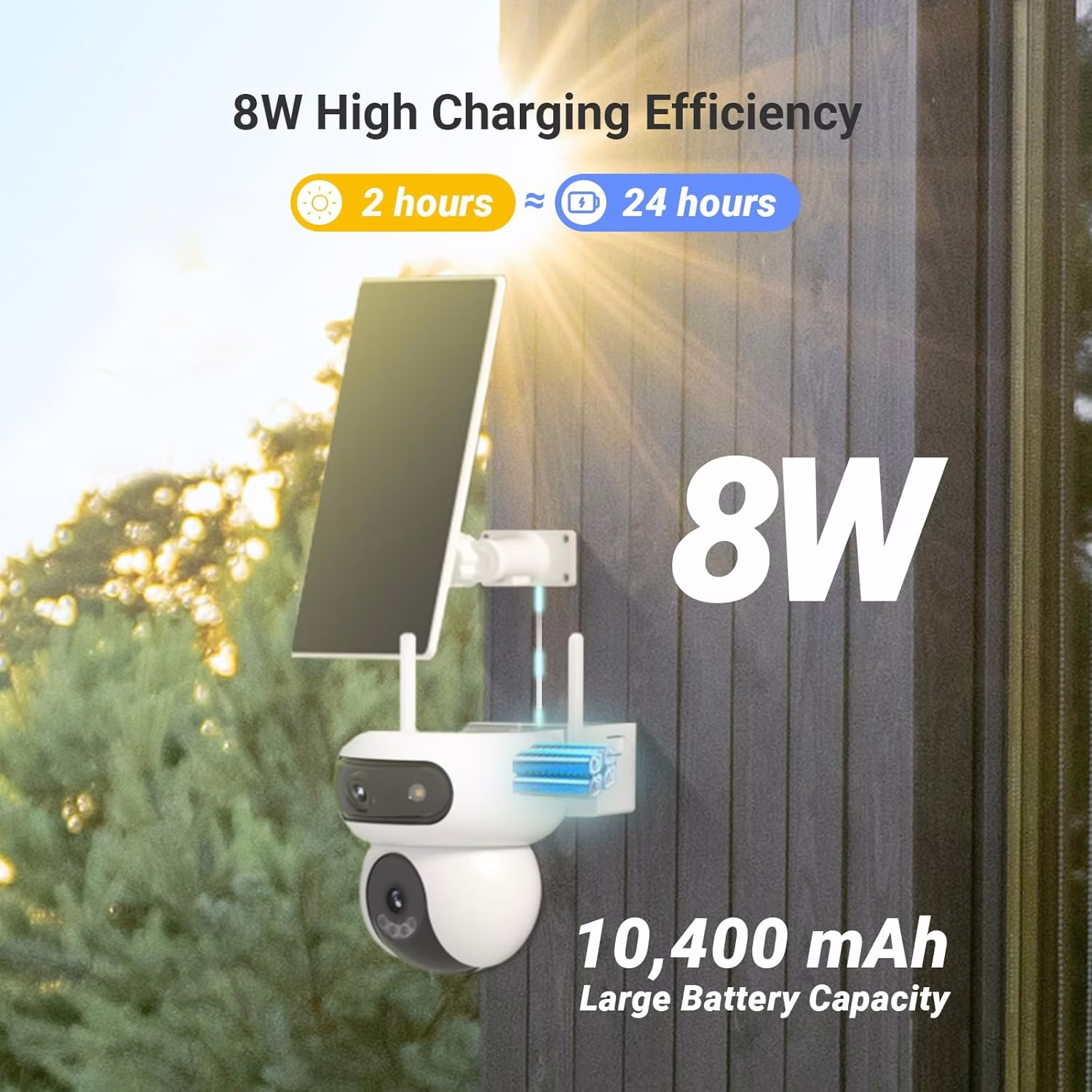

| Battery Capacity | 10,400 mAh |
| IP Grade | IP65 |
| Power Supply | DC 5 V / 2 A (adapter sold separately) |
| Power Consumption | Max 10 W |
| Dimensions | 135 × 145 × 229.5 mm (5.32 × 5.71 × 9.04 in) |
| Packaging Dimensions | 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 in) |
| Weight | Camera: 862 g Solar Panel 8W: 428 g With Package: 1902 g |
| Solar Panel Model | CS-PSP8-R100-3M |
| Solar Panel Power Voltage | 5.4 V ± 5% |
| Solar Panel Current | 1.48 A ± 5% |
| Open Circuit Voltage | 6.8 V ± 5% |
| Short Circuit Current | 1.64 A ± 5% |
| Max. Power | 8 W ± 5% |
| Interface | Type-C |
| Solar Cell Efficiency | ≥22% |
| Operating Conditions | -20°C to 60°C, Humidity ≤ 90% (non-condensing) |
| IP Grade | IP65 |
| Solar Cell Type | Monocrystalline |
| Power Cable Length | 3 meters |
| Solar Panel Dimensions | 267.3 × 186.5 × 17.5 mm |
| Solar Panel Weight | 428 g |
| Box Contents | HB90x Dual 4G Camera, Solar Panel 8W, Drilling Template, Adjustable Mounting Bracket, Screw Kit × 2, Power Cable, Regulatory Info × 4, Quick Start Guide × 2 |
| Certifications | CE / REACH / WEEE / RoHS |
