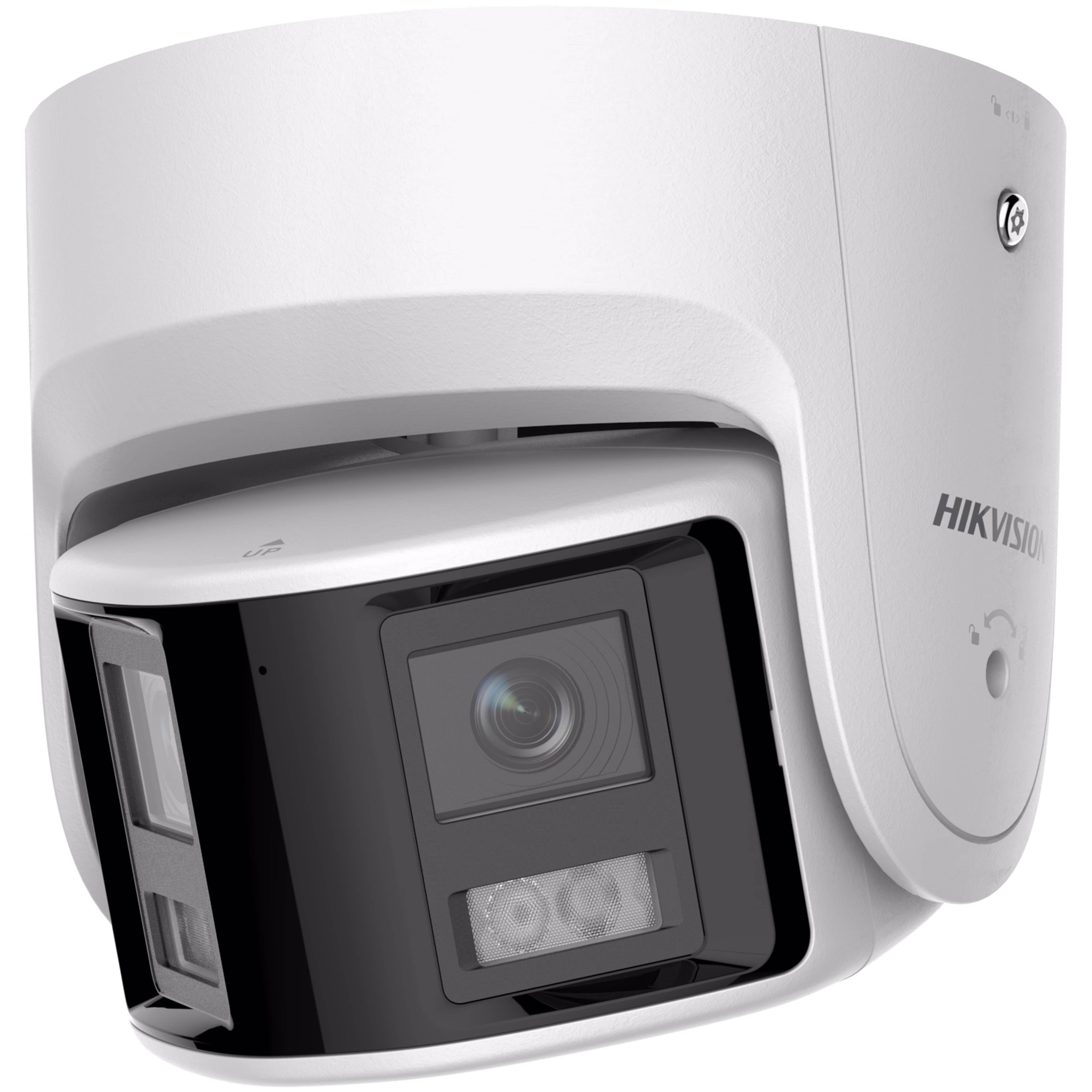

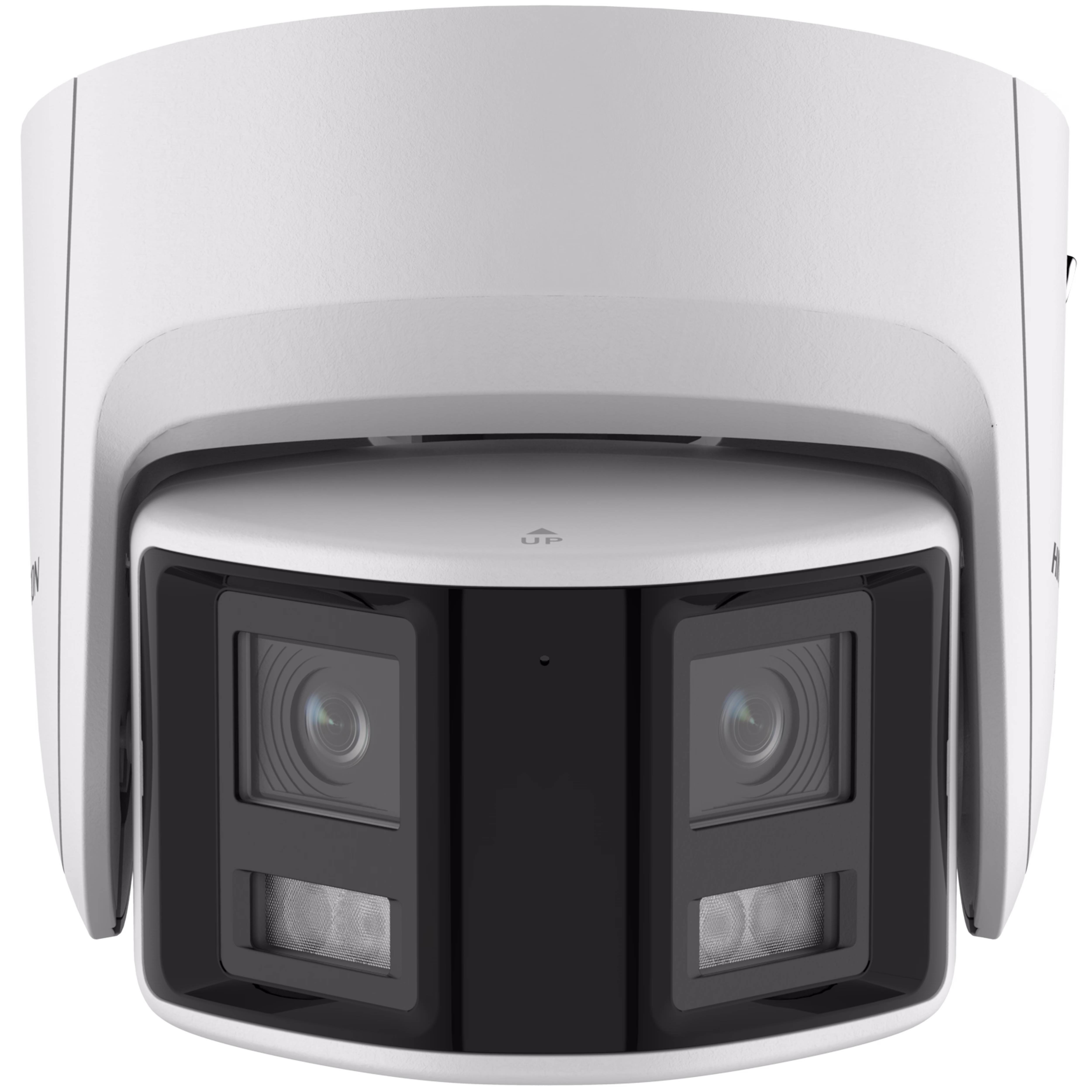

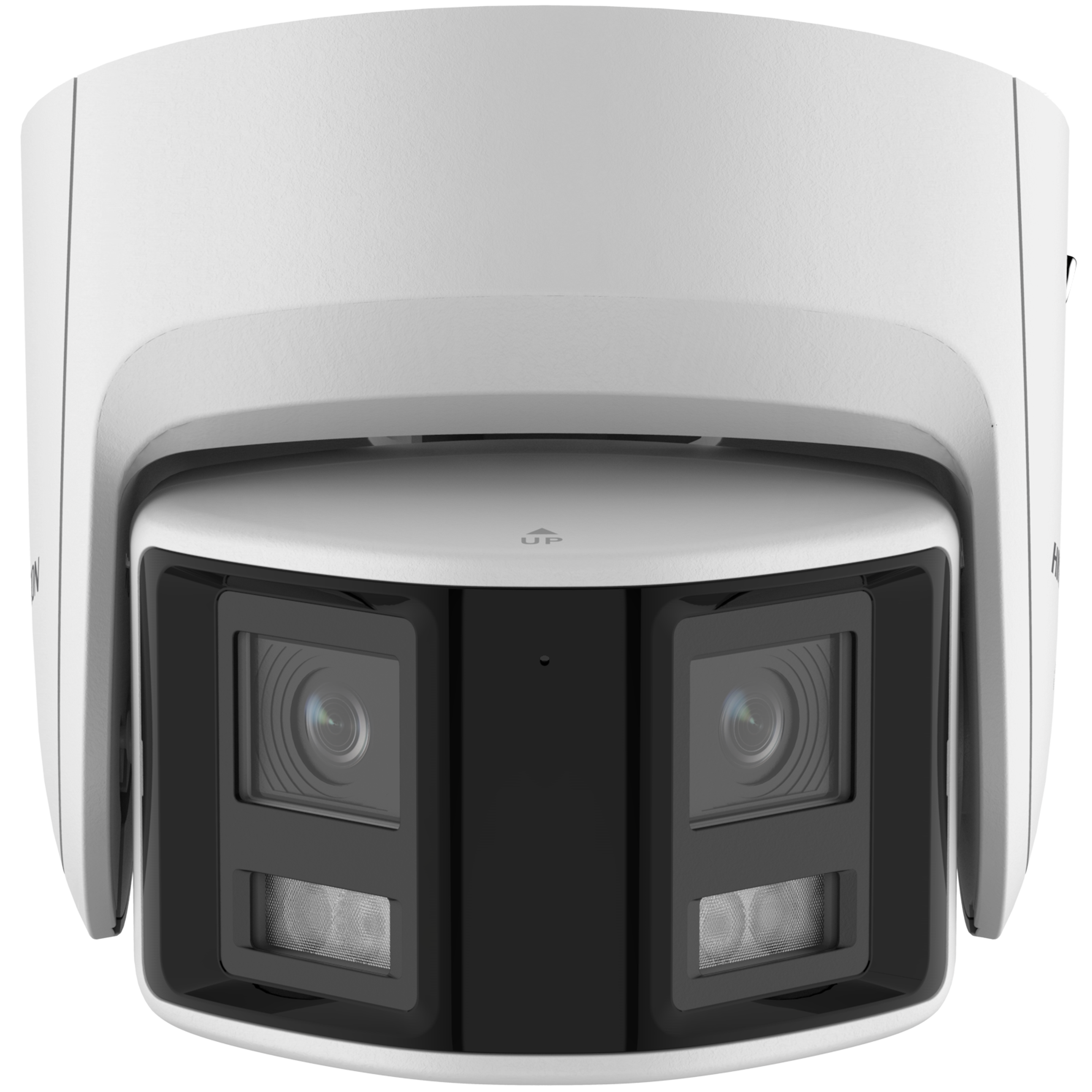

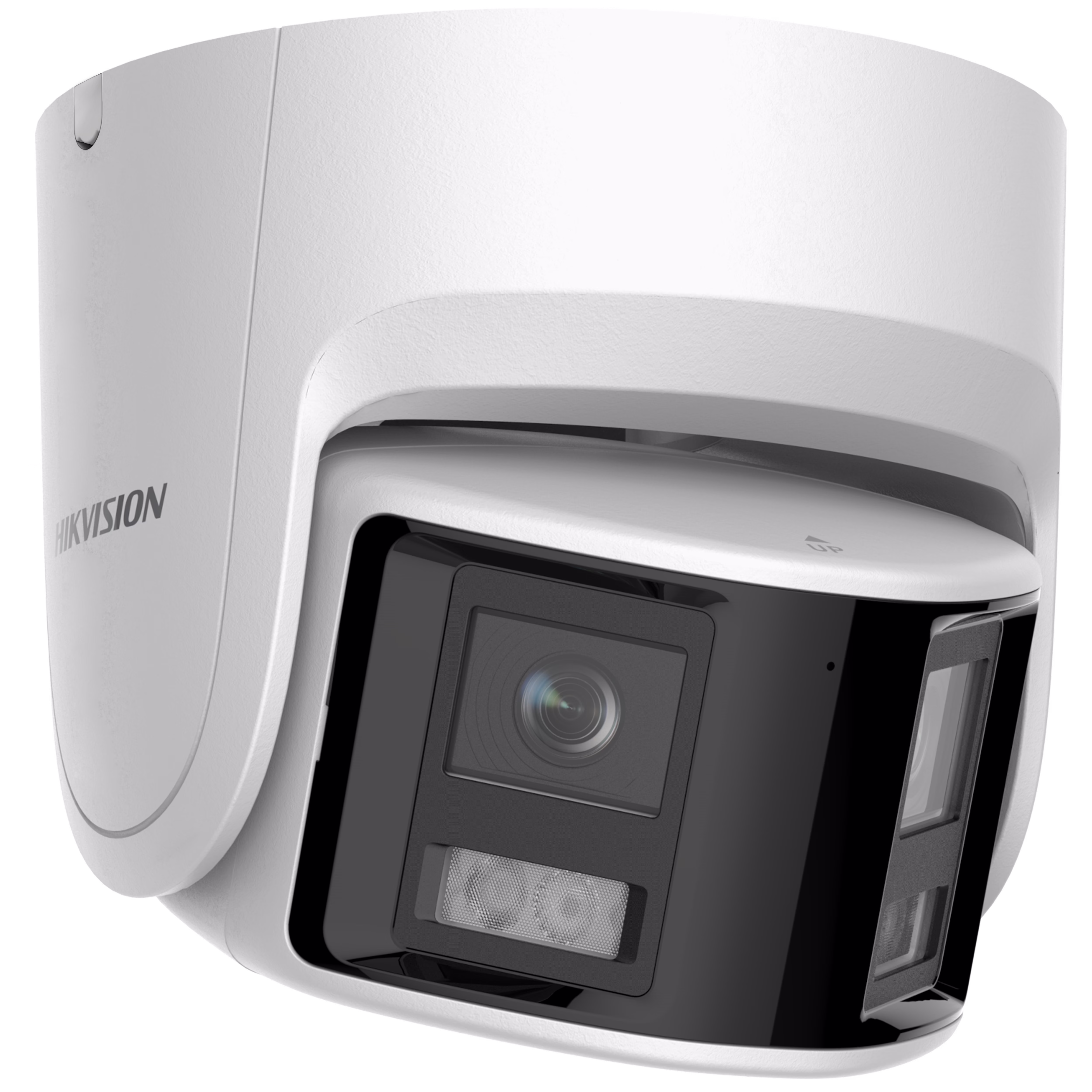

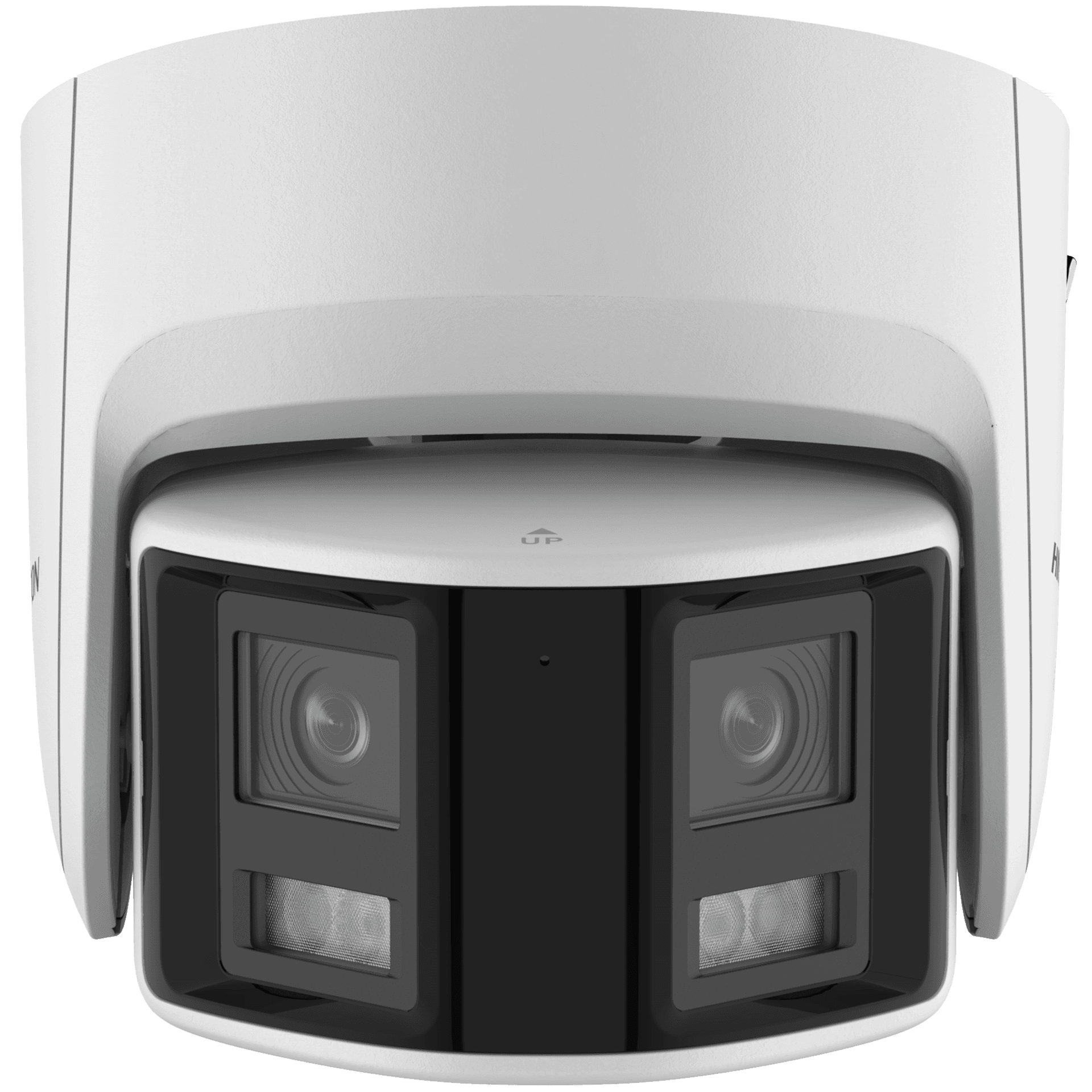

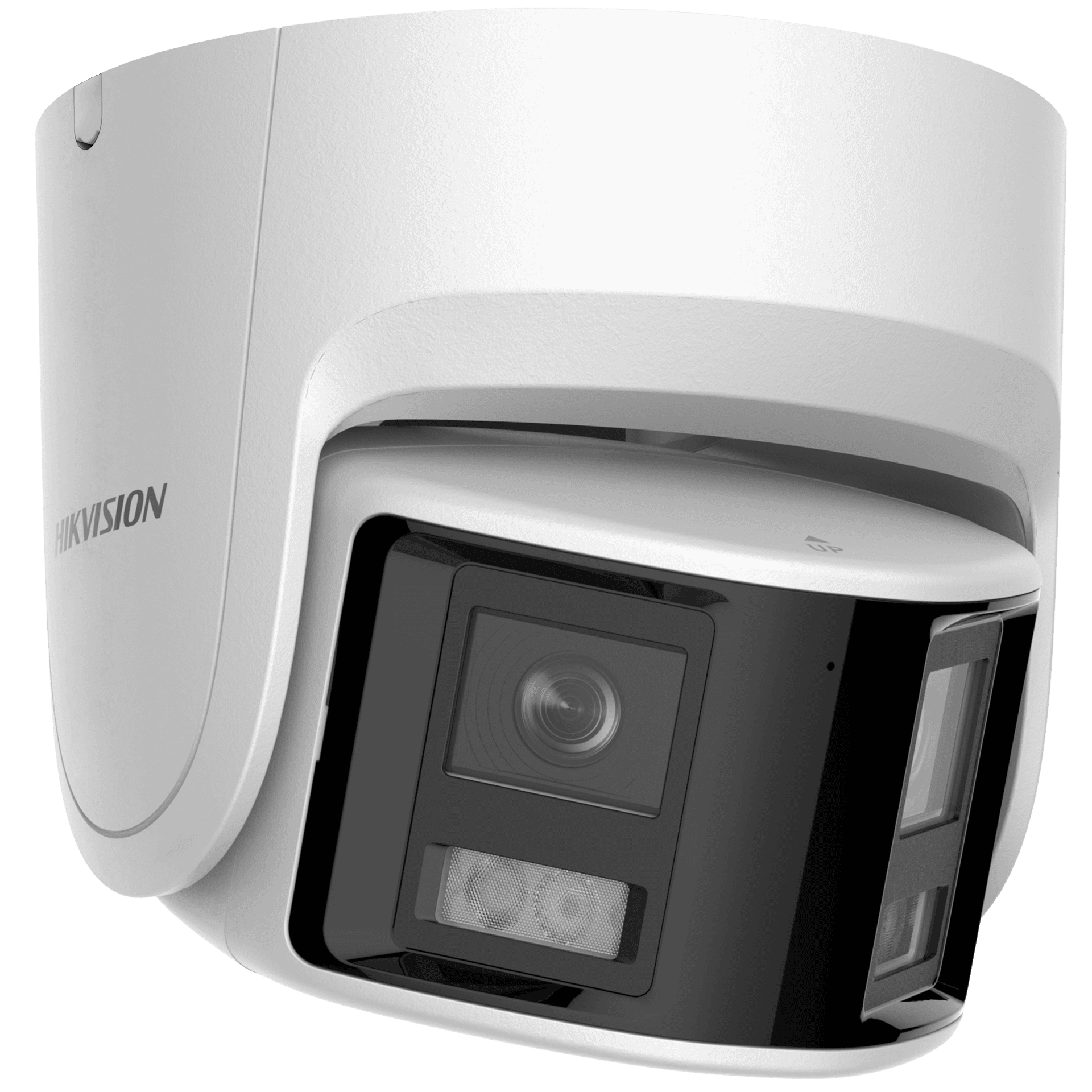

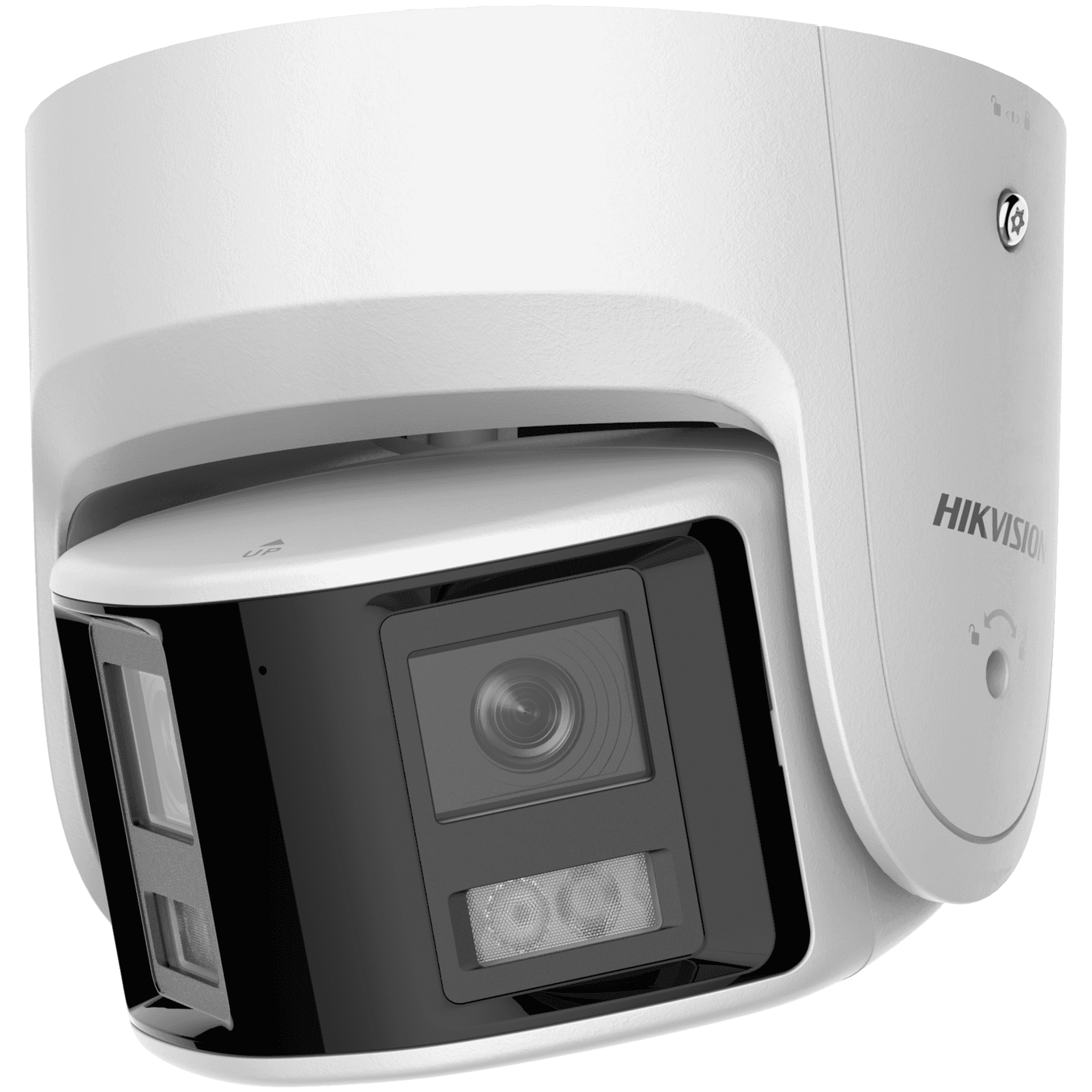

Hikvision DS-2CD2346G2P-ISU/SL 4 MP Panoramic AcuSense Fixed Turret Network Camera
Model :
SKU : DS-2CD2346G2P-ISU/SL(2.8m
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- One image that presents all the scenes covered by the camera
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
Description
The Hikvision DS-2CD2346G2P-ISU/SL is a high-performance 4 MP panoramic network camera designed to deliver wide-area coverage with advanced intelligent security features. Using powered-by-DarkFighter technology, the camera provides excellent low-light performance, ensuring clear and detailed images even in challenging lighting conditions.
This panoramic turret camera captures a single seamless image covering all monitored scenes, eliminating blind spots and reducing the need for multiple cameras. With 120 dB true WDR, it delivers clear imaging even in environments with strong backlighting.
Equipped with AcuSense technology and deep learning algorithms, the camera accurately classifies and focuses on human and vehicle targets, significantly reducing false alarms triggered by irrelevant motion. For active deterrence, it features a built-in strobe light and audio alarm to warn intruders in real time.
The camera also supports two-way audio, enabling real-time communication and enhanced situational awareness. Built for reliable outdoor performance, the IP67-rated housing ensures protection against water and dust, making it suitable for both indoor and outdoor installations.
Specification
Camera Specifications
| Camera | |
|---|---|
| Image Sensor | 2 × 1/2.5" Progressive Scan CMOS |
| Maximum Resolution | 3040 × 1368 |
| Minimum Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 30°, Tilt: -75° to 75° |
Lens
| Lens Type | Fixed focal, dual lens |
| Focal Length | 2.8 mm |
| Field of View | Horizontal: 180°, Vertical: 81° |
| Lens Mount | M12 |
| Aperture | F1.6 |
| DORI | D: 37 m, O: 15 m, R: 7 m, I: 3.5 m |
Illuminator
| Supplement Light Type | IR |
| IR Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 25 fps (3040 × 1368) @ 50 Hz 24 fps (3040 × 1368) @ 60 Hz |
| Sub-Stream | 25 fps (1200 × 536, 960 × 432) |
| Video Compression | H.265+/H.265/H.264+/H.264, MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Bit Rate Control | CBR / VBR |
| ROI | 1 Fixed Region (Main Stream) |
Audio
| Audio Type | Mono |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Sampling Rate | 8 kHz to 48 kHz |
| Noise Filtering | Yes |
Network
| Protocols | TCP/IP, HTTP, HTTPS, RTSP, FTP, DHCP, DNS, IPv4/IPv6, SNMP, QoS, SSL/TLS |
| Simultaneous Live View | Up to 6 Channels |
| API | ONVIF (Profile S/G/T), ISAPI, SDK |
| Users | Up to 32 Users |
Storage & Interface
| Ethernet | 1 × RJ45 10/100 Mbps |
| On-board Storage | MicroSD up to 512 GB |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes (95 dB) |
| Alarm I/O | 1 Input / 1 Output |
| Reset Button | Yes |
Power & Environment
| Power Supply | 12 VDC or PoE (IEEE 802.3af) |
| Max Power Consumption | 12.5 W |
| Protection | IP67 |
| Operating Temperature | -30 °C to 60 °C |
Physical
| Material | Metal Base & Cover |
| Dimensions | Ø140 × 145.6 mm |
| Weight | Approx. 940 g |
| Package Weight | Approx. 1.7 kg |
