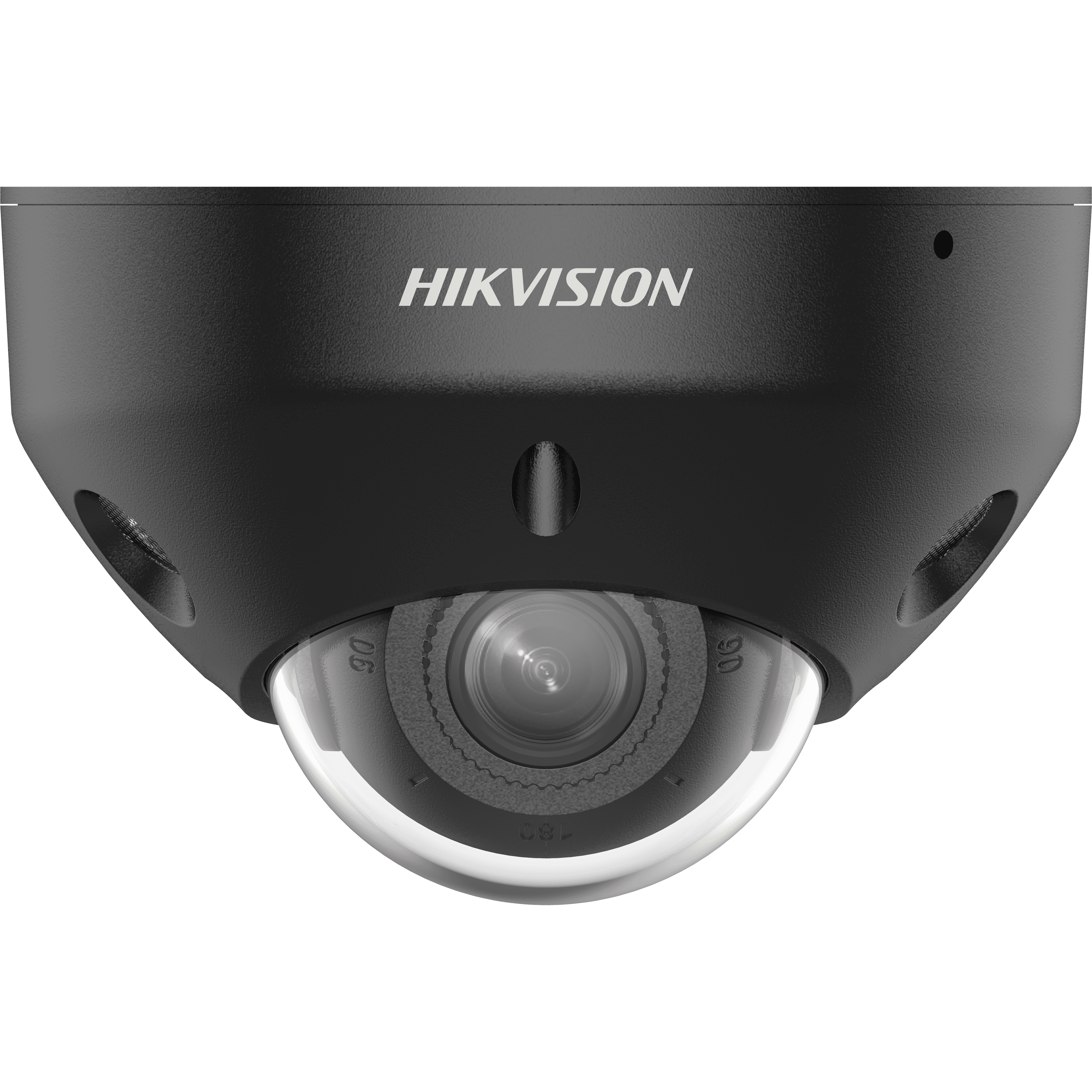

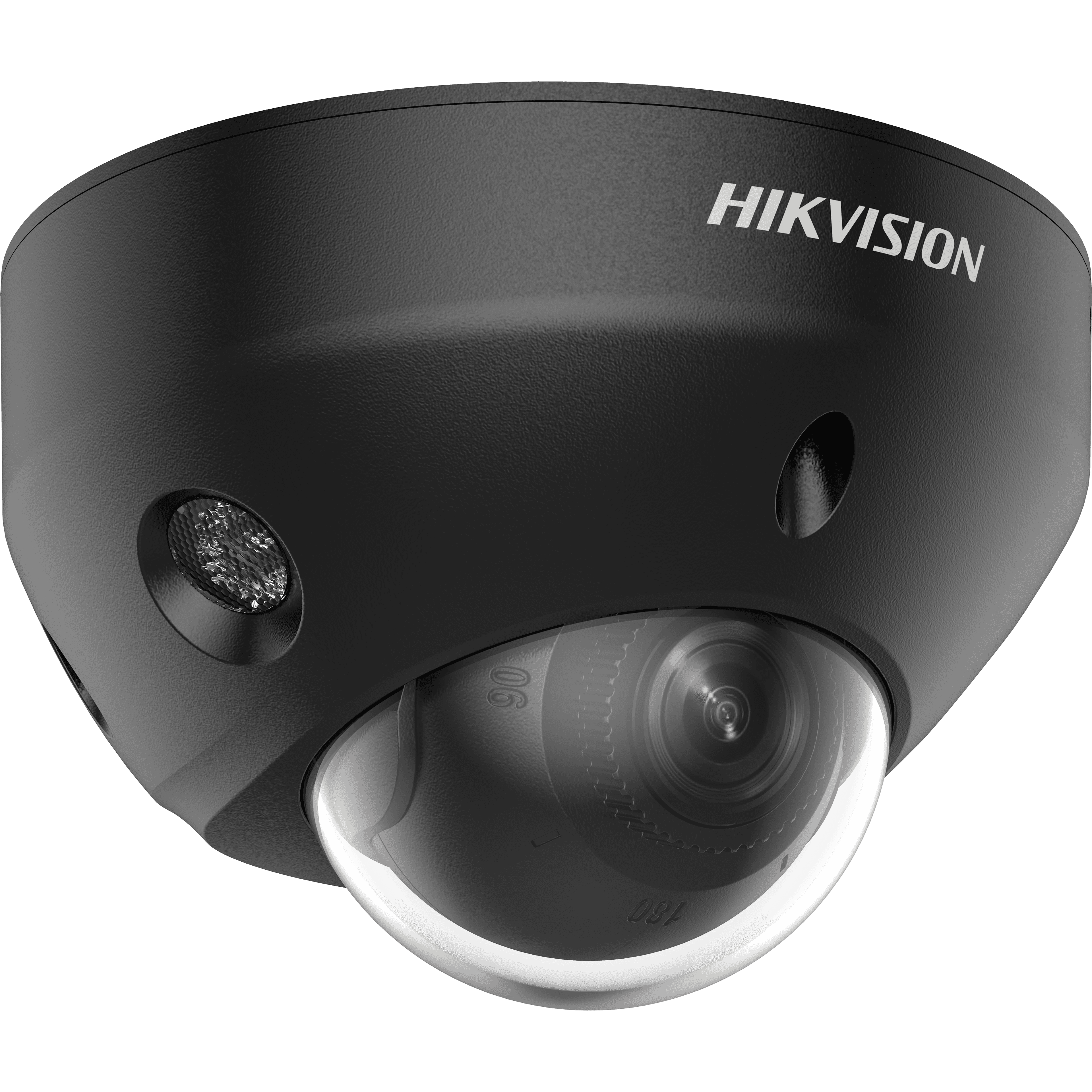

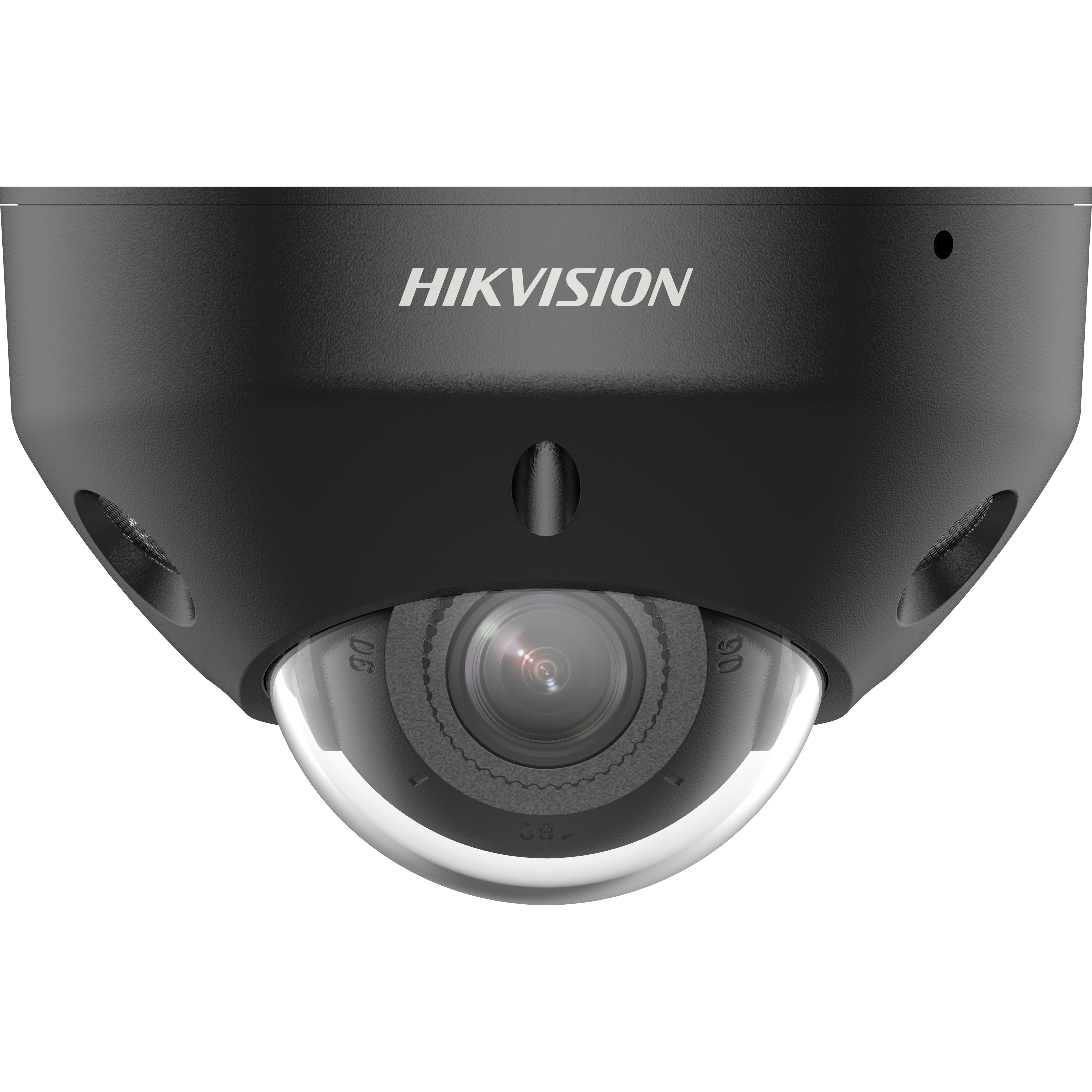

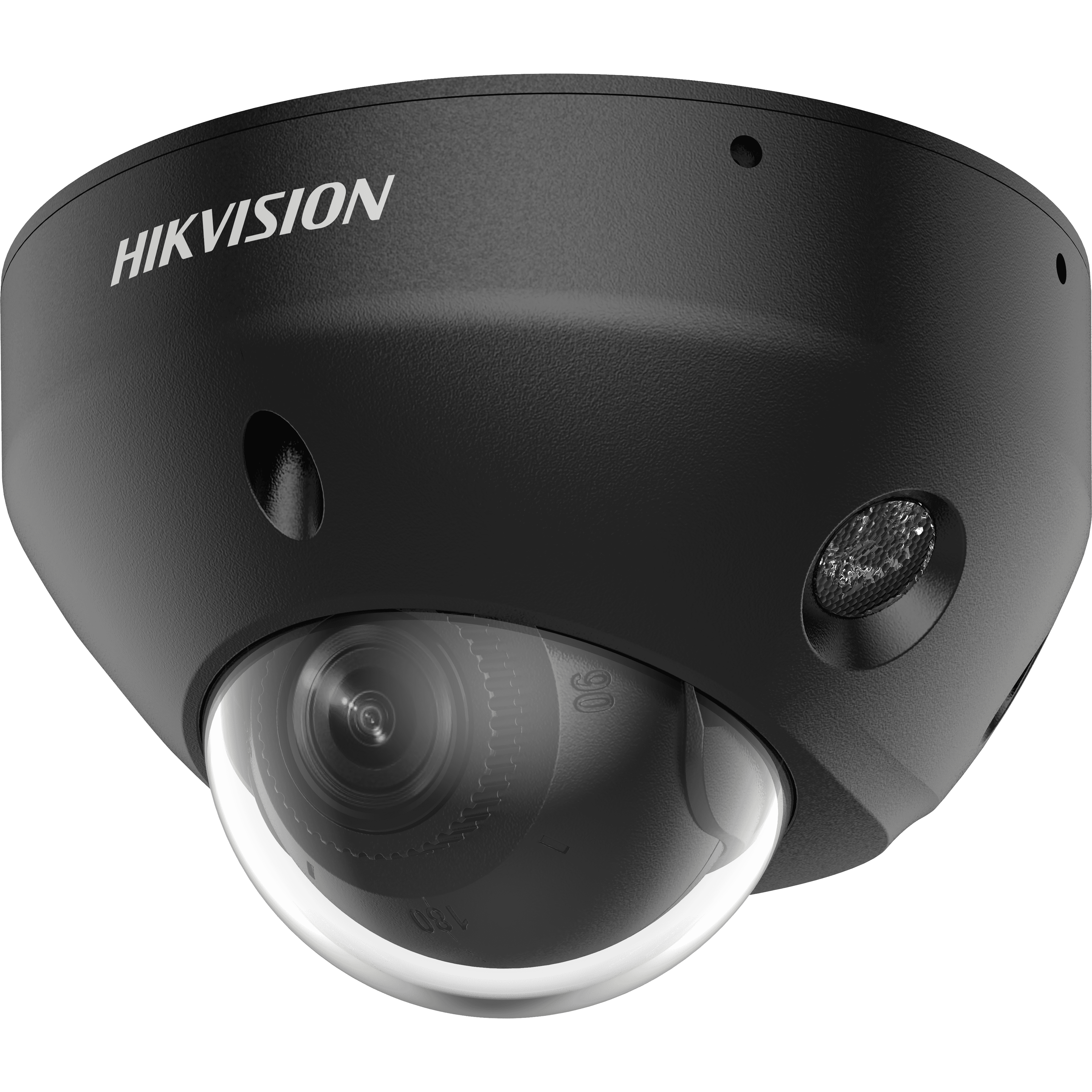

Hikvision DS-2CD2583G2-LIS2U(2.8mm) 8 MP Acusense Smart Hybrid Light Fixed Black Mini Dome Network Camera, Built-in Microphone, IK08, IP67
Model :
SKU : DS-2CD2583G2-LIS2U BLACK
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors
Specification
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: -30° to 30°, Tilt: 0° to 75°, Rotate: 0° to 360° |
Lens
| Lens Type | Fixed focal lens, 2.8 mm and 4 mm optional |
| Focal Length & FOV | 2.8 mm: Horizontal 108°, Vertical 59°, Diagonal 127° 4 mm: Horizontal 88°, Vertical 44°, Diagonal 105° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.7 m to ∞; 4 mm: 2.6 m to ∞ |
DORI
| 2.8 mm | D: 84 m, O: 33 m, R: 16 m, I: 8 m |
| 4 mm | D: 117 m, O: 46 m, R: 23 m, I: 11 m |
Illuminator
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 20 fps (3840×2160); 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720) 60 Hz: 20 fps (3840×2160); 30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream | 50 Hz/60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) *Supported under certain settings. |
| Video Compression | Main: H.265/H.264/H.264+/H.265+ Sub: H.265/H.264/MJPEG Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline, Main, High Profile |
| H.265 Type | Main Profile |
| SVC | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| ROI | 1 fixed region (main & sub stream) |
| Target Cropping | Yes |
Audio
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps to 320 Kbps depending on codec |
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 48 kHz |
| Environment Noise Filtering | Yes |
Network
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, G), ISAPI, SDK, ISUP |
| Security | Password protection, HTTPS encryption, IP filter, TLS 1.1/1.2/1.3, Audit Log, WSSE authentication |
| User/Host | Up to 32 users (admin, operator, user) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS), ANR, Memory Card Encryption & Health Detection |
| Web Browser | IE11 (plug-in), Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 8 programmable polygon privacy masks |
Interface
| Ethernet | 1 RJ45 10/100 Mbps self-adaptive Ethernet port |
| Audio | Built-in dual microphone Line In/Out via two-core terminal block Max input: 3.3 Vpp; Impedance: 4.7 KΩ |
| On-Board Storage | MicroSD/microSDHC/microSDXC up to 512 GB |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
Event
| Basic Event | Motion detection (human/vehicle), video tampering, exception |
| Smart Event | Face detection |
| Linkage | Upload to FTP/NAS/memory card, email, recording, capture, alarm trigger |
| Perimeter Protection | Line crossing, intrusion with human/vehicle classification |
General
| Power | 12 VDC ±25%, 0.54 A, Max 6.5 W / PoE IEEE 802.3af (Class 3, Max 8W) |
| Material | Base: Aluminum, Cover: Plastic |
| Dimension | Ø113.6 × 74.6 mm (Ø4.47" × 2.94") |
| Package Dimension | 150 × 150 × 141 mm (5.91" × 5.91" × 5.55") |
| Weight | Approx. 500 g (1.1 lb); With Package: 660 g (1.5 lb) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F); 95% RH or less (non-condensing) |
| Language | Supports 33 languages including English, French, Spanish, Russian, Chinese, Arabic, etc. |
| General Functions | Heartbeat, Mirror, Flash Log, Password Reset via Email, Pixel Counter, Anti-Banding |
Approvals
| EMC | CE-EMC, RCM, IC, KC |
| Safety | CB, CE-LVD, BIS, LOA |
| Environment | CE-RoHS, WEEE, REACH |
| Protection | IP67, IK08 |
