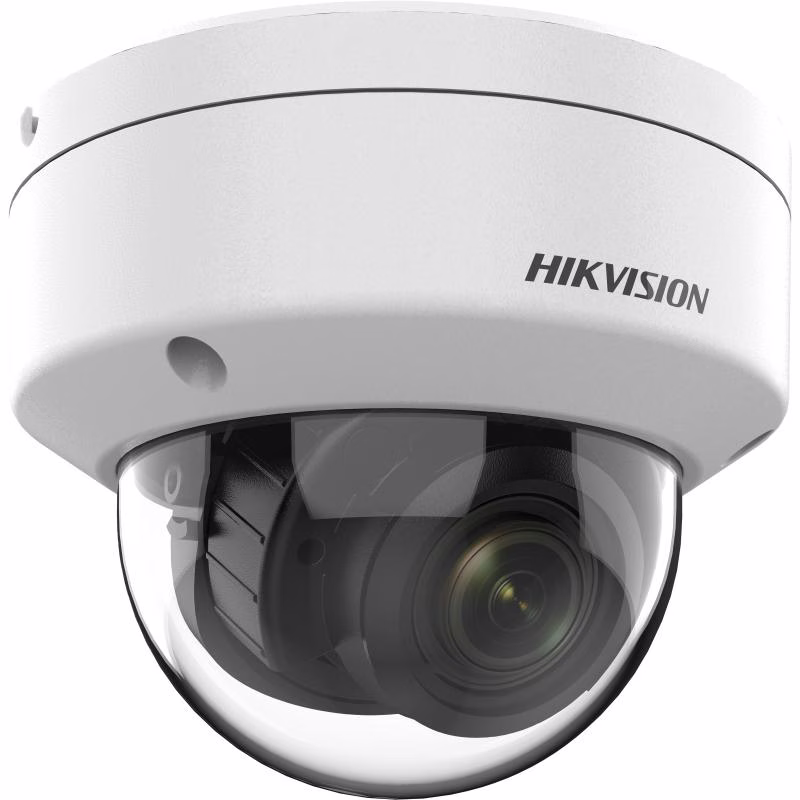

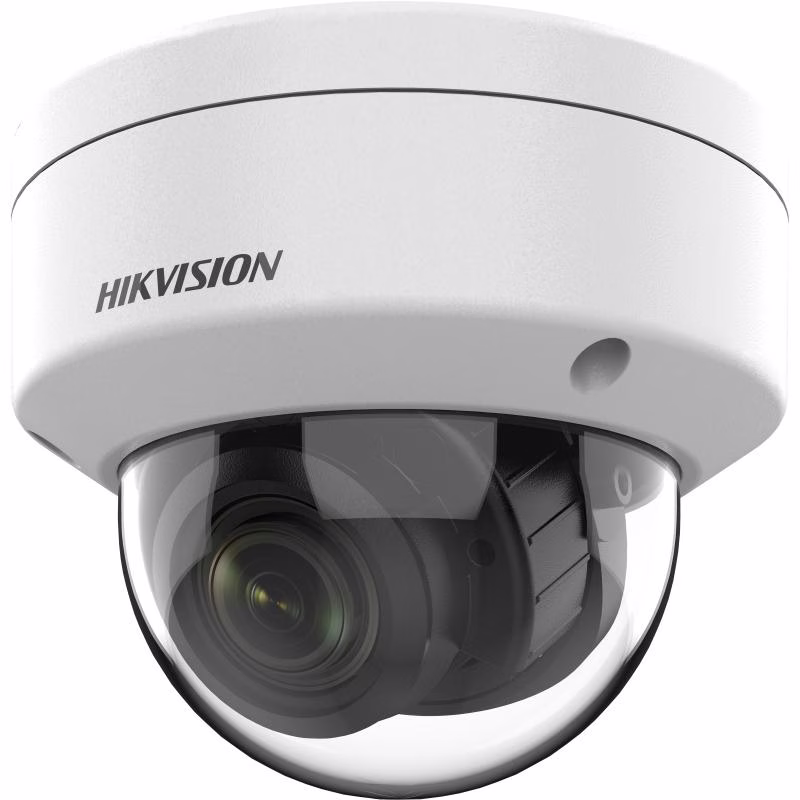

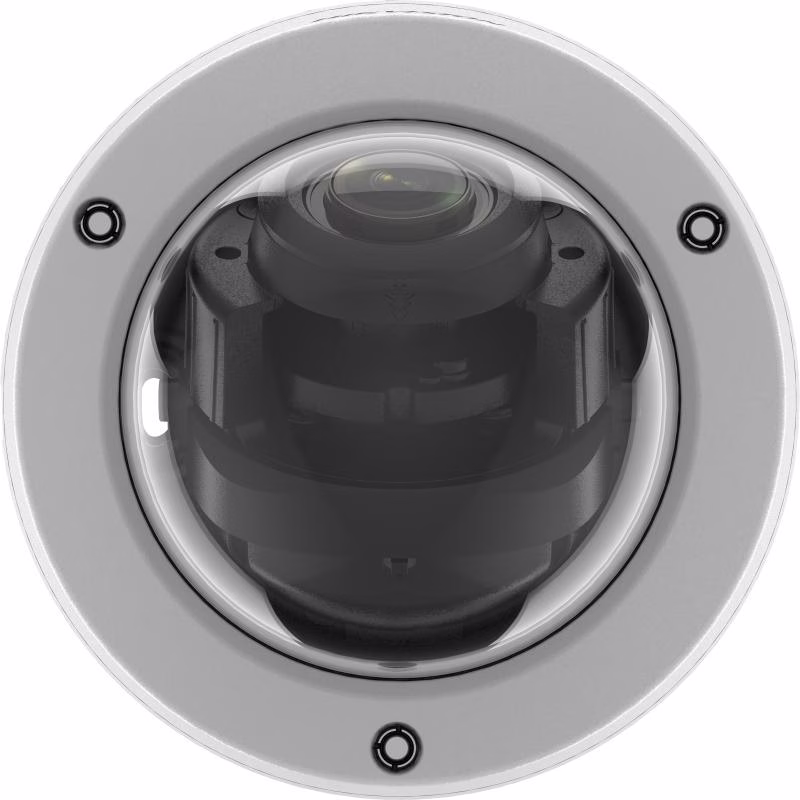

Hikvision DS-2CD3741G2-IZS 4 MP ACUSENSE IR VARIFOCAL DOME NETWORK CAMERA (2.7-13.5mm)
Model :
SKU : DS-2CD3741G2-IZS
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Camera Specifications
| Category | Specification |
|---|---|
| Image Sensor | |
| Type | 1/2.9" Progressive Scan CMOS |
| Max. Resolution | 2560 ?? 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0?? to 355??, Tilt: 0?? to 75??, Rotate: 0?? to 355?? |
| Lens | |
| Lens Type | Varifocal, motorized, 2.7 to 13.5 mm |
| Focal Length & FOV | 2.7 to 13.5 mm, Horizontal FOV: 96.7?? to 29.7??, Vertical FOV: 51.7?? to 16.7??, Diagonal FOV: 114.3?? to 34.0?? |
| Lens Mount | Integrated |
| Iris Type | Fixed |
| Aperture | Max. F1.6 |
| Depth of Field | Wide: 1 m to ???, Tele: 4.1 m to ??? |
| DORI | |
| Wide | D: 64 m, O: 25.4 m, R: 12.8 m, I: 6.4 m |
| Tele | D: 198 m, O: 78.6 m, R: 39.6 m, I: 19.8 m |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (2560 ?? 1440), 25 fps (1920 ?? 1080, 1280 ?? 720); 60 Hz: 20 fps (2560 ?? 1440), 30 fps (1920 ?? 1080, 1280 ?? 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360); 60 Hz: 30 fps (1280 ?? 720, 640 ?? 480, 640 ?? 360) |
| Third Stream | 50 Hz: 1 fps (640 ?? 360); 60 Hz: 1 fps (640 ?? 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| ROI | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Network | |
| Security | Password protection, HTTPS encryption, TLS 1.2/1.3, security audit log |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, T, G), ISAPI, SDK |
| Image | |
| Wide Dynamic Range | 120 dB |
| SNR | ??? 52 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | MicroSD up to 512 GB |
| General | |
| Power | 12 VDC ?? 25%, 0.8 A, max. 12 W, PoE: IEEE 802.3af, Class 3 |
| Material | Metal |
| Dimension | ??121.5 mm ?? 97.6 mm (??4.78" ?? 3.84") |
| Weight | Approx. 885 g (1.95 lb.) |
| Operating Temperature | -30 ??C to 60 ??C (-22 ??F to 140 ??F), Humidity 95% (non-condensing) |
| Certification | |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019 |
| Safety | IEC 62368-1: 2014+A11 |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
