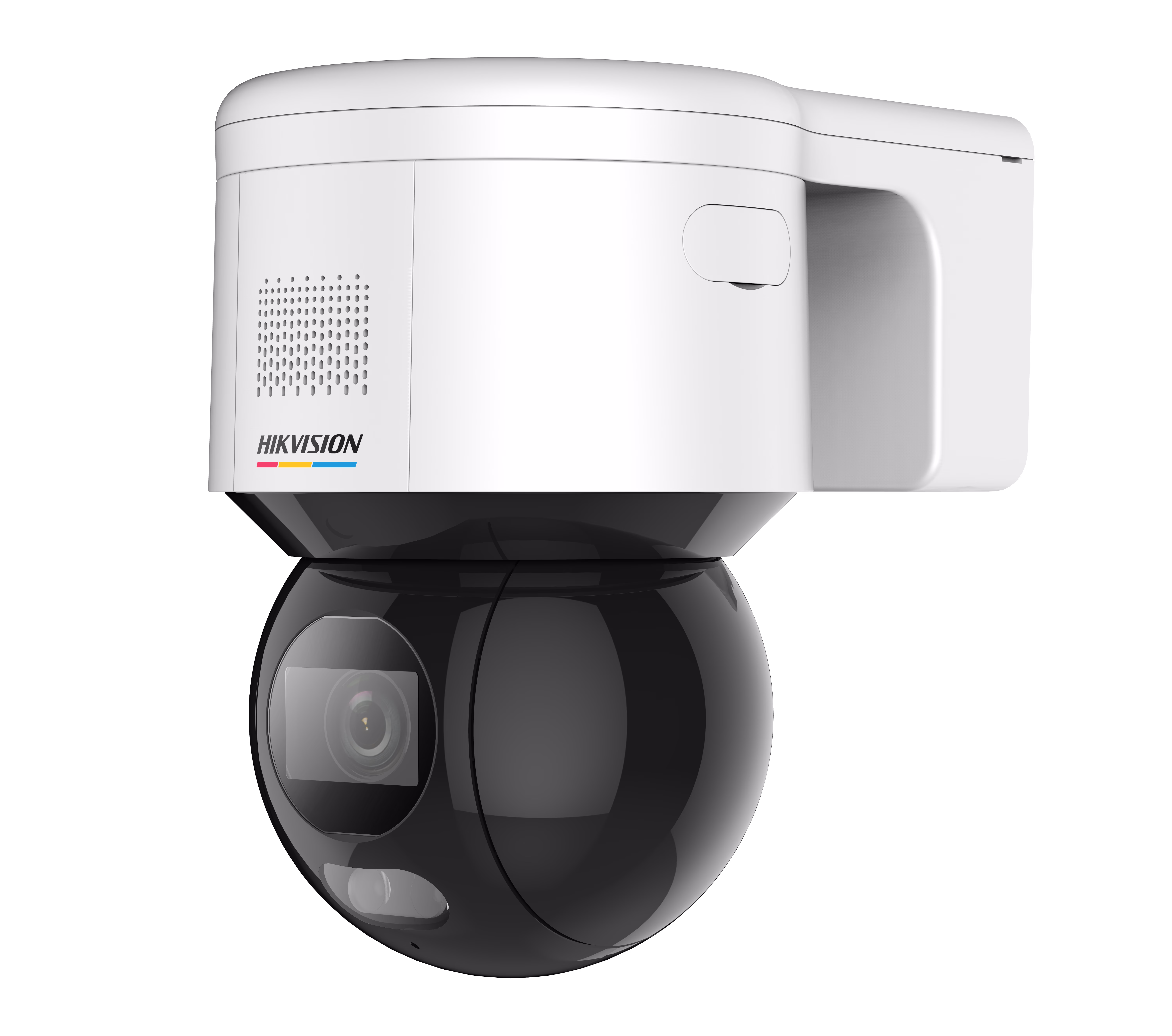

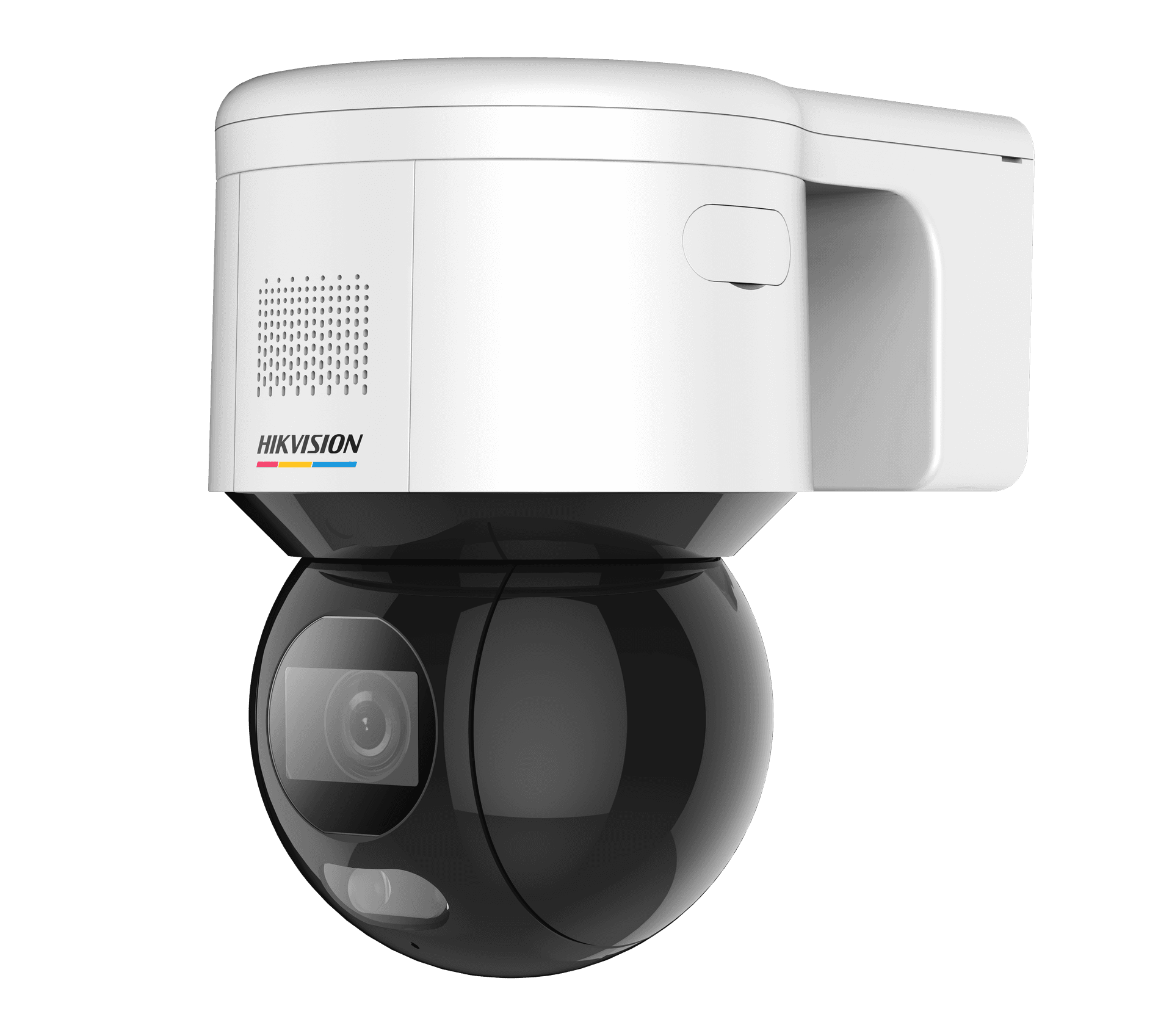

Hikvision DS-2DE3A400BW-DE/W(T5) 4MP ColorVu Wi-Fi Mini PT Dome IP Camera, 3″, Human & Vehicle Detection, Face Capture, 30m White Light, Built-in Mic & Speaker, IP66, PoE
Model :
SKU : DS-2DE3A400BW-DE/W(F1)(T5
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
The Hikvision DS-2DE3A400BW-DE/W(T5) 4MP ColorVu Wi-Fi Mini PT Dome IP Camera is an advanced smart surveillance solution designed for high-quality 24/7 monitoring in residential and commercial environments. Featuring ColorVu technology, this camera delivers full-color imaging even in ultra-low light conditions.
With a 4MP resolution (up to 2560 × 1440 @ 30fps), it captures sharp and detailed video footage. Powered by deep learning hardware and algorithms, the camera provides accurate human and vehicle detection, reducing false alarms and enhancing security efficiency.
The face capture feature automatically selects the best shot and can detect and capture up to 5 faces simultaneously, making it ideal for entrances, retail stores, offices, and access monitoring areas. The camera also includes a linked audible and visual alarm, along with a built-in microphone and speaker for real-time two-way audio communication.
Equipped with up to 30m white light range, the camera ensures bright and colorful night monitoring. Advanced imaging technologies such as 120 dB WDR, 3D DNR, and HLC enhance video clarity in challenging lighting conditions. With IP66 weatherproof protection and PoE support, installation is simplified while ensuring reliable outdoor performance.
The Hikvision DS-2DE3A400BW-DE/W(T5) is a smart and efficient choice for users seeking intelligent, full-color, AI-powered surveillance.
Key Features
4MP ColorVu Wi-Fi Mini PT Dome IP camera
Up to 2560 × 1440 resolution @ 30fps
Accurate human & vehicle detection with deep learning
Face capture with best-shot selection (up to 5 faces simultaneously)
Built-in microphone & speaker for two-way audio
Linked audible and visual alarm
24/7 full-color imaging, 0.0005 Lux minimum illumination
Up to 30m white light distance
120 dB WDR, 3D DNR, HLC image enhancement
IP66 weatherproof design
PoE powered for simplified installation
Model: DS-2DE3A400BW-DE/W(T5)
Specification
Camera Technical Specifications
Camera
| Image Sensor | 1/1.8" progressive scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light |
| Shutter Speed | 1/1 to 1/30,000 s |
| Day & Night | 24/7 colorful imaging |
| Zoom | 16x digital |
Lens
| Focal Length | 4 mm |
| FOV | Horizontal: 88.7° Vertical: 46.5° Diagonal: 105.0° |
| Aperture | F1.0 |
Illuminator
| Supplement Light Type | White Light |
| Supplement Light Range | White Light Distance: up to 30 m |
PTZ
| Movement Range (Pan) | 350° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Configurable 0.1° to 60°/s; preset speed: 60°/s |
| Tilt Speed | Configurable 0.1° to 50°/s; preset speed: 50°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Park Action | Preset, patrol scan |
| 3D Positioning | Yes |
| Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
Video
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
Audio
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Environment Noise Filtering | Yes |
Network
| Protocols | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S/G/T), ISUP |
| User/Host | Up to 32 users (administrator, operator, user) |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X (EAP-TLS/EAP-LEAP/EAP-MD5), watermark, IP filter, basic & digest auth (HTTP/HTTPS), RTP/RTSP over HTTPS, control timeout, audit log, TLS 1.2, host authentication (MAC) |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Client | iVMS-4200, Hik-Connect (Wi-Fi connection with Hik-Connect directly is not possible) |
| Web Browser | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
Wireless (Wi-Fi)
| Encryption Mode | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Wi-Fi Protocols | IEEE 802.11b/g/n |
| Frequency Range | 2.4 GHz – 2.4835 GHz |
| Channel Bandwidth | 20/40 MHz |
| Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK 802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
| Transfer Rate | 11b: 11 Mbps; 11g: 54 Mbps; 11n: up to 150 Mbps |
| Wireless Range | Up to 50 m |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance (adjustable via client/web) |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | > 52 dB |
| Defog | Digital defog |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | Up to 24 masks (8 per scene) |
| Regional Exposure | Yes |
Interface
| Ethernet Interface | 1 × RJ45 10M/100M; PoE (802.3at) |
| On-board Storage | MicroSD/SDHC/SDXC slot, up to 512 GB |
| Built-in Speaker | 1 built-in speaker |
| Audio | 1 × line in (2–2.4 vpp, 1 KΩ ±10%) 1 × line out (line level, 600 Ω) |
| Alarm | 1 input, 1 output |
| RS-485 | 1 × RS-485 (Half duplex, HIKVISION/Pelco-P/Pelco-D, self-adaptive) |
| Reset | Yes |
| Power Output | 12 VDC; < 60 mA |
Event
| Basic Event | Video tampering alarm, motion detection, alarm input, alarm output, exception |
