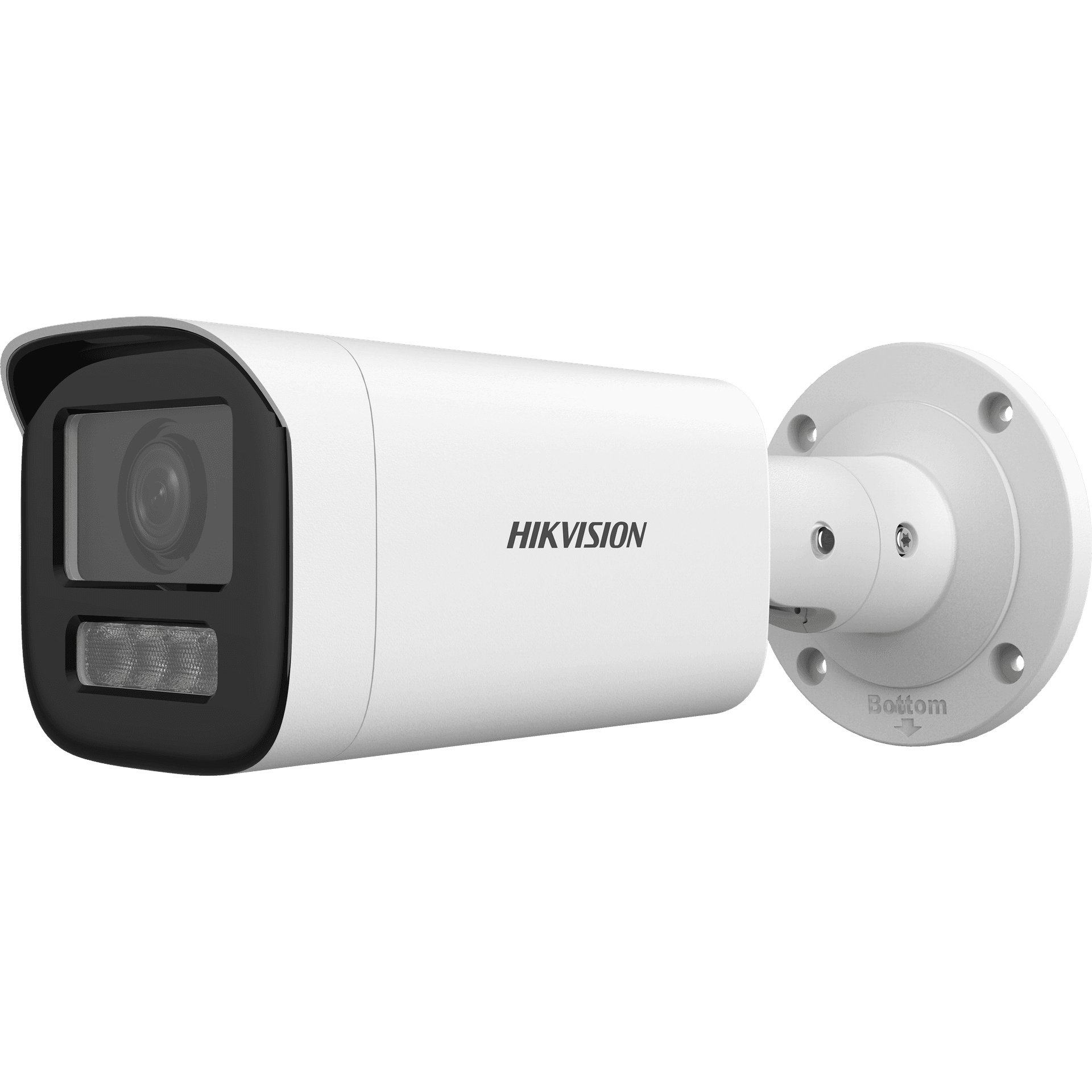

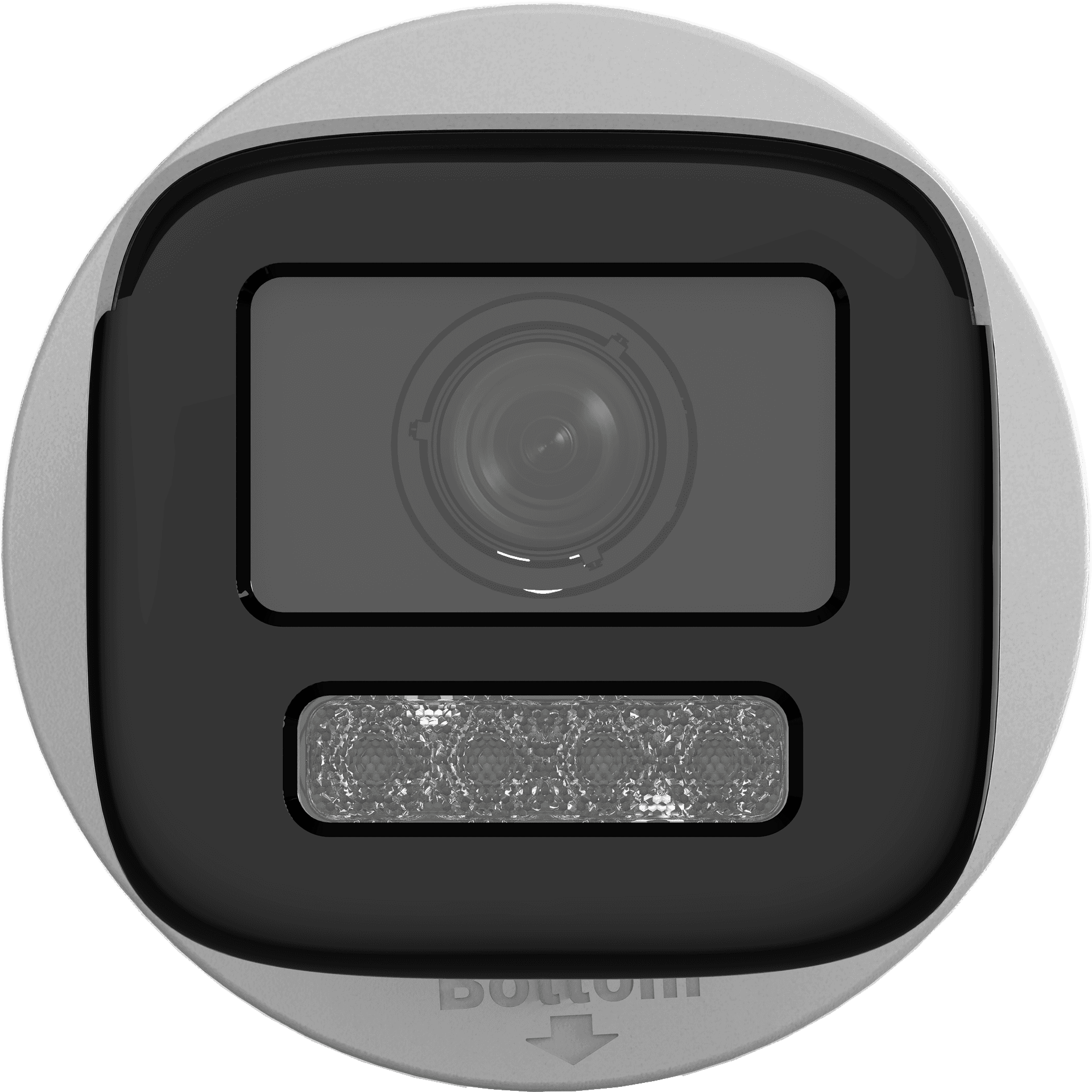

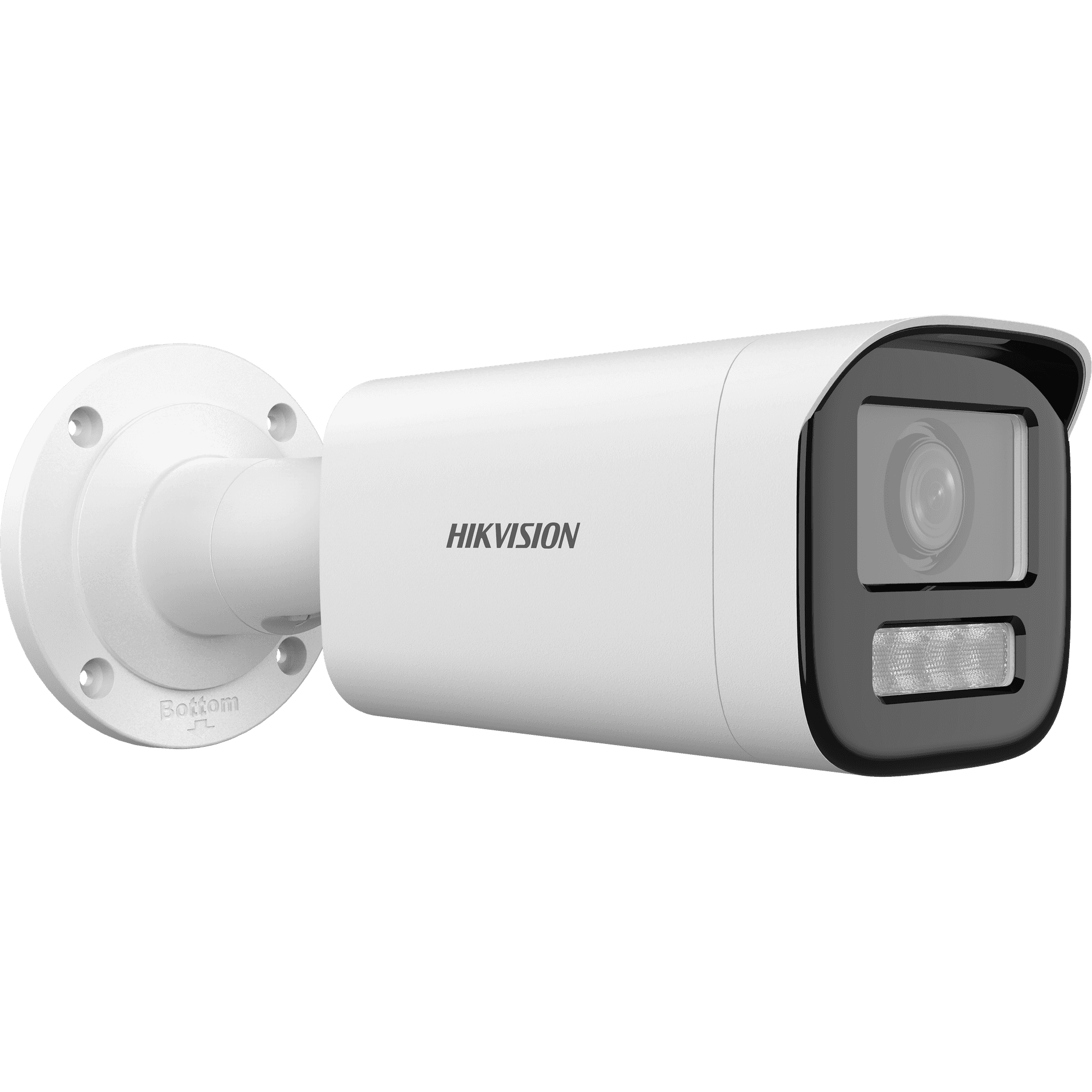

Hikvision DS-2CD1643G2-LIZU 4MP Outdoor Bullet IP Camera, 2.8–12mm Motorized Varifocal Lens, 1/3″ CMOS, H.265+, Day/Night (ICR), PoE
Model :
SKU : DS-2CD1643G2-LIZU 2.8-12M
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Built-in microphone for real-time audio security
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67)
Specification
Network IR Bullet Camera – Technical Specifications
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotate: 0°–360° |
| Lens | |
| Lens Type | Motorized Varifocal, 2.8–12 mm |
| FOV | Horizontal: 96.7°–29.7° Vertical: 51.7°–16.7° Diagonal: 114.3°–34° |
| Lens Mount | Ø14 |
| Iris | Fixed |
| Aperture | F1.6 |
| DORI Distance | Detect: 64.0–198.0 m Observe: 25.4–78.6 m Recognize: 12.8–39.6 m Identify: 6.4–19.8 m |
| Illuminator | |
| Supplement Light | IR & White Light |
| Light Range | Up to 50 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 20 fps (2560×1440) 25/24 fps (1920×1080, 1280×720) |
| Sub-Stream | 25/24 fps (1280×720, 640×480, 640×360) |
| Video Compression | H.265+/H.265/H.264+/H.264 (Main) H.265/H.264/MJPEG (Sub) |
| Bit Rate | 32 Kbps – 16 Mbps |
| Bitrate Control | CBR / VBR |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable areas |
| Audio | |
| Audio Type | Mono, Built-in Microphone |
| Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Sampling Rate | 8 kHz / 16 kHz |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, DHCP, DNS, HTTP, RTSP, RTP, NTP, IPv6, FTP, SMTP, QoS, etc. |
| ONVIF | Profile S, G, T |
| Users | Up to 32 (3 Levels) |
| Web Browser | IE 10/11 (Live View), Chrome 57+, Firefox 52+, Edge 89+ |
| Storage & Interface | |
| Ethernet | 1 × RJ45 10/100 Mbps |
| On-board Storage | microSD slot (up to 512GB) |
| Alarm (-S) | 1 Input, 1 Output |
| Audio I/O (-S) | 1 Input, 1 Output |
| Reset Key | Yes |
| Power | |
| Power Supply | 12VDC ±25%, Max 11W PoE (802.3af, Class 3) |
| General | |
| Material | Metal & Plastic |
| Dimensions | Ø105 × 252 mm |
| Weight | Approx. 585 g |
| Operating Temperature | -30°C to 60°C |
| Protection | IP67 |
| Certifications | |
| EMC | CE, RCM, IC |
| Safety | UL, CB, CE-LVD, BIS |
| Environmental | RoHS, WEEE, REACH |
