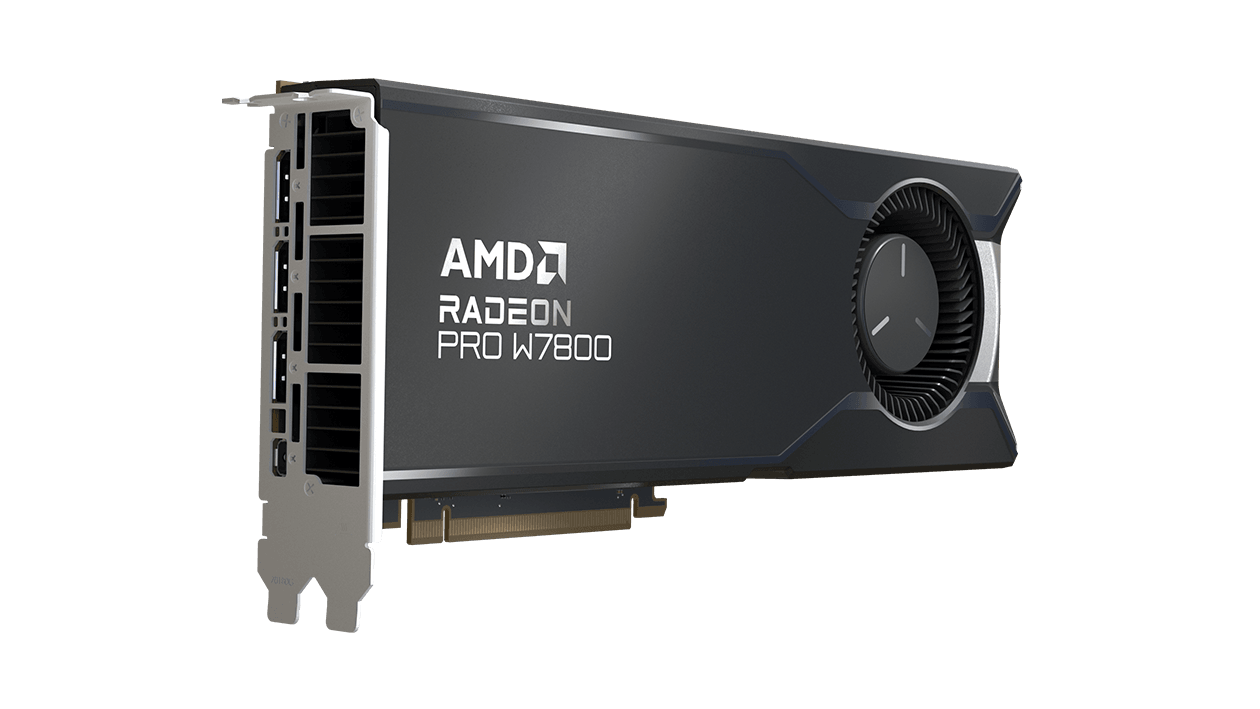

AMD Radeon Pro W7800 Professional Graphics Card, 32GB GDDR6 256-bit Memory, Up to 576 GB/s Memory Bandwidth, 4480 Stream Processors, PCIe 4.0, DisplayPort 2.1, Mini DisplayPort 2.1
Model :
SKU : GC-AMD RADE PRO W7800 32G
About this item
About this item
Description
The AMD Radeon PRO W7800 Professional Graphics Card is a powerful workstation GPU designed for demanding professional applications such as CAD, 3D modeling, animation, simulation, video editing, and AI workflows. Built for reliability and performance, it delivers exceptional processing power for enterprise and creative environments.
Equipped with 32GB GDDR6 memory on a 256-bit interface, the Radeon PRO W7800 offers up to 576 GB/s memory bandwidth, ensuring smooth handling of complex datasets and high-resolution projects. With 4480 stream processors, it provides strong parallel processing capabilities for rendering, visualization, and compute-intensive workloads.
The card supports PCIe 4.0, ensuring high-speed data transfer with modern workstation platforms. Connectivity includes DisplayPort 2.1 and Mini DisplayPort 2.1, enabling support for high-resolution and multi-display professional setups.
The AMD Radeon PRO W7800 is an ideal solution for professionals seeking stable drivers, certified software compatibility, and high-performance graphics for mission-critical tasks.
Key Features
AMD Radeon PRO W7800 professional workstation GPU
32GB GDDR6 memory with 256-bit interface
Up to 576 GB/s memory bandwidth
4480 stream processors for compute performance
PCIe 4.0 support for high-speed connectivity
DisplayPort 2.1 and Mini DisplayPort 2.1 outputs
Designed for CAD, 3D rendering, AI, and content creation
Enterprise-grade stability and reliability
Specification
AMD Radeon™ PRO W7800 Professional Graphics Technical Specifications
| Name | AMD Radeon™ PRO W7800 |
| Family | Radeon PRO |
| Series | Radeon PRO W7000 Series |
| Form Factor | Workstations |
| GPU Architecture | AMD RDNA™ 3 |
| Hardware Ray Tracing | Yes |
| Lithography | TSMC 5nm (GCD) + 6nm (MCD) |
| Transistor Count | 57.7 Billion |
| Compute Units | 70 |
| Stream Processors | 4480 |
| Ray Accelerators | 70 |
| AI Accelerators | 140 |
| Peak FP32 Performance | 45.2 TFLOPs |
| Peak FP16 Vector Performance | 45.2 TFLOPs |
| Peak FP16 Matrix Performance | 90.4 TFLOPs |
| Peak INT8 Matrix Performance | 90.4 TOPs |
| Peak INT4 Matrix Performance | 181 TOPs |
| OS Support | Windows 11 (64-bit), Windows 10 (64-bit), Linux x86 64-bit |
| External Power Connectors | 2 × 8-pin |
| Total Board Power (TBP) | 260W |
| Minimum PSU Recommendation | 700W |
| Dedicated Memory Size | 32GB |
| Dedicated Memory Type | GDDR6 |
| Memory Interface | 256-bit |
| AMD Infinity Cache | 64MB |
| Peak Memory Bandwidth | 576 GB/s |
| Memory ECC Support | Yes |
| GPU Form Factor | PCIe® Add-in Card |
| Bus Type | PCIe® 4.0 x16 (PCIe® 3.0 backward compatible) |
| Cooling | Active |
| Display Outputs | 3 × DisplayPort™ 2.1, 1 × Enhanced Mini DisplayPort™ 2.1 |
| Display Configurations | 4 × 4096 × 2160 (4K DCI) @ 120Hz (DSC) 2 × 6144 × 3456 (6K) 12-bit HDR @ 60Hz (Uncompressed) 1 × 7680 × 4320 (8K) 12-bit HDR @ 60Hz (Uncompressed) 1 × 12288 × 6912 (12K) @ 120Hz (DSC) |
| HDR Support | Yes |
| 8K Support | Yes |
| 10K Support | Yes |
| 12K Support | Yes |
| Board Height | Full Height |
| Board Length | 11" (280mm) |
| Board Width | Double Slot |
| Supported Video Formats | 1 × AV1 Encode & Decode 2 × H.265 / HEVC Decode (4K H.264) 2 × H.265 / HEVC Encode (4K H.264) |
| Supported Technologies | AMD Viewport Boost, AMD Remote Workstation, AMD Radeon™ Media Engine, AMD Software PRO Edition, AMD Radeon™ VR Ready Creator, AMD Radeon™ ProRender |
| 10-bit Display Color Output | Yes |
| 12-bit Display Color Output | Yes |
| 3D Stereo Support | Yes |
| DirectX® | 12.0 Ultimate |
| OpenGL® | 4.6 |
| OpenCL™ | 2.1 |
| Vulkan® | 1.3 |
| TPP | 1448 |
| TPP Density | 2.87 |
