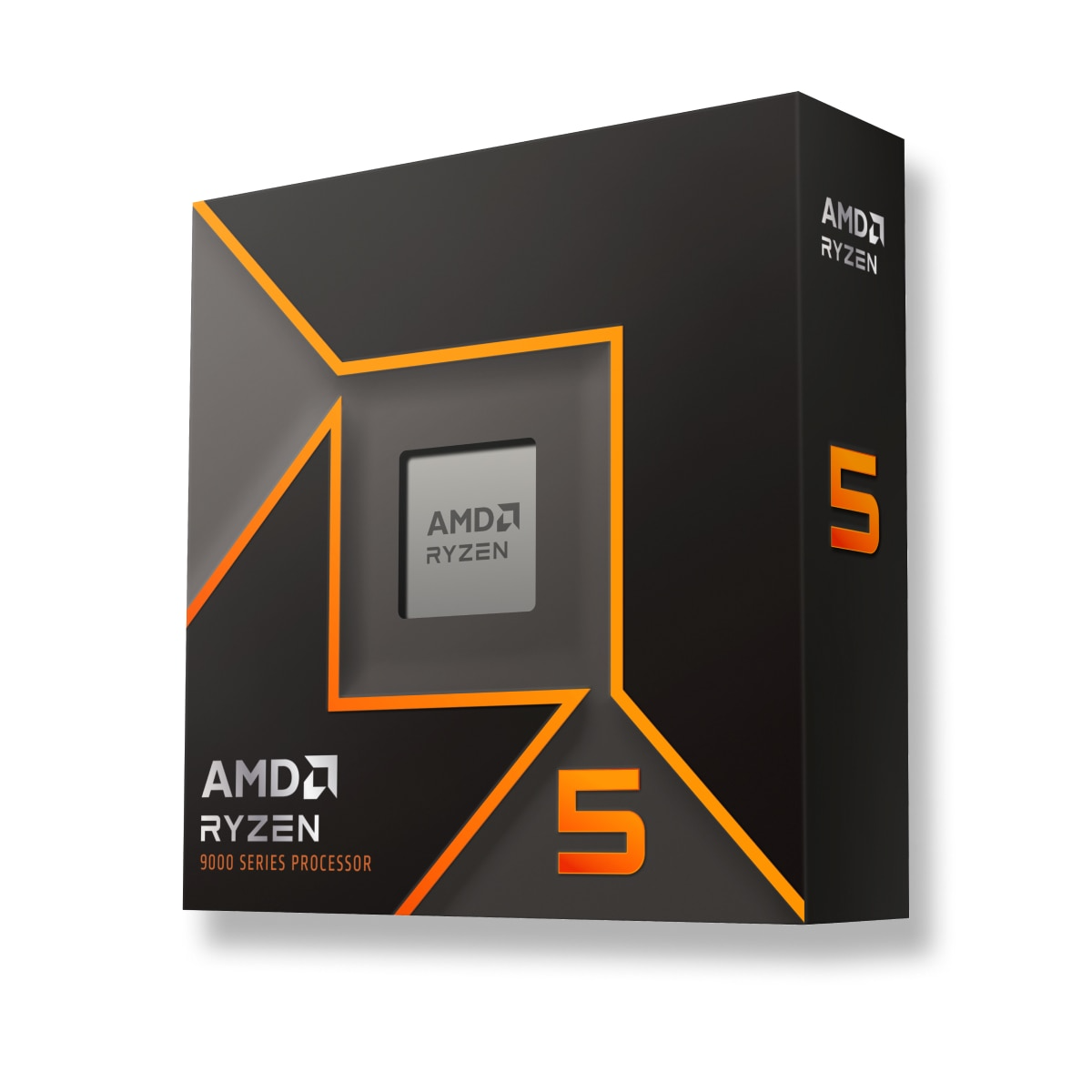

AMD Ryzen 5 9600X CPU Processor, AM5, Up to 5.4 GHz, 6 Cores, 12 Threads, Zen 5, AMD Radeon Graphics | 100-100001405WOF
Model :
SKU : PRC-AMD 9600X RYZEN 5
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
AMD Ryzen 5 9600X CPU Processor, AM5, Up to 5.4 GHz, 6 Cores, 12 Threads, Zen 5, AMD Radeon Graphics | 100-100001405WOF Specifications
| General Specifications | |
|---|---|
| Name | AMD Ryzen??? 5 9600X |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Granite Ridge AM5 |
| Architecture | Zen 5 |
| # of CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| # of Threads | 12 |
| Max. Boost Clock | Up to 5.4 GHz |
| Base Clock | 3.9 GHz |
| L1 Cache | 480 KB |
| L2 Cache | 6 MB |
| L3 Cache | 32 MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| AMD EXPO??? Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen??? Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Premium air cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95??C |
| Launch Date | 08/08/2024 |
| OS Support | |
| Windows | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition |
| Linux | RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 Ports | 4 |
| Native USB 2.0 Ports | 1 |
| PCI Express?? Version | PCIe?? 5.0 |
| Native PCIe?? Lanes (Total/Usable) | 28, 24 |
| NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
| System Memory | |
| Type | DDR5 |
| Channels | 2 |
| Max. Memory | 192 GB |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon??? Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C?? DisplayPort??? Alternate Mode | Yes |
| Product IDs | |
| Boxed | 100-100001405WOF |
| Tray | 100-000001405 |
Specification
