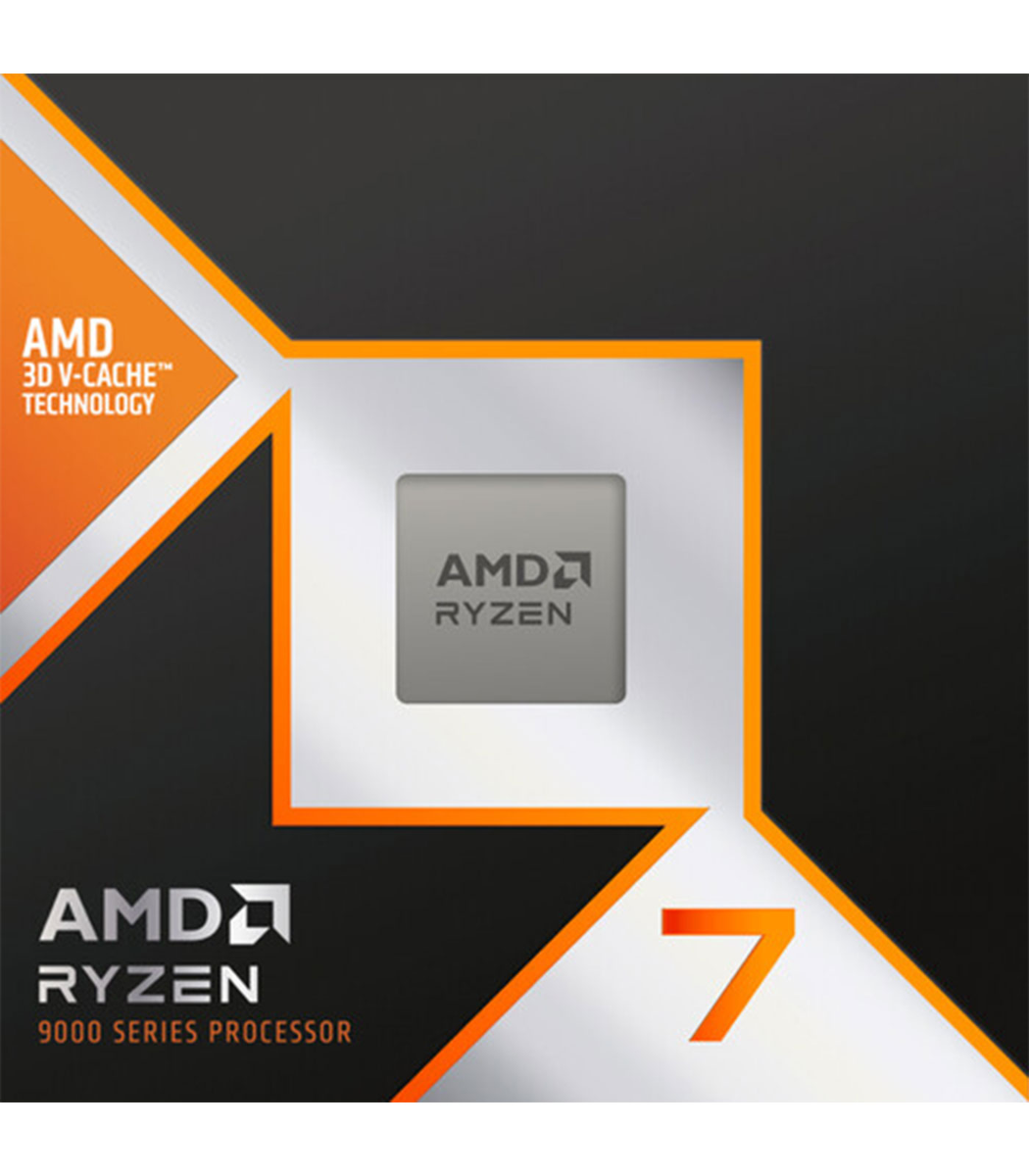

AMD Ryzen 7 9800X3D - Ryzen 7 9000 Series Zen 5 8-Core 5.2 GHz - Socket AM5 120W - AMD Radeon Graphics Desktop Processor | 100-100001084WOF
Model :
SKU : PRC-AMD RYZEN 7 9800X3D
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
AMD Ryzen??? 7 9800X3D Processor Specifications
| Name | AMD Ryzen??? 7 9800X3D |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| Architecture | Zen 5 |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 5.2 GHz |
| Base Clock | 4.7 GHz |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Default TDP | 120W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95??C |
| Launch Date | 11/07/2024 |
| System Memory Type | DDR5 |
| Max Memory | 192 GB |
| Memory Channels | 2 |
| PCI Express?? Version | PCIe?? 5.0 |
| Native PCIe?? Lanes | Total: 28, Usable: 24 |
| Graphics Model | AMD Radeon??? Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| Key Features | AMD EXPO??? Technology, AMD Ryzen??? Technologies |
