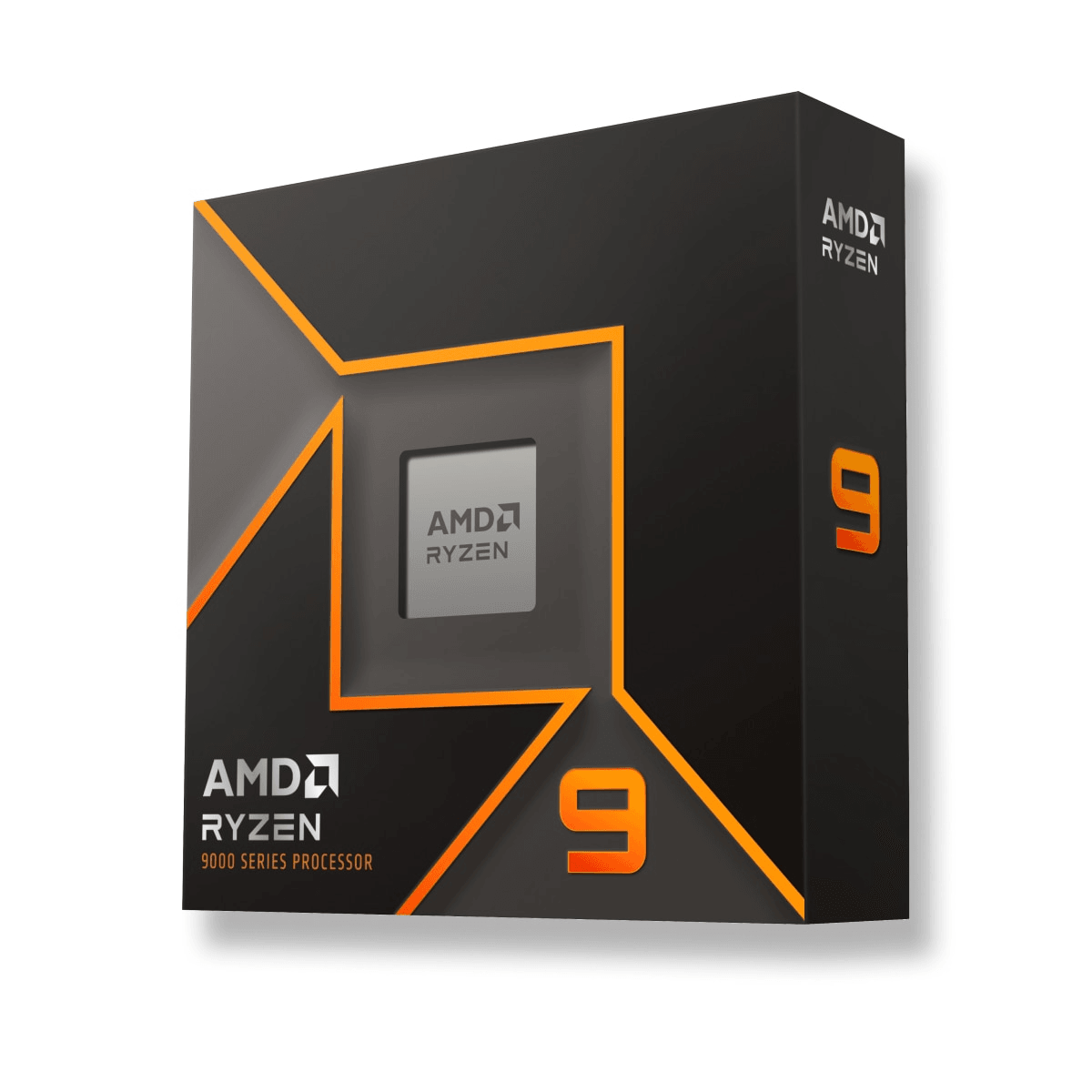

AMD Ryzen 9 9900X CPU Processor, AM5, Up to 5.6 GHz, 12 Cores, 24 Threads, Zen 5, 64 MB L3 Cache, 12 MB L2 Cache, AMD Radeon Graphics | 100-100000662WOF
Model :
SKU : PRC-AMD RYZEN 9900X
About this item
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
AMD Ryzen 9 9900X CPU Processor, AM5, Up to 5.6 GHz, 12 Cores, 24 Threads, Zen 5, 64 MB L3 Cache, 12 MB L2 Cache, AMD Radeon Graphics | 100-100000662WOF Specifications
| Name | AMD Ryzen??? 9 9900X |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Granite Ridge AM5 |
| Architecture | Zen 5 |
| # of CPU Cores | 12 |
| Multithreading (SMT) | Yes |
| # of Threads | 24 |
| Max. Boost Clock | Up to 5.6 GHz |
| Base Clock | 4.4 GHz |
| L1 Cache | 960 KB |
| L2 Cache | 12 MB |
| L3 Cache | 64 MB |
| Default TDP | 120W |
| Processor Technology for CPU Cores | TSMC 4nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Package Die Count | 3 |
| Unlocked for Overclocking | Yes |
| AMD EXPO??? Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen??? Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95??C |
| Launch Date | 08/15/2024 |
| OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| PCI Express?? Version | PCIe?? 5.0 |
| Native PCIe?? Lanes (Total/Usable) | 28, 24 |
| Additional Usable PCIe Lanes from Motherboard | X870E: 8x Gen4, X870: 4x Gen4, X670E: 12x Gen4, X670: 12x Gen4, B650E: 8x Gen4, B650: 8x Gen4 |
| NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 192 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600 |
| ECC Support | Yes (Requires motherboard support) |
| Graphics Model | AMD Radeon??? Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C?? DisplayPort??? Alternate Mode | Yes |
| Product ID Boxed | 100-100000662WOF |
| Product ID Tray | 100-000000662 |
| Supported Technologies | AMD EXPO??? Technology, AMD Ryzen??? Technologies |
