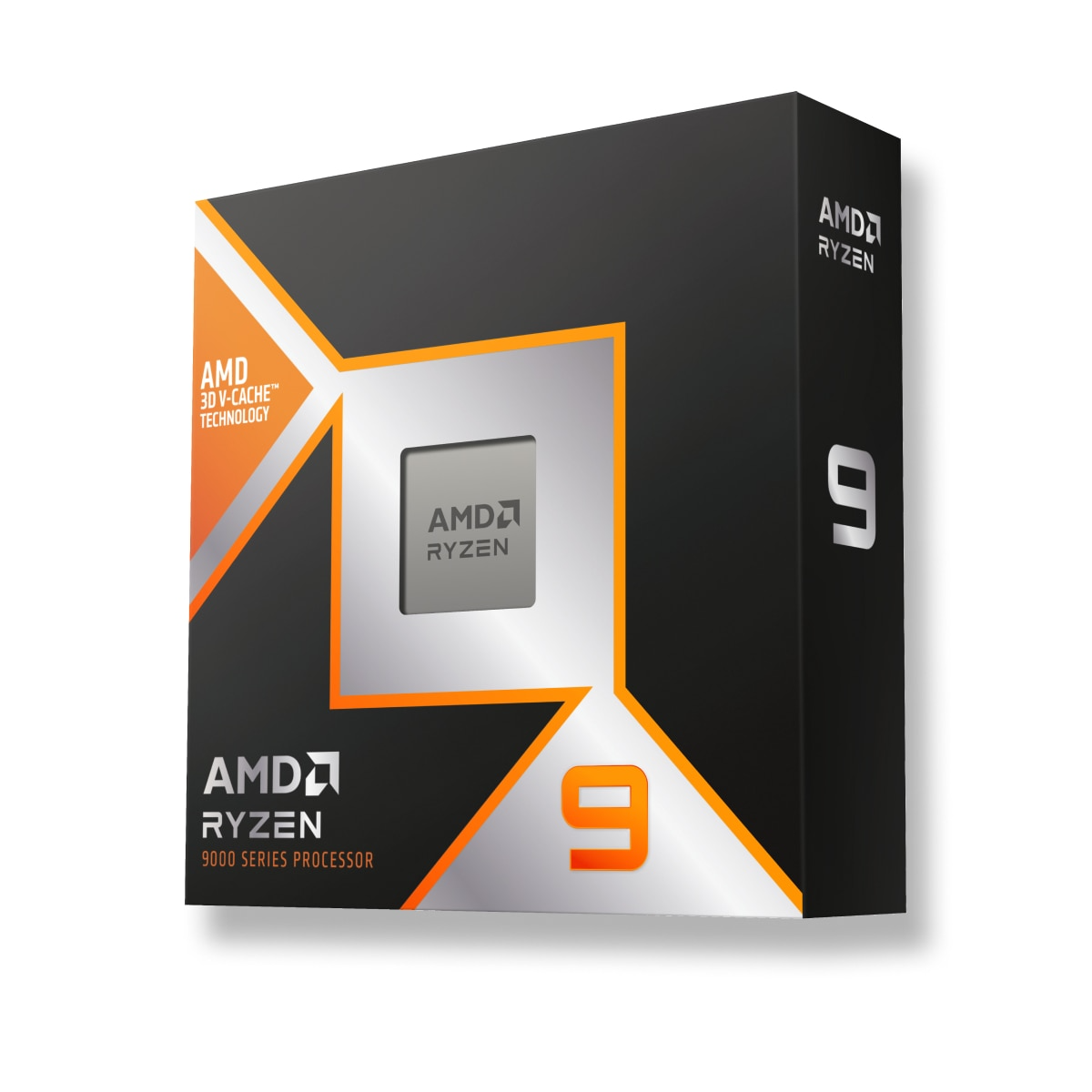

AMD Ryzen 9 9900X3D AM5 Desktop Processor, 12 Cores & 24 Threads, Up to 5.5 GHz Max Boost Clock, 192GB Max Memory, 2200 MHz Graphics Frequency, 128MB L3 Cache
Model :
SKU : PRC-AMD RAYZEN 9 9900X3D
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
AMD Ryzen??? 9 9900X3D Specifications
| Name | AMD Ryzen??? 9 9900X3D |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktop, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Regional Availability | Global |
| Former Codename | Granite Ridge AM5 |
| Architecture | Zen 5 |
| CPU Cores | 12 |
| Multithreading (SMT) | Yes |
| Threads | 24 |
| Max. Boost Clock | Up to 5.5 GHz |
| Base Clock | 4.4 GHz |
| L1 Cache | 960 KB |
| L2 Cache | 12 MB |
| L3 Cache | 128 MB |
| Default TDP | 120W |
| Processor Technology | CPU Cores: TSMC 4nm FinFET I/O Die: TSMC 6nm FinFET |
| Package Die Count | 3 |
| Unlocked for Overclocking | Yes |
| AMD EXPO??? Memory Overclocking | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen??? Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX512, AVX2, AVX, FMA3, MMX-plus, SHA, SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 95??C |
| Launch Date | March 12, 2025 |
| OS Support | Windows 11 64-Bit, Windows 10 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Connectivity |
Native USB 4 (40Gbps): 4 Ports Native USB 3.2 Gen 1 (5Gbps): 1 Port |
| PCI Express?? Version | PCIe?? 5.0 |
| Native PCIe?? Lanes | Total: 28, Usable: 24 |
| NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 192 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed |
2x1R: DDR5-5600 2x2R: DDR5-5600 4x1R: DDR5-3600 4x2R: DDR5-3600 |
| ECC Support | Yes (Requires motherboard support) |
| Graphics Model | AMD Radeon??? Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C?? DisplayPort??? Alt Mode | Yes |
| Supported Technologies | AMD EXPO??? Technology, AMD Ryzen??? Technologies |
