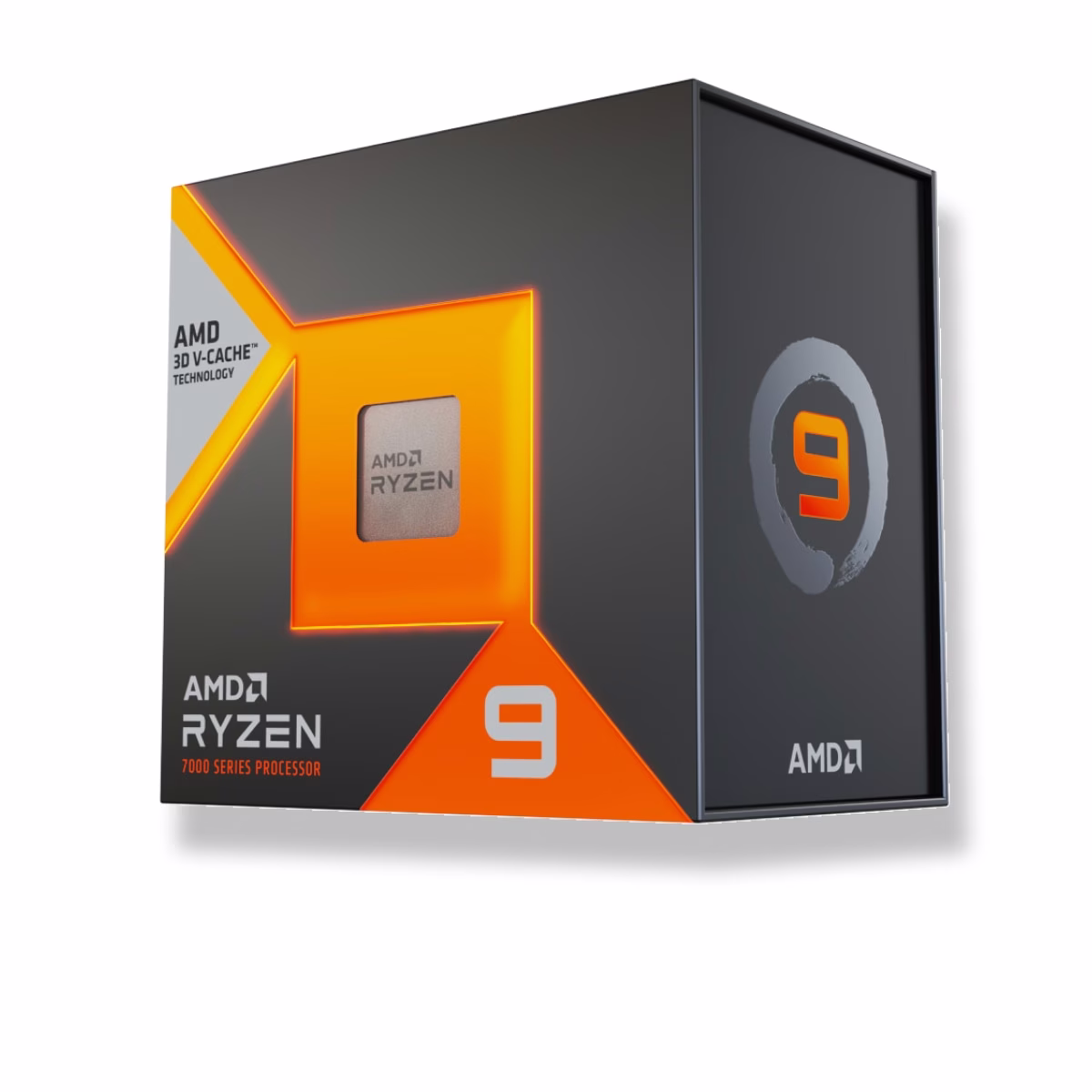

AMD Ryzen 9 7950X3D Gaming Processor, AM5 16Cores/32Threads Max Turbo 5.7Ghz, With AMD V-Cache Technology | 100-100000908WOF
Model :
SKU : PRC-AMD 7950X3D RYZEN 9
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
AMD Ryzen 9 7950X3D Gaming Processor, AM5 16Cores/32Threads Max Turbo 5.7Ghz, With AMD V-Cache Technology | 100-100000908WOF
| General Specifications | |
|---|---|
| Name | AMD Ryzen??? 9 7950X3D |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Architecture | Zen 4 |
| # of CPU Cores | 16 |
| Multithreading (SMT) | Yes |
| # of Threads | 32 |
| Max. Boost Clock | Up to 5.7 GHz |
| Base Clock | 4.2 GHz |
| L1 Cache | 1024 KB |
| L2 Cache | 16 MB |
| L3 Cache | 128 MB |
| Default TDP | 120W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm?? |
| I/O Die (IOD) Size | 122mm?? |
| Package Die Count | 3 |
| AMD EXPO??? Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen??? Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 89??C |
| Launch Date | 02/28/2023 |
| *OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native SATA Ports | 0 |
| PCI Express?? Version | PCIe?? 5.0 |
| Native PCIe?? Lanes (Total/Usable) | 28, 24 |
| Additional Usable PCIe Lanes from Motherboard | X670E: 12x Gen4 X670: 12x Gen4 B650E: 8x Gen4 B650: 8x Gen4 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 128 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R: DDR5-5200 2x2R: DDR5-5200 4x1R: DDR5-3600 4x2R: DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon??? Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C?? DisplayPort??? Alternate Mode | Yes |
| Product IDs | |
| Product ID Boxed | 100-100000908WOF |
| Product ID Tray | 100-000000908 |
| Key Features | AMD EXPO??? Technology, AMD Ryzen??? Technologies |
Specification
AMD Ryzen 9 7950X3D Gaming Processor, AM5 16Cores/32Threads Max Turbo 5.7Ghz, With AMD V-Cache Technology | 100-100000908WOF
| General Specifications | |
|---|---|
| Name | AMD Ryzen??? 9 7950X3D |
| Family | Ryzen |
| Series | Ryzen 7000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Raphael AM5 |
| Architecture | Zen 4 |
| # of CPU Cores | 16 |
| Multithreading (SMT) | Yes |
| # of Threads | 32 |
| Max. Boost Clock | Up to 5.7 GHz |
| Base Clock | 4.2 GHz |
| L1 Cache | 1024 KB |
| L2 Cache | 16 MB |
| L3 Cache | 128 MB |
| Default TDP | 120W |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| CPU Compute Die (CCD) Size | 71mm?? |
| I/O Die (IOD) Size | 122mm?? |
| Package Die Count | 3 |
| AMD EXPO??? Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen??? Master Support | Yes |
| CPU Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 89??C |
| Launch Date | 02/28/2023 |
| *OS Support | Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| Native USB 2.0 (480Mbps) Ports | 1 |
| Native SATA Ports | 0 |
| PCI Express?? Version | PCIe?? 5.0 |
| Native PCIe?? Lanes (Total/Usable) | 28, 24 |
| Additional Usable PCIe Lanes from Motherboard | X670E: 12x Gen4 X670: 12x Gen4 B650E: 8x Gen4 B650: 8x Gen4 |
| NVMe Support | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR5 |
| Memory Channels | 2 |
| Max. Memory | 128 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R: DDR5-5200 2x2R: DDR5-5200 4x1R: DDR5-3600 4x2R: DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon??? Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C?? DisplayPort??? Alternate Mode | Yes |
| Product IDs | |
| Product ID Boxed | 100-100000908WOF |
| Product ID Tray | 100-000000908 |
| Key Features | AMD EXPO??? Technology, AMD Ryzen??? Technologies |
