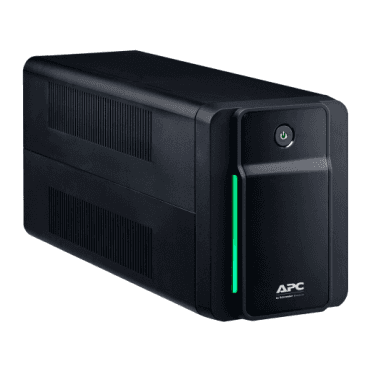

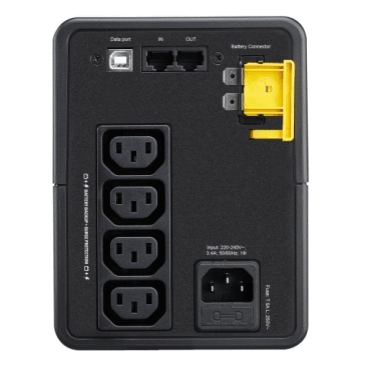

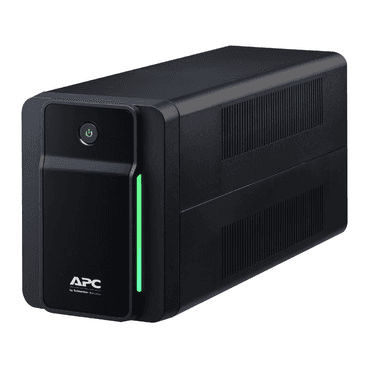

APC Back UPS - BX750MI - UPS 750VA Battery Backup & Surge Protector, Backup Battery With AVR, Dataline Protection, Uniterruptible Power Supply BX750MI
Model :
SKU : UPS-APC BX750MI 750W
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
Overview
| Lead time | Usually in Stock |
Main
| Run time for load | 410 W |
| Min-max: | 41-410 W |
| 0min 43s | |
| Max. Capacity Used | 100 % |
| Main Input Voltage | 230 V |
| Rated power in W | 410 W |
| Rated power in VA | 750 VA |
| Input Connection Type | IEC 60320 C13 |
| Output Connection Type | 4 IEC 60320 C13 |
| Cable length | 1.22 m |
| Number of cables | 1 |
Batteries & Runtime
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| Battery capacity | 7.0 Ah |
| Battery life | 3???5 year(s) |
| Replacement battery | RBC17 |
| Battery graph comments | Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
| Extended runtime | 0 |
General
| Provided equipment | User manual |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
Physical
| Colour | Black |
| Height | 16 cm |
| Width | 12 cm |
| Depth | 35.5 cm |
| Net weight | 5.4 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
Input
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Plug standard | C14 |
| Input voltage limits | 140...300 V |
| Input Power Factor at Full Load | 0.63 |
Output
| Maximum configurable power in W | 410 W |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Full load runtime | 00:01:00 390 W |
| Half load runtime | 00:08:30 195 W |
| Maximum configurable power in VA | 750 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
Conformance
| Product certifications | CE, CB, EAC |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Equipment protection policy | Lifetime : 50000 euros |
Environmental
| Ambient air temperature for operation | 0???40 ??C |
| Relative humidity | 0???95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15???40 ??C |
| Storage Relative Humidity | 0???95 % non-condensing |
| Storage altitude | 0???3000 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
Communications & Management
| Control panel | LED Status display with on line : on battery |
Surge Protection and Filtering
| Surge energy rate | 273 J |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25 cm |
| Package 1 Width | 43 cm |
| Package 1 Length | 19.7 cm |
| Package 1 Weight | 5.9 kg |
| SCC14 | 10731304410796 |
Contractual warranty
| Warranty | 2 years repair or replace |
