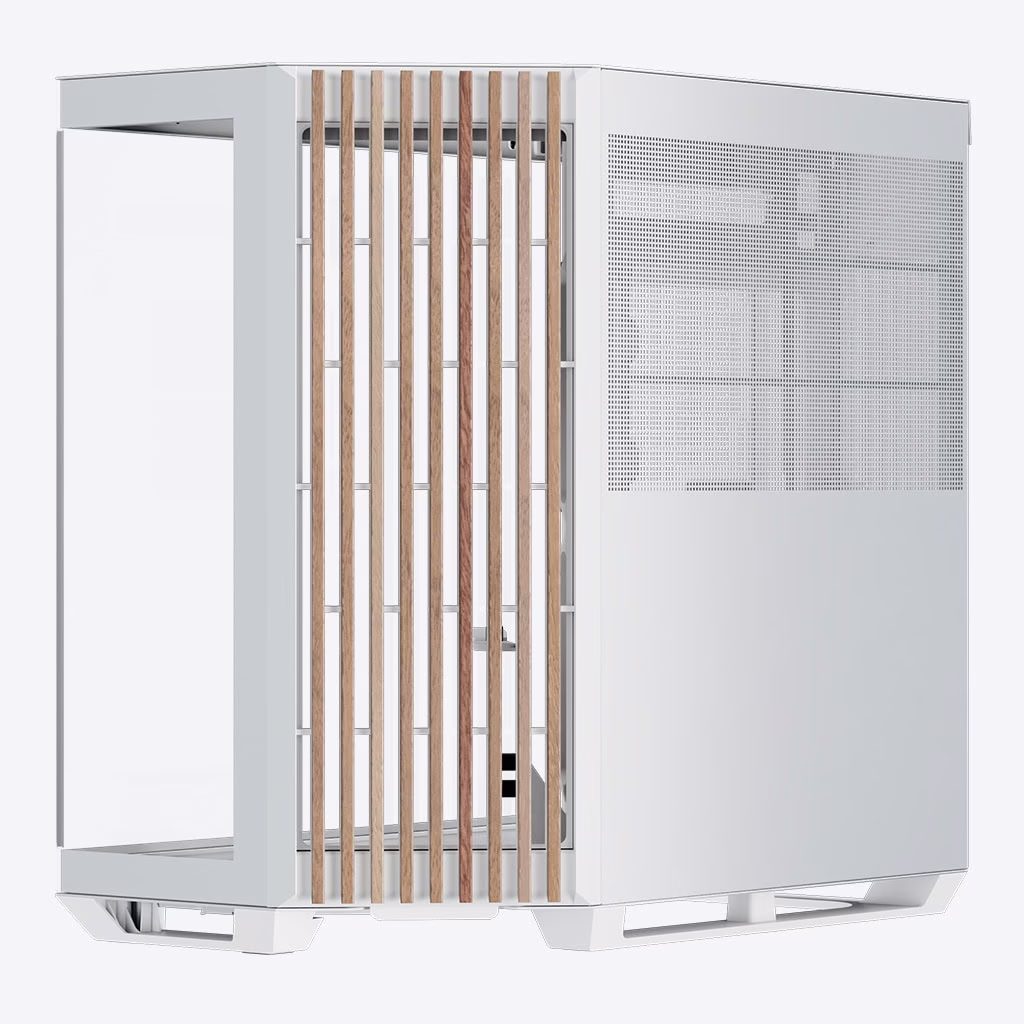

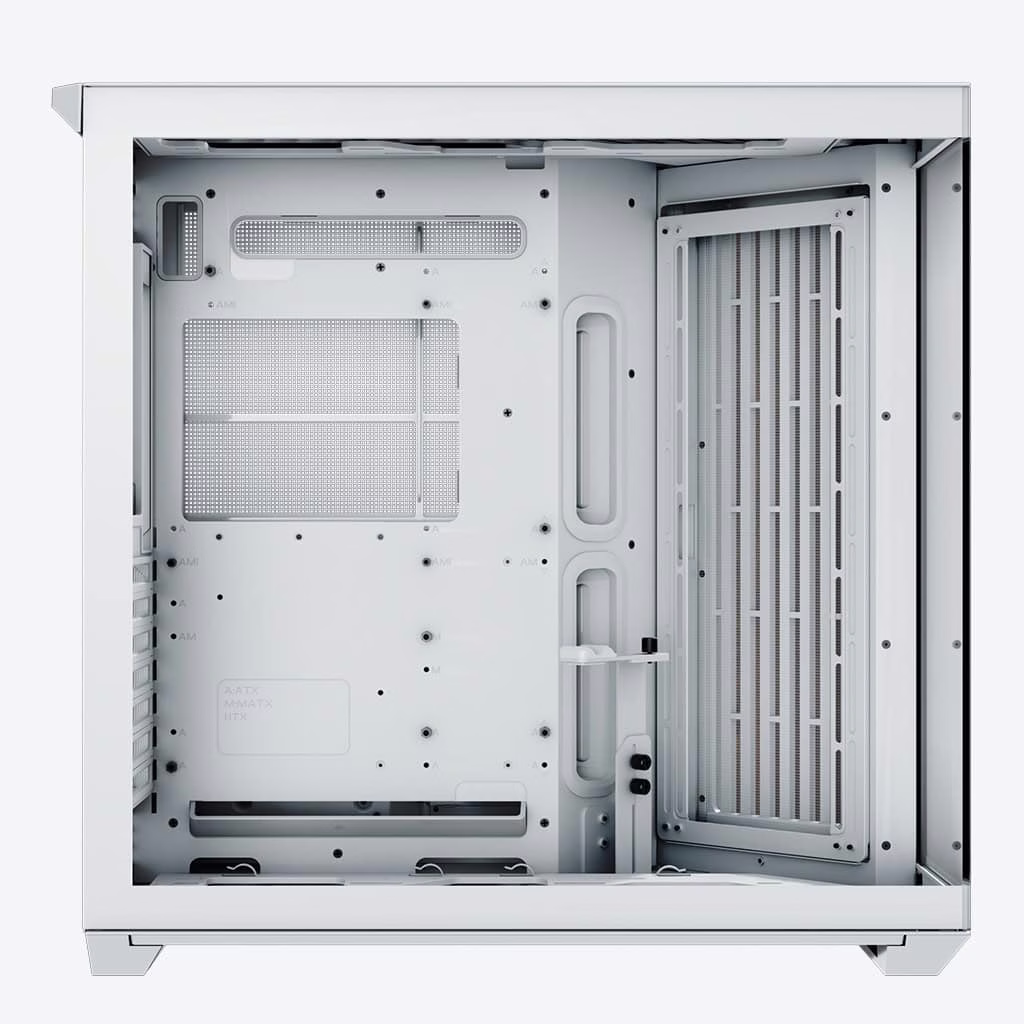

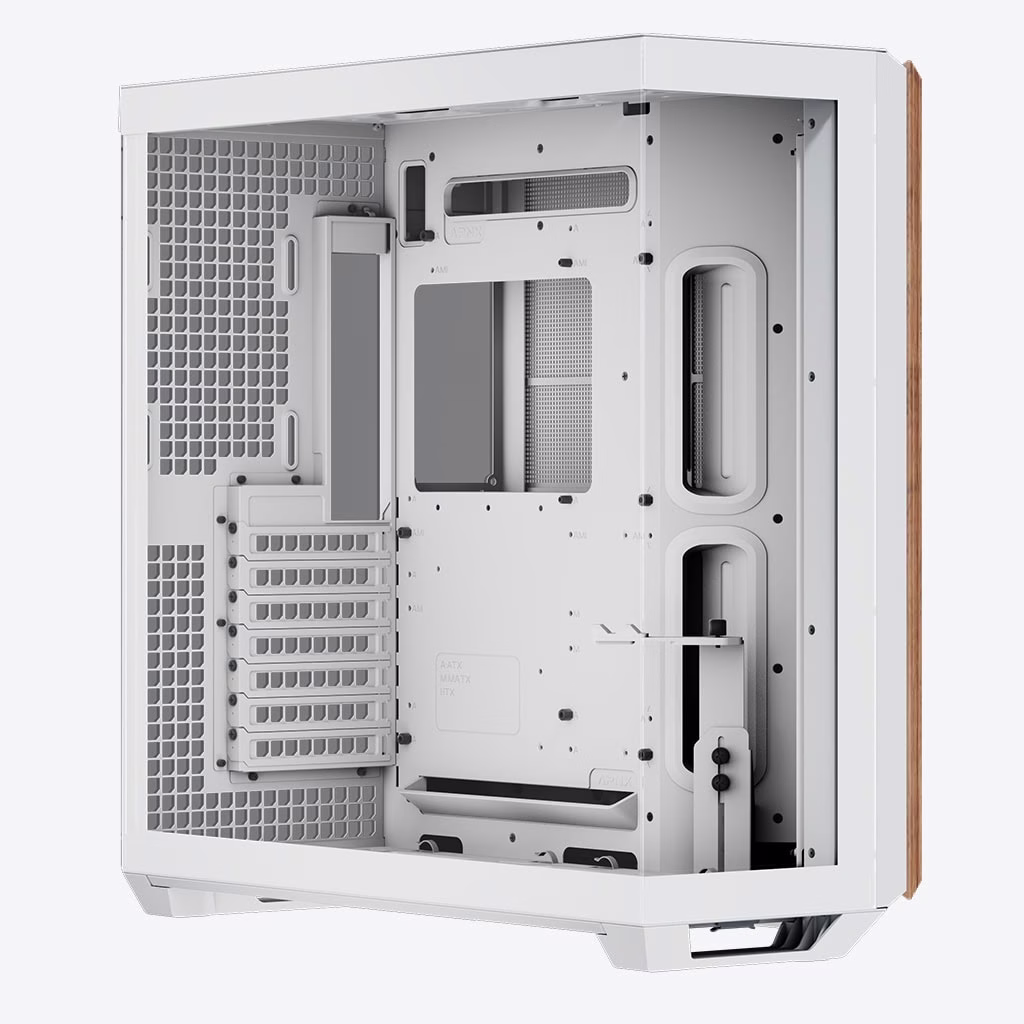

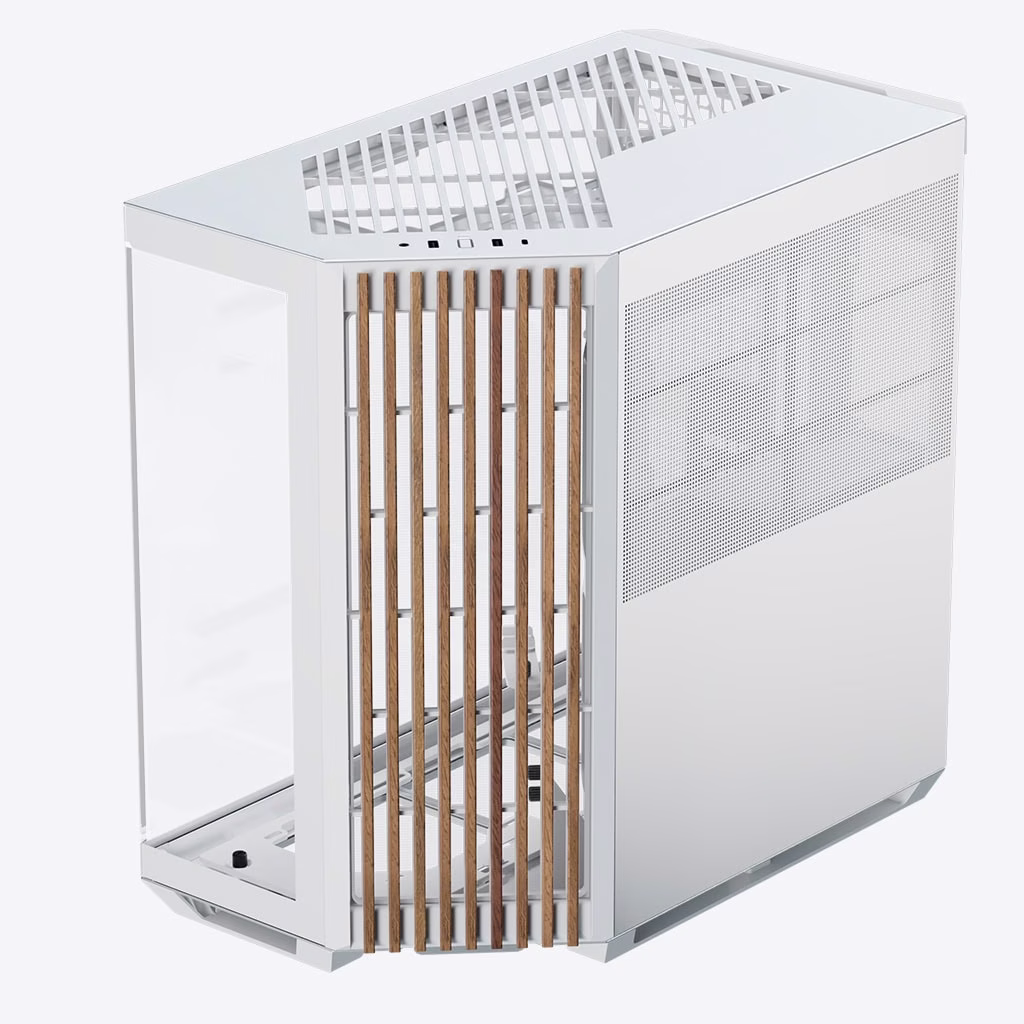

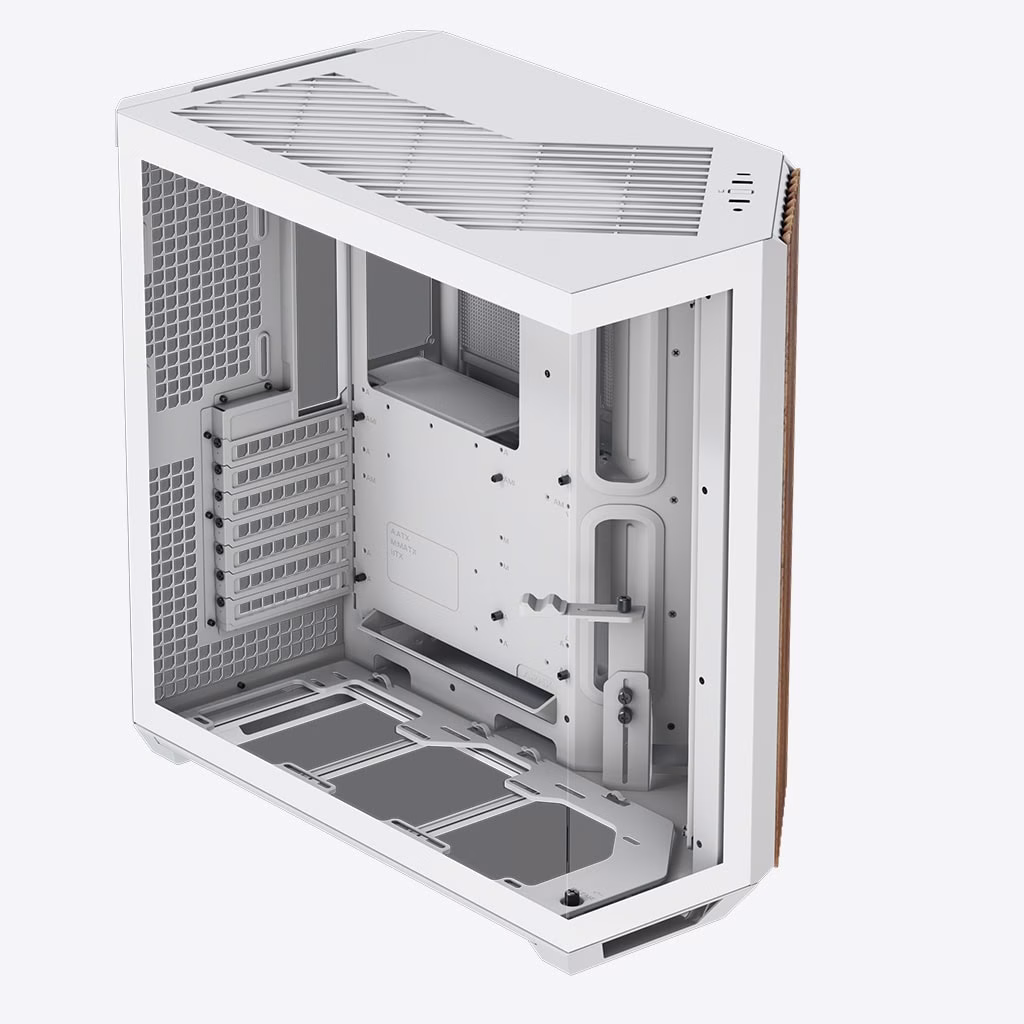

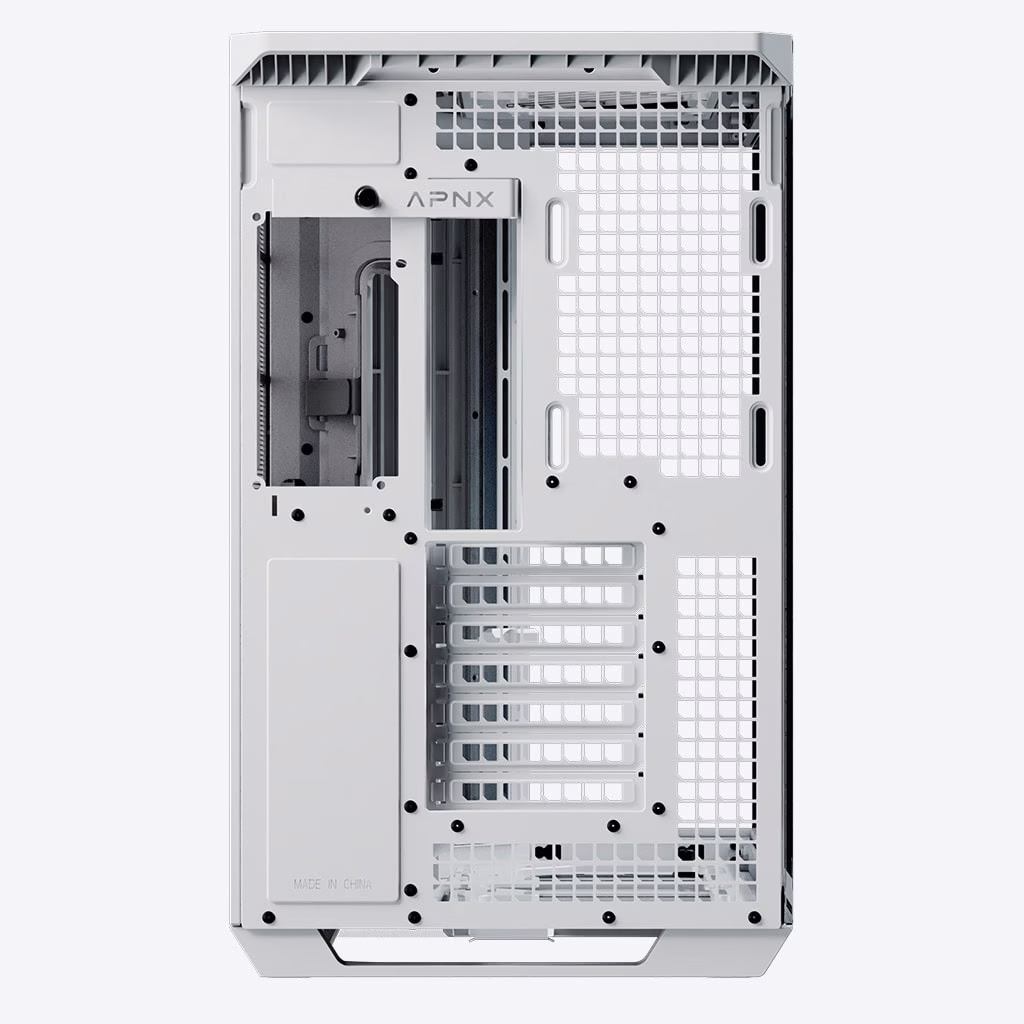

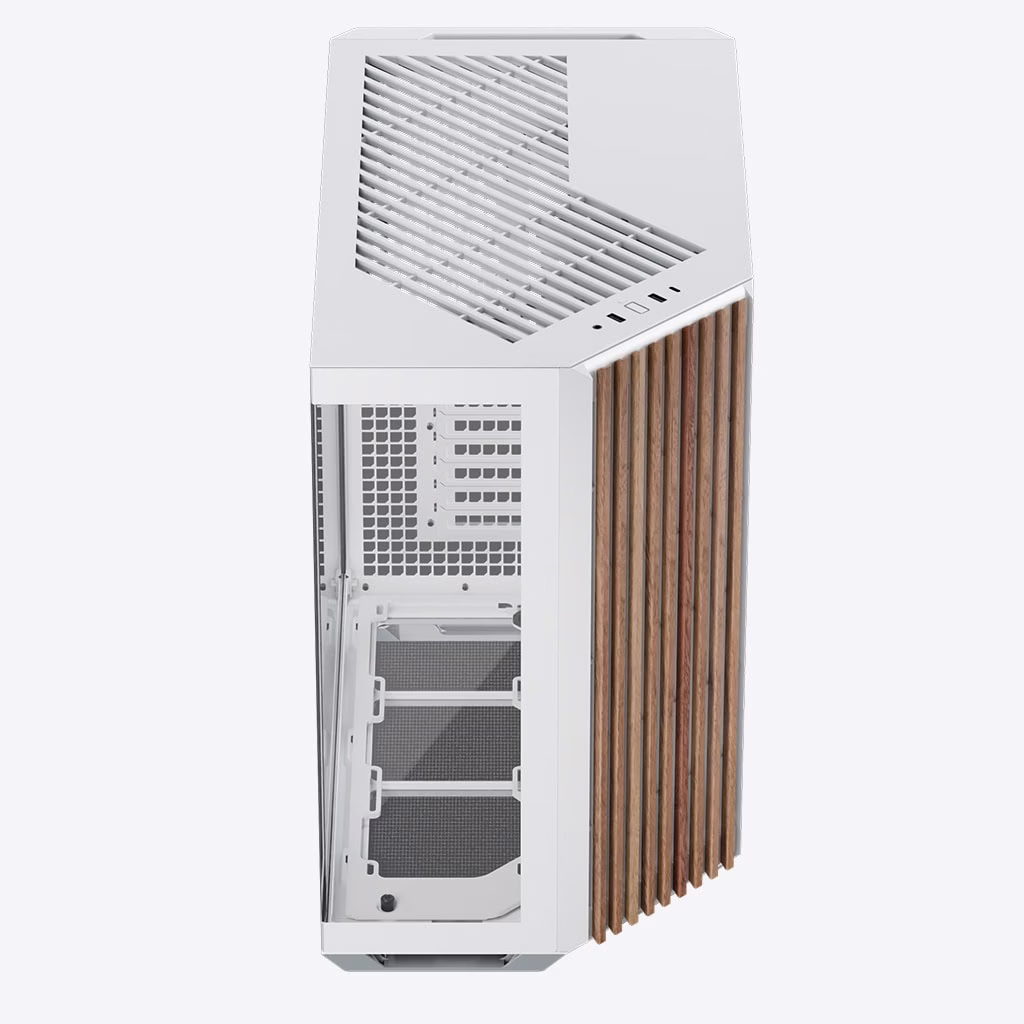

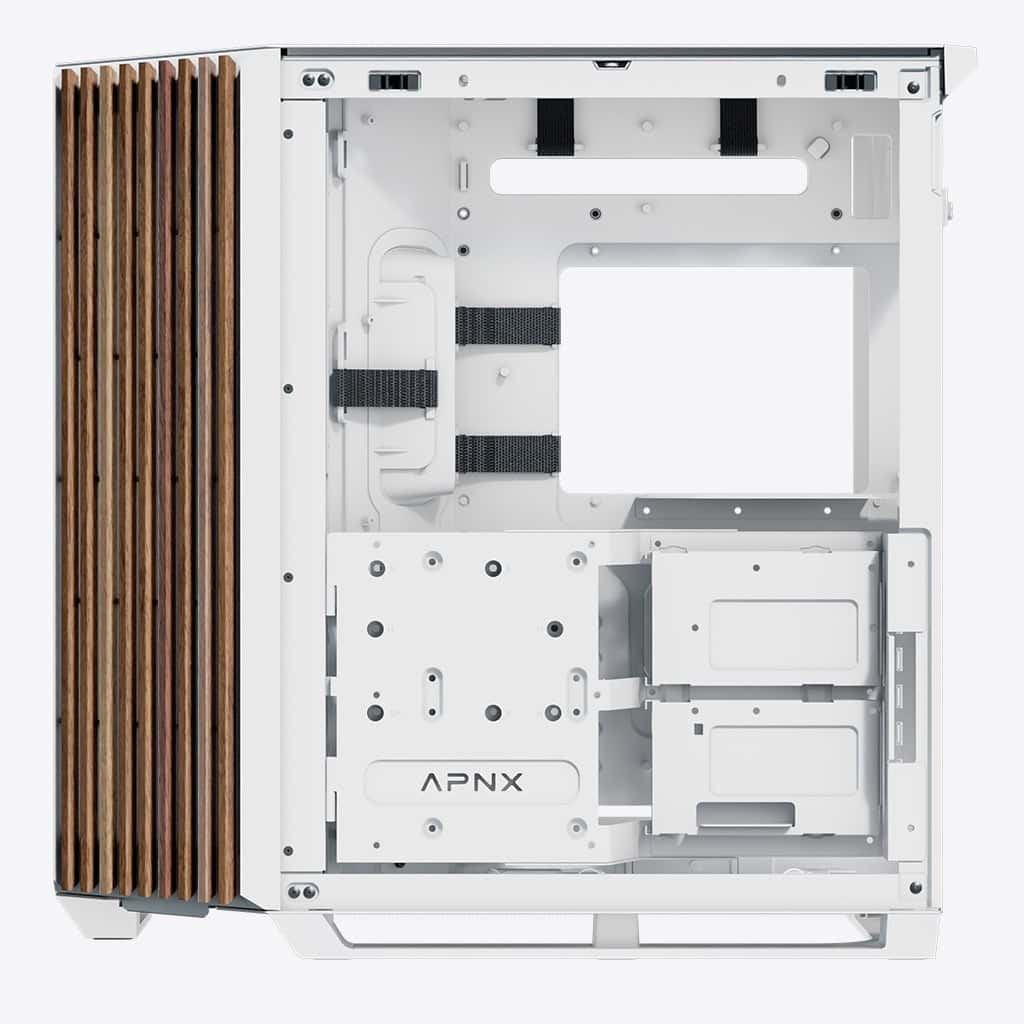

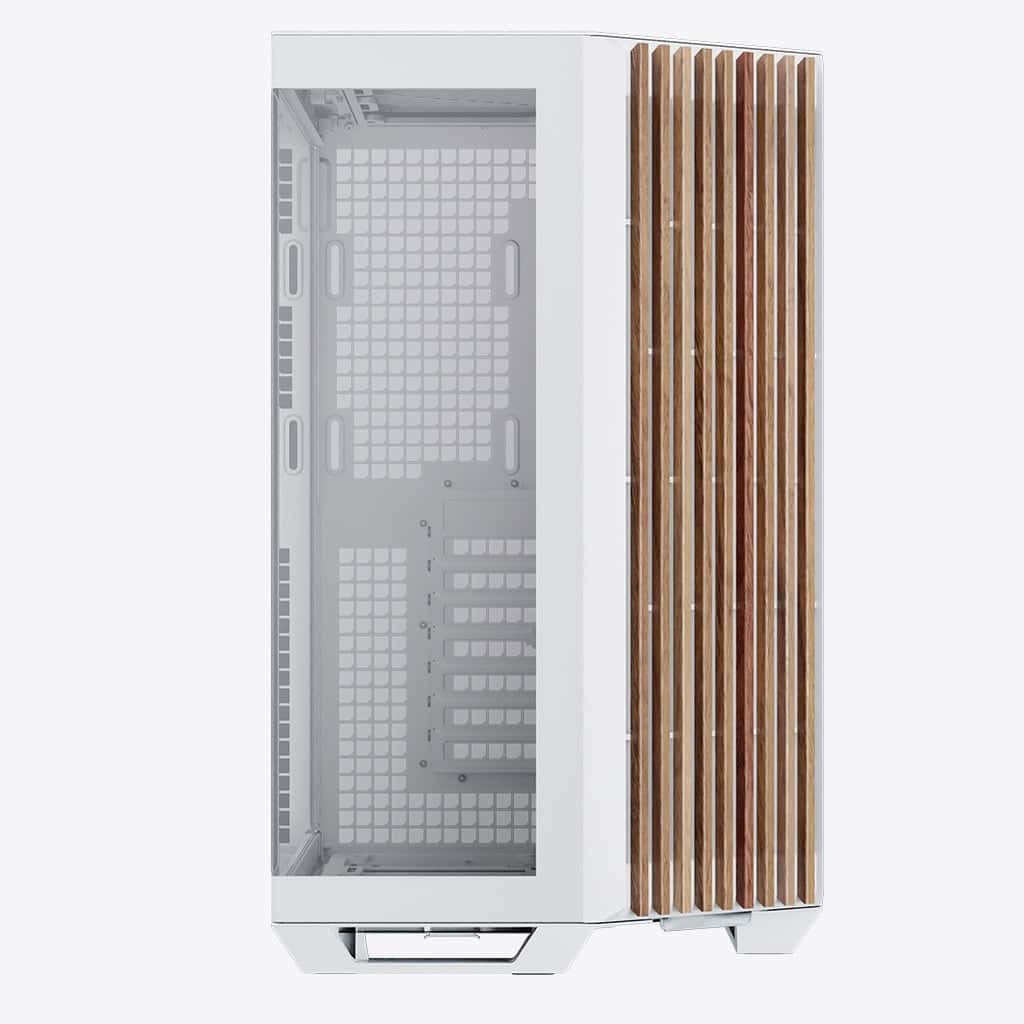

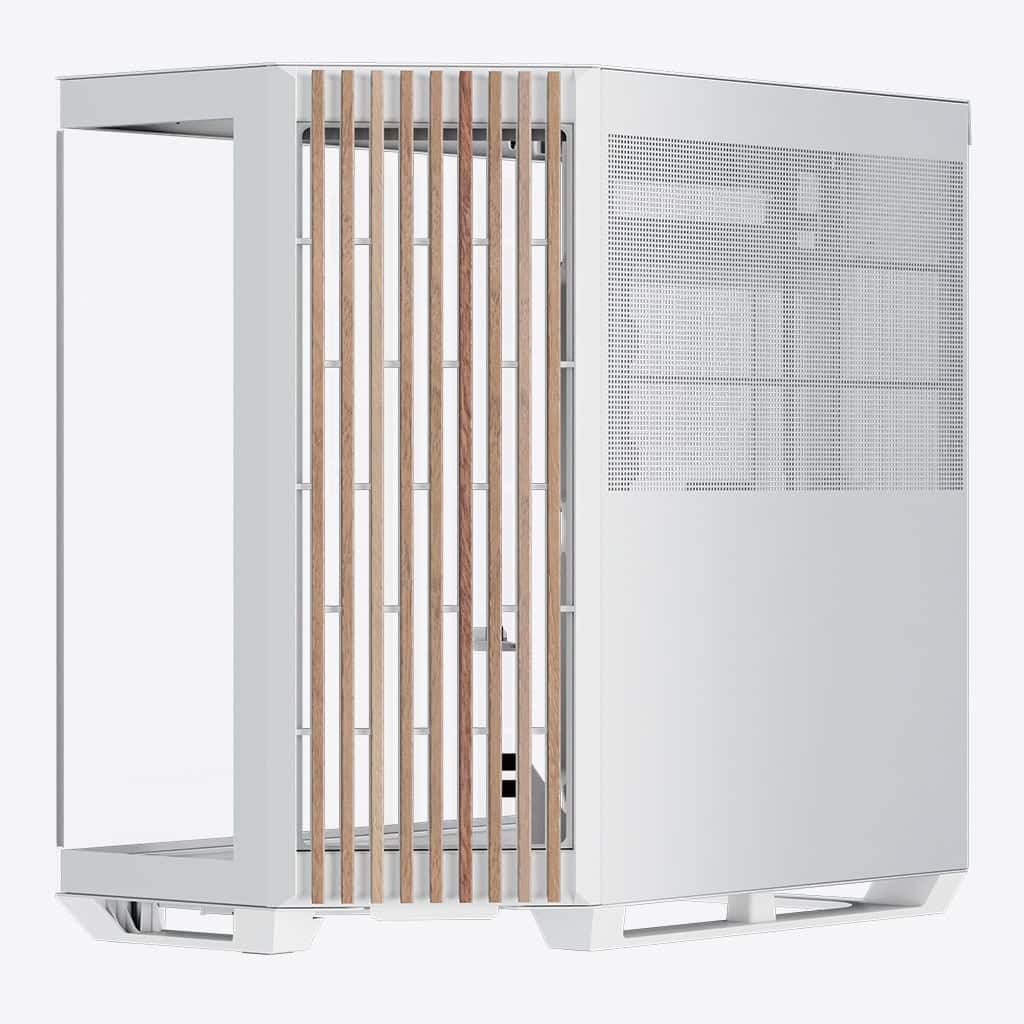

APNX V1-W-WT-V1 ATX Mid Tower White/Wood Computer Case, Upto ATX Motherboards, Upto 360mm Radiators, Vertical GPU Holder Kit, Adjustable Motherboard Displacement, White | APCM-VI01103.21
Model :
SKU : ATX-APNX V1-W-WT-V1 GLS E
About this item
Description
APNX V1 Mid Tower Computer Case, Upto ATX Motherboards, Upto 360mm Radiators, Vertical GPU Holder Kit, Adjustable Motherboard Displacement Specifications
| Model | V1-BK-v1 / V1-BW-v1 / V1-WT-v1 / V1-W-BK-v1 / V1-W-BW-v1 / V1-W-WT-v1 |
| Case Type | Mid Tower |
| Colors | Black, White, Black/White |
| Body Material | SGCC |
| Front Panel Material | ABS |
| Steel Thickness | 0.8mm |
| Motherboards | ATX/Micro ATX/mini-ITX |
| Case Dimensions (Internal) | 290 x 460 x 480mm (W x H x D) |
| Case Dimensions (Overall) | 290 x 485.5 x 500mm (W x H x D) |
| 3.5??? Drive Bays | 2 Max. (2 x 3.5???/2.5???) |
| 2.5??? Drive Bays | 6 Max. (4 x 2.5??? and 2 x 2.5???/3.5???) |
| Expansion Slots | 7 |
| GPU Clearance | Supports GPU up to 395mm (W/O radiator in the front-right position) |
| CPU Cooler Clearance | Supports CPU cooler up to 170mm |
| Air Cooling |
Front-Right: 120mm x 3 or 140mm x 2 or 160mm x 2 (Max.) Top: 120mm x 3 or 140mm x 2 (Max.) Bottom: 120mm x 3 (Max.) or 140mm x 2 (Max.) Rear: 120mm x 1 (Max.) |
| Liquid Cooling |
Front-Right: 120/140/240/280/360mm Radiator (Optional) Top: 120/140/240/280/360mm Radiator (Optional) Bottom: 120/140/240/280/360 Radiator (Optional) (140/280 Radiator: When M/B is at upper position; It???s not recommended to install a liquid cooling at the bottom.) Rear: 120mm Radiator (Optional) |
| Filters | Top (Built-in), Front-Right (Removable), Side (Removable), Bottom (Removable) |
| I/O Ports | USB3.2 Gen 2??2 Type-C x 1 | USB3.2 Gen 1 Type-A x 2 | Audio & Mic. |
| Internal Cable Management Depth | 90mm |
| Power Supply | ATX PSU (Including cables, up to 220mm) (Optional) |
Specification
APNX V1 Mid Tower Computer Case, Upto ATX Motherboards, Upto 360mm Radiators, Vertical GPU Holder Kit, Adjustable Motherboard Displacement Specifications
| Model | V1-BK-v1 / V1-BW-v1 / V1-WT-v1 / V1-W-BK-v1 / V1-W-BW-v1 / V1-W-WT-v1 |
| Case Type | Mid Tower |
| Colors | Black, White, Black/White |
| Body Material | SGCC |
| Front Panel Material | ABS |
| Steel Thickness | 0.8mm |
| Motherboards | ATX/Micro ATX/mini-ITX |
| Case Dimensions (Internal) | 290 x 460 x 480mm (W x H x D) |
| Case Dimensions (Overall) | 290 x 485.5 x 500mm (W x H x D) |
| 3.5??? Drive Bays | 2 Max. (2 x 3.5???/2.5???) |
| 2.5??? Drive Bays | 6 Max. (4 x 2.5??? and 2 x 2.5???/3.5???) |
| Expansion Slots | 7 |
| GPU Clearance | Supports GPU up to 395mm (W/O radiator in the front-right position) |
| CPU Cooler Clearance | Supports CPU cooler up to 170mm |
| Air Cooling |
Front-Right: 120mm x 3 or 140mm x 2 or 160mm x 2 (Max.) Top: 120mm x 3 or 140mm x 2 (Max.) Bottom: 120mm x 3 (Max.) or 140mm x 2 (Max.) Rear: 120mm x 1 (Max.) |
| Liquid Cooling |
Front-Right: 120/140/240/280/360mm Radiator (Optional) Top: 120/140/240/280/360mm Radiator (Optional) Bottom: 120/140/240/280/360 Radiator (Optional) (140/280 Radiator: When M/B is at upper position; It???s not recommended to install a liquid cooling at the bottom.) Rear: 120mm Radiator (Optional) |
| Filters | Top (Built-in), Front-Right (Removable), Side (Removable), Bottom (Removable) |
| I/O Ports | USB3.2 Gen 2??2 Type-C x 1 | USB3.2 Gen 1 Type-A x 2 | Audio & Mic. |
| Internal Cable Management Depth | 90mm |
| Power Supply | ATX PSU (Including cables, up to 220mm) (Optional) |
