ASUS B650E MAX GAMING WIFI W AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, rear USB 10Gbps Type-A & Type-C support, Aura Sync, White | 90MB1M00-M0EAY0
Model :
SKU : MB-ASUS B650E MAX GAMIN W
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
ASUS B650E MAX GAMING WIFI W AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, rear USB 10Gbps Type-A & Type-C support, Aura Sync, White | 90MB1M00-M0EAY0 Specifications
| Model | B650E MAX GAMING WIFI |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen??? 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC), ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture AMD EXPO??? & ASUS AEMP support |
| Graphics | 1 x DisplayPort (max. 8K@30Hz) 1 x HDMI (4K@60Hz) * Graphics output depends on CPU |
| Expansion Slots | Ryzen??? 9000 & 7000: 1 x PCIe 5.0 x16 (x16 mode) Ryzen??? 8000: 1 x PCIe 4.0 x16 (x8/x4 mode) Chipset: 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x16 (x1 mode) |
| Storage | 3 x M.2 slots, 4 x SATA 6Gb/s ports M.2_1: PCIe 5.0/4.0 x4, M.2_2: PCIe 4.0 x4/x2, M.2_3: PCIe 4.0 x2 RAID 0/1/5/10 support based on CPU |
| Ethernet | Realtek 2.5Gb Ethernet, ASUS LANGuard |

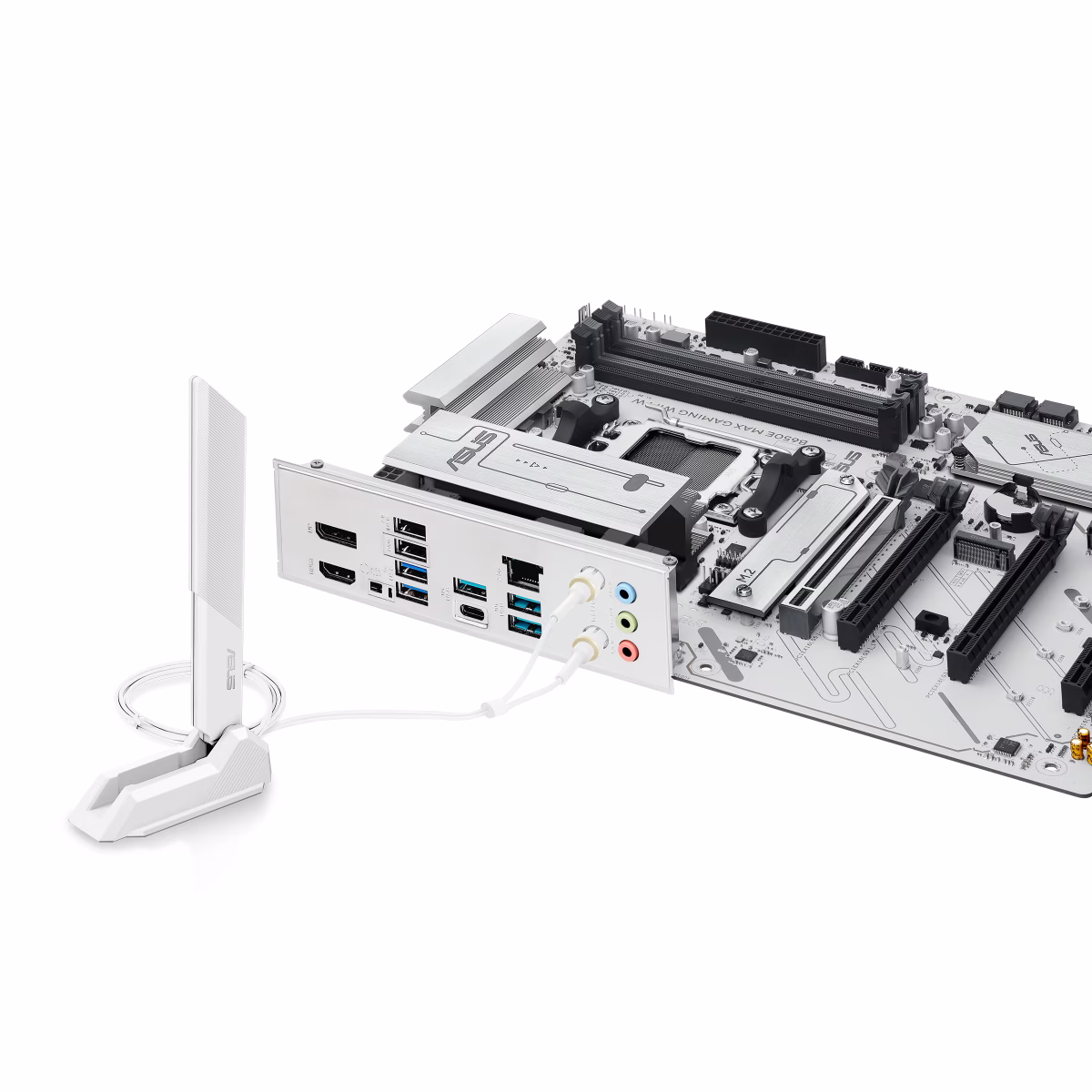

| Wireless & Bluetooth | Wi-Fi 6E (2x2, 2.4/5/6GHz), Bluetooth?? v5.3 * WiFi 6E 6GHz band supported only in Windows 11 or later |
| Rear USB | 4 x USB 10Gbps (3 x Type-A + 1 x Type-C) 2 x USB 5Gbps (2 x Type-A) 2 x USB 2.0 (2 x Type-A) |
| Front USB | 1 x USB 5Gbps Type-C 1 x USB 5Gbps header (2 ports) 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround HD Audio CODEC Audio shielding, premium capacitors, dedicated PCB layers Supports up to 24-bit/192kHz |

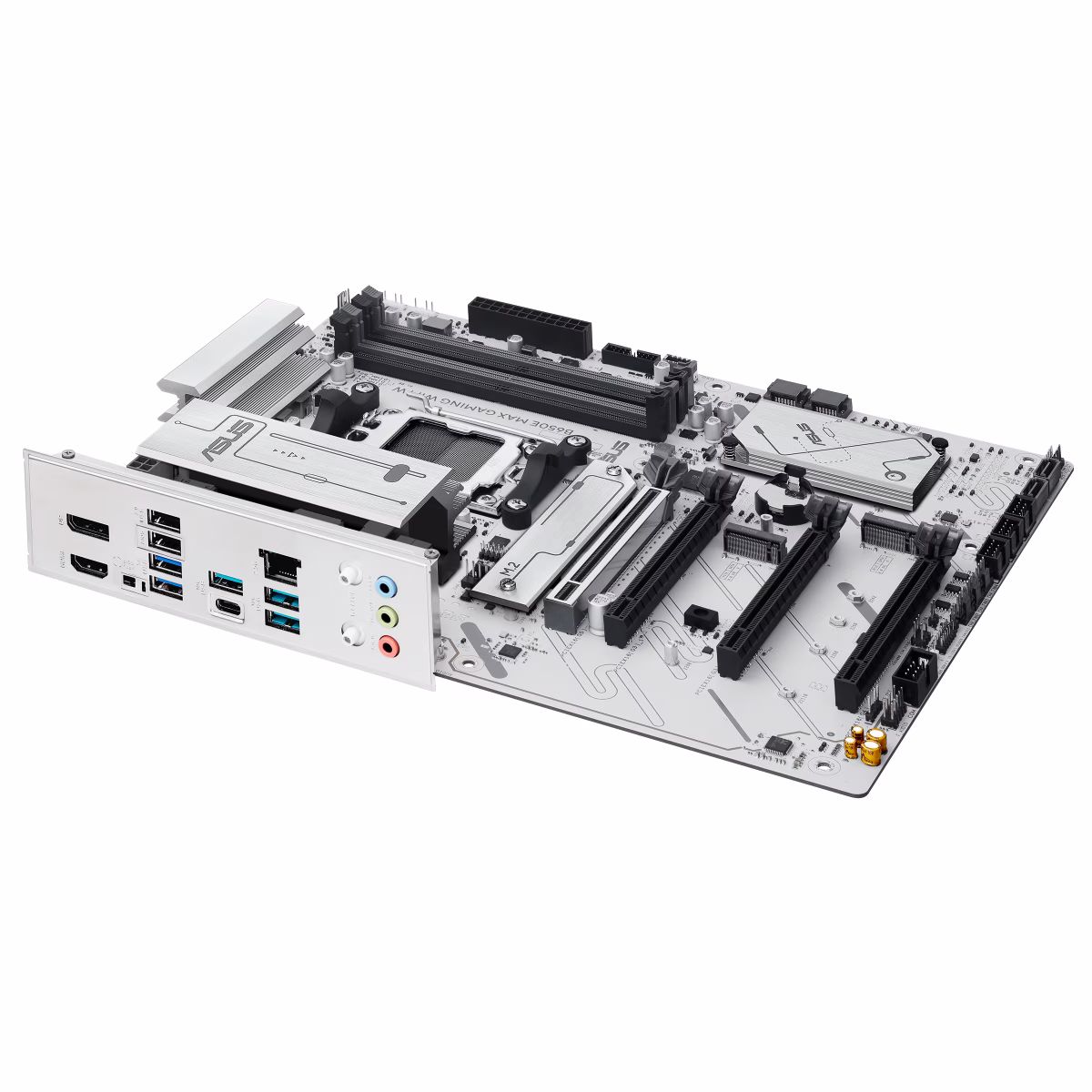

| Back Panel I/O | 1 x USB Type-C (10Gbps), 3 x USB Type-A (10Gbps) 2 x USB Type-A (5Gbps), 2 x USB 2.0 1 x DP, 1 x HDMI, 1 x LAN, 3 x audio jacks, 1 x BIOS FlashBack??? button |
| Internal I/O | 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V 3 x M.2, 4 x SATA, USB headers, RGB headers, TPM, COM, audio |
| Special Features | ASUS 5X PROTECTION III, Q-Design, Thermal Solutions EZ DIY features, Aura Sync RGB support |
| Software | Armoury Crate, AI Suite 3, ASUS CPU-Z Norton 360 (60-day), Adobe CC Trial, WinRAR Trial |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash 3 |
| Manageability | WOL by PME, PXE |

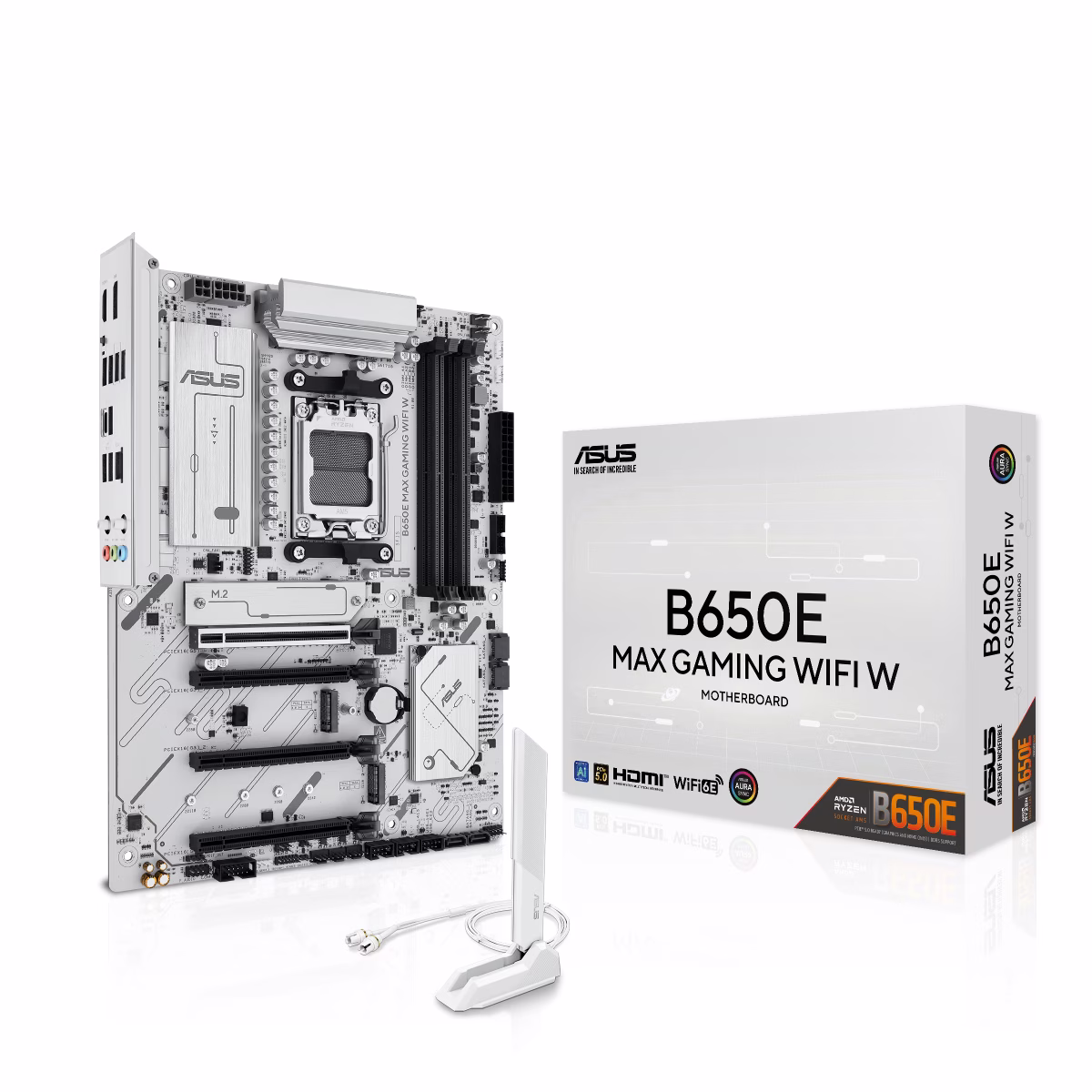

| Accessories | 2 x SATA cables, 1 x WiFi Q-Antenna M.2 rubber + screw packages, Quick start guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
Specification
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
ASUS B650E MAX GAMING WIFI W AMD B650 ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI, rear USB 10Gbps Type-A & Type-C support, Aura Sync, White | 90MB1M00-M0EAY0 Specifications
| Model | B650E MAX GAMING WIFI |
|---|---|
| CPU | AMD Socket AM5 for AMD Ryzen??? 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC), ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture AMD EXPO??? & ASUS AEMP support |
| Graphics | 1 x DisplayPort (max. 8K@30Hz) 1 x HDMI (4K@60Hz) * Graphics output depends on CPU |
| Expansion Slots | Ryzen??? 9000 & 7000: 1 x PCIe 5.0 x16 (x16 mode) Ryzen??? 8000: 1 x PCIe 4.0 x16 (x8/x4 mode) Chipset: 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x16 (x1 mode) |
| Storage | 3 x M.2 slots, 4 x SATA 6Gb/s ports M.2_1: PCIe 5.0/4.0 x4, M.2_2: PCIe 4.0 x4/x2, M.2_3: PCIe 4.0 x2 RAID 0/1/5/10 support based on CPU |
| Ethernet | Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2x2, 2.4/5/6GHz), Bluetooth?? v5.3 * WiFi 6E 6GHz band supported only in Windows 11 or later |
| Rear USB | 4 x USB 10Gbps (3 x Type-A + 1 x Type-C) 2 x USB 5Gbps (2 x Type-A) 2 x USB 2.0 (2 x Type-A) |
| Front USB | 1 x USB 5Gbps Type-C 1 x USB 5Gbps header (2 ports) 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround HD Audio CODEC Audio shielding, premium capacitors, dedicated PCB layers Supports up to 24-bit/192kHz |
| Back Panel I/O | 1 x USB Type-C (10Gbps), 3 x USB Type-A (10Gbps) 2 x USB Type-A (5Gbps), 2 x USB 2.0 1 x DP, 1 x HDMI, 1 x LAN, 3 x audio jacks, 1 x BIOS FlashBack??? button |
| Internal I/O | 1 x 24-pin Main Power, 1 x 8-pin +12V, 1 x 4-pin +12V 3 x M.2, 4 x SATA, USB headers, RGB headers, TPM, COM, audio |
| Special Features | ASUS 5X PROTECTION III, Q-Design, Thermal Solutions EZ DIY features, Aura Sync RGB support |
| Software | Armoury Crate, AI Suite 3, ASUS CPU-Z Norton 360 (60-day), Adobe CC Trial, WinRAR Trial |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash 3 |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables, 1 x WiFi Q-Antenna M.2 rubber + screw packages, Quick start guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
