| Model | B850 MAX GAMING WIFI W |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5, Supports up to 8000+MT/s (OC), ECC and Non-ECC, Dual channel, EXPO & AEMP support |
| Graphics | 1 x DisplayPort, 1 x HDMI™ port (supports 8K@30Hz DisplayPort, 4K@60Hz HDMI) |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000)
1 x PCIe 4.0 x16 (Ryzen 8000)
1 x PCIe 4.0 x16 (B850 Chipset)
2 x PCIe 3.0 x16 (B850 Chipset) |
| Storage | 3 x M.2 slots, 4 x SATA 6Gb/s ports
RAID: Ryzen 9000 - 0/1/5/10, Ryzen 8000 - 0/1, Ryzen 7000 - 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 (802.11ax), Bluetooth® v5.3 |
| Rear USB | 4 x USB 10Gbps (3 Type-A + 1 Type-C), 2 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A |
| Front USB | 1 x USB 5Gbps Type-C, 1 x USB 5Gbps header (2 ports), 3 x USB 2.0 headers (6 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio, supports up to 24-Bit/192kHz playback, Audio Shielding, Premium capacitors |

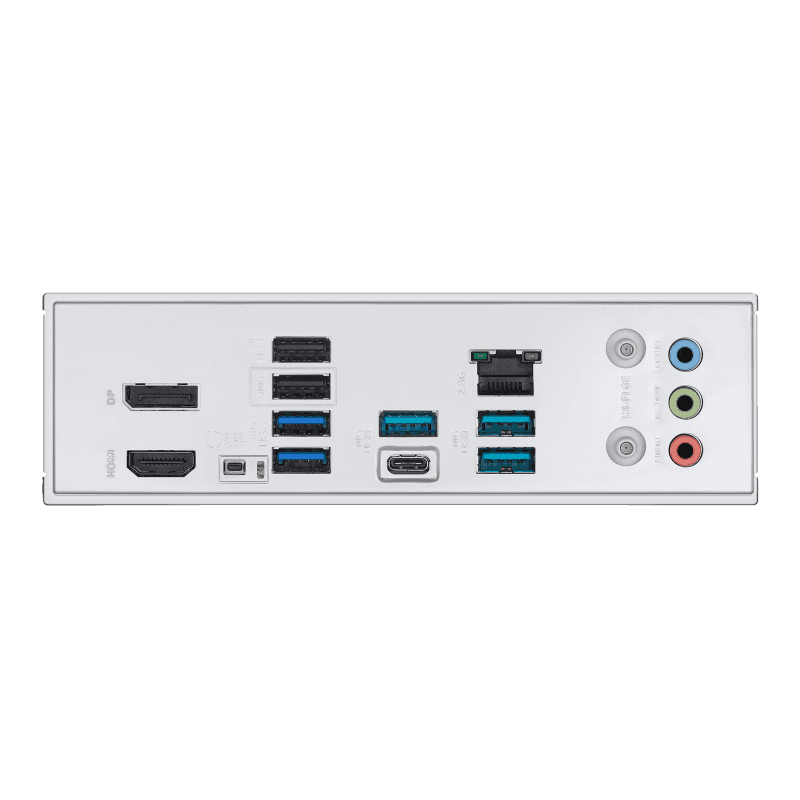

| Back Panel I/O | 1 x USB Type-C 10Gbps, 3 x USB Type-A 10Gbps, 2 x USB Type-A 5Gbps, 2 x USB 2.0, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack button |
| Internal I/O Connectors | CPU Fan headers, Chassis Fan headers, AIO Pump header, Power connectors, M.2 slots, SATA ports, USB headers, RGB headers, Clear CMOS, Front Panel, COM, Audio, SPI TPM, Thunderbolt header |
| Special Features | ASUS 5X PROTECTION III, Q-Design, Thermal Solution, EZ DIY, Aura Sync, ASUS Exclusive Software (Armoury Crate, AI Advisor, Driver Hub, GlideX, TurboV Core, CPU-Z), Norton 360, WinRAR |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, ASUS CrashFree BIOS 3, EZ Flash 3, EZ Mode, MyHotkey |
| Accessories | 2 x SATA 6Gb/s cables, WiFi Q-Antenna, M.2 rubber packages, 3 x Screw packages for M.2 SSD, Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
