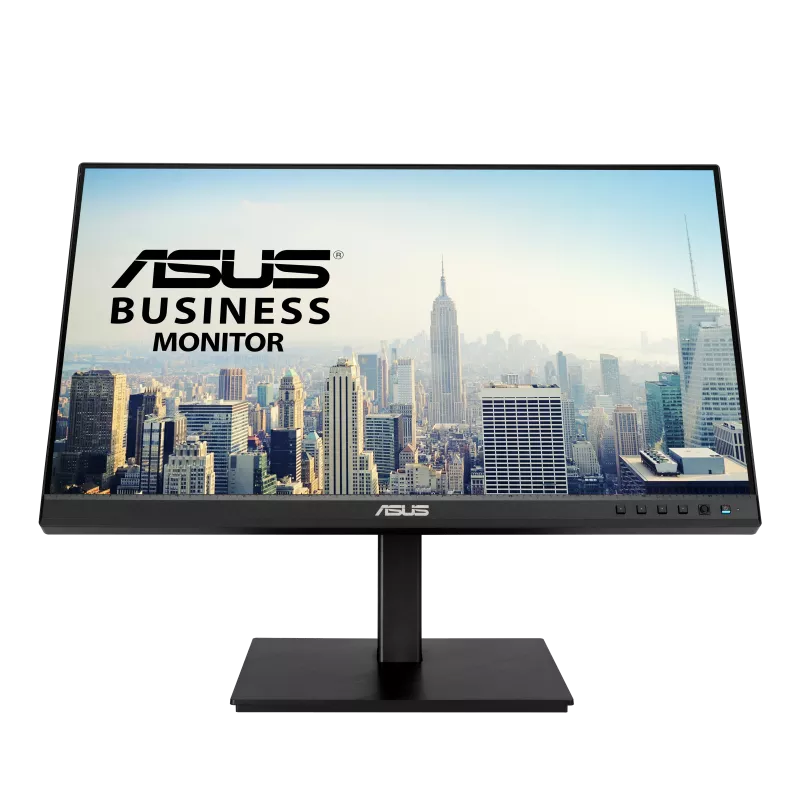

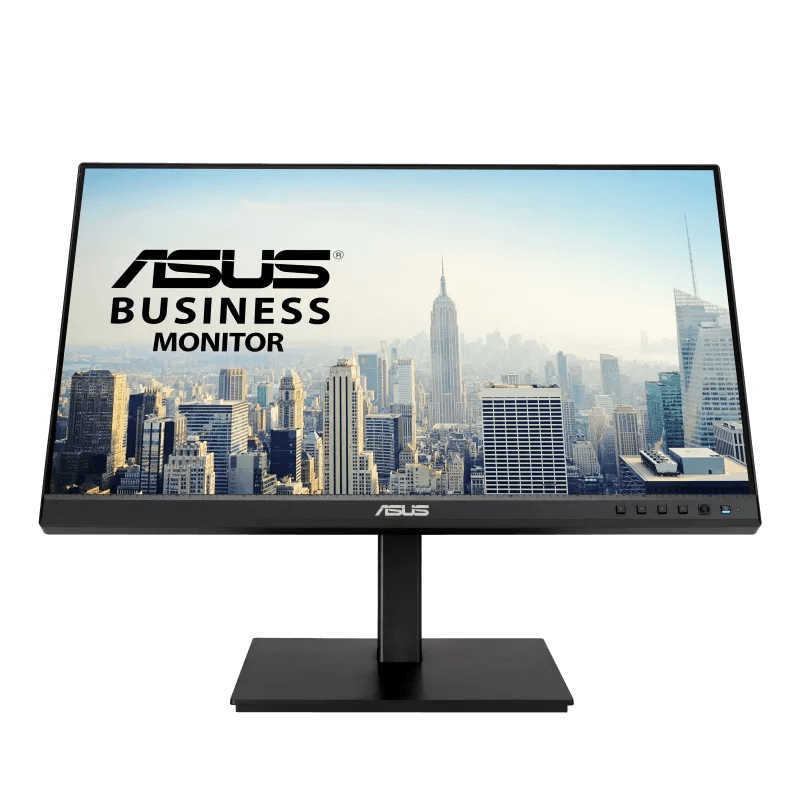

ASUS BE24ECSBT Multi-touch Monitor, 24 inch FHD (1920x1080), 10-point Touch, IPS, USB-C with Power Delivery, HDMI, DisplayPort Daisy Chain, Height Adjustable, Ergonomic Stand, Eye Care, Low Blue Light, Flicker Free, Wall Mountable | 90LM05M1-B0B370
Model :
SKU : LED-ASUS BE24ECSBT TOUCH
23.8-inch Full HD(1920x1080) frameless IPS panel with wide viewing angles
10-point multi-touch capacity delivers smooth and intuitive touch experience.
Extensive connectivity with USB-C with power delivery, HDMI, DisplayPort in and out for daisy-chain, Earphone jack and USB hub for the most flexibility
Ergonomic design with +35° ~ -5° tilt, ±180° swivel, ±90° pivot and 130mm height adjustments for a comfortable viewing experience
USB-C port allows simple laptop docking for data transmission and video signal to the display, as well as up to 80W power delivery to the laptop via just one cable.
Description

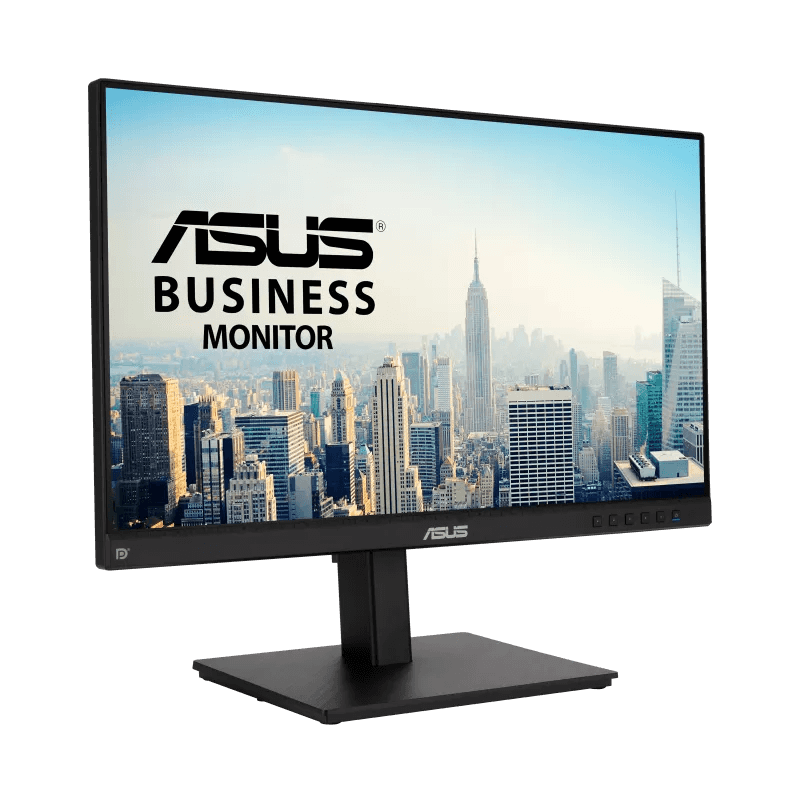

ASUS BE24ECSBT is a 23.8-inch Full HD(1920x1080) IPS monitor which combines 10-point multi-touch capability* with superb image quality, flexible connectivity, durability and great ergonomics.
The precise and accurate multi-touch display— allowing up to 10 simultaneous touches — is optimized for use with Windows 11 and 10, allowing you to work smarter and more efficiently, as well as perfect for public usage. Its ergonomic stand offers tilt, swivel, pivot and height adjustments to provide comfortable viewing experiences in any setting.
* 10-point touch functionality depends on operating system. 10-point touch functionality supports with Windows, Chrome and Linux. Single-point touch option is also available for macOS.
Specification
| Panel Size (inch) | 23.8 |
| Aspect Ratio | 16:9 |
| Display Viewing Area (H x V) | 527.04 × 296.46 mm |
| Display Surface | Anti-Glare |
| Backlight Type | LED |
| Panel Type | IPS |
| Viewing Angle (CR≧10, H/V) | 178°/178° |
| Pixel Pitch | 0.2745 mm |
| Resolution | 1920x1080 |
| Color Space (sRGB) | 100% |
| Brightness (Typ.) | 300 cd/㎡ |
| Contrast Ratio (Typ.) | 1000:1 |
| Display Colors | 16.7M |
| Response Time | 5 ms (GTG) |
| Refresh Rate (Max) | 75 Hz |
| Touch | Yes, Projective Capacitive 10-point Touch |
| Flicker-free | Yes |
Features
| Trace Free Technology | Yes |
| SPLENDID Technology | Yes |
| Color Temp. Selection | Yes (4 modes) |
| QuickFit | Yes (Document/Letter/Photo/Alignment Grid) |
| HDCP | Yes, 1.4 |
| Low Blue Light | Yes |
| Eye Care+ Technology | Yes |
Audio
| Speaker | Yes (2W x 2) |
I/O Ports
| USB-C | 1 (DP Alt Mode) |
| DisplayPort | 1.4 x 2 (Daisy Chain) |
| HDMI | 1 x v1.4 |
| USB Hub | 3 x USB 3.2 Gen 1 Type-A |
| Earphone Jack | Yes |
| USB-C Power Delivery | 80W |
Power Consumption
| Power Consumption | 13.2 W |
| Power Saving Mode | <0.5 W |
| Power Off Mode | 0 W (hard switch) |
| Voltage | 100-240V, 50/60Hz |
Mechanical Design

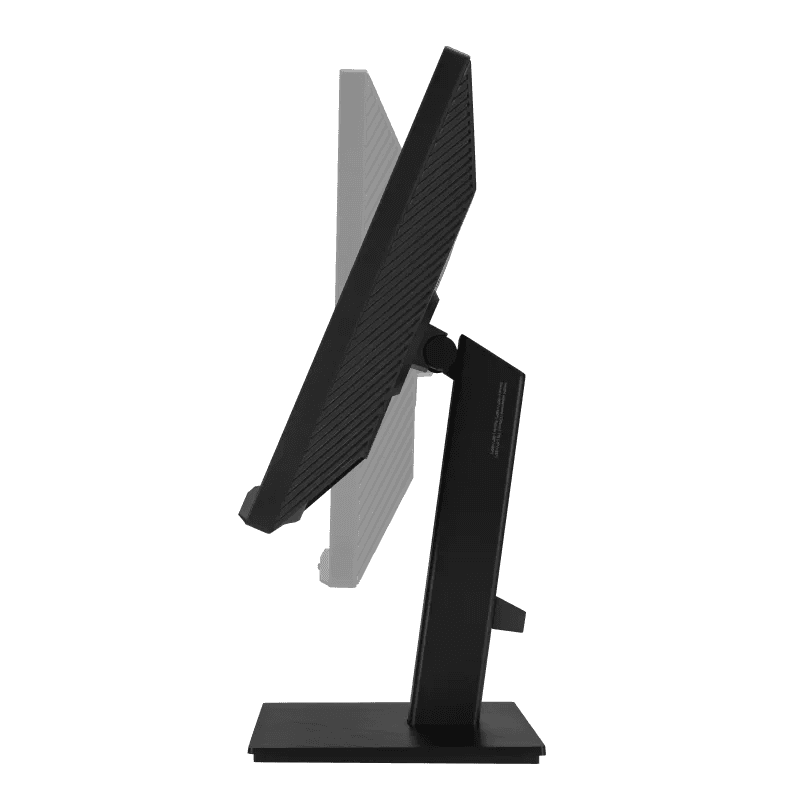

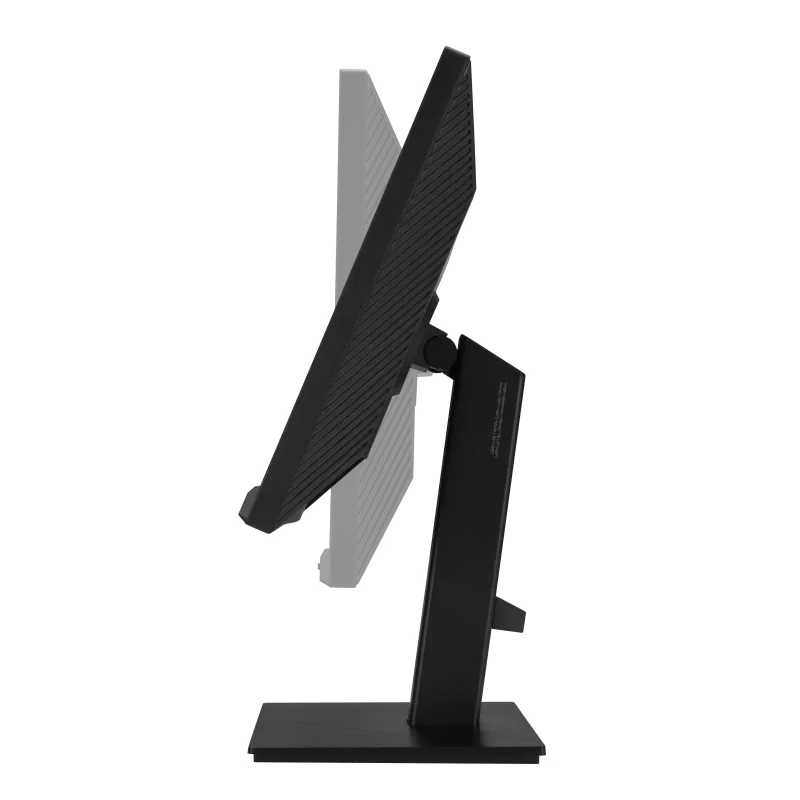

| Tilt | Yes (+35° ~ -5°) |

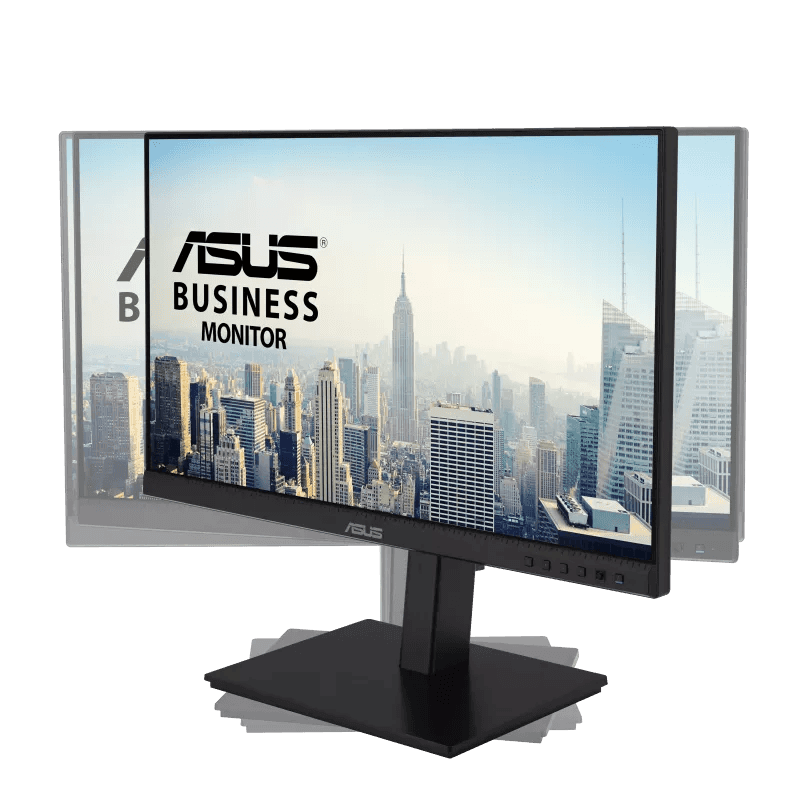

| Swivel | Yes (+180° ~ -180°) |

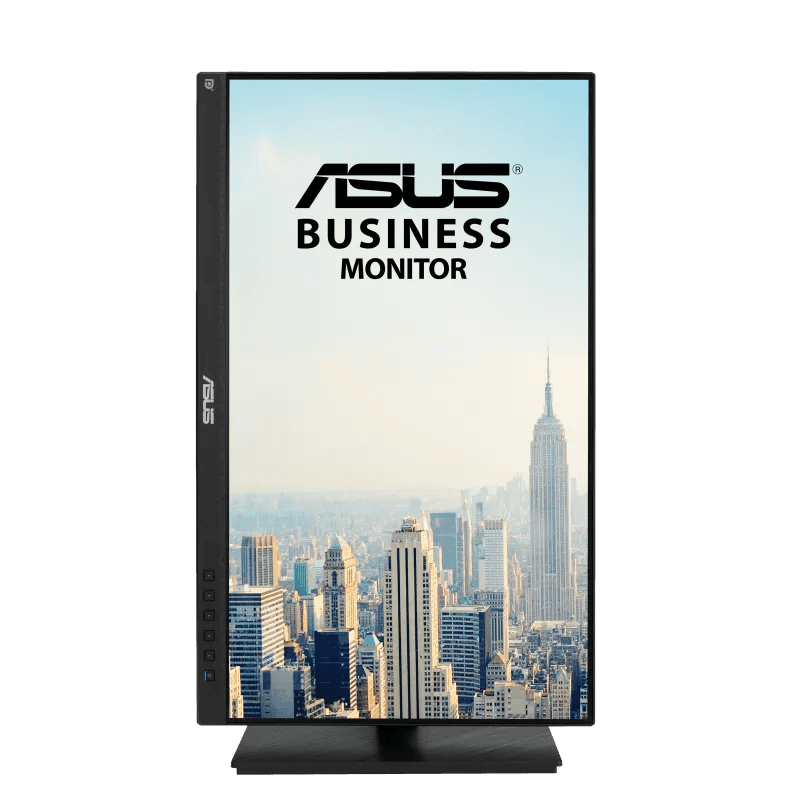

| Pivot | Yes (+90° ~ -90°) |

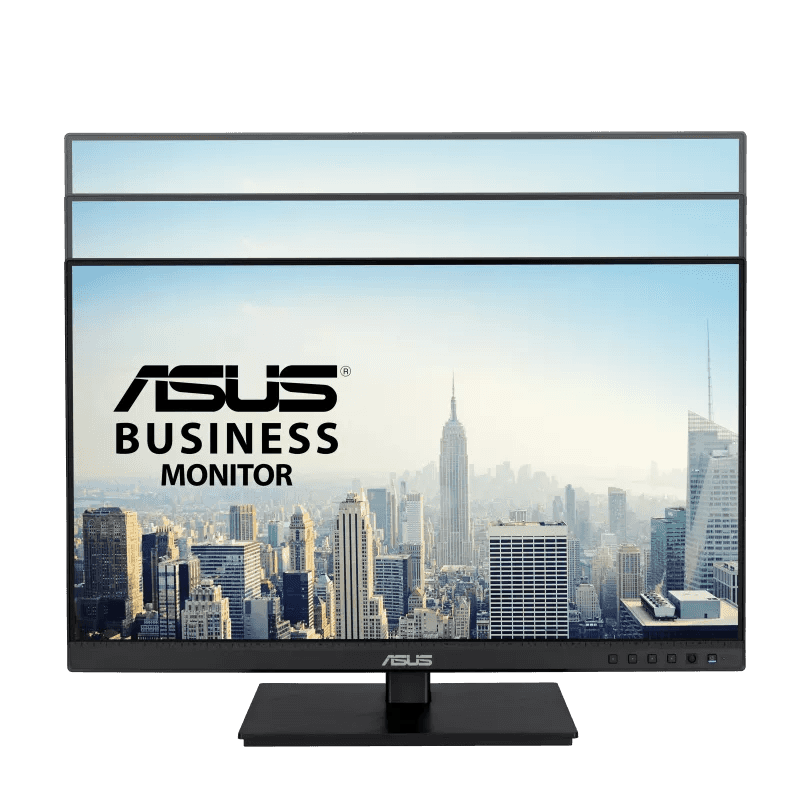

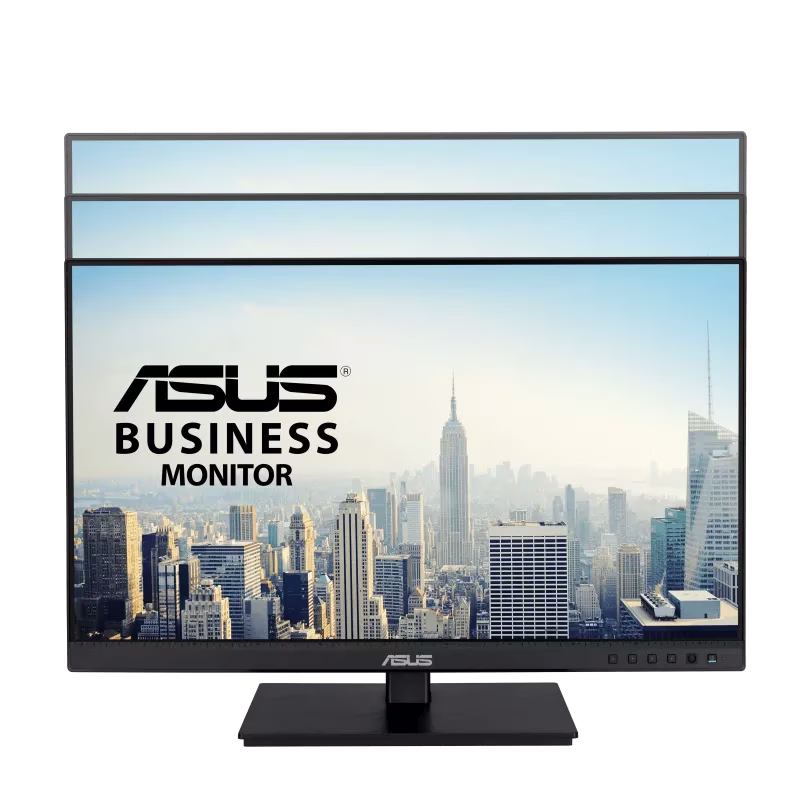

| Height Adjustment | 0~130mm |
| Ambient Light Sensor | Yes |
| VESA Wall Mounting | 100x100mm |
| Kensington Lock | Yes |
Dimensions (Esti.)
| Phys. Dimension (W x H x D) | 53.97 x 45.94 x 21.14 cm (21.25" x 18.09" x 8.32") |
| Phys. Dimension without Stand (W x H x D) | 53.97 x 32.99 x 5.28 cm (21.25" x 12.99" x 2.08") |
| Box Dimension (W x H x D) | 74.60 x 44.00 x 17.00 cm (29.37" x 17.32" x 6.69") |
Weight (Esti.)
| Net Weight | 6.1 kg (13.45 lbs) |
| Net Weight without Stand | 4.1 kg (9.04 lbs) |
| Gross Weight | 8.3 kg (18.30 lbs) |
Accessories (vary by regions)
- DisplayPort cable
- HDMI cable
- Power cord
- Quick release stand
- Quick start guide
- USB-C cable
- USB-C to A cable
- Warranty Card
Certificate
- Energy Star
- EPEAT Silver
- TCO Certified
- TÜV Flicker-free
- TÜV Low Blue Light
