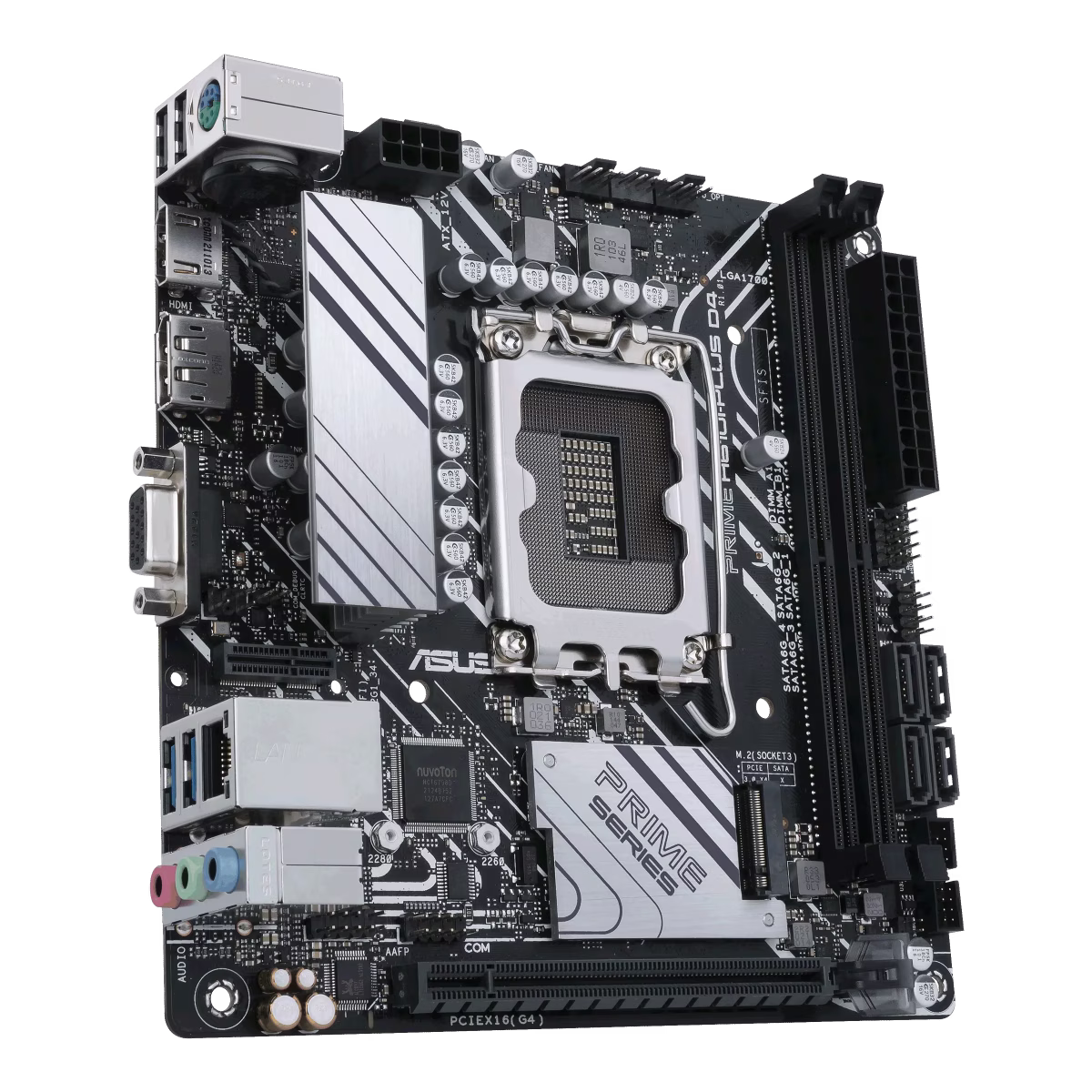

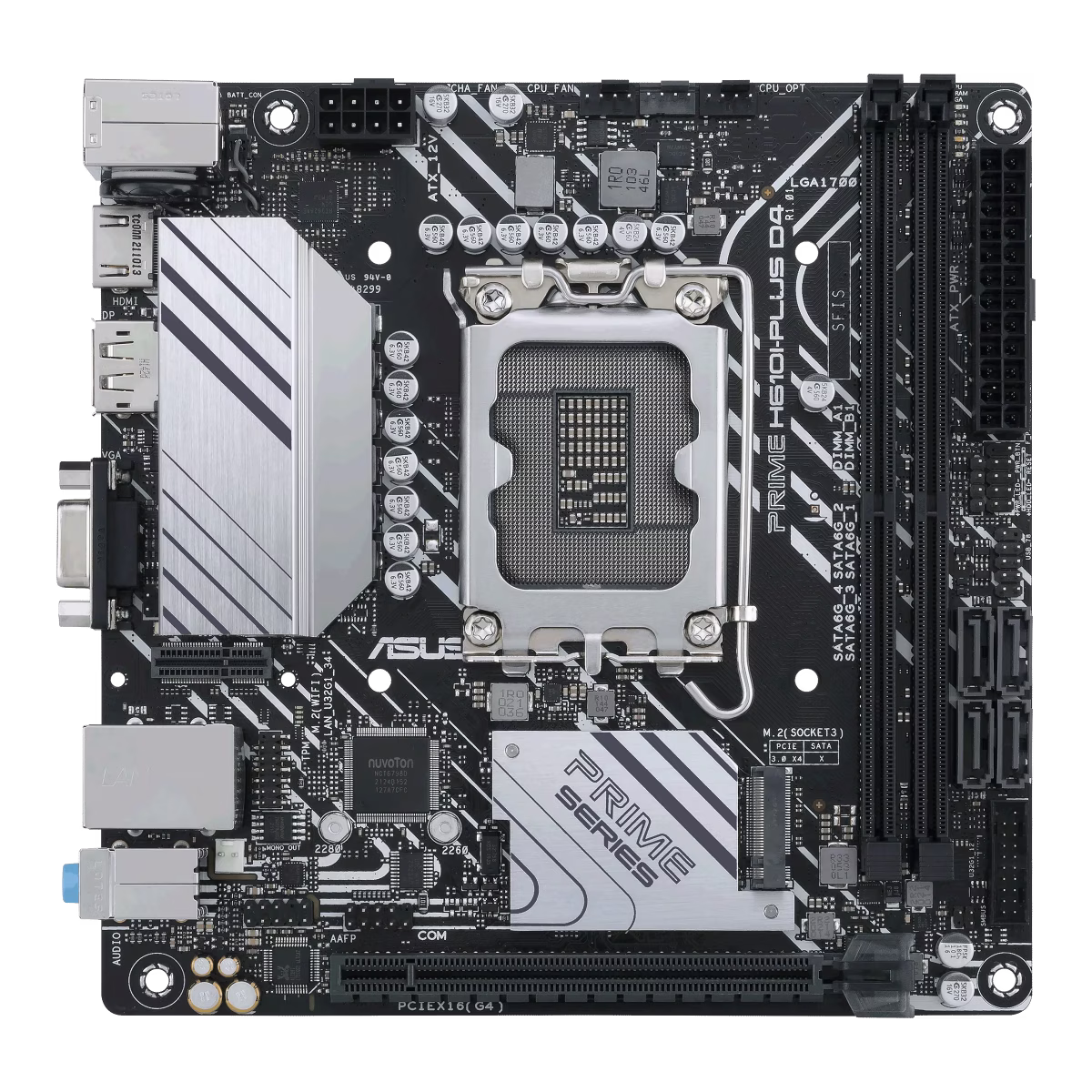

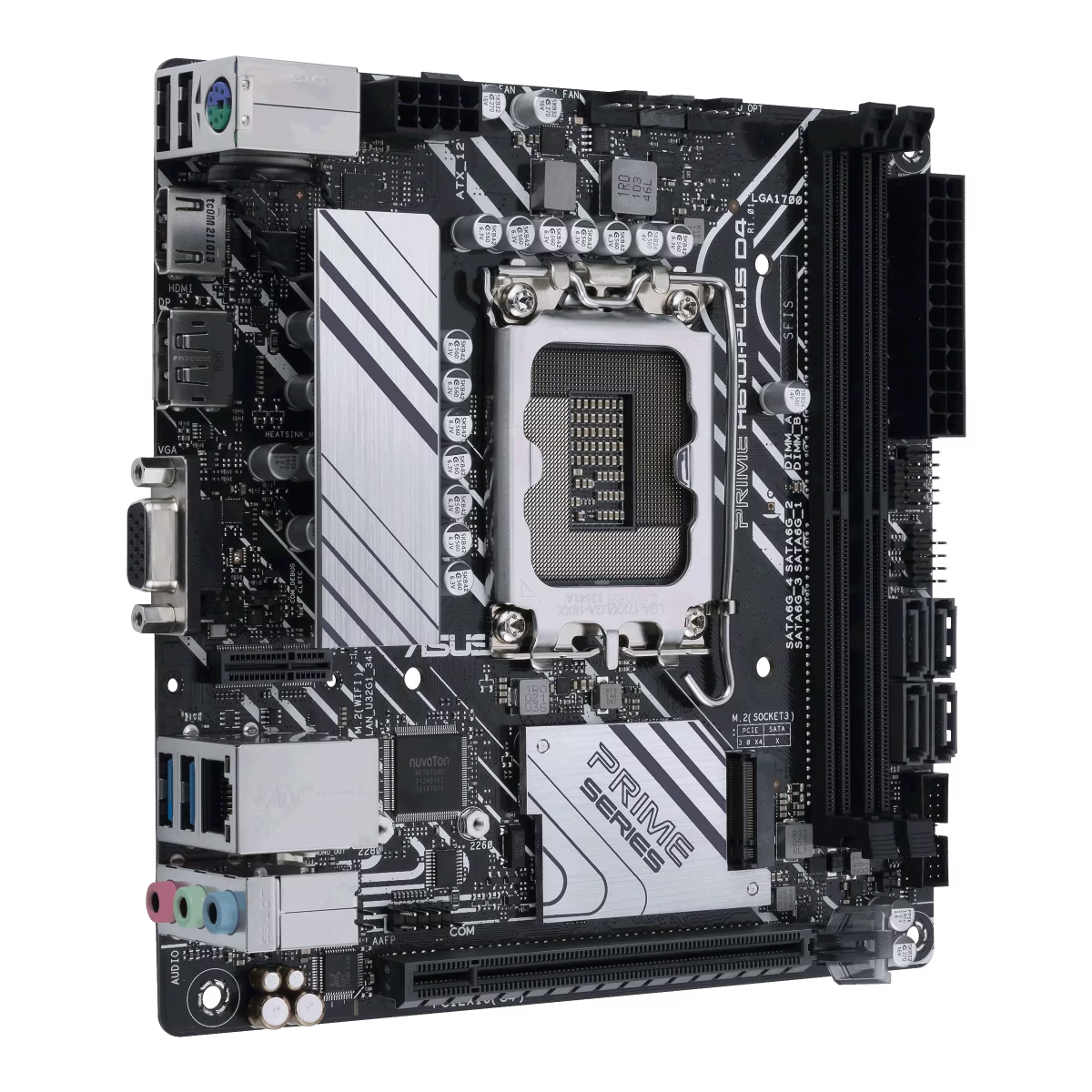

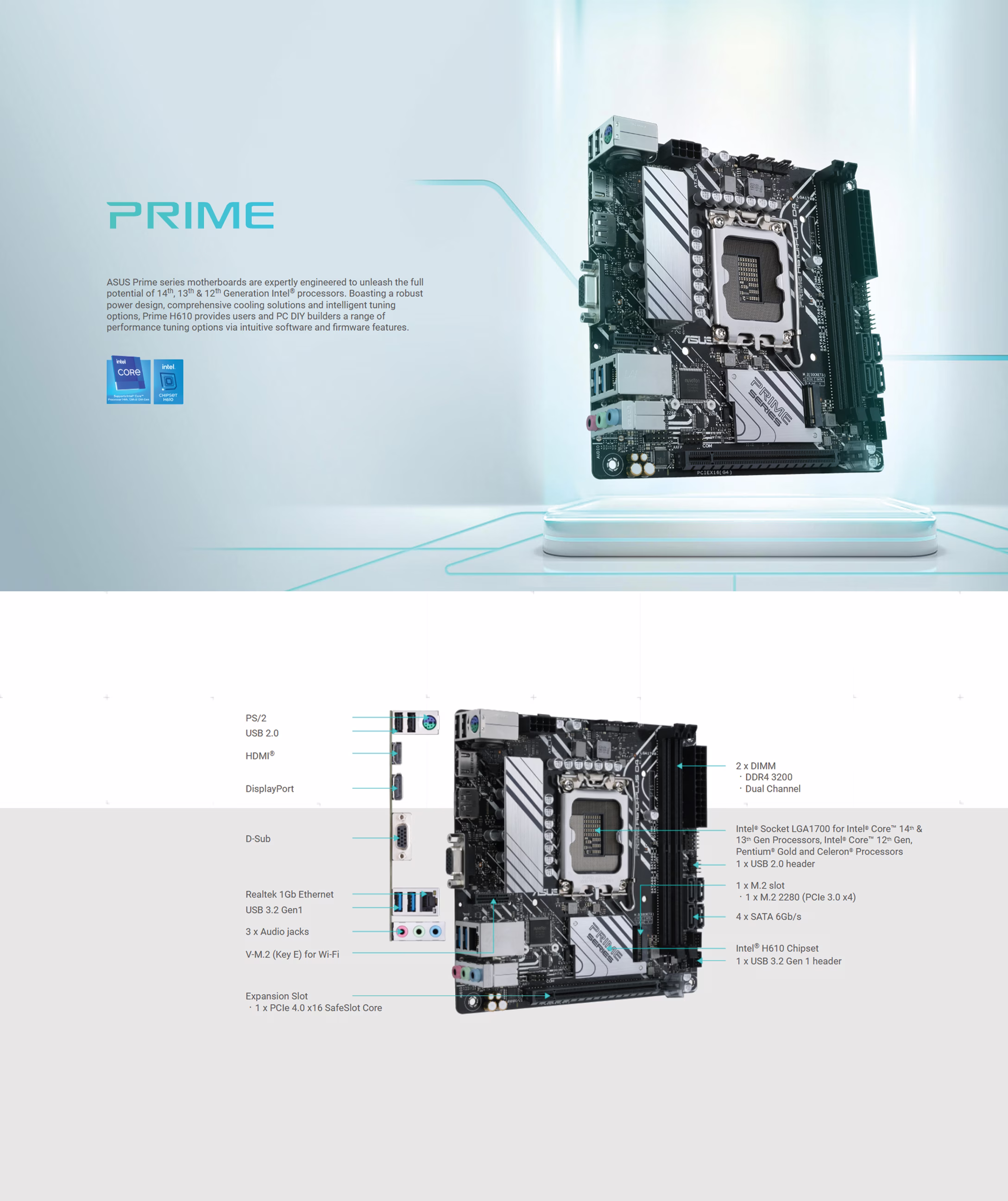

The Prime H610I-PLUS D4-CSM provides a robust foundation for Intel’s LGA 1700 platform while adhering to the strict requirements of professional and corporate builds. As a CSM (Corporate Stable Model) motherboard, it includes ASUS Control Center Express, a centralized IT management software that enhances productivity and security. Its Mini-ITX form factor makes it ideal for kiosk systems, digital signage, or compact workstations where space is at a premium but performance cannot be compromised.
Advanced Thermal Design and Durability
Despite its small size, ASUS has implemented a comprehensive cooling solution. The board features an onboard VRM heatsink and thermal pads to improve heat transfer from the MOSFETs and chokes, ensuring stable power delivery under load. With Fan Xpert software, users can customize fan curves to maintain a quiet work environment. The 5X Protection III suite provides hardware-level safeguards, including LANGuard, overvoltage protection, and a stainless-steel back I/O for 3x longer durability.
Flexible Storage and DDR4 Support
This motherboard is designed to maximize value by utilizing DDR4 memory, allowing businesses to leverage existing stock or budget-friendly kits while still achieving high-speed performance through ASUS OptiMem technology. For storage, the integrated M.2 slot supports PCIe 3.0 x4 speeds, providing fast boot times and rapid data access for essential business applications.
Versatile Connectivity for Modern Workspaces
The Prime H610I-PLUS D4-CSM is equipped with a wide array of connectivity options to suit diverse industrial and office needs. It features DisplayPort, HDMI, and D-Sub (VGA), allowing for triple-display support or compatibility with legacy monitors. Additionally, it includes a vertical M.2 Key E slot specifically designed for a WiFi/Bluetooth module upgrade, and high-speed USB 3.2 Gen 1 ports for quick data transfers with external peripherals.
Why the ASUS Prime H610I-PLUS D4-CSM Stands Out
LGA 1700 Compatibility: Supports Intel 14th, 13th, and 12th Gen Core processors.
ASUS CSM Program: Includes enterprise-grade IT management software and long-term supply cycles.
Ultra-Compact Mini-ITX: Fits into the smallest PC chassis without sacrificing essential connectivity.
Comprehensive Cooling: VRM heatsink and hybrid fan headers keep SFF builds stable.
| Feature | Specification |
|---|---|
| Model | PRIME H610I-PLUS D4 |
| CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to www.asus.com for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel H610 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphics | 1 x DisplayPort 1 x D-Sub 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates. Support HDMI 2.1 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates. |
| Expansion Slots | Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe) Wi-Fi module is sold separately. |
| USB | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

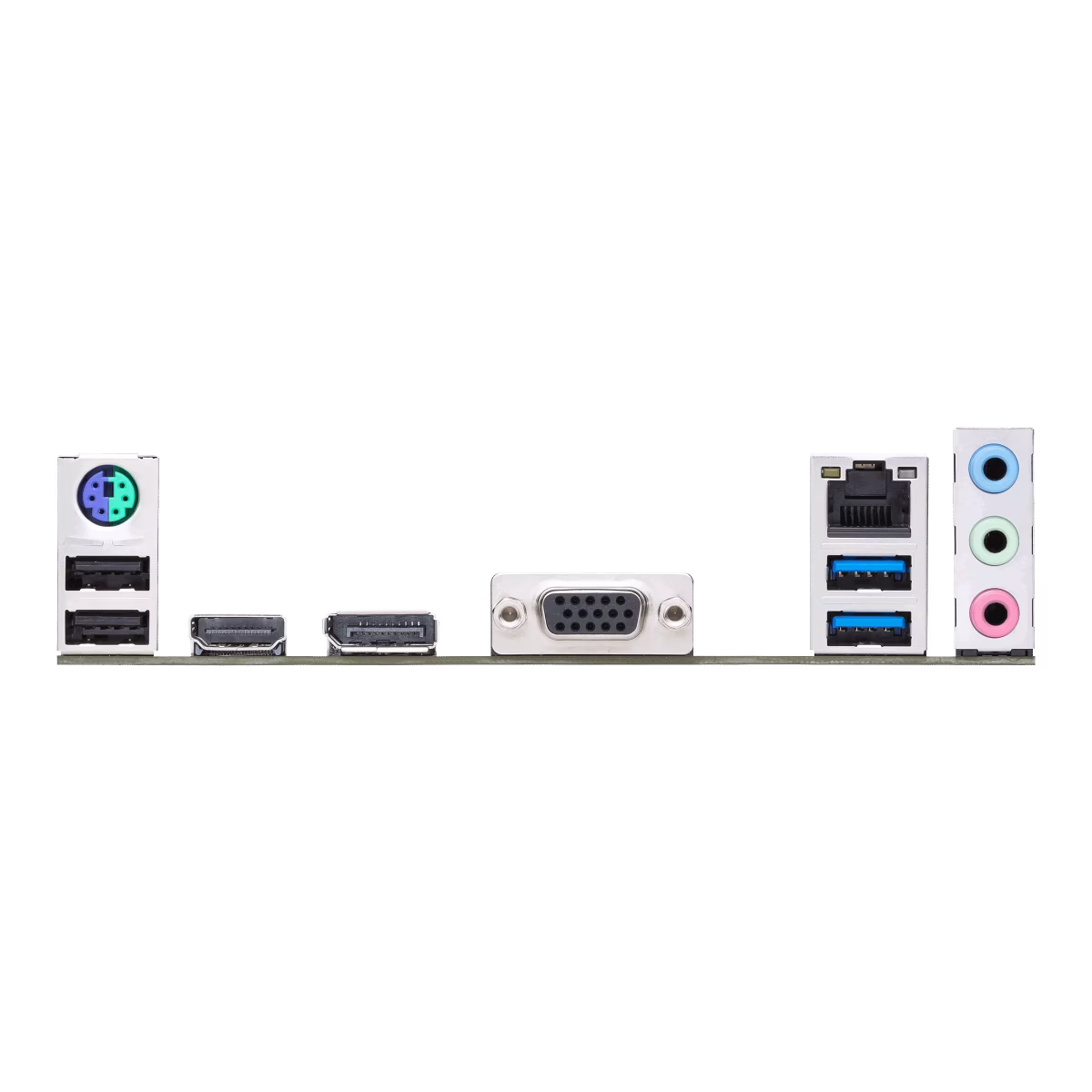

| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x D-Sub port 1 x HDMI port 1 x V-M.2 slot (Key E) 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous: 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header (with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III: - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design: - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution: - Aluminum heatsink design |
| Software Features | ASUS Exclusive Software: - Armoury Crate - AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x I/O Shield 1 x M.2 Screw Package 1 x Vertical M.2 Key E bracket set Installation Media: 1 x Support DVD Documentation: 1 x User guide |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Mini ITX Form Factor, 6.7 inch x 6.7 inch (17.02 cm x 17.02 cm) |
