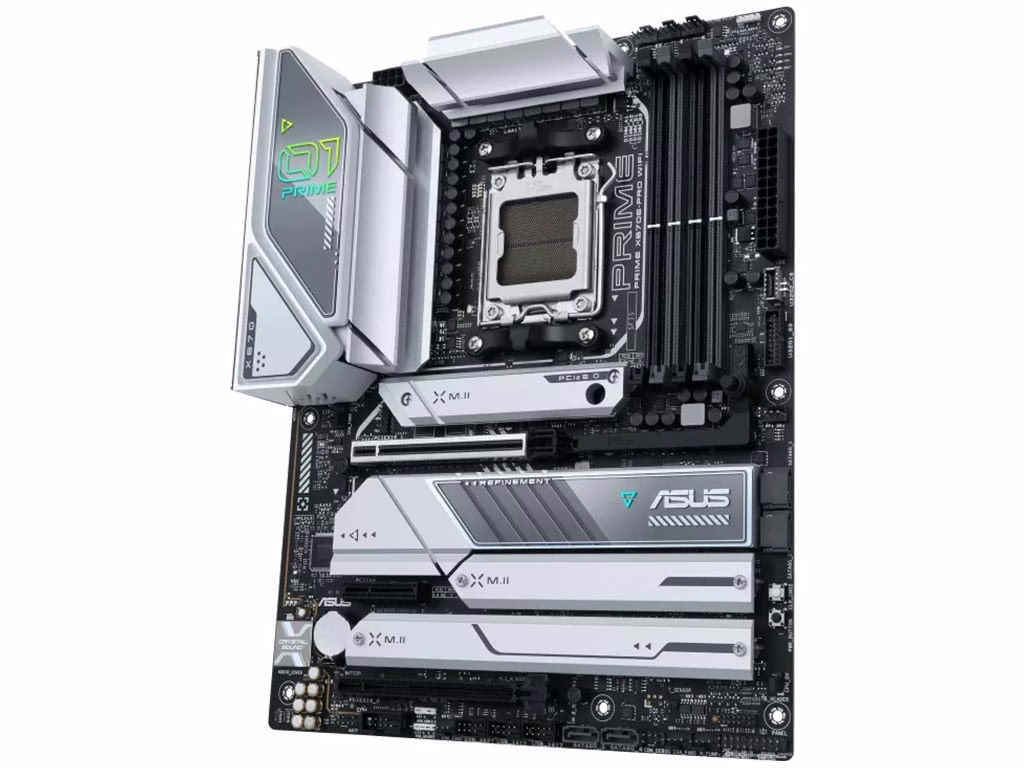

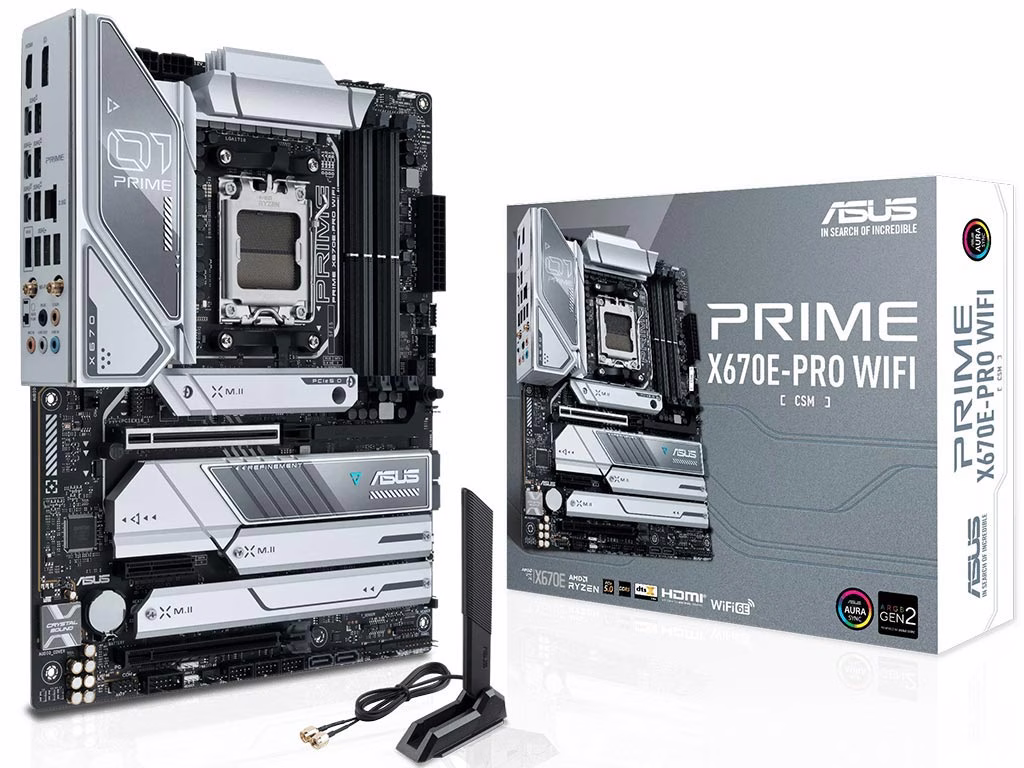

Asus Prime X670E-Pro Wifi DDR5 ATX Motherboard, Socket AM5, AMD X670 Chipset, Max 128GB Memory, PCIe 5.0, Realtek 2.5Gb Ethernet, LAN Guard, Wi-Fi 6E, Bluetooth v5.2 | 90MB1BL0-M0EAY0
Model :
SKU : MB-ASUS PRI X670E-PRO WIF
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Level up your AMD Ryzen 7000 build with the feature-rich ASUS Prime X670E-Pro WiFi Motherboard! This ATX powerhouse caters to performance enthusiasts and DIY builders alike.
Unleash the Potential of Your Ryzen CPU: The ASUS Prime X670E-Pro WiFi Motherboard offers full compatibility with AMD Ryzen 7000 series processors, ensuring you extract maximum performance.
Blazing-Fast Performance: Experience smooth multitasking and conquer demanding applications with support for up to 128GB of DDR5 memory and advanced storage options with multiple M.2 slots and SATA ports.
Next-Gen Connectivity: This motherboard boasts a PCIe 5.0 x16 slot for cutting-edge graphics cards, a 2.5Gb Ethernet port for ultrafast networking, and the latest Wi-Fi 6E and Bluetooth v5.2 for seamless wireless connectivity.
Cool It Down: Dedicated heatsinks and multiple fan headers keep your system running optimally under heavy loads.
Personalize Your Build: Aura RGB headers and addressable Gen 2 headers allow you to create stunning lighting effects that match your style.
Easy Installation: ASUS Q-Design features make building and configuring your PC a breeze, perfect for DIY enthusiasts.
The ASUS Prime X670E-Pro WiFi Motherboard is the perfect foundation for building a powerful, customizable, and future-proof AMD Ryzen 7000 PC.
Asus Prime X670E-Pro Wifi DDR5 ATX Motherboard, Socket AM5, AMD X670 Chipset, Max 128GB Memory, PCIe 5.0, Realtek 2.5Gb Ethernet, LAN Guard, Wi-Fi 6E, Bluetooth v5.2 | 90MB1BL0-M0EAY0 Tech Specs
| Model | PRIME X670E-PRO WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen??? 7000 Series Desktop Processors* |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 8000+(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC & Non-ECC, Un-buffered Memory* |
| Graphics | 1 x DisplayPort** 1 x HDMI?? port*** |
| Expansion Slots | AMD Ryzen??? 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slots |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 |
| USB (Rear) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C??) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C??) |
| USB (Front) | 1 x USB 3.2 Gen 2 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C??) 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C??) 1 x DisplayPort 1 x HDMI?? port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack??? button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt??? header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - BIOS FlashBack??? LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization - TPU - DIGI+ VRM - Turbo app - PC Cleaner ASUS CPU-Z DTS:X?? Ultra MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD 1 x Q-connector Documentation 1 x User guide |
| Operating System | Windows?? 11 64-bit, Windows?? 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
Specification
Level up your AMD Ryzen 7000 build with the feature-rich ASUS Prime X670E-Pro WiFi Motherboard! This ATX powerhouse caters to performance enthusiasts and DIY builders alike.
Unleash the Potential of Your Ryzen CPU: The ASUS Prime X670E-Pro WiFi Motherboard offers full compatibility with AMD Ryzen 7000 series processors, ensuring you extract maximum performance.
Blazing-Fast Performance: Experience smooth multitasking and conquer demanding applications with support for up to 128GB of DDR5 memory and advanced storage options with multiple M.2 slots and SATA ports.
Next-Gen Connectivity: This motherboard boasts a PCIe 5.0 x16 slot for cutting-edge graphics cards, a 2.5Gb Ethernet port for ultrafast networking, and the latest Wi-Fi 6E and Bluetooth v5.2 for seamless wireless connectivity.
Cool It Down: Dedicated heatsinks and multiple fan headers keep your system running optimally under heavy loads.
Personalize Your Build: Aura RGB headers and addressable Gen 2 headers allow you to create stunning lighting effects that match your style.
Easy Installation: ASUS Q-Design features make building and configuring your PC a breeze, perfect for DIY enthusiasts.
The ASUS Prime X670E-Pro WiFi Motherboard is the perfect foundation for building a powerful, customizable, and future-proof AMD Ryzen 7000 PC.
Asus Prime X670E-Pro Wifi DDR5 ATX Motherboard, Socket AM5, AMD X670 Chipset, Max 128GB Memory, PCIe 5.0, Realtek 2.5Gb Ethernet, LAN Guard, Wi-Fi 6E, Bluetooth v5.2 | 90MB1BL0-M0EAY0 Tech Specs
| Model | PRIME X670E-PRO WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen??? 7000 Series Desktop Processors* |
| Chipset | AMD X670 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 8000+(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC & Non-ECC, Un-buffered Memory* |
| Graphics | 1 x DisplayPort** 1 x HDMI?? port*** |
| Expansion Slots | AMD Ryzen??? 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot AMD X670 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slots |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 |
| USB (Rear) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C??) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C??) |
| USB (Front) | 1 x USB 3.2 Gen 2 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C??) 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C??) 1 x DisplayPort 1 x HDMI?? port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack??? button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt??? header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - BIOS FlashBack??? LED - Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization - TPU - DIGI+ VRM - Turbo app - PC Cleaner ASUS CPU-Z DTS:X?? Ultra MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD 1 x Q-connector Documentation 1 x User guide |
| Operating System | Windows?? 11 64-bit, Windows?? 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
