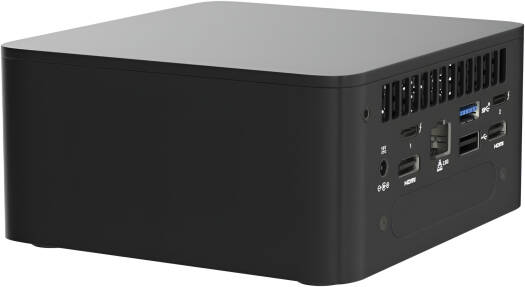

ASUS NUC12WSHi7 NUC 12 Pro Barebone Kit, Intel Core i7-1260P, 2x Thunderbolt 4 (USB-C+DP), 4xUSB, M.2 22x80 NVMe, 22x42 SATA, 2.5'' SATA slot, 2,5Gbe LAN, 2xHDMI, EU Cord | 90AB2WSH-MR8120
Model :
SKU : ASUS NUC12WSHI7 12PRO
About this item
Description
ASUS NUC12WSHi7 NUC 12 Pro Barebone Kit, Intel Core i7-1260P, 4xUSB, M.2 22x80 NVMe, 22x42 SATA, 2.5'' SATA slot, 2,5Gbe LAN, 2xHDMI, 2x Thunderbolt 4 (USB-C+DP), EU Cord | 90AB2WSH-MR8120
| Type | Mini PC |
| Chipset | System-on-Chip (SoC) |
| CPU | Intel Core i7-1260P, 4C+8c/16T, 2.10-4.70GHz, 18MB+9MB cache, 28-64W TDP (PBP/MTP), 35W cTDP (Intel), Codename "Alder Lake-P" (Golden Cove + Gracemont, Intel 7) |
| RAM | 2x DDR4 SO-DIMM, dual PC4-25600S/???DDR4-3200, max. 64GB (UDIMM) |
| HDD | 1x SATA 6Gb/???s, 1x M.2/???M-Key (PCIe 4.0 x4, 2280), 1x M.2/???B-Key (PCIe 3.0 x1/???SATA, 2242) |
| Drive Bays External | Not available |
| Drive Bays Internal | 1x 2.5" (7mm) |
| Graphics | Intel Iris Xe Graphics (iGPU), 96EU/768SP, 1.40GHz, Architecture "Gen 12.2" (Alder Lake GT1) |
| GPU-Connectors | Not available |
| Connectors Rear | 2x HDMI 2.0b, 1x USB-A 3.1 (10Gb/???s), 1x USB-A 2.0 (480Mb/???s), 2x Thunderbolt 4 (40Gb/???s), 1x RJ-45 2.5Gb LAN (Intel I225-V), 1x hollow socket (mains connection) |
| Retrofittable Connectors Rear | 1x serial |
| Connectors Front/Page | 1x USB-A 3.1 (10Gb/???s), 1x USB-A 3.1 (10Gb/???s, BC), 1x 3.5mm jack |
| Extension Slots | 1x M.2/???E-Key (Intel CNVi, 2230, occupied with WiFi+BT module) |
| Wireless | Wi-Fi 6E (WLAN 802.11a/???b/???g/???n/???ac/???ax, 2x2, Intel AX211), Bluetooth 5.3 |
| Card Readers | Not available |
| Power Supply | External, 1x barrel connector (120W/???19V) |
| VESA-Mounting | 75x75/???100x100 (included) |
| Dimensions (WxHxD) | 117x54x112mm |
| Capacity | 0.7l |
| CPU Coolers | Included |
| Special Features | Security lock (Kensington), 4x display support, suitable for continuous operation |
Specification
ASUS NUC12WSHi7 NUC 12 Pro Barebone Kit, Intel Core i7-1260P, 4xUSB, M.2 22x80 NVMe, 22x42 SATA, 2.5'' SATA slot, 2,5Gbe LAN, 2xHDMI, 2x Thunderbolt 4 (USB-C+DP), EU Cord | 90AB2WSH-MR8120
| Type | Mini PC |
| Chipset | System-on-Chip (SoC) |
| CPU | Intel Core i7-1260P, 4C+8c/16T, 2.10-4.70GHz, 18MB+9MB cache, 28-64W TDP (PBP/MTP), 35W cTDP (Intel), Codename "Alder Lake-P" (Golden Cove + Gracemont, Intel 7) |
| RAM | 2x DDR4 SO-DIMM, dual PC4-25600S/???DDR4-3200, max. 64GB (UDIMM) |
| HDD | 1x SATA 6Gb/???s, 1x M.2/???M-Key (PCIe 4.0 x4, 2280), 1x M.2/???B-Key (PCIe 3.0 x1/???SATA, 2242) |
| Drive Bays External | Not available |
| Drive Bays Internal | 1x 2.5" (7mm) |
| Graphics | Intel Iris Xe Graphics (iGPU), 96EU/768SP, 1.40GHz, Architecture "Gen 12.2" (Alder Lake GT1) |
| GPU-Connectors | Not available |
| Connectors Rear | 2x HDMI 2.0b, 1x USB-A 3.1 (10Gb/???s), 1x USB-A 2.0 (480Mb/???s), 2x Thunderbolt 4 (40Gb/???s), 1x RJ-45 2.5Gb LAN (Intel I225-V), 1x hollow socket (mains connection) |
| Retrofittable Connectors Rear | 1x serial |
| Connectors Front/Page | 1x USB-A 3.1 (10Gb/???s), 1x USB-A 3.1 (10Gb/???s, BC), 1x 3.5mm jack |
| Extension Slots | 1x M.2/???E-Key (Intel CNVi, 2230, occupied with WiFi+BT module) |
| Wireless | Wi-Fi 6E (WLAN 802.11a/???b/???g/???n/???ac/???ax, 2x2, Intel AX211), Bluetooth 5.3 |
| Card Readers | Not available |
| Power Supply | External, 1x barrel connector (120W/???19V) |
| VESA-Mounting | 75x75/???100x100 (included) |
| Dimensions (WxHxD) | 117x54x112mm |
| Capacity | 0.7l |
| CPU Coolers | Included |
| Special Features | Security lock (Kensington), 4x display support, suitable for continuous operation |
