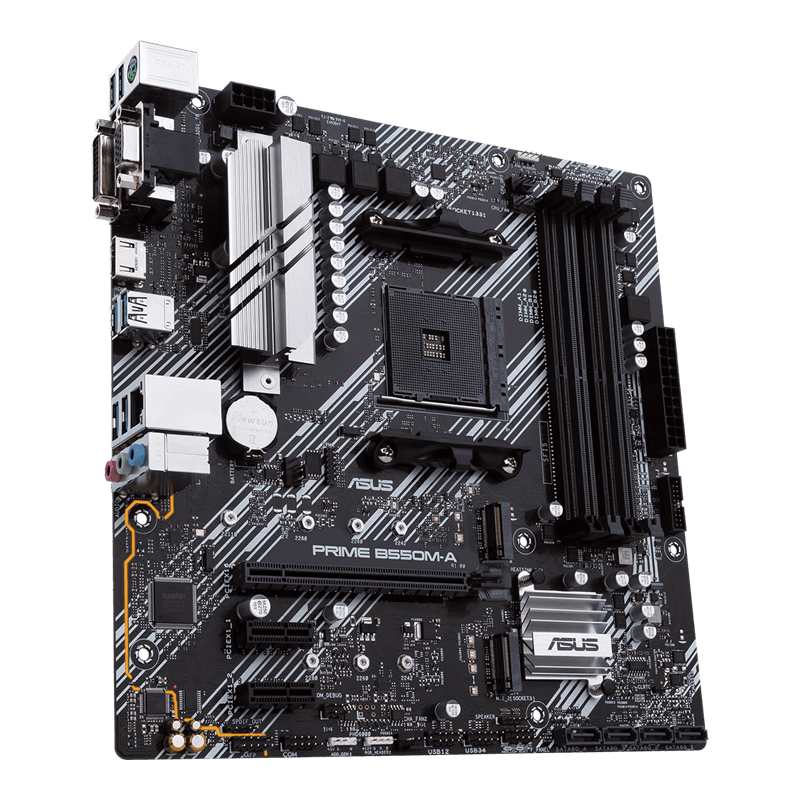

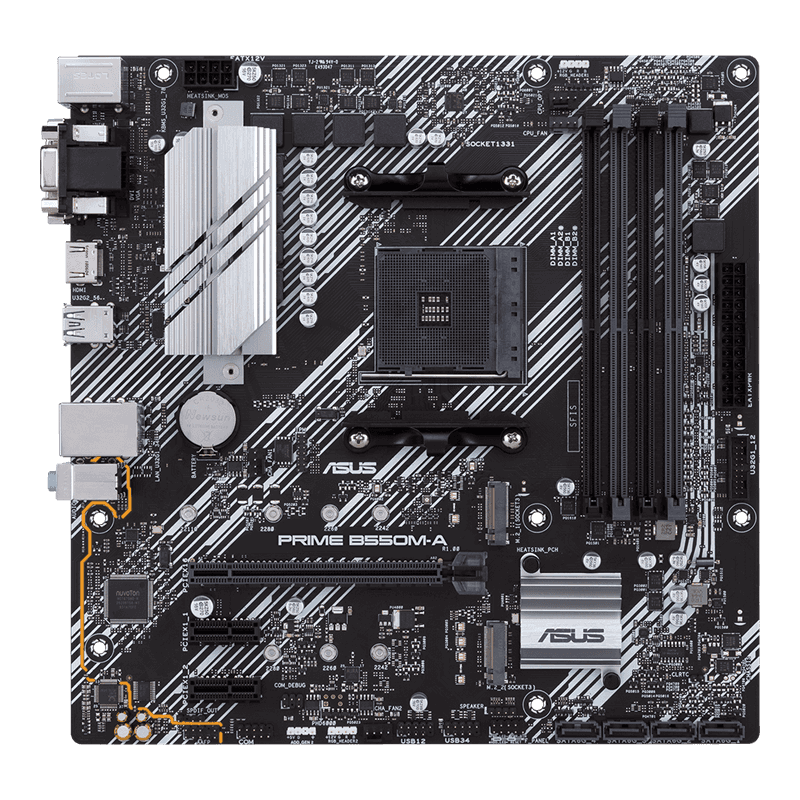

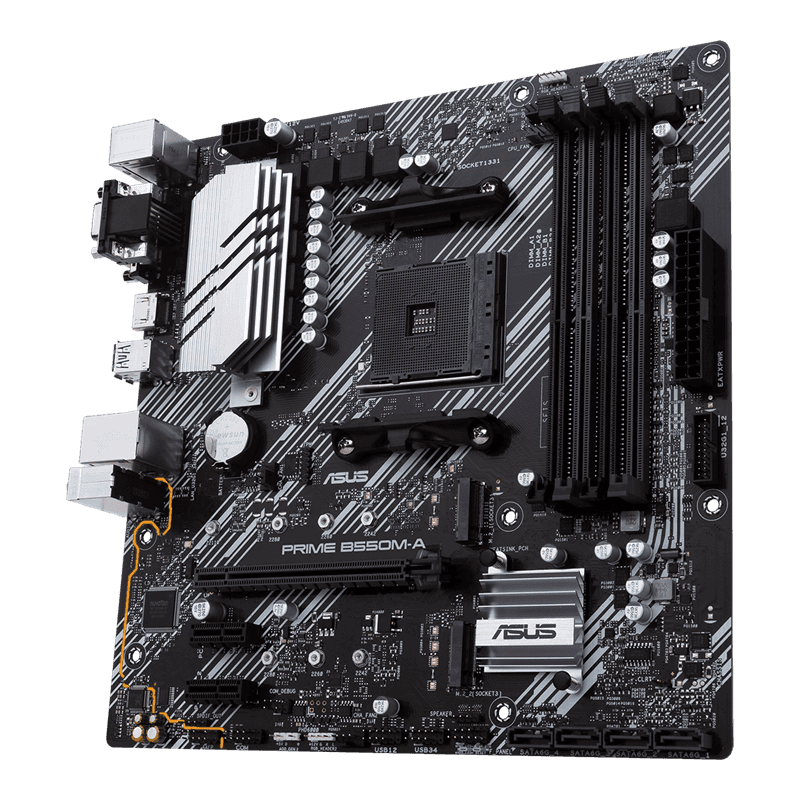

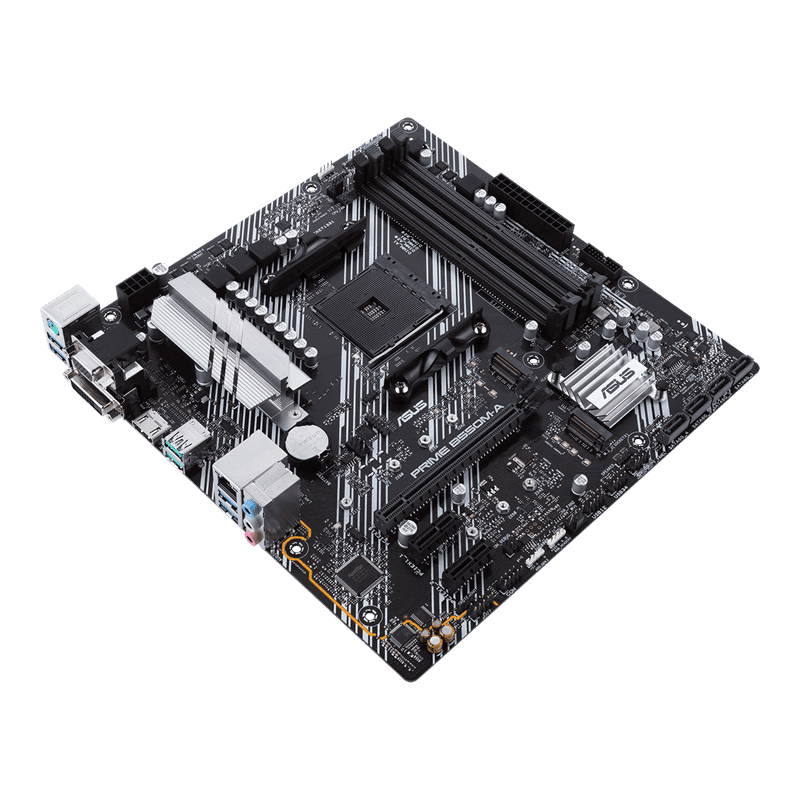

ASUS PRIME B550M-A AMD AM4 Micro-ATX Motherboard

Feature / Component	Specification
Model Name	ASUS PRIME B550M-A / PRIME B550M-A (CSM)
Form Factor	Micro-ATX (M-ATX)
CPU Socket	AMD Socket AM4
Supported Processors	AMD Ryzen™ 5000 / 4000 G-Series / 3000 Series Desktop Processors
Chipset	AMD B550
Memory Support	4x DDR4 DIMM Slots (Dual Channel, Up to 128GB, OC Support)
PCIe Expansion Slots	1x PCIe 4.0/3.0 x16, 2x PCIe 3.0 x1
Storage Interfaces	2x M.2 Slots (1x PCIe 4.0 x4 Mode, 1x PCIe 3.0 x4 Mode), 4x SATA 6Gb/s Ports

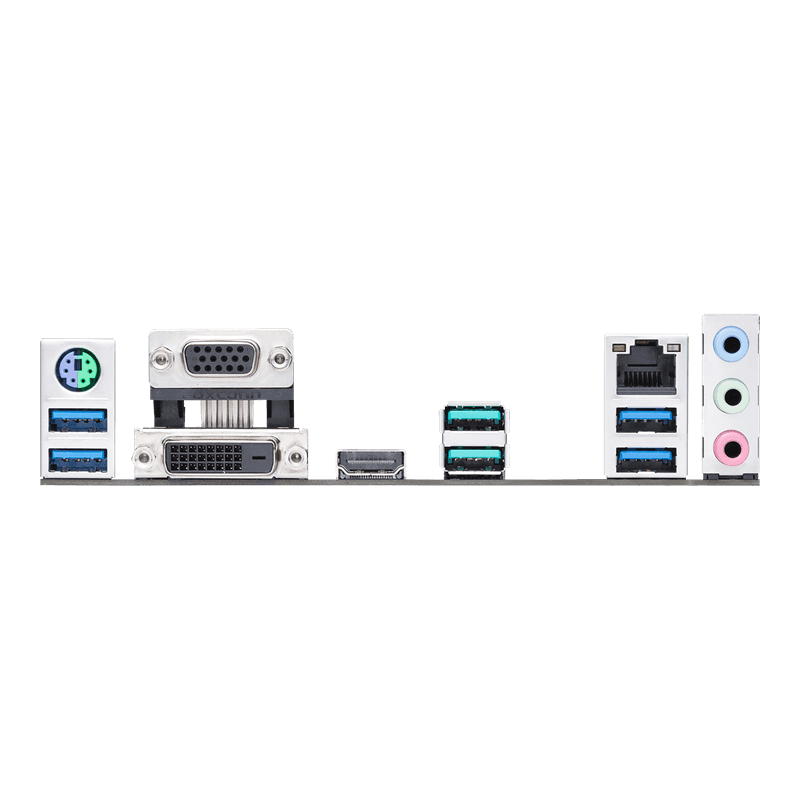

Display Outputs	1x HDMI, 1x DVI-D, 1x D-Sub (VGA)
USB Ports	Rear: USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A / Front Header Support
Networking / Ethernet	1x Realtek 1 Gb Ethernet
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
Thermal & Fan Management	VRM Heatsink, PCH Heatsink, Fan Xpert 2+ Control Utility
RGB Header Support	Onboard Addressable Gen 2 RGB Header & Standard RGB Header (Aura Sync)

Specification

Feature / Component	Specification
Model Name	ASUS PRIME B550M-A / PRIME B550M-A (CSM)
Form Factor	Micro-ATX (M-ATX)
CPU Socket	AMD Socket AM4
Supported Processors	AMD Ryzen™ 5000 / 4000 G-Series / 3000 Series Desktop Processors
Chipset	AMD B550
Memory Support	4x DDR4 DIMM Slots (Dual Channel, Up to 128GB, OC Support)
PCIe Expansion Slots	1x PCIe 4.0/3.0 x16, 2x PCIe 3.0 x1
Storage Interfaces	2x M.2 Slots (1x PCIe 4.0 x4 Mode, 1x PCIe 3.0 x4 Mode), 4x SATA 6Gb/s Ports
Display Outputs	1x HDMI, 1x DVI-D, 1x D-Sub (VGA)
USB Ports	Rear: USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-A / Front Header Support
Networking / Ethernet	1x Realtek 1 Gb Ethernet
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
Thermal & Fan Management	VRM Heatsink, PCH Heatsink, Fan Xpert 2+ Control Utility
RGB Header Support	Onboard Addressable Gen 2 RGB Header & Standard RGB Header (Aura Sync)

ASUS PRIME B550M-A AMD B550 (Ryzen AM4) micro ATX Motherboard, with dual M.2, PCIe 4.0, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support | 90MB14I0-M0EAY0
