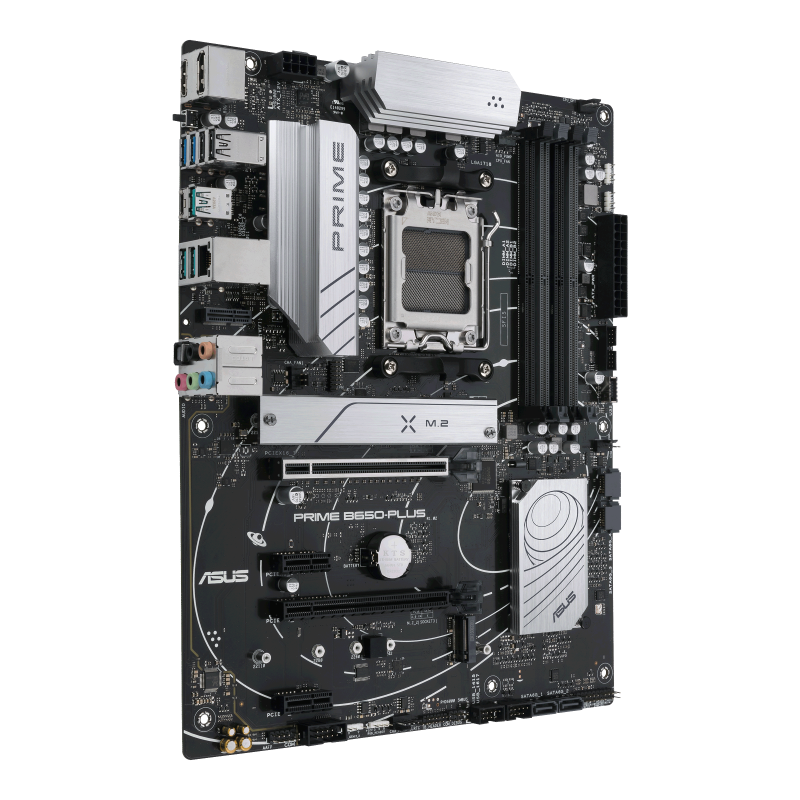

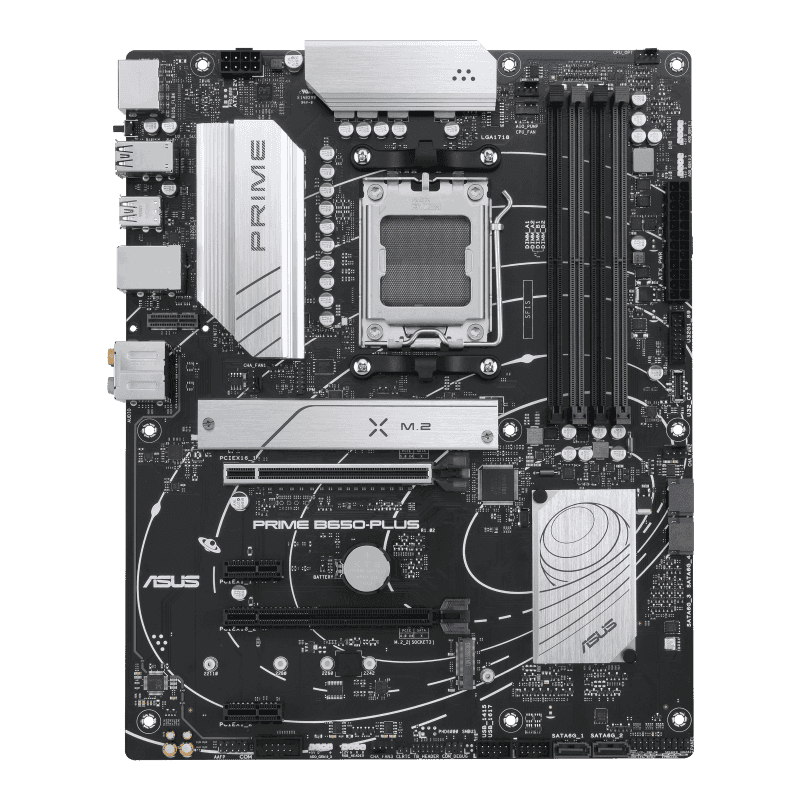

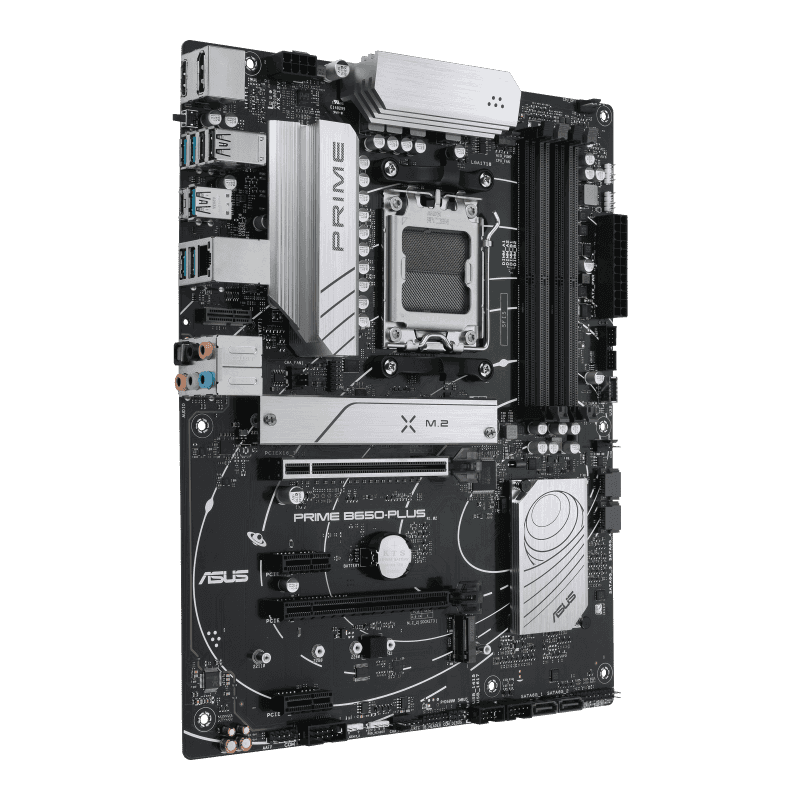

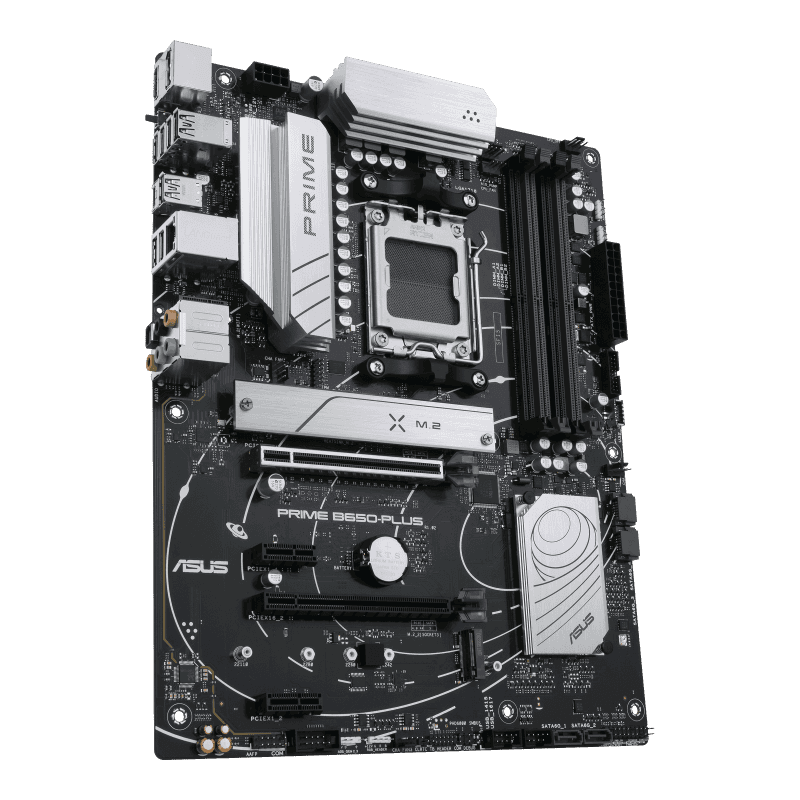

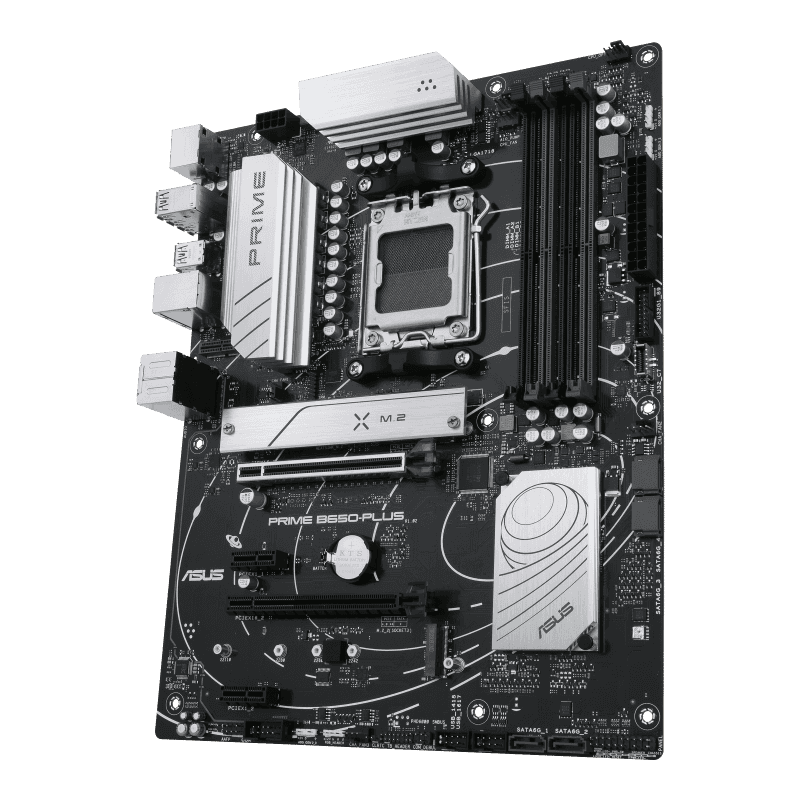

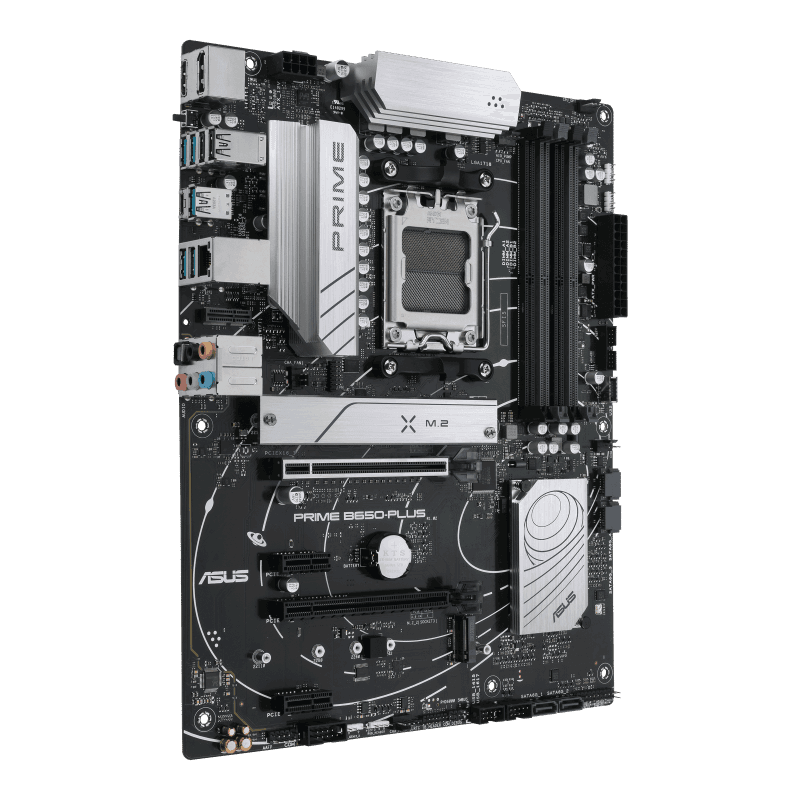

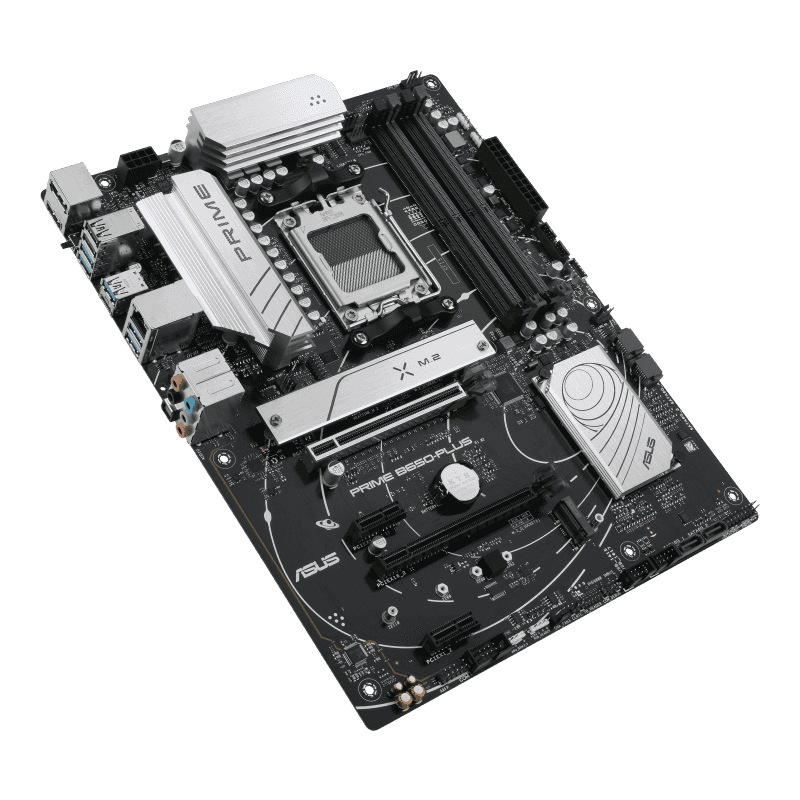

ASUS PRIME B650-PLUS ATX Motherboard, AM5 Socket, AMD B650 Chipset, 4 x 2-Channel DDR5 128GB Max, Realtek 2.5Gb Ethernet, USB 3.2/2.0, 4x SATA, 2x M.2, 1x PCIe 4.0 x16, 1x HDMI/DP | 90MB1BS0-M0EAY0
Model :
SKU : MB-ASUS B650-PLUS DDR5
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
PRIME B650-PLUS Motherboard Specifications table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
PRIME B650-PLUS Motherboard Specifications
| Model | PRIME B650-PLUS |
| CPU | AMD Socket AM5 for AMD Ryzen??? 7000 Series/8000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO???) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI?? port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI?? 2.1. |
| Expansion Slots | AMD Ryzen??? 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen??? 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen??? 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Vertical M.2 slot only (Key E, PCIe)* * Wi-Fi module is sold separately. |

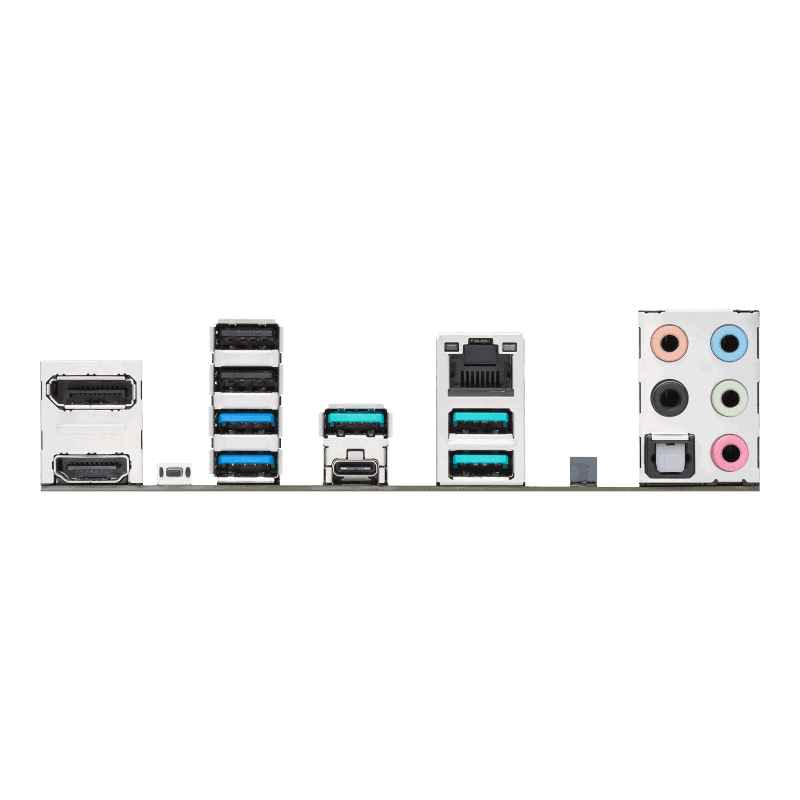

| USB | Rear USB (Total 8 ports) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C??) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - |
Specification
PRIME B650-PLUS Motherboard Specifications table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; }
PRIME B650-PLUS Motherboard Specifications
| Model | PRIME B650-PLUS |
| CPU | AMD Socket AM5 for AMD Ryzen??? 7000 Series/8000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO???) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI?? port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI?? 2.1. |
| Expansion Slots | AMD Ryzen??? 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen??? 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen??? 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Vertical M.2 slot only (Key E, PCIe)* * Wi-Fi module is sold separately. |
| USB | Rear USB (Total 8 ports) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C??) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - |
