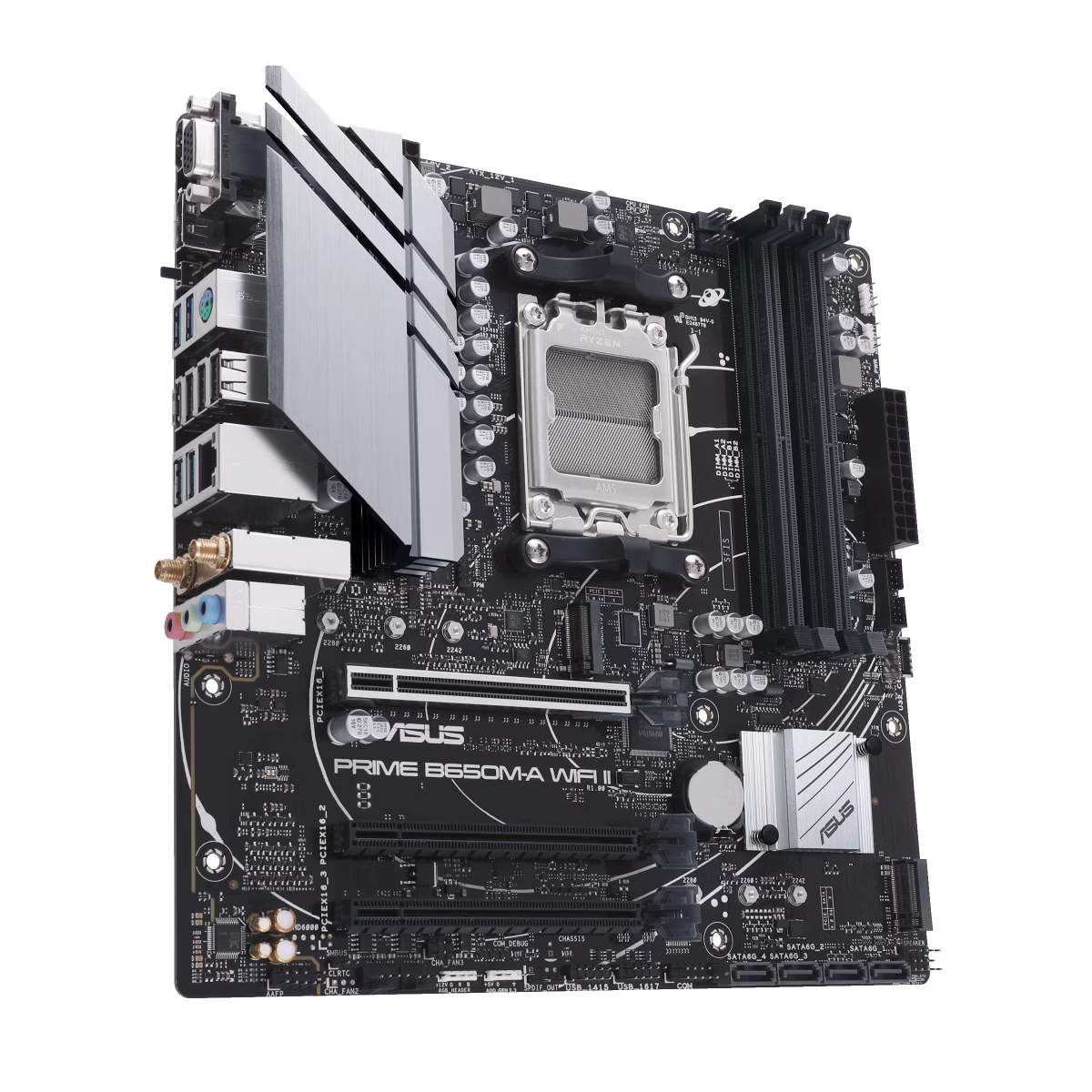

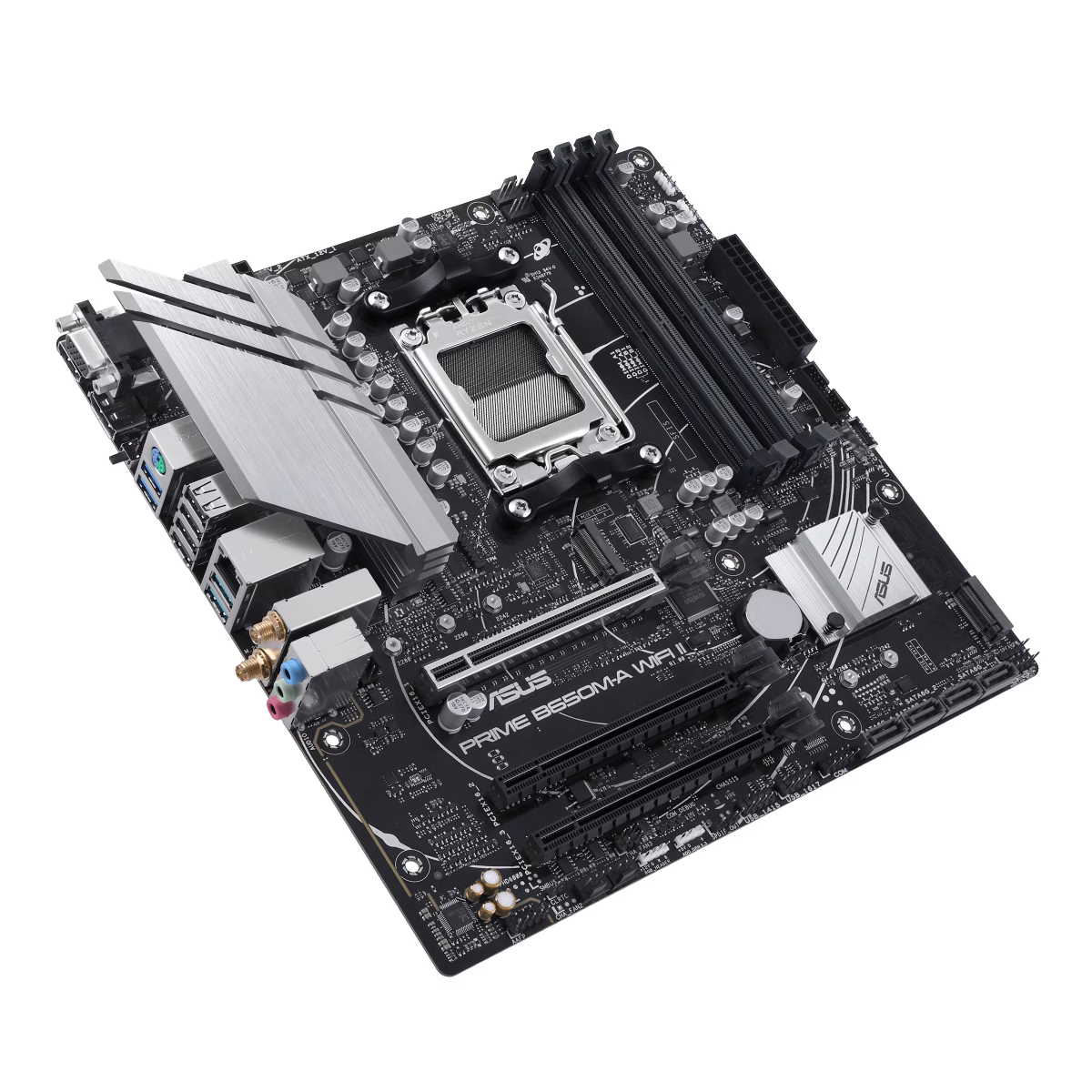

ASUS PRIME B650M-A WIFI II AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, Aura Sync | 90MB1EG0-M0EAY0
Model :
SKU : MB-ASUS PRI B650M-A WI II
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
table { border-collapse: collapse; width: 100%; } tr { border-bottom: 1px solid rgb(222, 226, 230); } td { padding: 8px; margin: 0; } td:first-child { font-weight: bold; color: #333; } h3 { margin-top: 10px; }
AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI??, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C??, BIOS FlashBack???, Aura Sync Specifications
| Model | PRIME B650M-A WIFI II |
| CPU | AMD Socket AM5 for AMD Ryzen??? 7000 Series/ 8000 Series Desktop Processors* |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory* |
Graphics
| DisplayPort | 1 x DisplayPort** |
| VGA Port | 1 x VGA port |
| HDMI Port | 1 x HDMI?? port*** |
Expansion Slots
| AMD Ryzen??? 7000 Series Desktop Processors | 1 x PCIe 4.0 x16 slot (supports x16 mode) |
| AMD Ryzen??? 8000 Series Desktop Processors | 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** |
| AMD B650 Chipset | 2 x PCIe 4.0 x16 slots (support x1 mode) |
Storage
| Total supports | 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen??? 7000 Series Desktop Processors | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| AMD Ryzen??? 8000 Series Desktop Processors | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| AMD B650 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
Ethernet
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth
| Wi-Fi 6 | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Supports | 2.4/5GHz frequency band |
| Bluetooth?? | v5.2* |
USB
| Rear USB (Total 8 ports) | 2 x USB 3.2 Gen 2 ports (2 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A) |
| Front USB (Total 7 ports) | 1 x USB 3.2 Gen 1 connector (supports USB Type-C??); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
Audio
| Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Features | Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers |

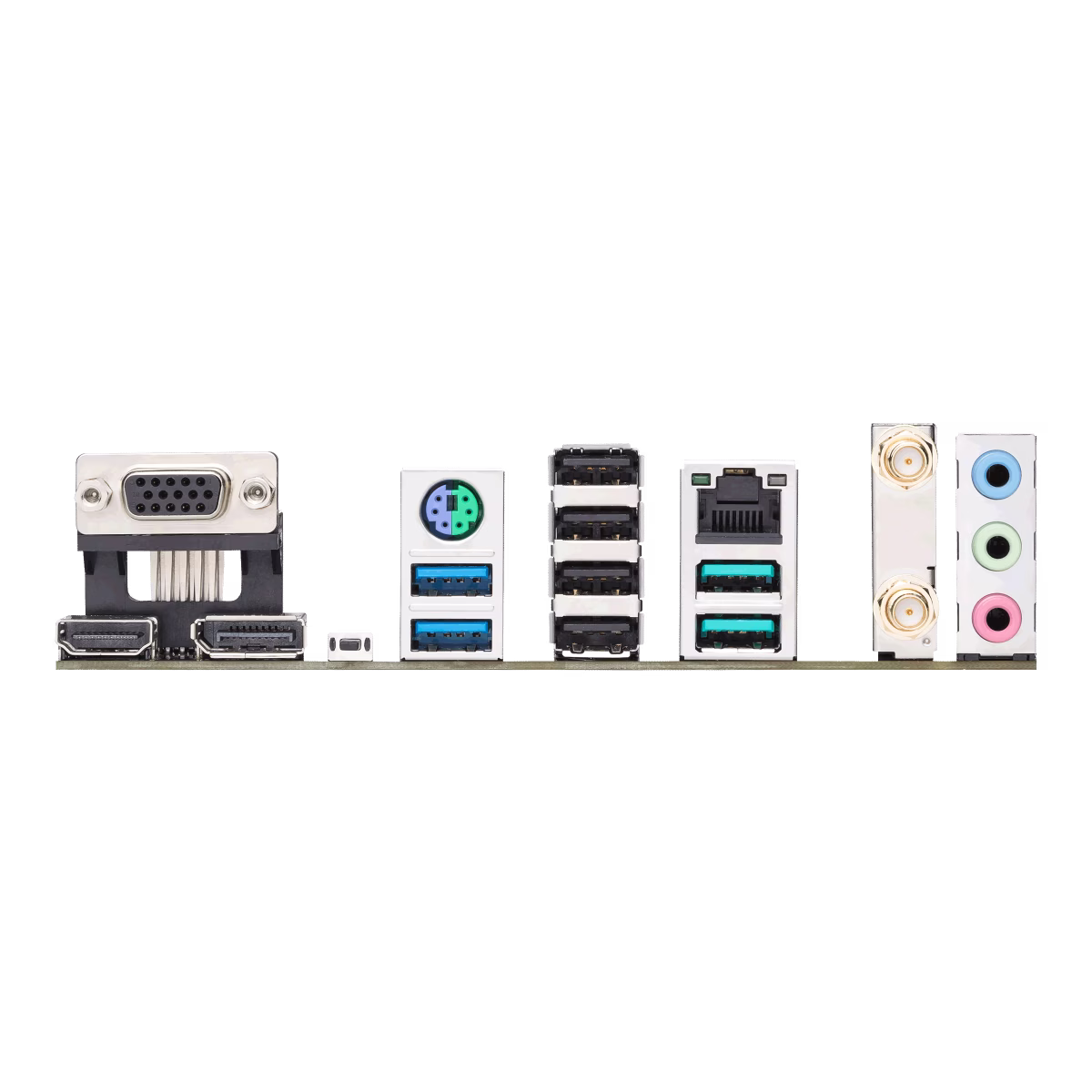

Back Panel I/O Ports
| USB | 2 x USB 3.2 Gen 2 ports (2 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A) |
| DisplayPort | 1 x DisplayPort |
| VGA | 1 x VGA port |
| HDMI | 1 x HDMI?? port |
| Wi-Fi Module | 1 x Wi-Fi Module |
| Ethernet | 1 x Realtek 2.5Gb Ethernet port |
| Audio | 3 x Audio jacks |
| BIOS | 1 x BIOS FlashBack??? button |
| PS/2 | 1 x PS/2 Keyboard/Mouse combo port |
Internal I/O Connectors
| Fan and Cooling related | 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 3 x 4-pin Chassis Fan headers |
| Power related | 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector |
| Storage related | 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports |
| USB | 1 x USB 3.2 Gen 1 connector (supports USB Type-C??); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header |
Special Features
| ASUS 5X PROTECTION III | DIGI+ VRM; LANGuard; Overvoltage Protection; Safeslot Core+; Stainless-Steel Back I/O |
| ASUS Q-Design | Q-DIMM; Q-LED Core; Q-Slot |
| ASUS Thermal Solution | VRM heatsink design |
| ASUS EZ DIY | BIOS FlashBack??? button; BIOS FlashBack??? LED |
| Aura Sync | Aura RGB header; Addressable Gen 2 headers |
Software Features
| ASUS Exclusive Software | Armoury Crate; Aura Creator; Aura Sync; Fan Xpert 2+; Power Saving; AI Suite 3; TurboV EVO; DIGI+ VRM; PC Cleaner; ASUS CPU-Z; MyASUS; Norton Anti-virus software (Free Trial version); WinRAR |
| UEFI BIOS | ASUS EZ DIY; ASUS CrashFree BIOS 3; ASUS EZ Flash 3; ASUS UEFI BIOS EZ Mode |
BIOS
| Flash ROM | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability
| WOL by PME | Yes |
| PXE | Yes |
Accessories
| Cables | 2 x SATA 6Gb/s cables |
| Miscellaneous | 1 x ASUS Wi-Fi moving antennas; 1 x I/O Shield; 1 x Screw Package for M.2 SSD |
| Documentation | 1 x User guide |
Operating System
| OS | Windows?? 11, Windows?? 10 64-bit |
Form Factor
| Type | mATX Form Factor |
| Dimensions | 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
Why AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, Aura Sync?
Build a compact powerhouse with the ASUS Prime B650M-A WIFI II micro-ATX motherboard. This motherboard supports the latest AMD Ryzen 7000 and 8000 Series processors, allowing you to create a powerful and efficient system. It features DDR5 memory support for super-fast data transfer speeds, along with PCIe 5.0 technology for next-generation graphics cards and storage devices
Network connectivity is top-notch with 2.5Gb Ethernet and Wi-Fi 6, ensuring smooth online gaming and content streaming. With multiple USB ports, including a front-panel Type-C connector, you'll have plenty of options for connecting your peripherals. Plus, the integrated audio codec delivers high-fidelity sound for an immersive entertainment experience
The ASUS Prime B650M-A WIFI II is a great choice for gamers, content creators, and everyday PC users who want a compact and feature-rich motherboard. It boasts a robust design with advanced cooling features and Aura Sync RGB lighting support for a personalized touch.
