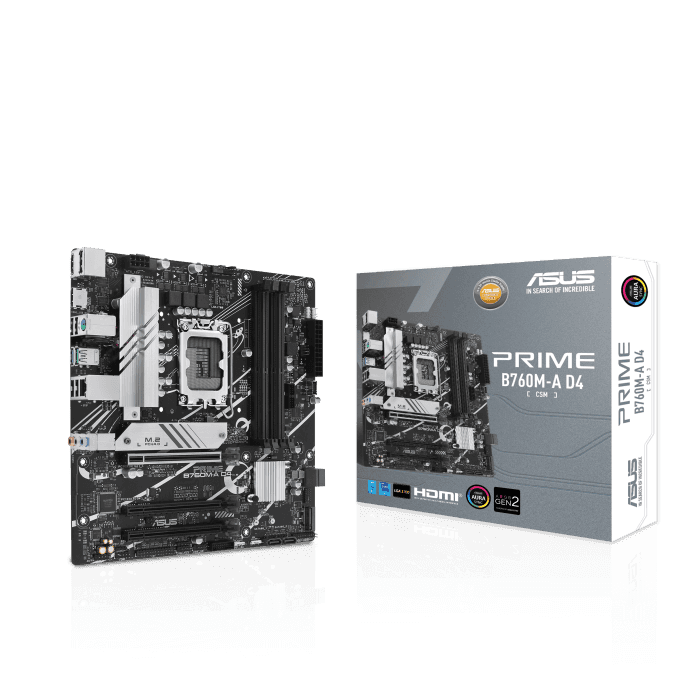

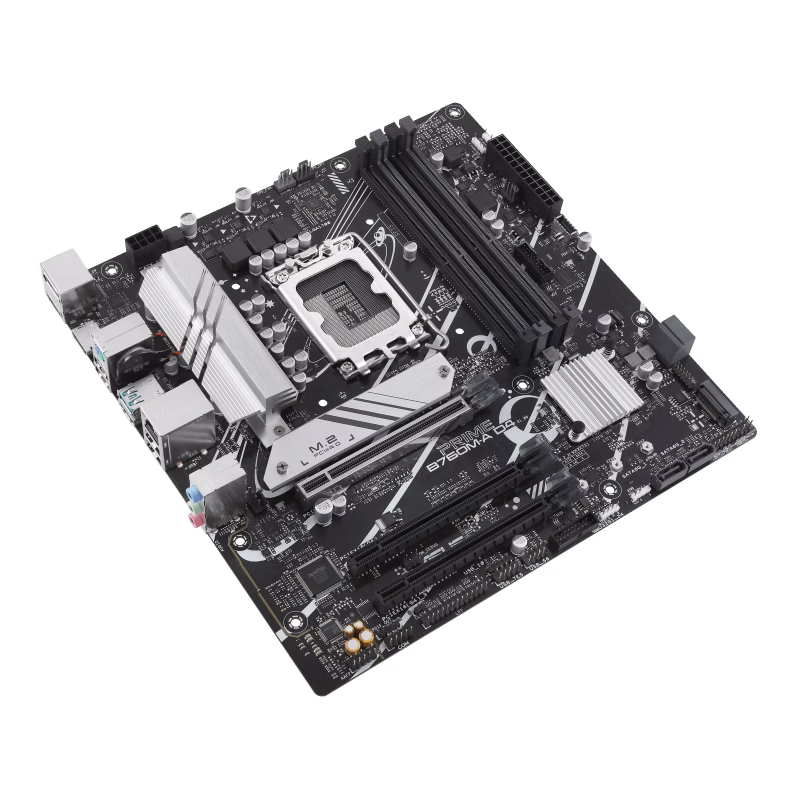

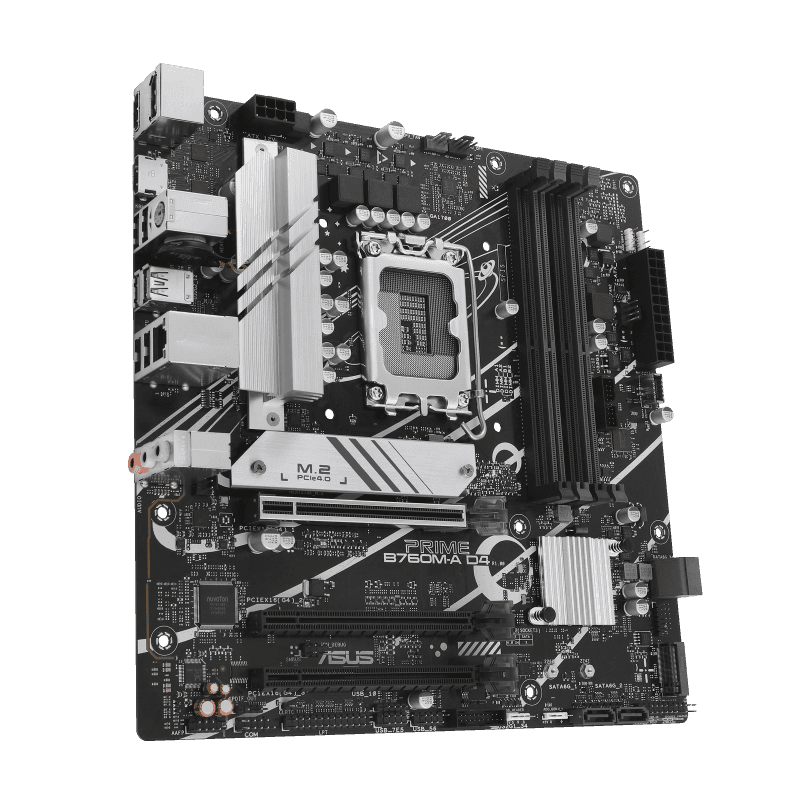

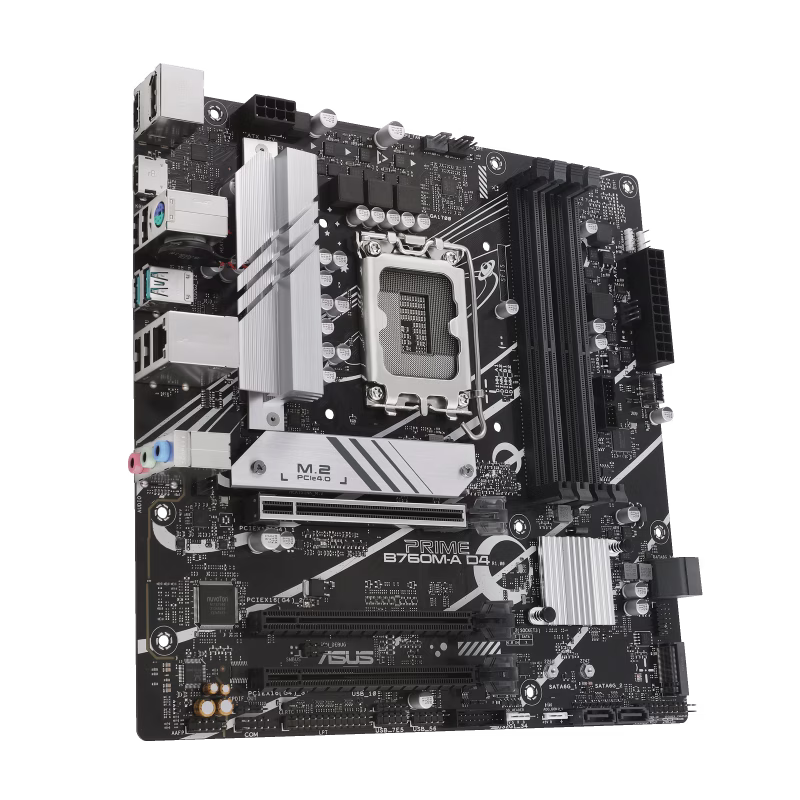

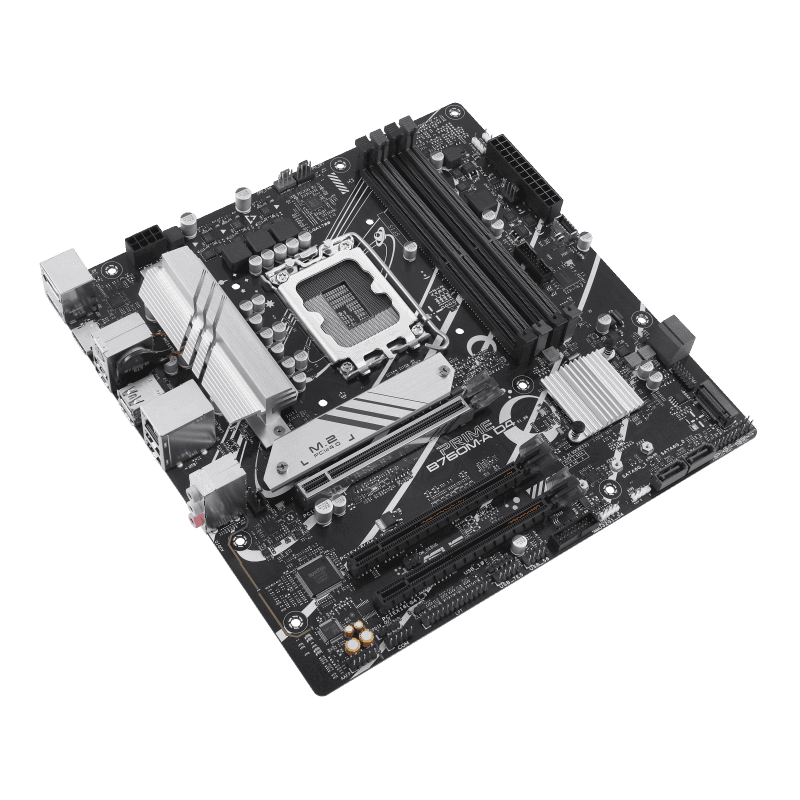

ASUS PRIME B760M-A D4-CSM Intel B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync | 90MB1D00-M0EAYC
Model :
SKU : MB-ASU PRI B760M-A D4 CSM
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
ASUS PRIME B760M-A D4-CSM Intel B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI??, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync | 90MB1D00-M0EAYC
| Model | PRIME B760M-A D4-CSM |
| CPU | Intel?? Socket LGA1700 for 13th Gen Intel?? Core??? Processors & 12th Gen Intel?? Core???, Pentium?? Gold and Celeron?? Processors* |
| Chipset | Intel?? B760 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* |
| Graphics | 1 x DisplayPort** 2 x HDMI?? ports*** |
| Expansion Slots |
Intel?? 13th & 12th Gen Processors: 1 x PCIe 4.0 x16 slot Intel?? B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Storage |
Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel?? 13th & 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel?? B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB |
Rear USB (Total 6 ports): 2 x USB 3.2 Gen 2 ports (2 x Type-A ), 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports): 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C??), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |

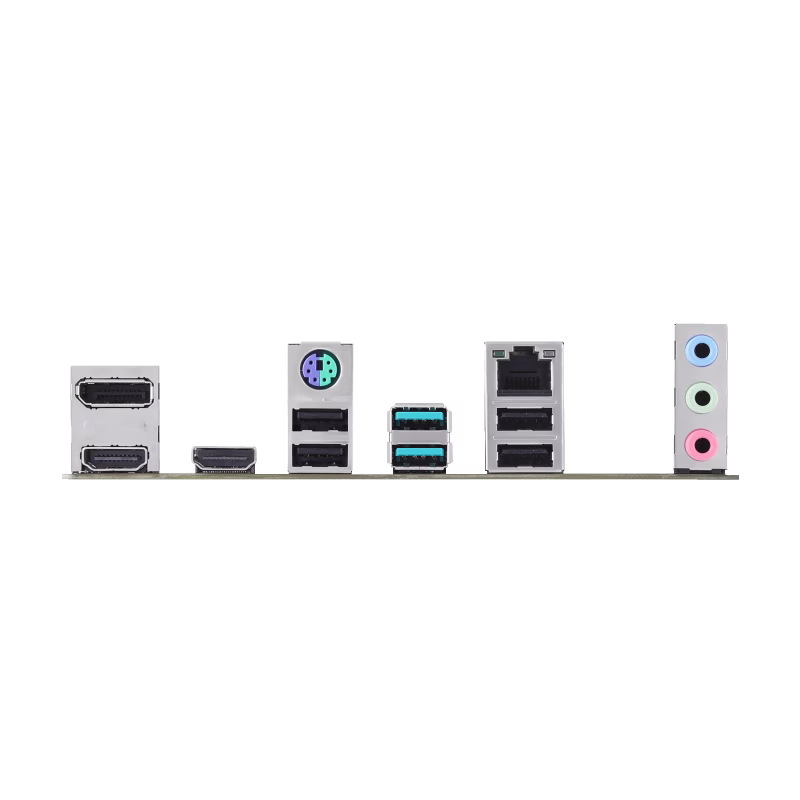

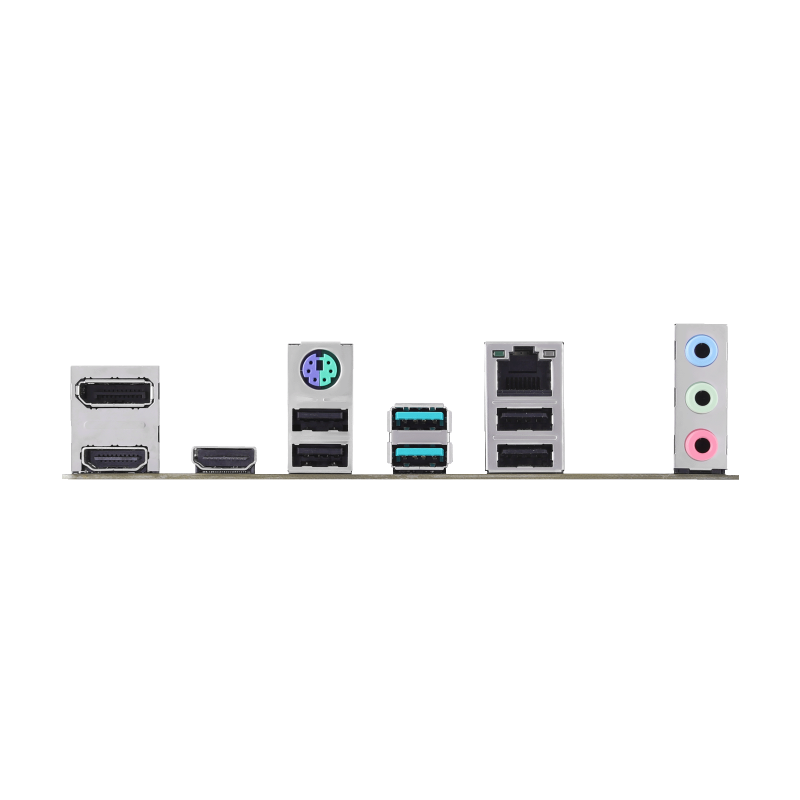

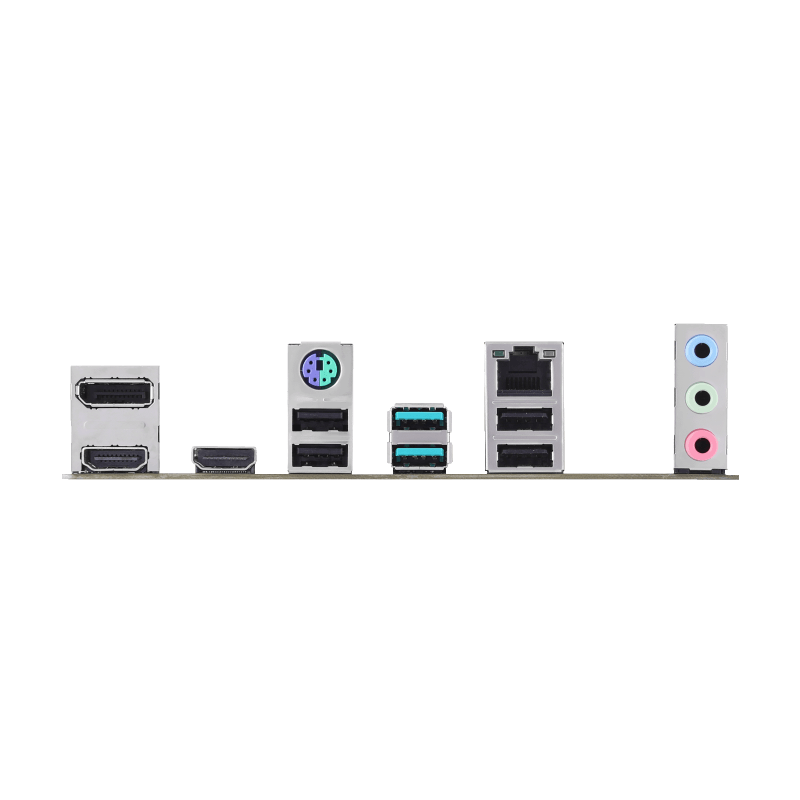

| Back Panel I/O Ports |

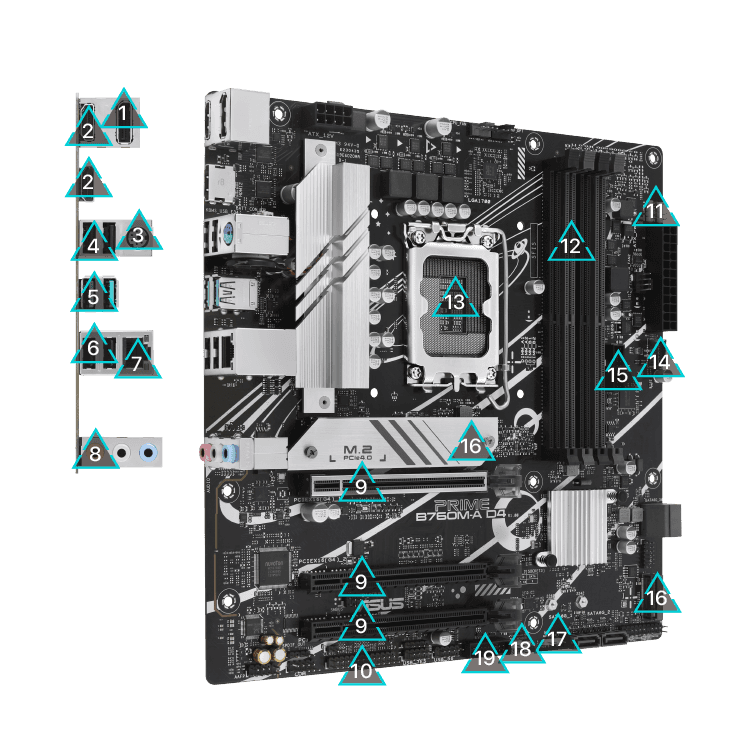

2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI?? ports 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |

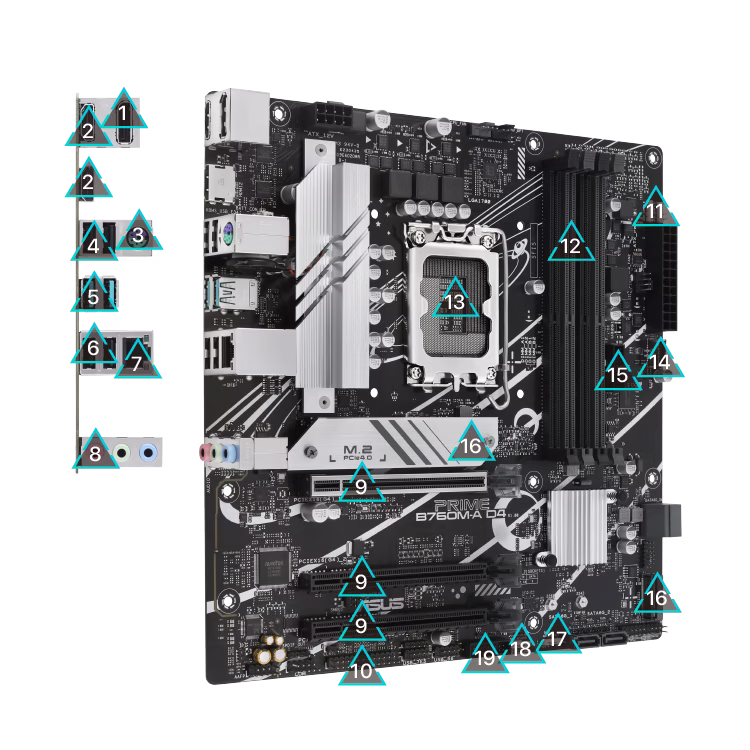

| Internal I/O Connectors |

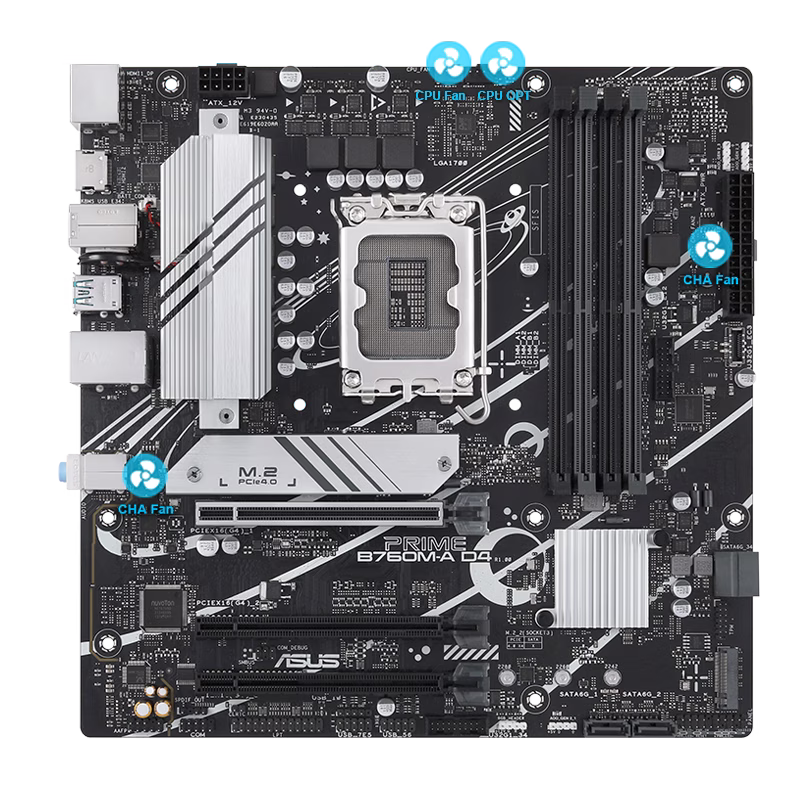

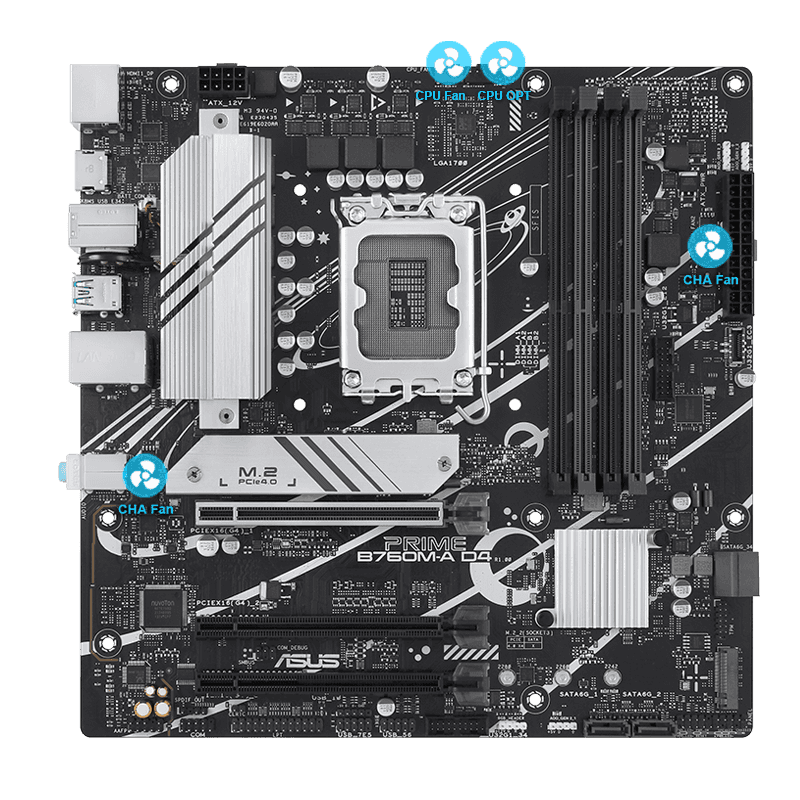

Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 2 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector Storage related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports USB: 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 1 connector (supports USB Type-C??), 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 1 x USB 2.0 header supports 1 additional USB 2.0 port |
| Miscellaneous |
3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function |
| Special Features |
ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Software Features |
ASUS Exclusive Software Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving AI Suite 3: Digi+ VRM, PC Cleaner ASUS CPU-Z Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD Documentation: 1 x ACC Express Activation Key Card, 1 x User guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
