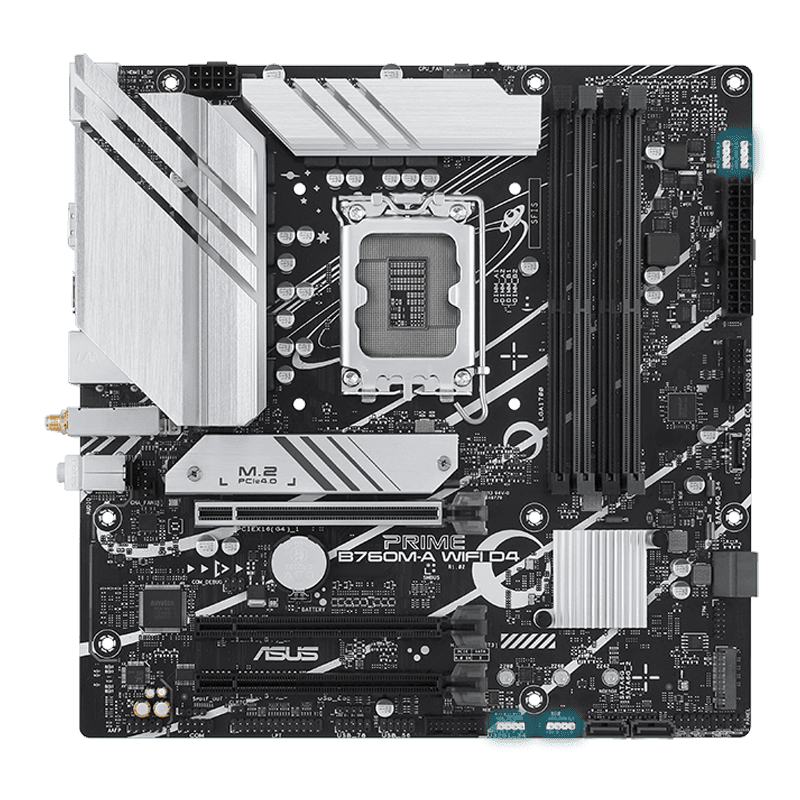

ASUS PRIME B760M-A WIFI D4 Motherboard, Intel B760 (LGA 1700) mATX motherboard, PCIe 4.0, 4 x DIMM, 2x M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI, SATA 6 Gbps, USB 3.2 Gen 2, Type-C, Aura Sync | 90MB1CX0-M0EAY0

Intel?? Core??? Processors:

• 1 x PCIe 4.0 x16 slot

Intel?? B760 Chipset:

• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x16 slot (supports x1 mode)

Rear USB (6 ports):

• 2 x USB 3.2 Gen 2 Type-A
• 4 x USB 2.0 Type-A

Front USB (10 ports):

• 2 x USB 3.2 Gen 1 headers (supports 4 ports)
• 1 x USB 3.2 Gen 1 Type-C??
• 2 x USB 2.0 headers (supports 4 ports)
• 1 x USB 2.0 header (supports 1 port)

• 2 x USB 3.2 Gen 2 Type-A
• 4 x USB 2.0 Type-A
• 1 x DisplayPort
• 2 x HDMI?? ports
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Fan and Cooling related:

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 2 x 4-pin Chassis Fan headers

Power related:

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector

Storage related:

• 2 x M.2 slots
• 4 x SATA 6Gb/s ports

USB related:

• 2 x USB 3.2 Gen 1 headers (4 ports)
• 1 x USB 3.2 Gen 1 Type-C??
• 2 x USB 2.0 headers (4 ports)
• 1 x USB 2.0 header (1 port)

Miscellaneous:

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x Front Panel Audio header
• 1 x S/PDIF Out header

• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x I/O Shield
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• 1 x User guide
