ASUS PRIME B760M-A WIFI LGA1700 mATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM, Support up to 128GB Memory, Wi-Fi 6 / 2.5Gb ETH / PCIe 4.0, USB 2.0 / 3.2 Type-C, 2*M.2, HDMI/DP | 90MB1EL0-M0EAY0
Model :
SKU : MB-AS PRIM B760M-A WIFI
About this item
About this item
Description
The Prime B760M-A WIFI is built to handle the heavy workloads of modern computing without the bulk of a full-sized tower. Utilizing the Intel B760 chipset, this motherboard is fully optimized for the hybrid architecture of Intel’s latest processors, ensuring smooth performance for both multi-threaded productivity and high-frame-rate gaming. Its clean, silver-on-black aesthetic makes it a perfect fit for professional workstations and sleek home gaming setups alike.
Advanced Cooling & Power Delivery
ASUS Prime series motherboards are renowned for their thermal management. The B760M-A WIFI is equipped with multiple VRM heatsinks and high-quality thermal pads to ensure efficient heat transfer from the MOSFETs and chokes. With Fan Xpert 2+ software, users have comprehensive control over system fans, allowing for a quiet environment during light tasks and maximum cooling power when the CPU is under heavy load.
Next-Gen Speed: DDR5 & PCIe 4.0
Experience a significant leap in system responsiveness with DDR5 memory. The Prime B760M-A WIFI allows you to leverage the increased bandwidth and improved power management of DDR5, featuring ASUS AEMP II for easy memory optimization. For storage, the board includes dual PCIe 4.0 M.2 slots, providing data transfer speeds up to 64Gbps—ideal for fast boot times and near-instant application launches.
Seamless Connectivity: WiFi 6 & 2.5G LAN
Networking is a standout feature of this board. Integrated WiFi 6 (802.11ax) provides high-speed wireless access with improved capacity and performance in crowded environments. For the most reliable, low-latency connection, the Realtek 2.5Gb Ethernet port offers a wired path that is 2.5 times faster than standard Gigabit Ethernet. Additionally, the rear I/O features high-speed USB ports, including USB 3.2 Gen 2, for rapid data exchange with external peripherals.
Why the ASUS Prime B760M-A WIFI Stands Out
LGA 1700 Versatility: Native support for Intel 14th, 13th, and 12th Gen Core processors.
DDR5 Memory Ready: Future-proofed bandwidth for high-speed multitasking.
Compact mATX Design: Full feature set including WiFi in a space-saving form factor.
Aura Sync RGB: Integrated Addressable Gen 2 headers to sync lighting across your setup
Specification
| Model | PRIME B760M-A WIFI |
|---|---|
| CPU | Intel® Socket LGA1700 for 14th, 13th & 12th Gen Intel® Core™ Processors* Supports Intel® Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B760 Chipset |
| Memory | 4 x DIMM slots, Max. 192GB, DDR5 Up to 7200+(OC) MHz Non-ECC, Un-buffered Memory* Dual Channel Architecture, Intel® Extreme Memory Profile (XMP), OptiMem II |
| Graphics | 1 x DisplayPort 1.4 (Max. 4K@60Hz) 2 x HDMI™ 2.1 ports (Max. 4K@60Hz) |
| Expansion Slots | Intel® Processors: 1 x PCIe 4.0 x16 slot Intel® B760 Chipset: - 1 x PCIe 4.0 x16 slot (supports x4 mode) - 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* - M.2_1 (CPU): PCIe 4.0 x4 mode (2242/2260/2280) - M.2_2 (Chipset): PCIe 4.0 x4 mode (2242/2260/2280) - 4 x SATA 6Gb/s ports (Supports RAID 0/1/5/10) |
| Ethernet & Wireless | 1 x Realtek 2.5Gb Ethernet Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 2x2, Bluetooth® v5.2 |
| USB | Rear: 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A) Front: 1 x USB 3.2 Gen 1 (Type-C®), 4 x USB 3.2 Gen 1 (via 2 headers), 5 x USB 2.0 (via 3 headers) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Audio Shielding, Premium capacitors, Dedicated PCB layers - Supports up to 24-Bit/192 kHz playback |

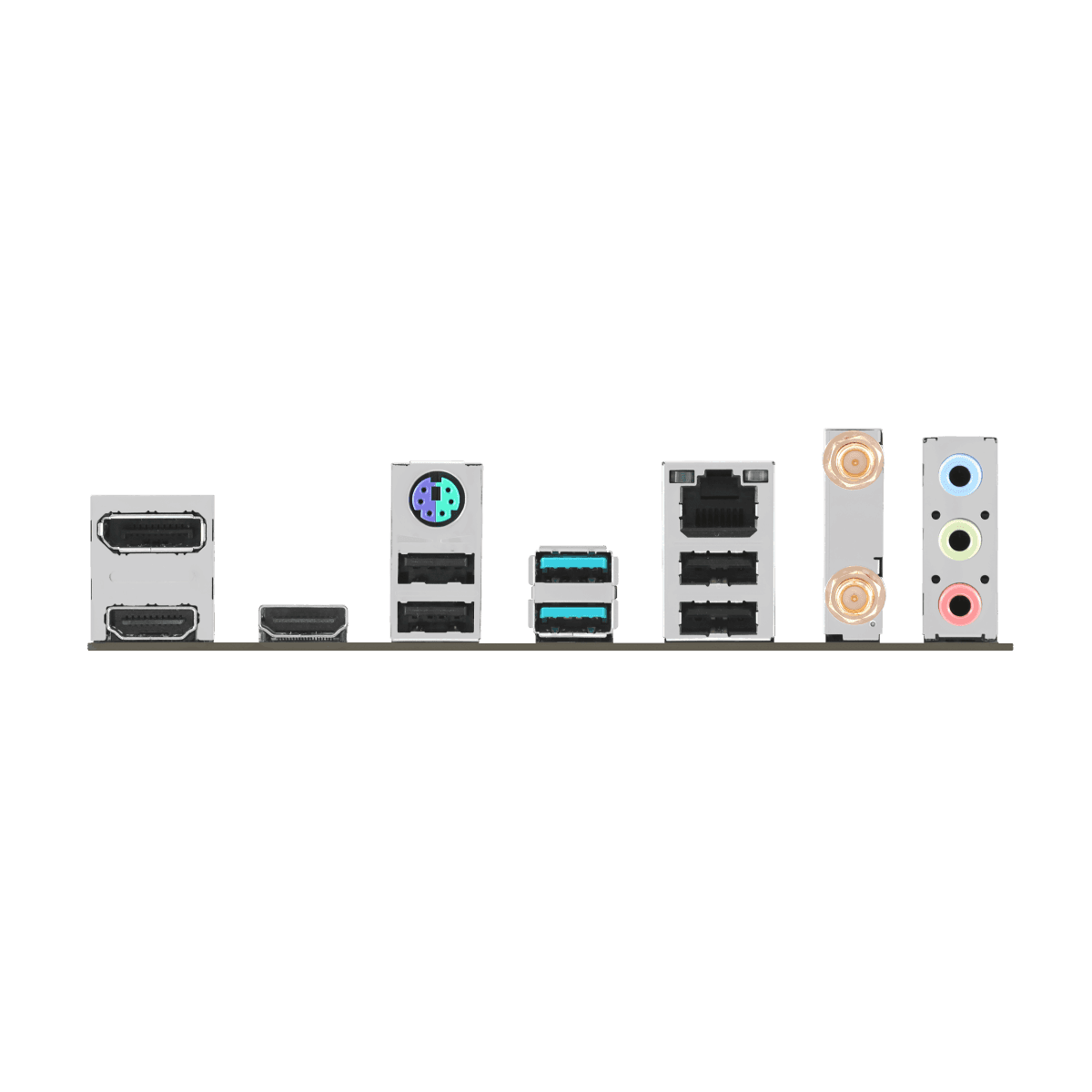

| Back Panel I/O | 2x USB 3.2 Gen 2, 4x USB 2.0, 1x DP, 2x HDMI, 1x Wi-Fi Module, 1x 2.5Gb Ethernet, 3x Audio jacks, 1x PS/2 Combo port |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, SafeSlot Core+), ASUS Q-Design (Q-LED Core, Q-DIMM, Q-Slot), Thermal Solution (M.2 & VRM heatsinks), Aura Sync |
| Form Factor | mATX Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
| Operating System | Windows® 11, Windows® 10 64-bit |
