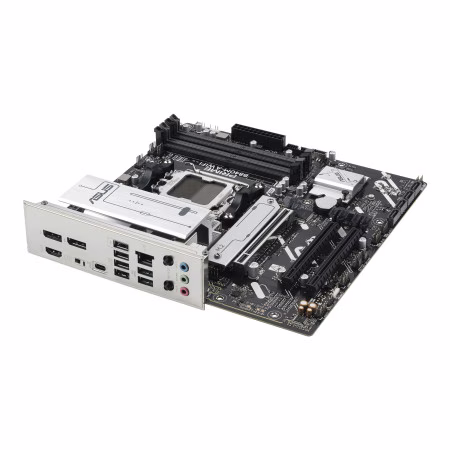

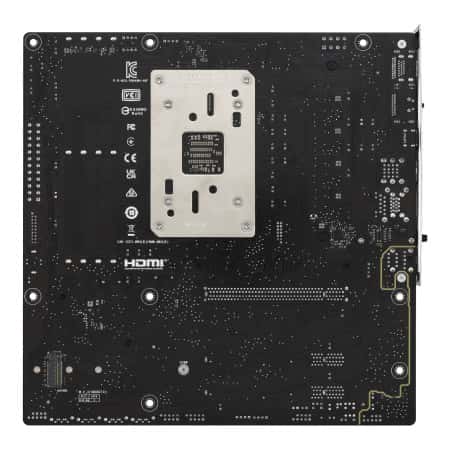

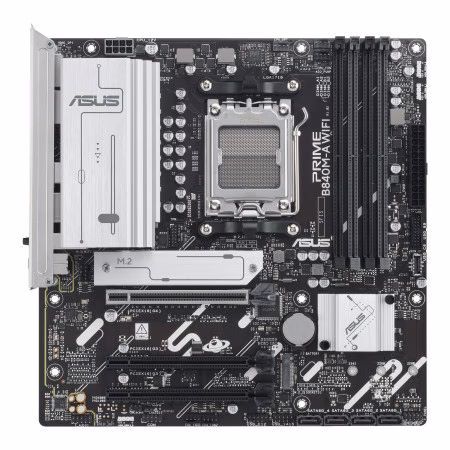

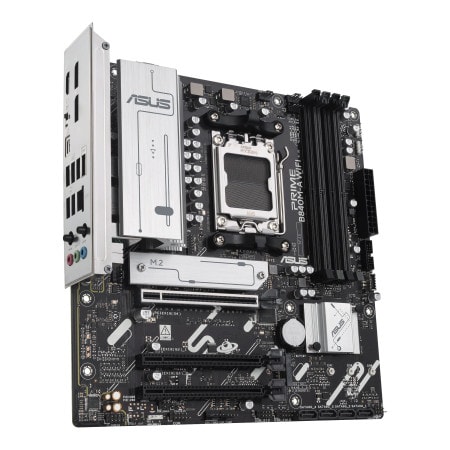

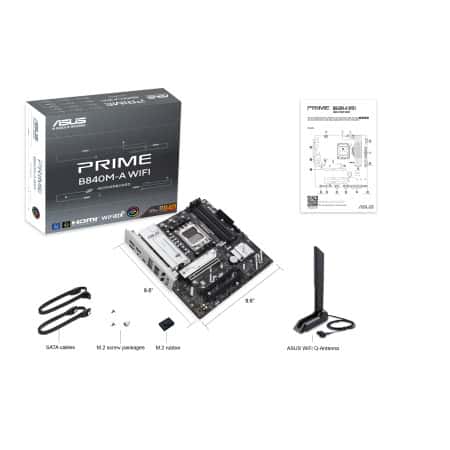

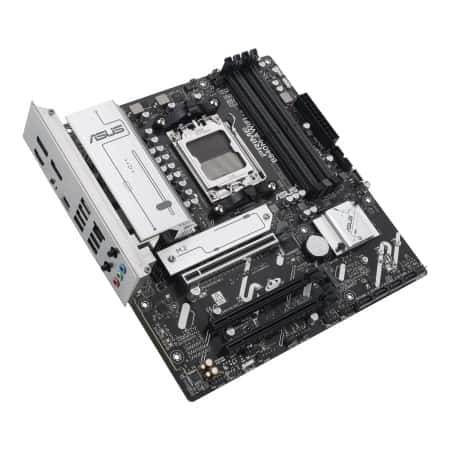

ASUS Prime B840M-A WiFi-CSM AMD AM5 B840 mATX Motherboard, Advanced AI Ready, DDR5, PCIe 4.0 Ready, 3xM.2 Slots, Wi-Fi 6E, 2.5Gb LAN, DisplayPort, HDMI, USB 5Gbps Type-C, BIOS Flashback, Aura Sync | 90MB1J20-M0EAY0
Model :
SKU : MB-ASUS PRIME B840M-A WIF
About this item
0Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
PRIME B840M-A WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.6
Specification
| Model | PRIME B840M-A WIFI |
| News & Updates | Please visit our GLOBAL website to check and download the latest updates. |
| CPU | AMD Socket AM5 for AMD Ryzen??? 9000 & 8000 & 7000 Series Desktop Processors* * Refer to here for CPU support list. |
| Chipset | AMD B840 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 7600+MT/s (OC) with Ryzen??? 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO???) ASUS Enhanced Memory Profile (AEMP) * For more information on supported memory types and configurations, please refer to the CPU/Memory Support list on the support site. |
| Graphics | 2 x DisplayPort** 1 x HDMI??? port*** * Graphics specifications may vary depending on CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (supports x16 mode) - Ryzen??? 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) - Ryzen??? 8000 Series Desktop Processors 2 x PCIe 3.0 x16 slots (support x1 mode) - AMD B840 Chipset |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports * Specifications vary by CPU types. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth?? v5.3** * Wi-Fi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. ** The Bluetooth?? version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 7 ports) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x USB Type-C??) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C??) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

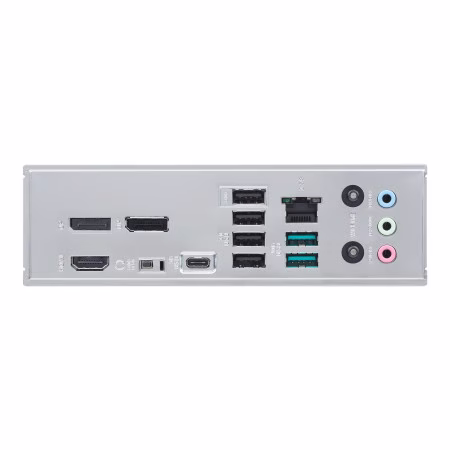

| Back Panel I/O Ports | 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x USB Type-C??) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI??? port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack??? button |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - Pre-mounted I/O shield Aura Sync - Addressable Gen 2 headers |
| Software Features | Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) |
| UEFI BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
