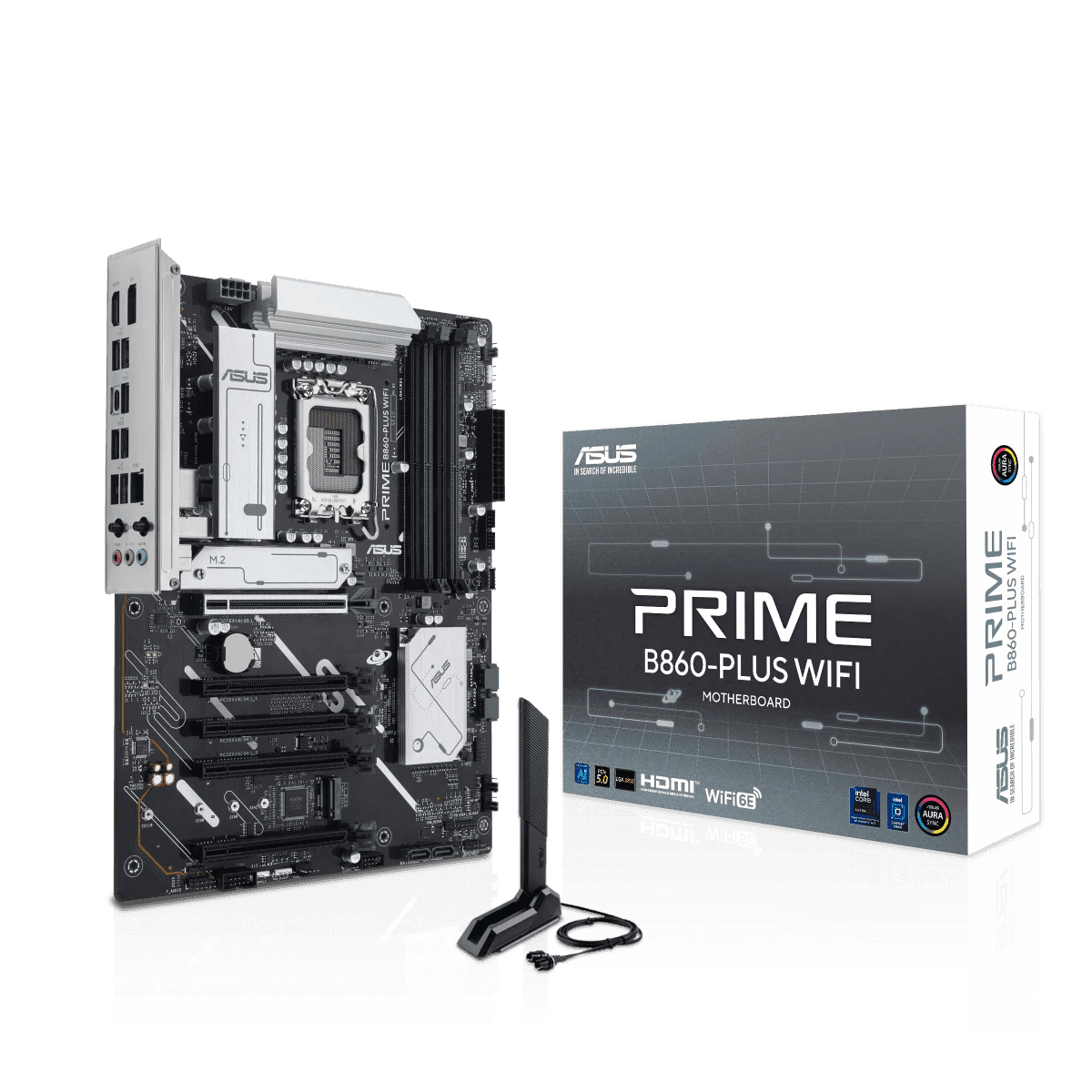

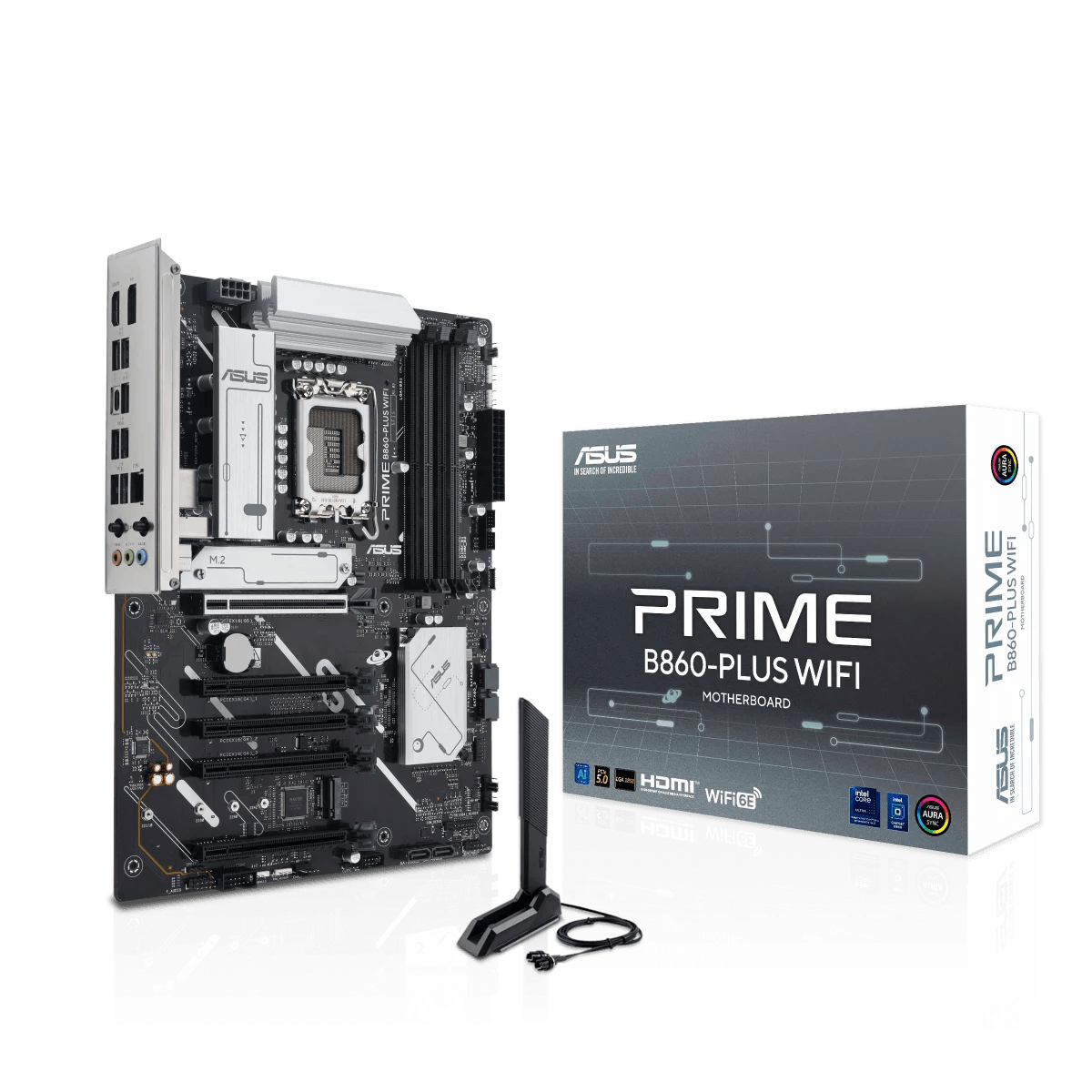

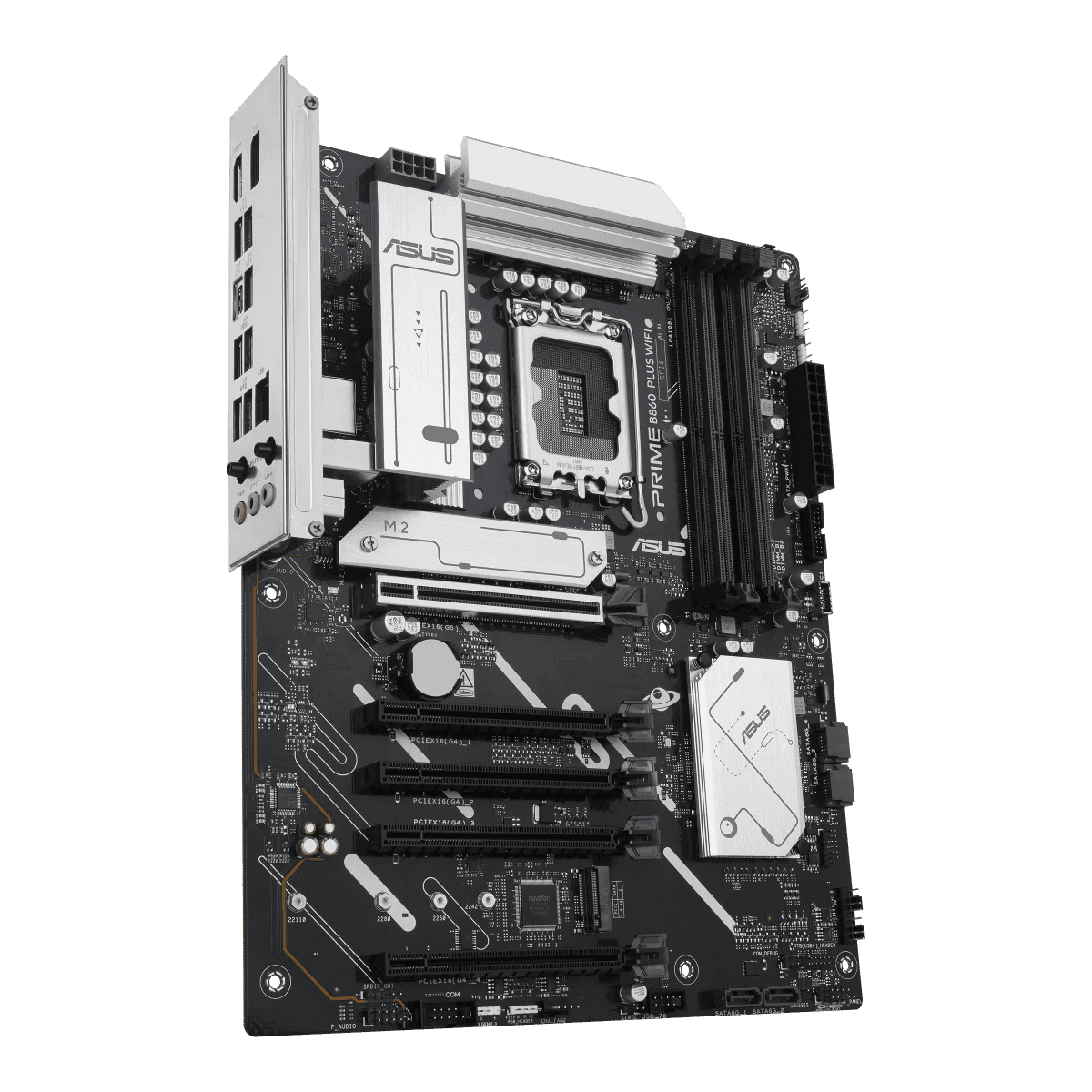

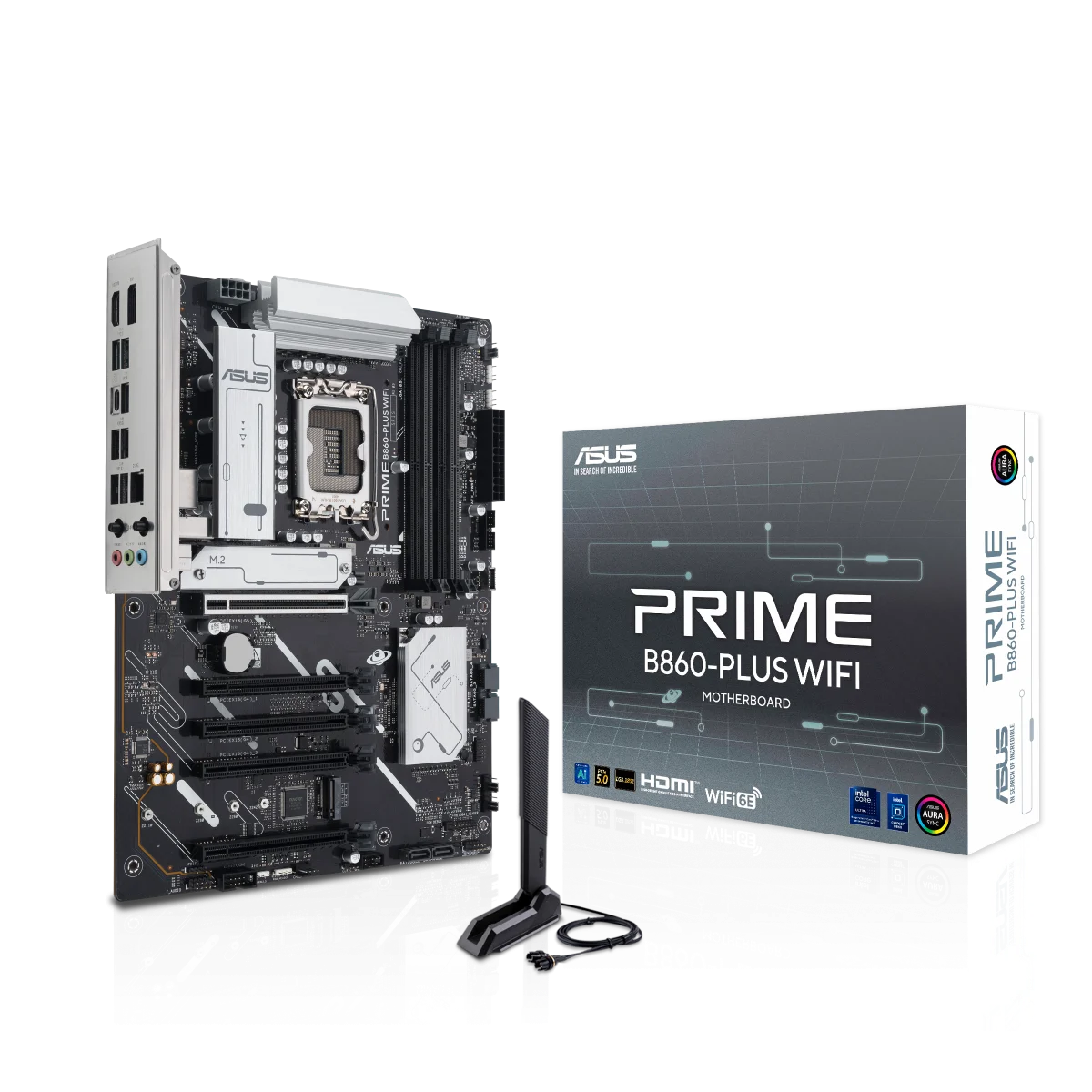

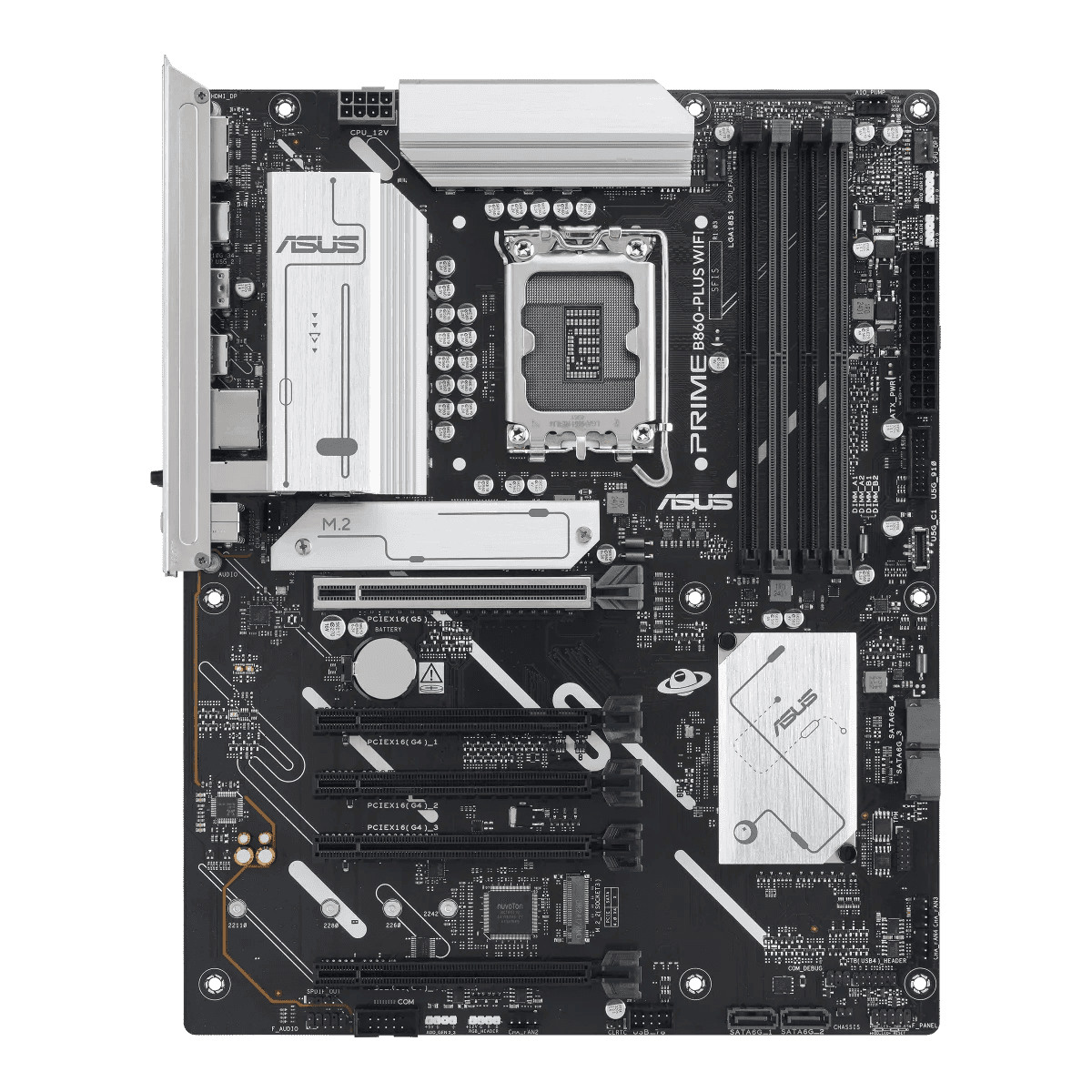

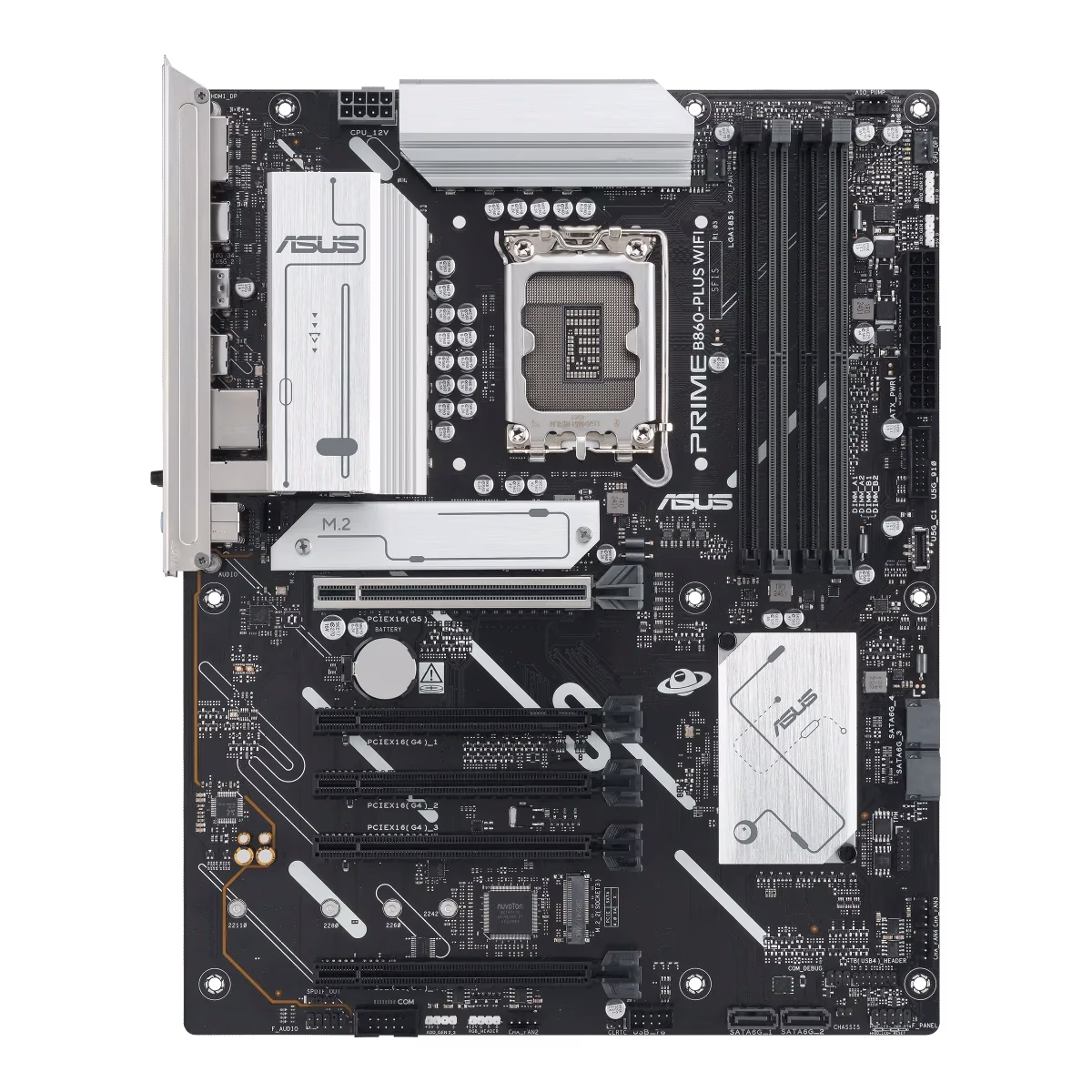

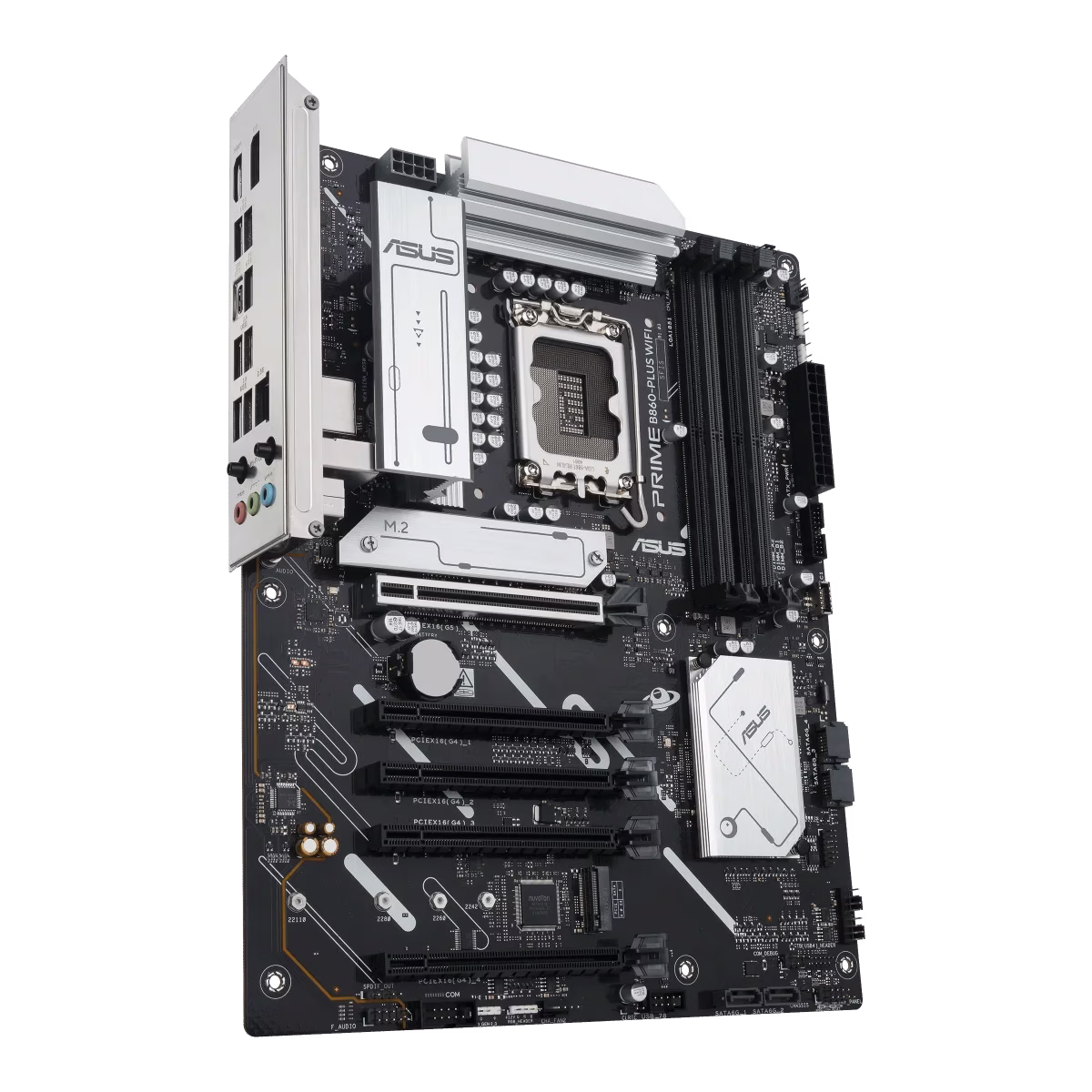

ASUS Prime B860-Plus WiFi LGA 1851 ATX Motherboard, Intel B860 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 5x PCIe x16 Slots, 2x M.2 Slots, WiFi & BT Connectivity | 90MB1K50-M0EAY0
Model :
SKU : MB-ASUS PRI B860-PLUS WIF
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME B860-PLUS WIFI is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.
Specification
| Category | Details |
|---|---|
| Model Name | PRIME B860-PLUS WIFI |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Chipset | Intel® B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Up to 8666+ MT/s (OC), Non-ECC, Un-buffered DIMM (CUDIMM) Dual Channel, XMP & AEMP III support |
| Graphics Outputs | 1 x DisplayPort (4K@60Hz) 1 x HDMI™ port (4K@60Hz) 1 x USB Type-C® with DP Alt mode (4K@120Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU) 1 x PCIe 4.0 x16 (x4) 3 x PCIe 4.0 x16 (x1) |
| Storage | 2 x M.2 (1x PCIe 5.0, 1x PCIe 4.0) 4 x SATA 6Gb/s Supports RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2x2), Bluetooth® v5.3 |
| Rear USB Ports | 1 x USB 20Gbps (Type-C®) 2 x USB 10Gbps (Type-A) 1 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) |
| Front USB Headers | 1 x USB 5Gbps (Type-C®) 1 x USB 5Gbps (2 ports) 1 x USB 2.0 (2 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC Supports up to 24-bit/192 kHz Audio shielding, premium capacitors |

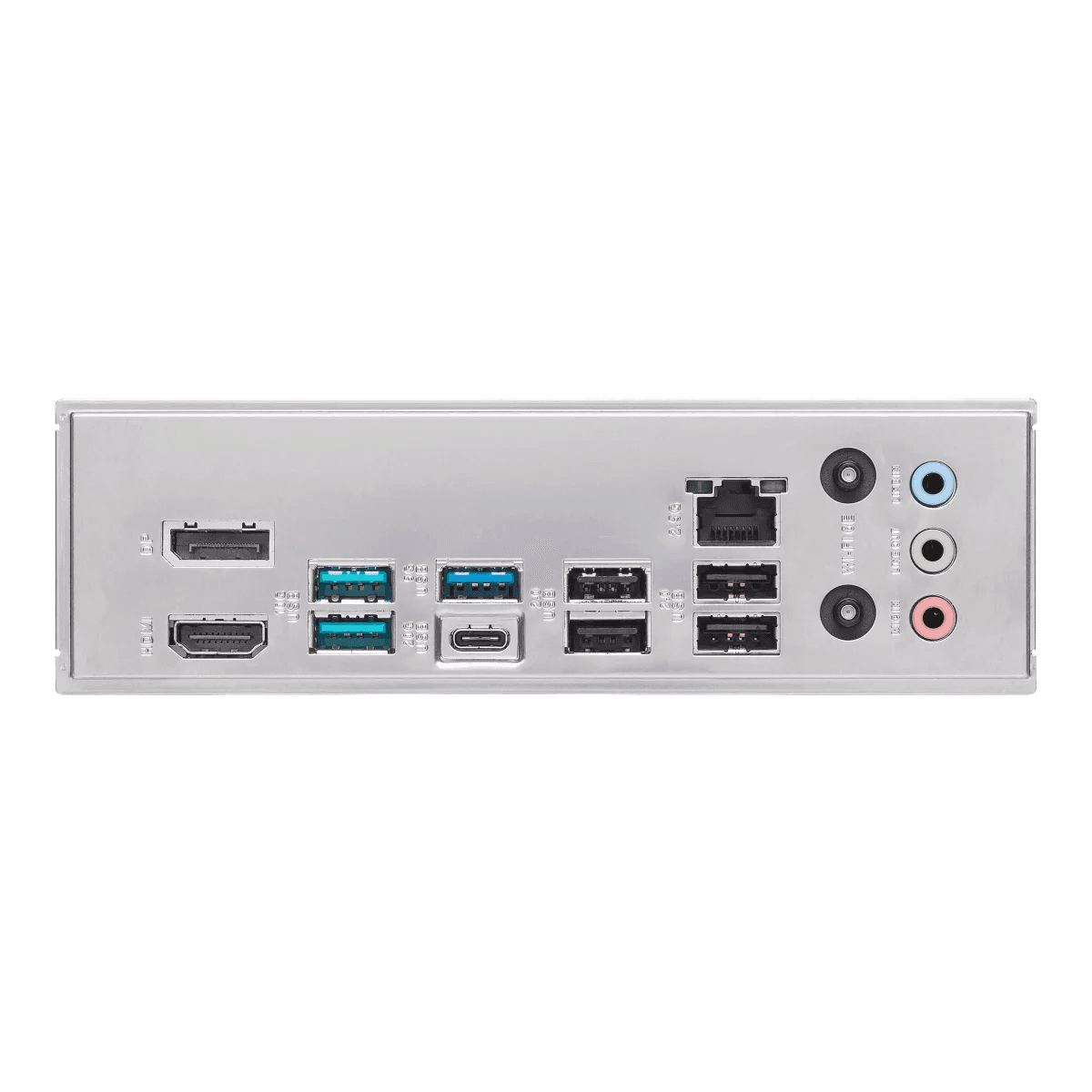

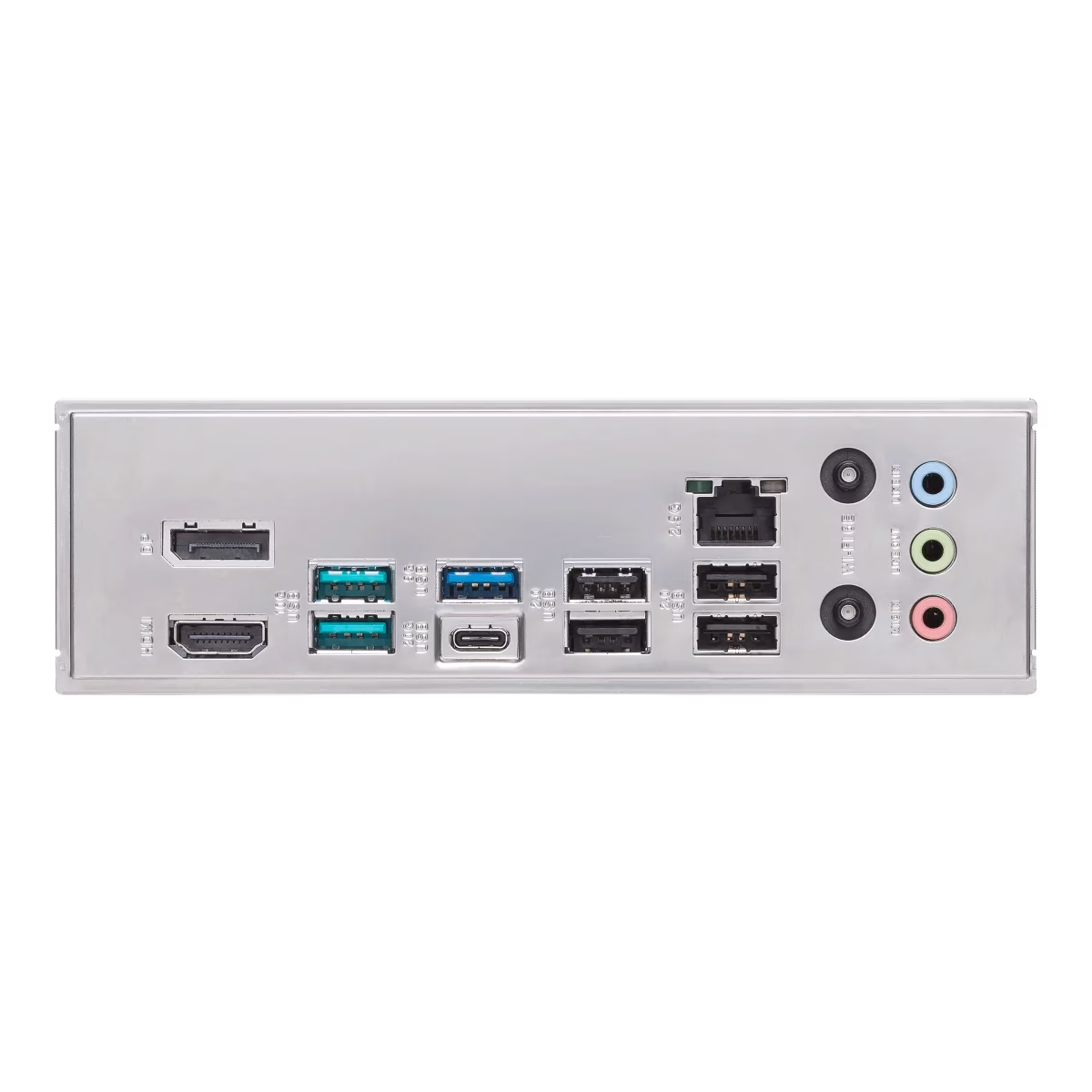

| Back Panel I/O | USB ports as above 1 x DisplayPort, 1 x HDMI 1 x Wi-Fi module, 1 x Ethernet port 3 x Audio jacks |
| Internal I/O Connectors | 6 x Fan headers, 1 x AIO pump header 24-pin & 8-pin power connectors USB, SATA, RGB, Thunderbolt™, TPM headers |
| Special Features | ASUS 5X Protection III Q-Design, M.2 & VRM heatsinks Aura Sync RGB, AI Advisor, Fan Xpert 2+ |
| Software | Armoury Crate, AI Advisor, GlideX, CPU-Z Adobe Creative Cloud (Trial), Norton 360 (Trial), WinRAR (Trial) |
| BIOS | 2 x 128Mb Flash ROM, UEFI AMI BIOS |

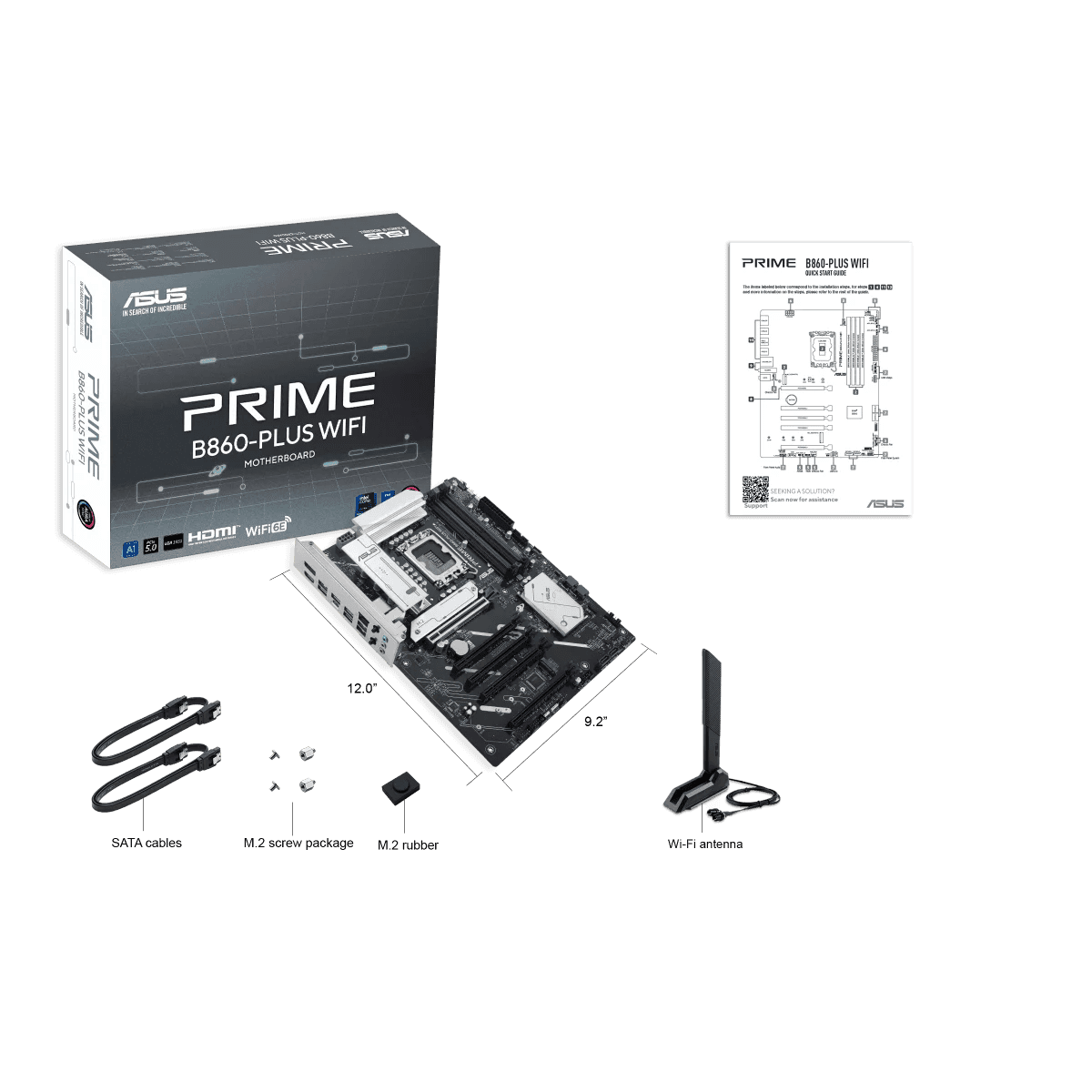

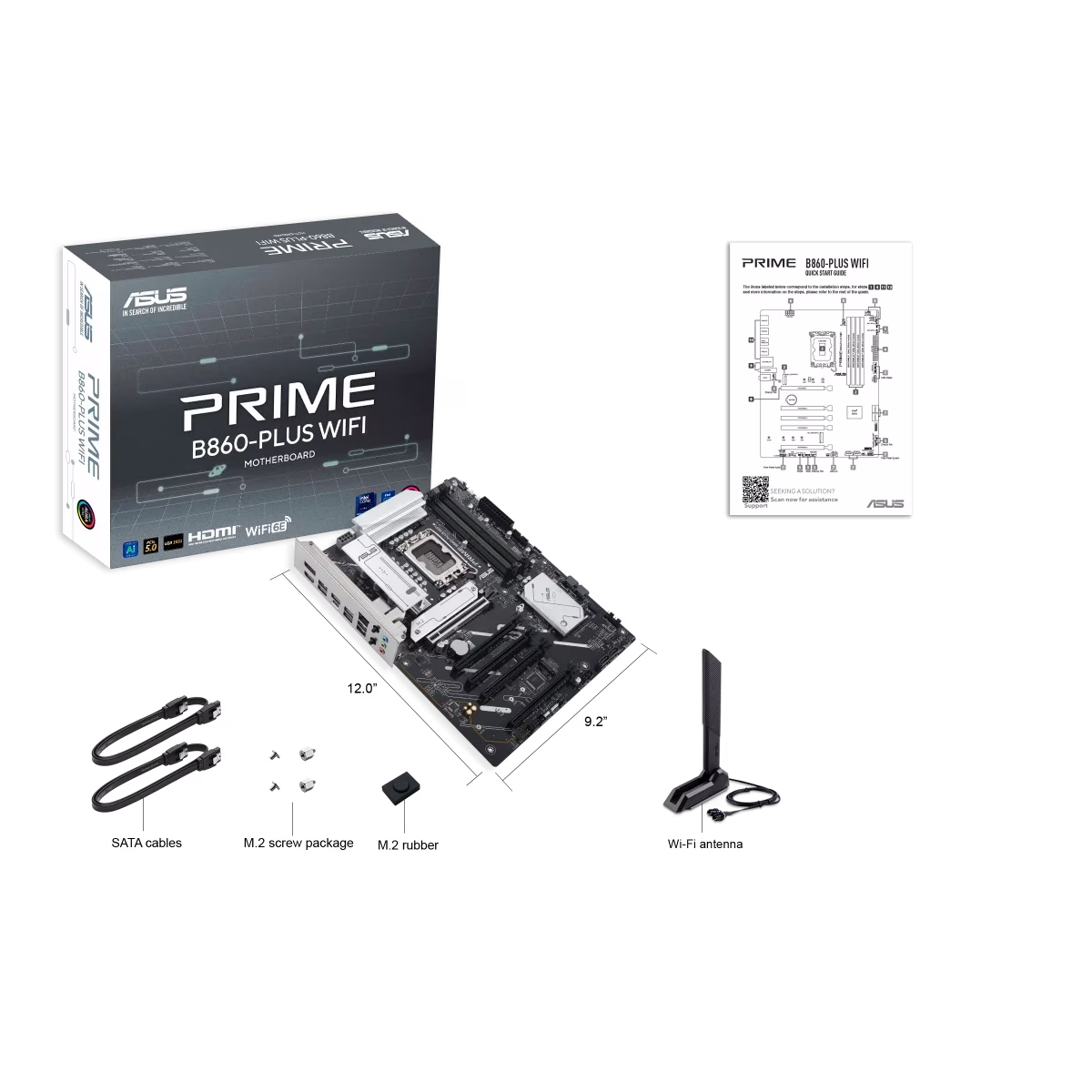

| Accessories | 2 x SATA cables, WiFi Antenna, M.2 screws Quick Start Guide |
| OS Support | Windows 11 (22H2+), Windows 10 64-bit (21H2+) |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
