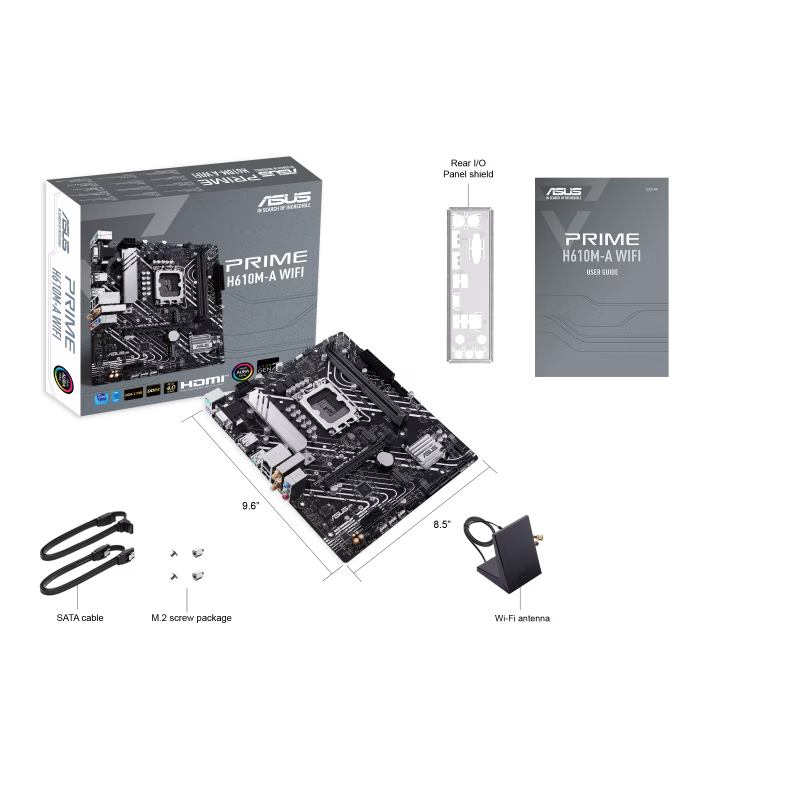

ASUS PRIME H610M-A WIFI Intel (LGA 1700) mATX motherboard with DDR5,PCIe 4.0, dual M.2 slots, Intel 1Gb Ethernet, WIFI 5, DisplayPort, HDMI, VGA, USB 3.2 Gen 2 ports, Addressable Gen 2 headers, and Aura Sync | 90MB1G00-M0EAY0

Model :

SKU : MB-ASUS PRIME H610M-A WIF

About this item

Intel® H610 (LGA 1700) mATX motherboard with DDR5,PCIe 4.0, dual M.2 slots, Intel® 1Gb Ethernet, WIFI 5, DisplayPort, HDMI™, VGA, USB 3.2 Gen 2 ports, Addressable Gen 2 headers, and Aura Sync

Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet ,WIFI 5 and USB 3.2 Gen 2 support, front USB 3.2 Gen 1 Type-C®
Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

About this item

Description

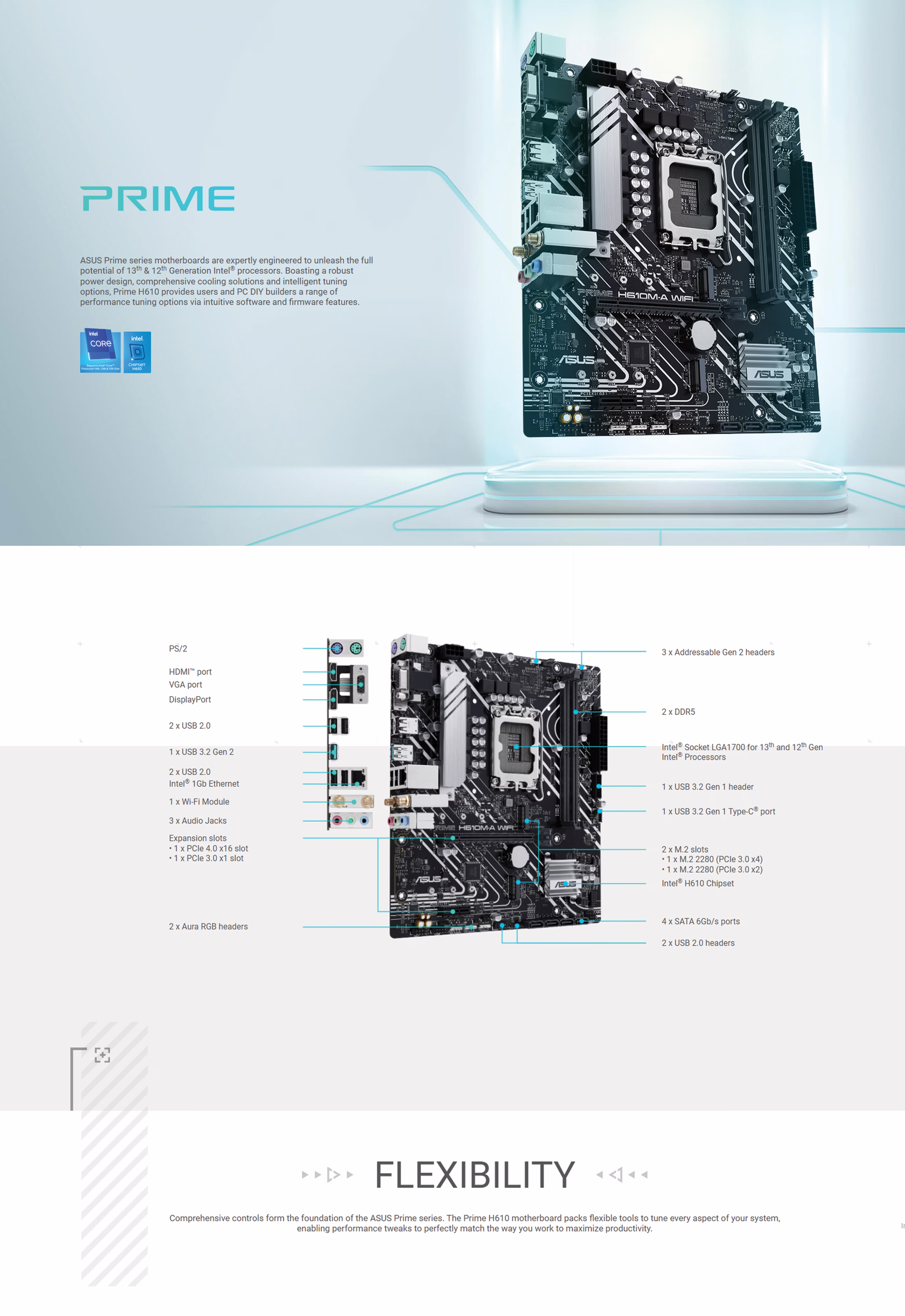

ASUS PRIME H610M-A WIFI Intel  (LGA 1700) mATX motherboard OVERVIEW

The Prime H610M-A WIFI is engineered to be the heart of a productive and responsive PC. Utilizing the Intel H610 chipset, it is optimized for the latest LGA 1700 architecture, ensuring that your 14th Gen Intel processor operates with stability. This motherboard is a standout in its class by offering DDR5 support, allowing users to experience significantly higher data transfer rates and improved power efficiency compared to older DDR4 platforms.


Comprehensive Cooling and Stable Power
Durability and cooling are core to the ASUS Prime series. The H610M-A WIFI features an integrated VRM heatsink and high-quality thermal pads that enhance heat dissipation from the power delivery components. With Fan Xpert 2+, users have total control over their system's thermal profile via the BIOS or software, ensuring a quiet office environment during light use and maximum airflow during intensive gaming sessions.



Fast Storage and PCIe 4.0 Technology
Performance bottlenecks are a thing of the past with PCIe 4.0 support. The primary x16 slot provides 16GT/s of bandwidth, ensuring your graphics card performs at its peak. For storage, the board includes dual M.2 slots, allowing for flexible SSD configurations. While the chipset is budget-friendly, the inclusion of high-speed storage interfaces ensures that your OS boots in seconds and applications launch without delay.



Wireless Freedom and Modern Connectivity
Connectivity is a major highlight of the "WIFI" edition. Built-in WiFi 5 (802.11ac) and Bluetooth allow you to connect to high-speed networks and wireless peripherals without needing extra adapters. For wired enthusiasts, the Intel 1Gb Ethernet provides a reliable, low-latency connection. The rear I/O is also equipped with USB 3.2 Gen 2 ports for rapid data exchange with external drives and cameras.


Why the ASUS Prime H610M-A WIFI Stands Out
14th Gen Ready: Native support for the latest Intel Core processors on the LGA 1700 socket.

DDR5 Performance: Experience the future of memory speed and system responsiveness.

Built-in Wireless: Integrated WiFi and Bluetooth for a clutter-free desk setup.

Aura Sync RGB: Onboard Addressable Gen 2 headers to sync lighting across your components.

Specification

ModelPRIME H610M-A WIFI
CPUIntel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
ChipsetIntel H610 Chipset
Memory2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Graphics1 x DisplayPort, 1 x VGA port, 1 x HDMITM port
Expansion Slots1 x PCIe 4.0 x16 slot (for Intel 13th & 12th Gen Processors), 1 x PCIe 3.0 x1 slot (Intel H610 Chipset)
StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet1 x Intel 1Gb Ethernet, ASUS LANGuard
Wireless & BluetoothWi-Fi 5 (802.11 a/b/g/n/ac), Bluetooth v5.0
USBRear USB (Total 5 ports): 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A), 4 x USB 2.0 ports (4 x Type-A). Front USB (Total 6 ports): 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C), 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports, 1 x USB 2.0 header supports 1 USB 2.0 port, 1 x USB 2.0 header supports additional 2 USB 2.0 ports
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports1 x USB 3.2 Gen 2 (10G) port (1 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x VGA port, 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Intel 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port
Internal I/O ConnectorsVarious connectors including fan and cooling, power, storage, USB, and more
Special FeaturesASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, AURA Sync
AccessoriesCables, Miscellaneous, Documentation
Operating SystemWindows 11 64-bit, Windows 10 64-bit
Form FactormATX Form Factor
