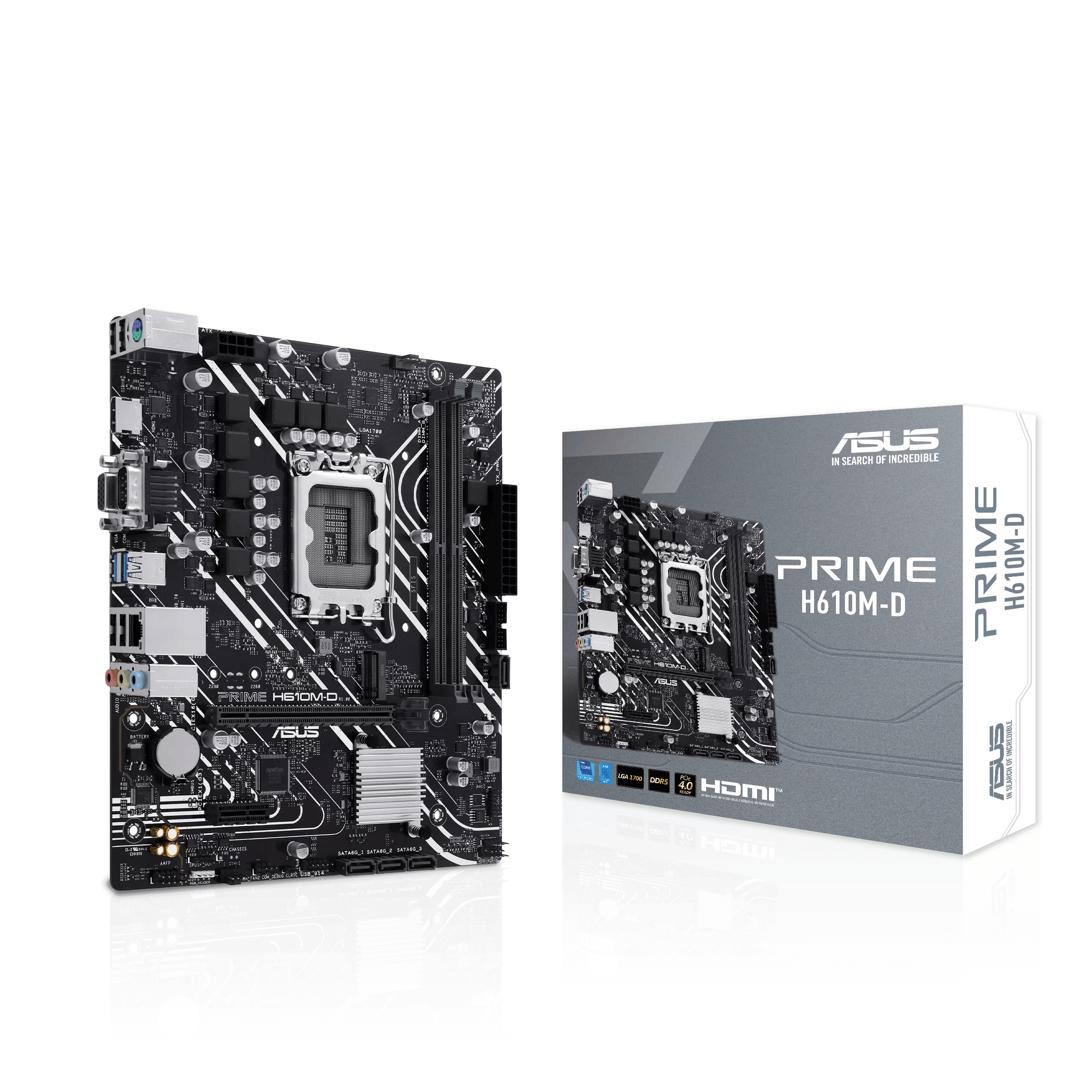

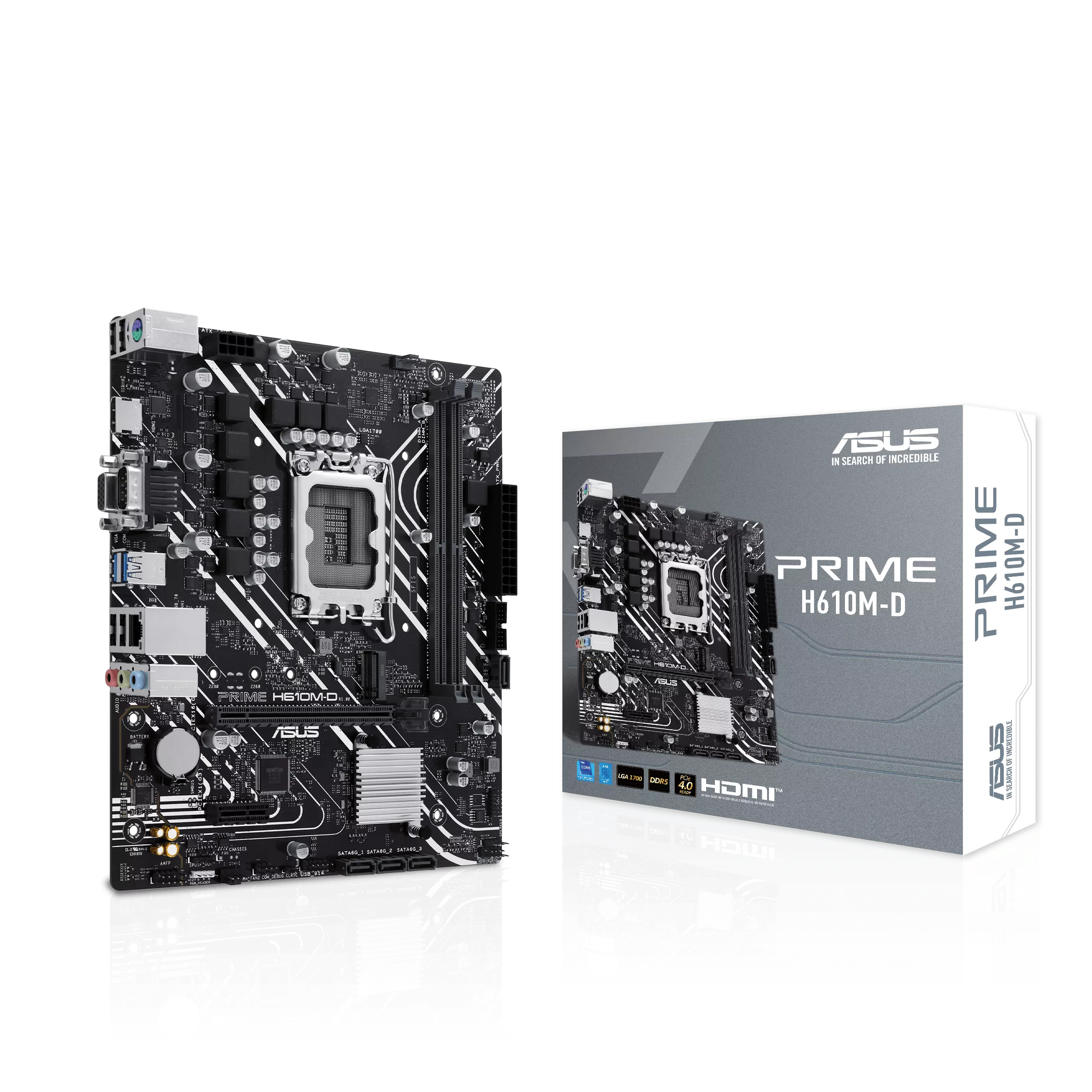

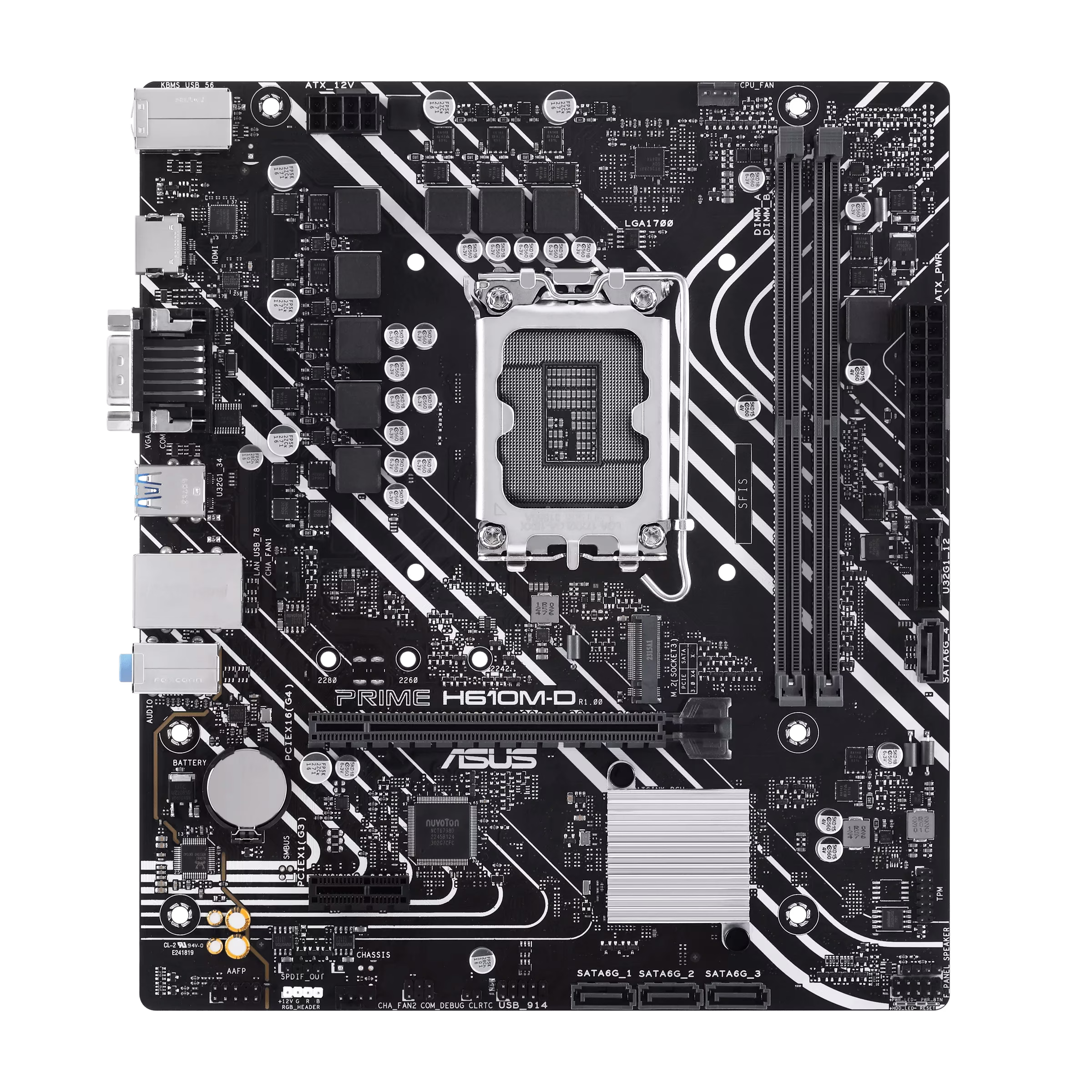

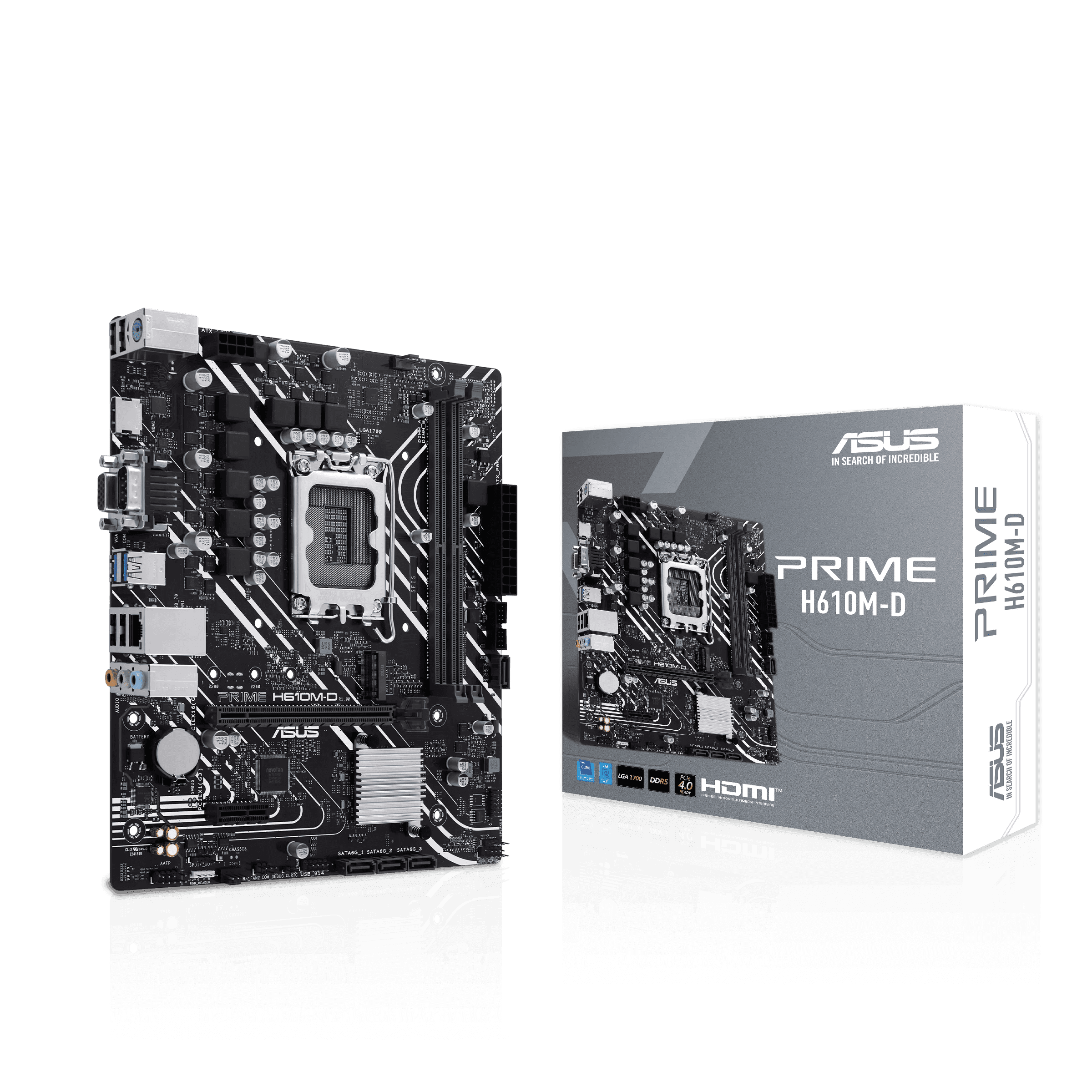

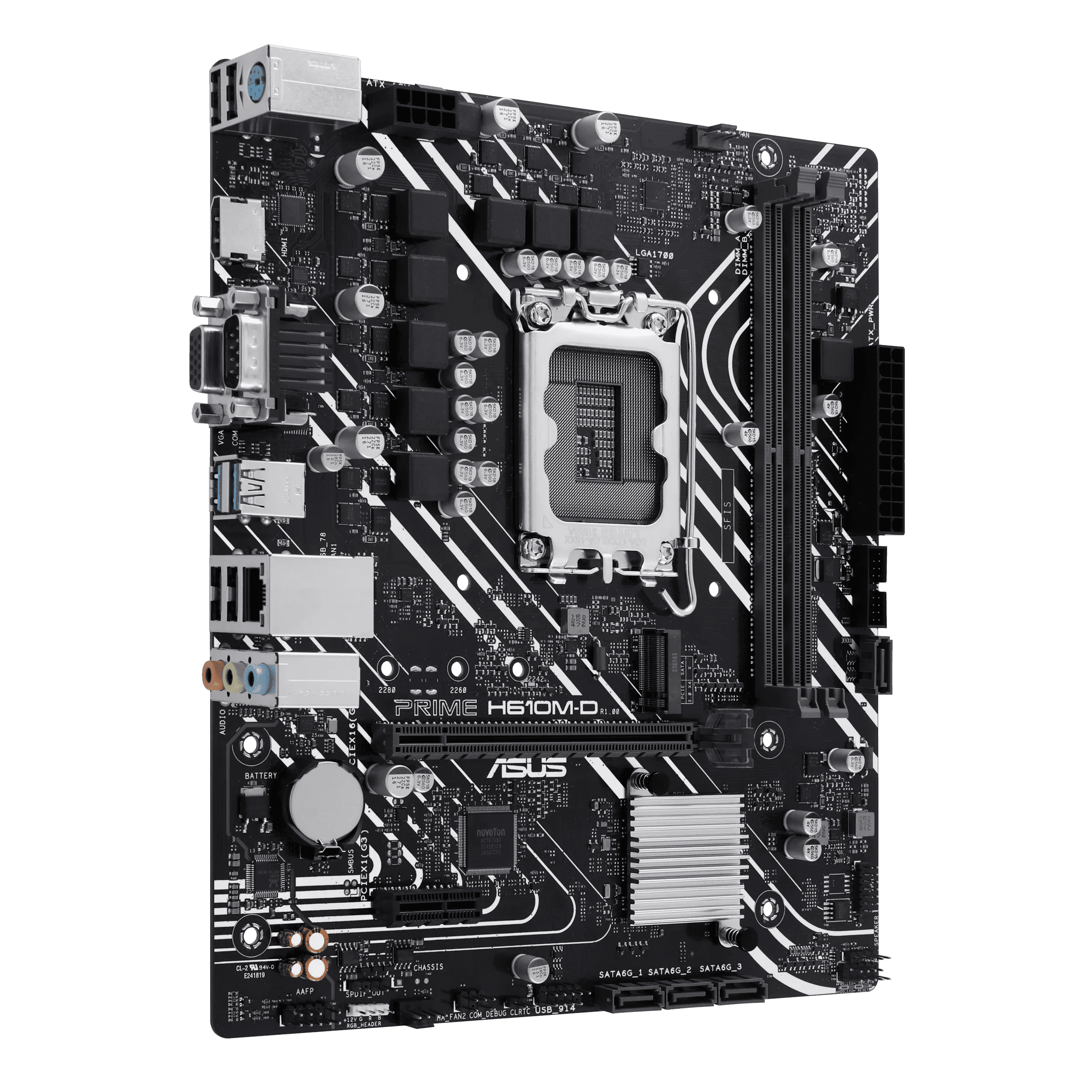

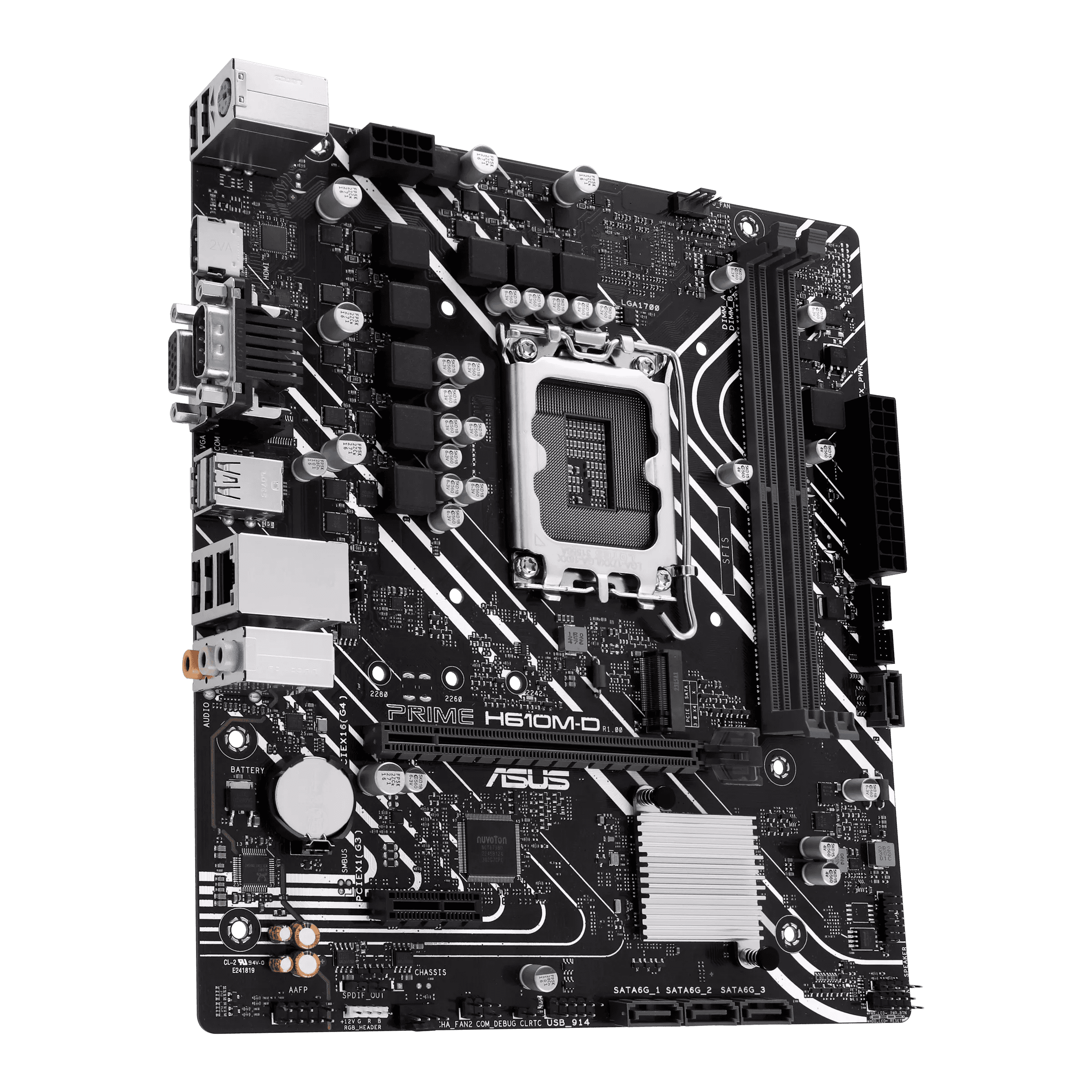

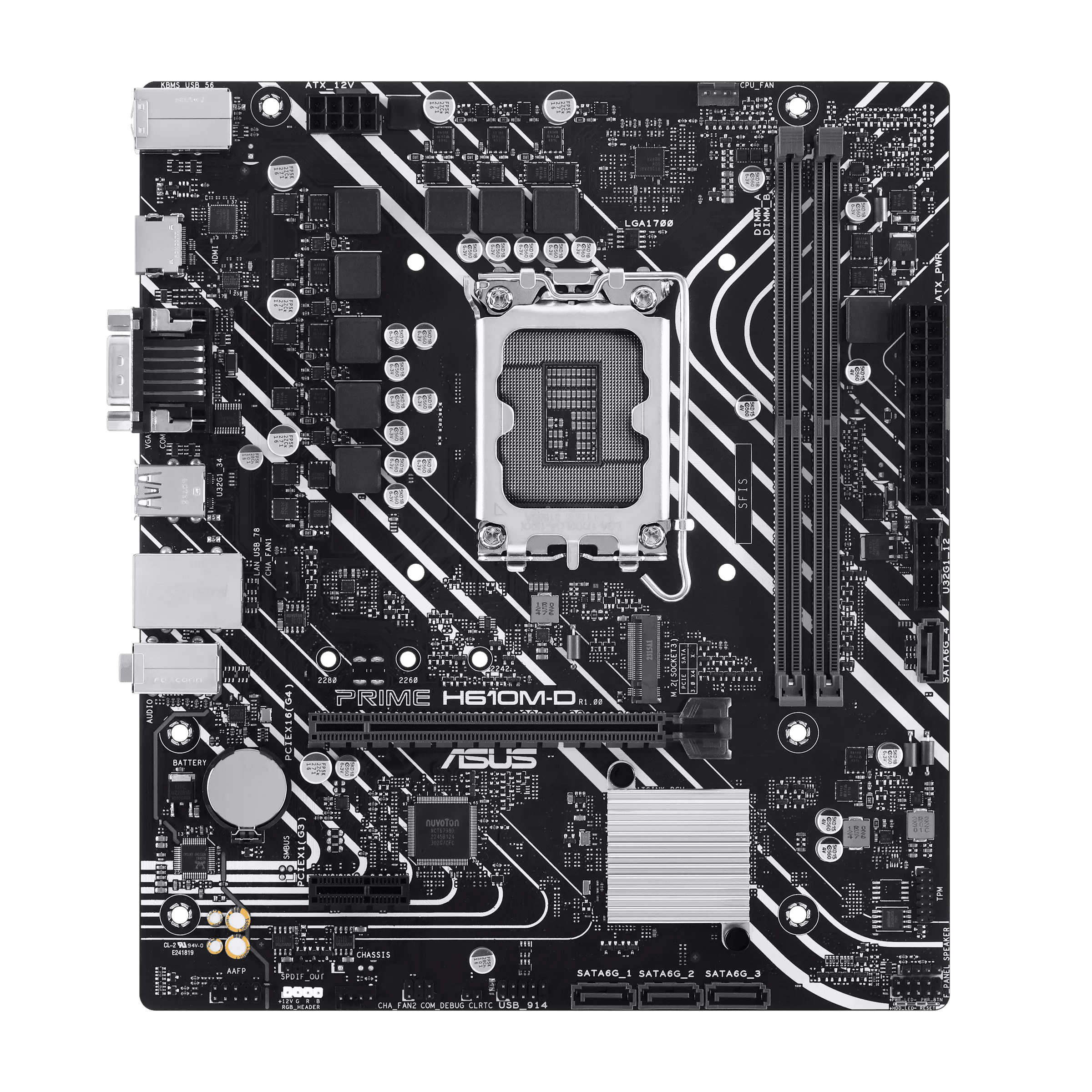

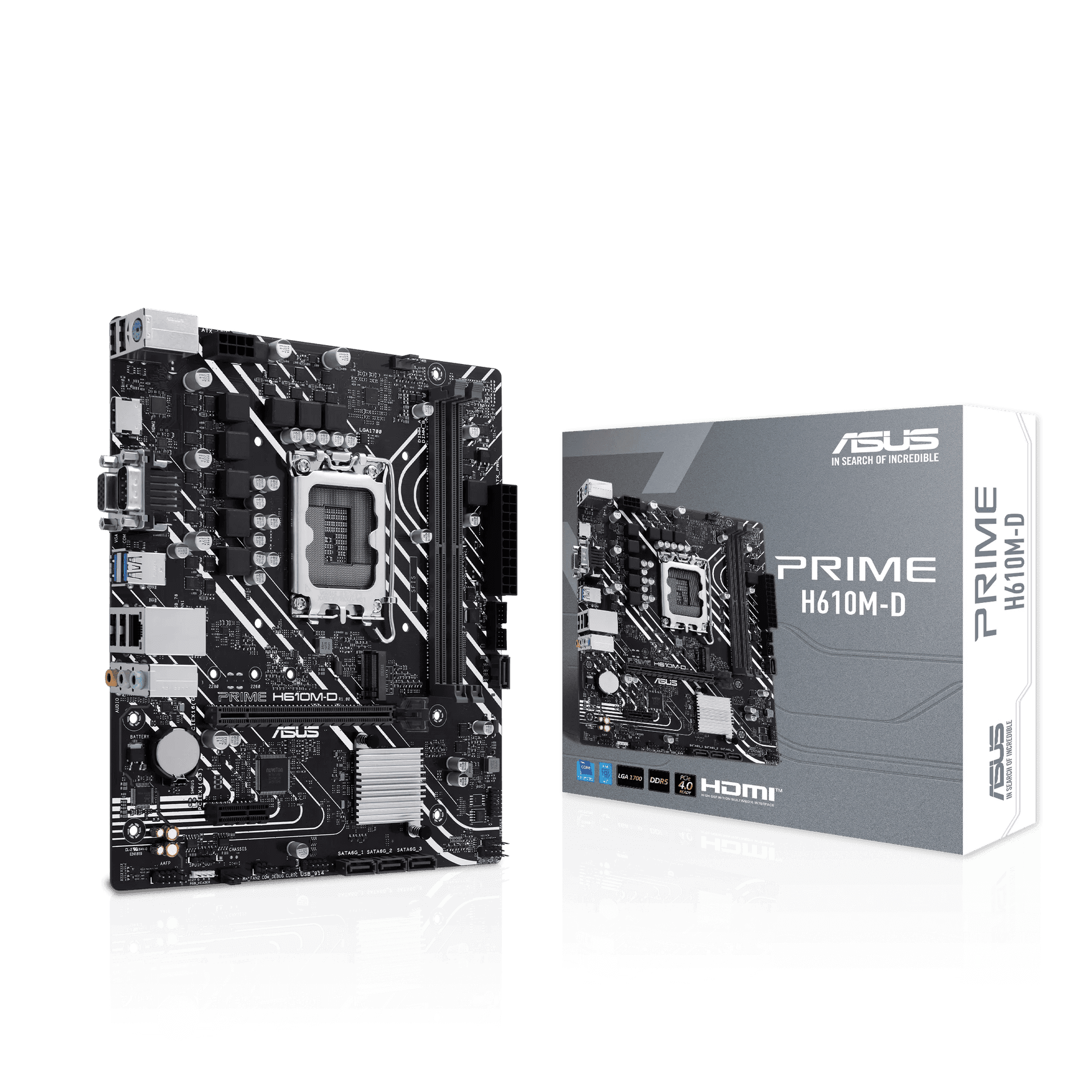

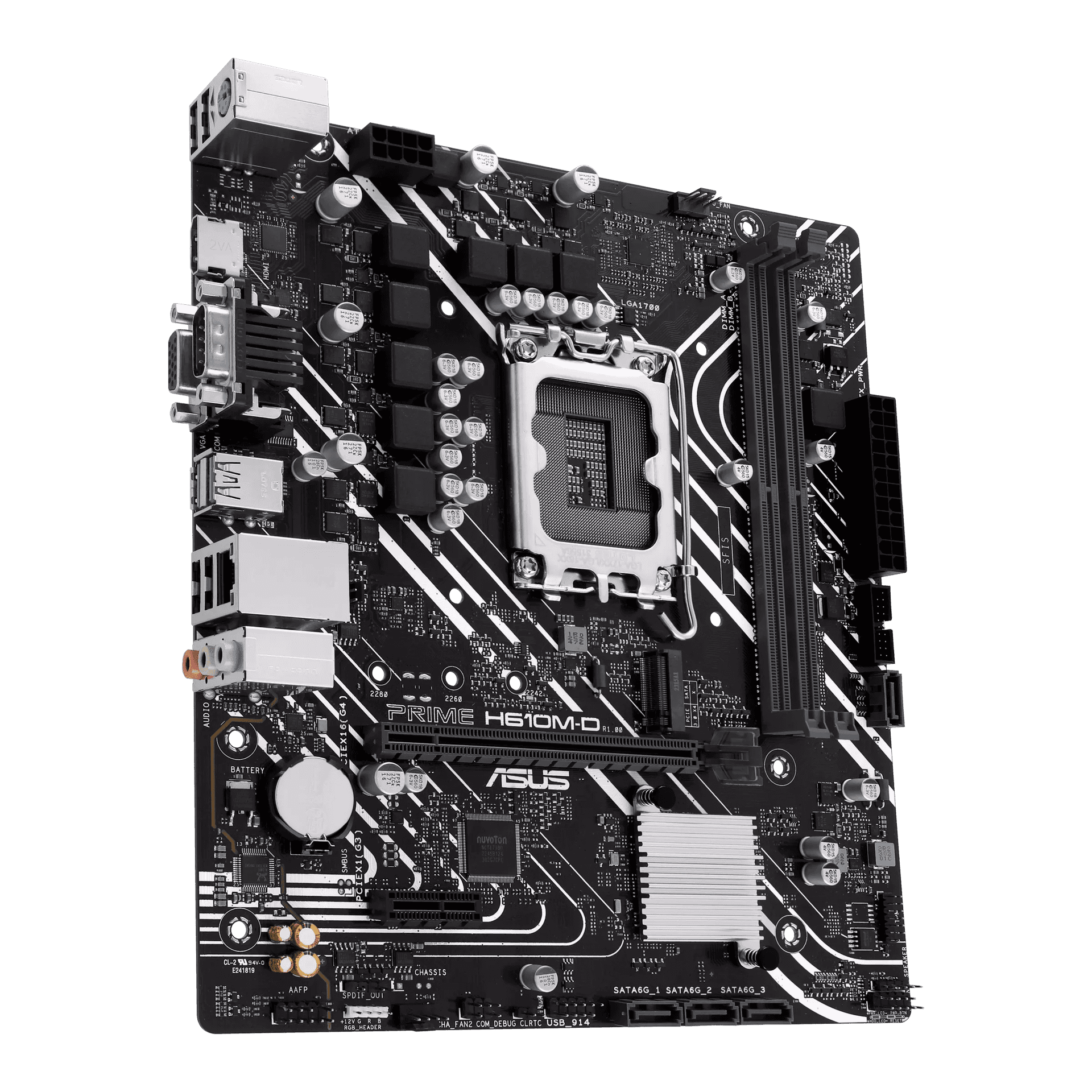

ASUS PRIME H610M-D Intel (LGA 1700) micro-ATX Motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM port, RGB header | 90MB1G80-M0EAY0
Model :
SKU : MB-ASUS PRIM H610M-D DDR5
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Specification
| Model | PRIME H610M-D |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x VGA port 1 x HDMIâ„¢ port (supports 4K@60Hz as specified in HDMI 2.1) * Graphics specifications may vary between CPU types. |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen): 1 x PCIe 4.0 x16 slot Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot * Refer to ASUS support page for compatible peripherals. |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset: M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 6 ports): 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) Front USB (Total 4 ports): 1 x USB 3.2 Gen 1 header (2 ports), 1 x USB 2.0 header (2 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |

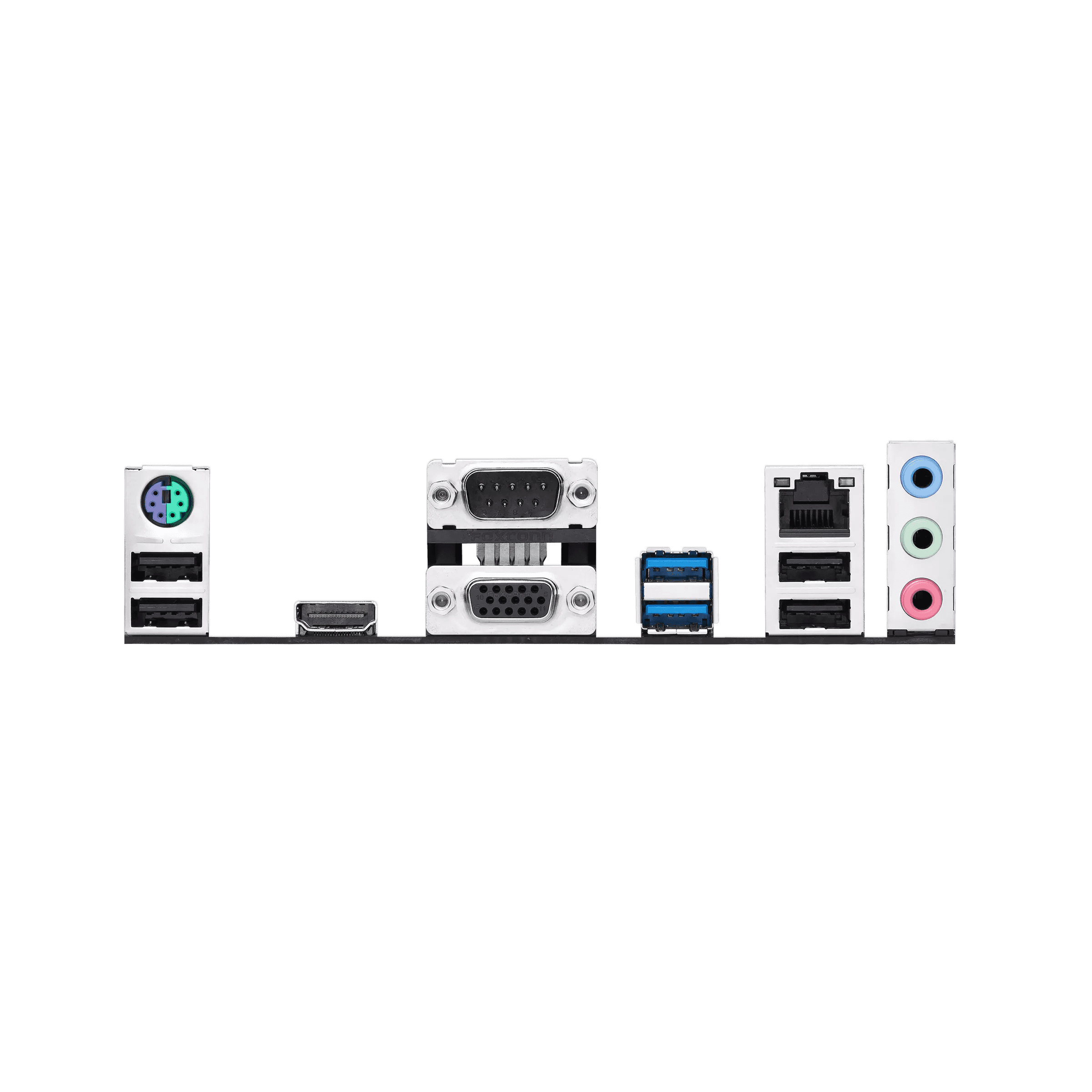

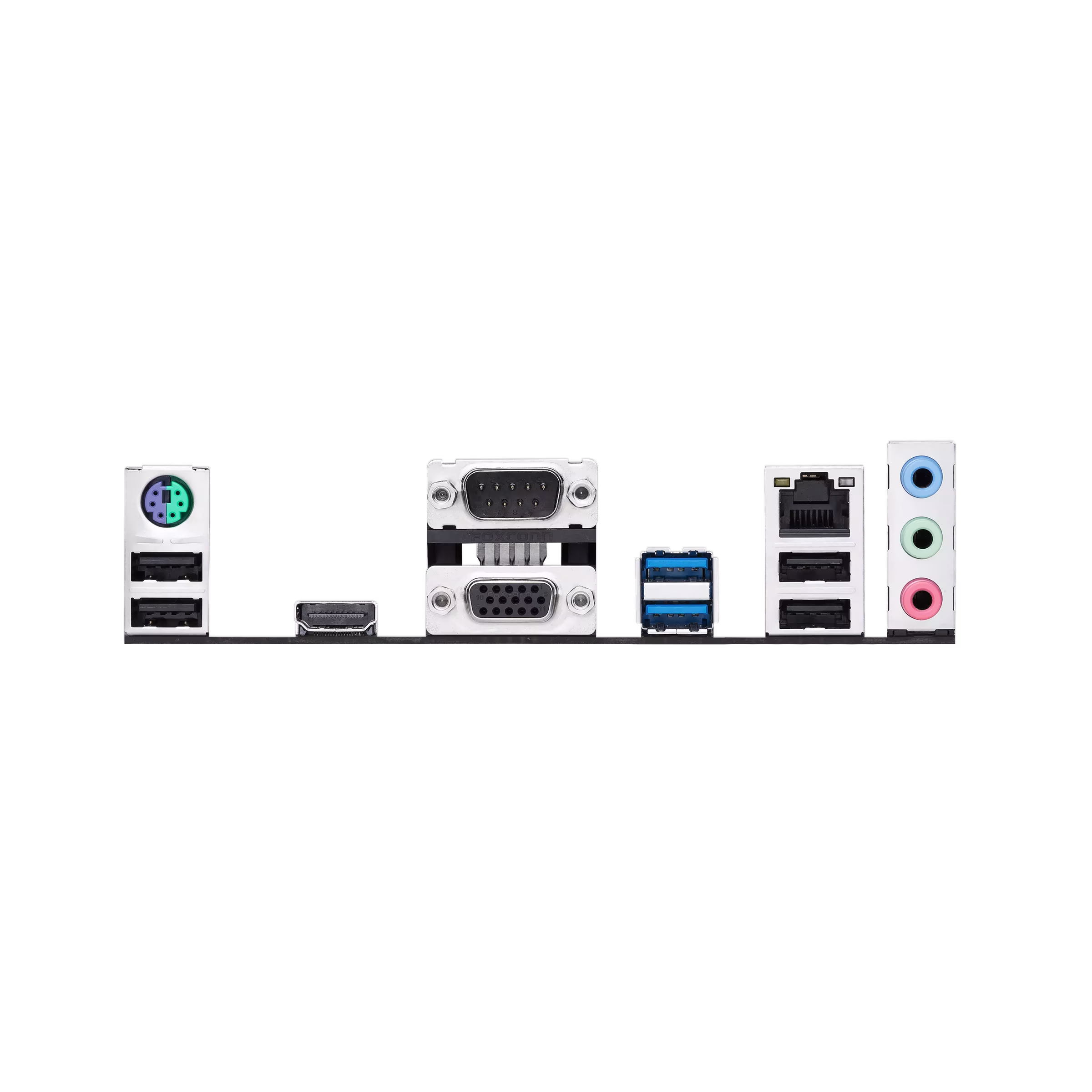

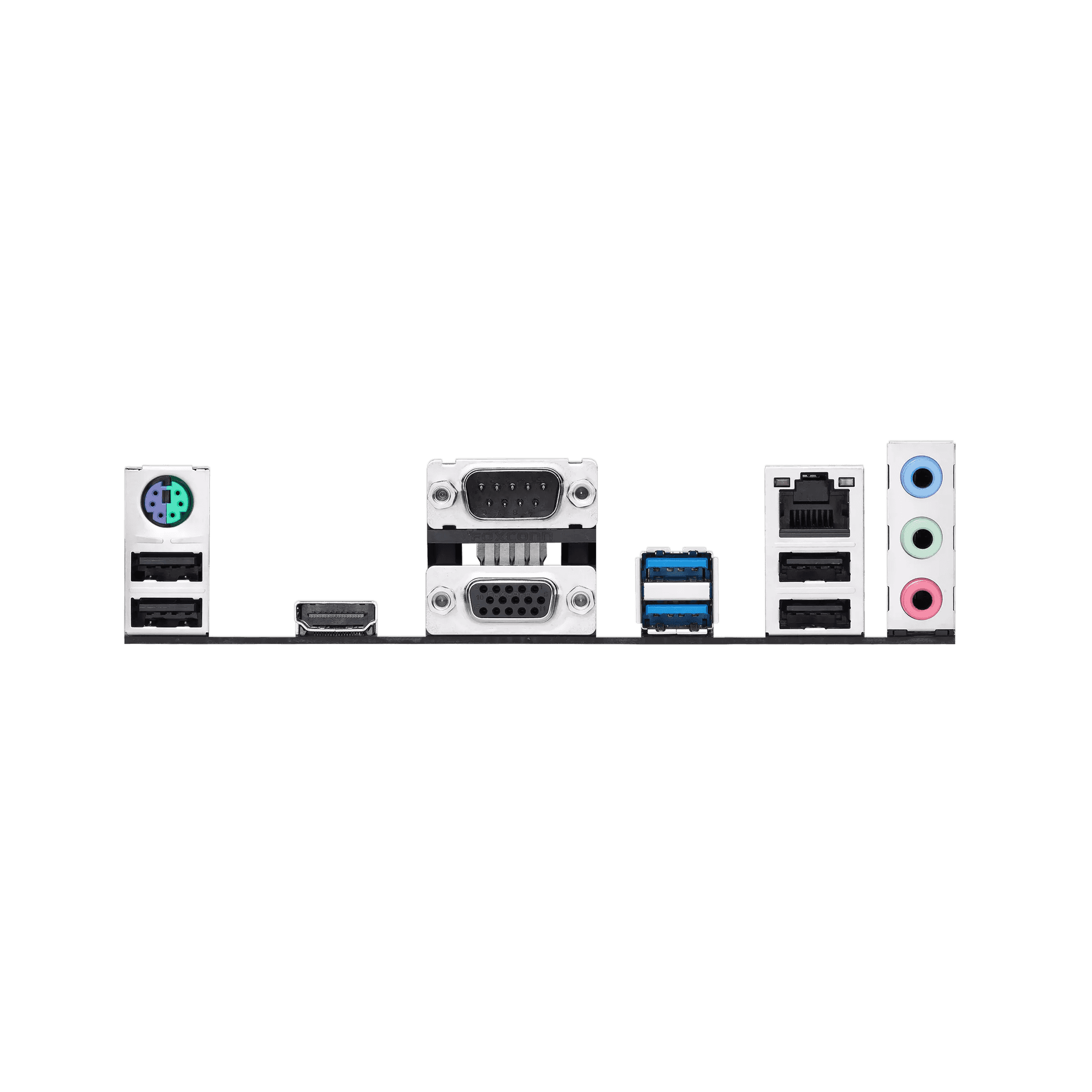

| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 (Type-A) 4 x USB 2.0 (Type-A) 1 x VGA port 1 x HDMIâ„¢ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports 1 x USB 3.2 Gen 1 header (2 ports) 1 x USB 2.0 header (2 ports) 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot ASUS Thermal Solution: Aluminum heatsink design ASUS Lighting Control: RGB header |
| Software Features | ASUS Exclusive Software: Armoury Crate (Fan Xpert 2+), AI Suite 3 (EPU, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 Deluxe (60 Days Trial), WinRAR UEFI BIOS: ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

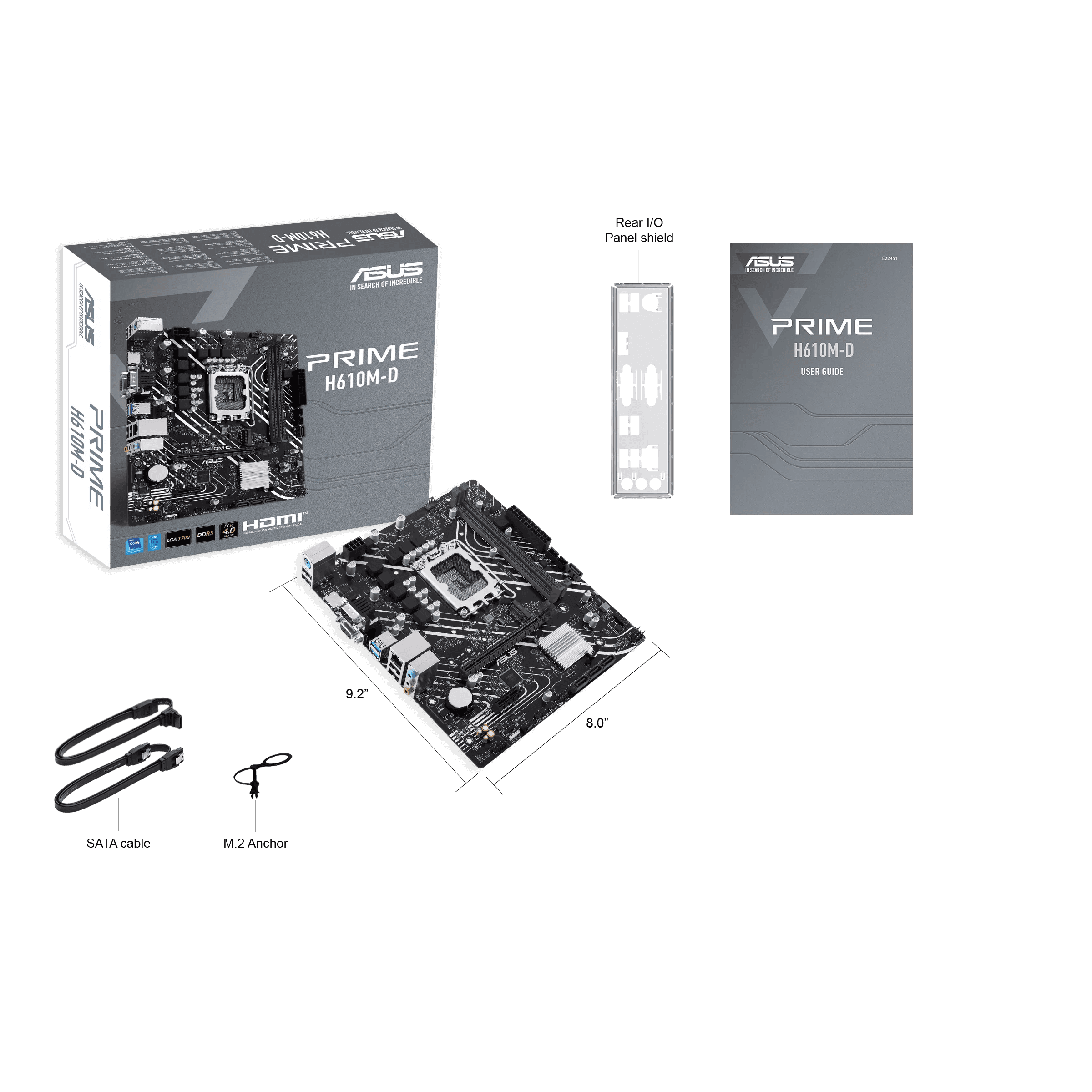

| Accessories | 2 x SATA 6Gb/s cables 1 x I/O Shield 1 x M.2 Anchor 1 x User Guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX Form Factor (9.2 inch x 8.0 inch / 23.4 cm x 20.3 cm) |
