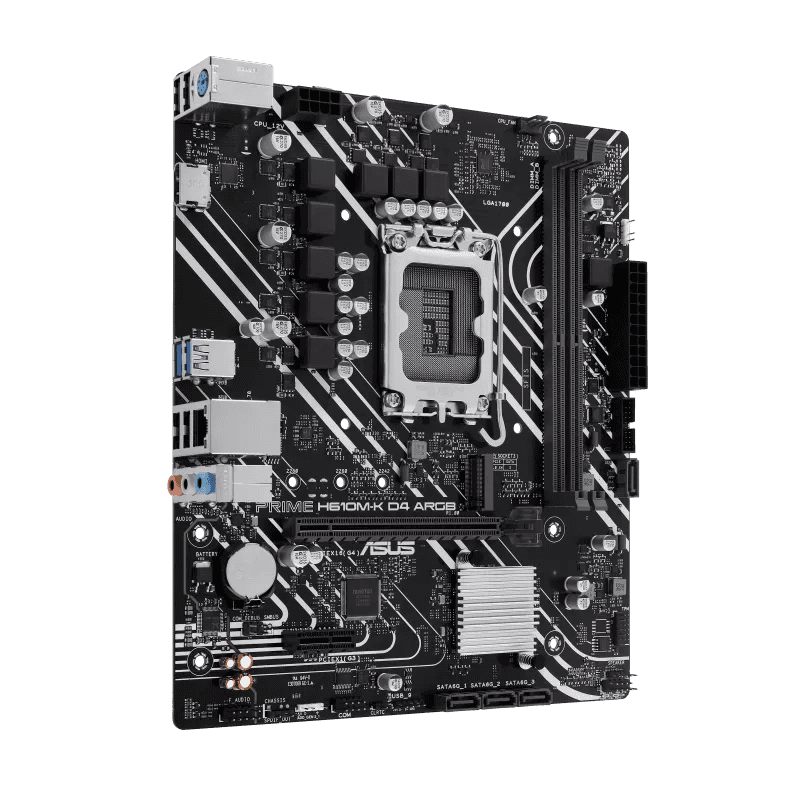

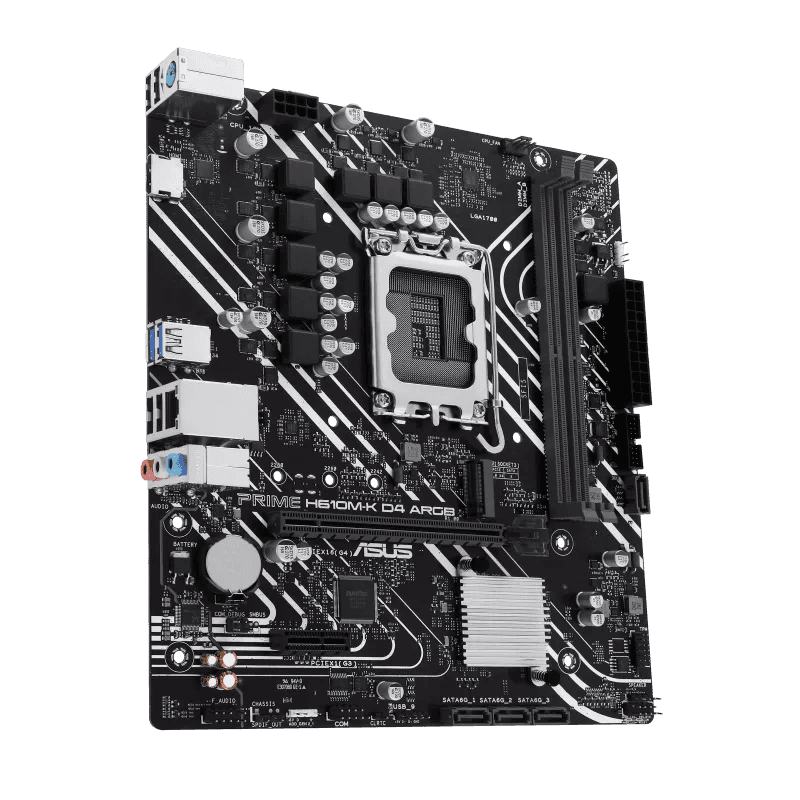

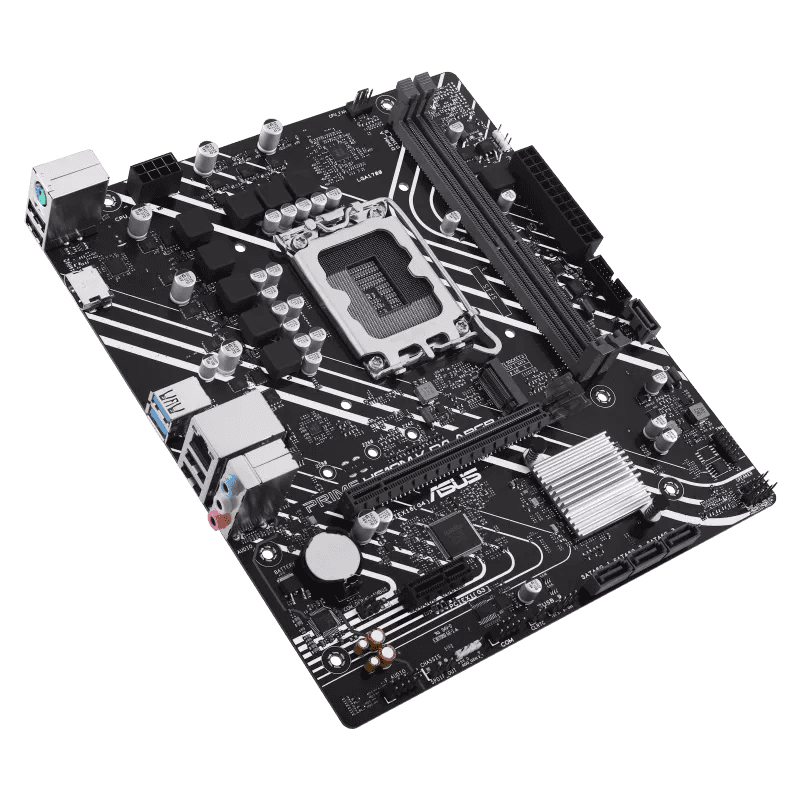

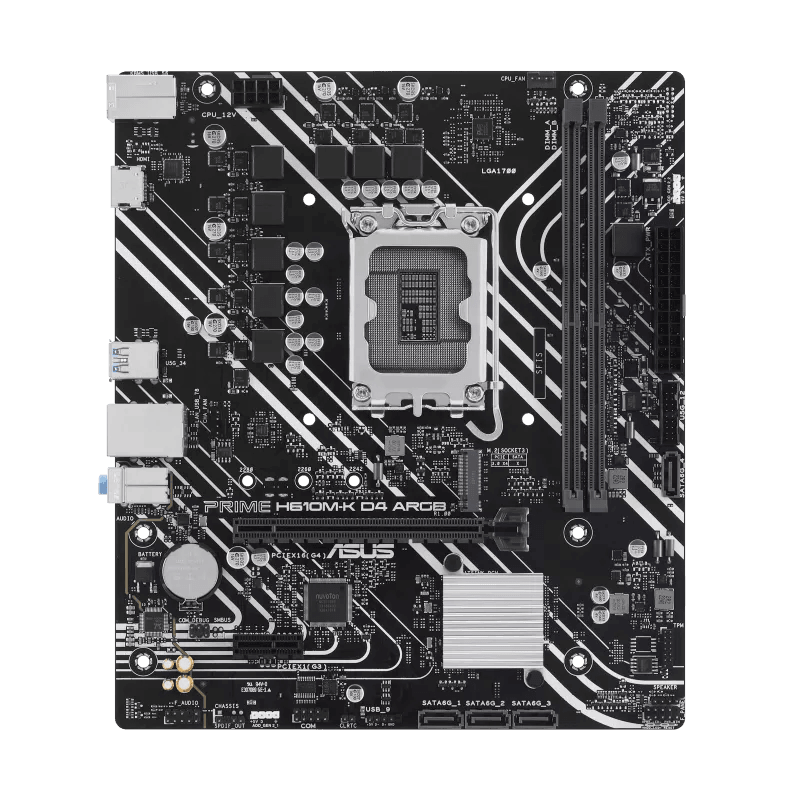

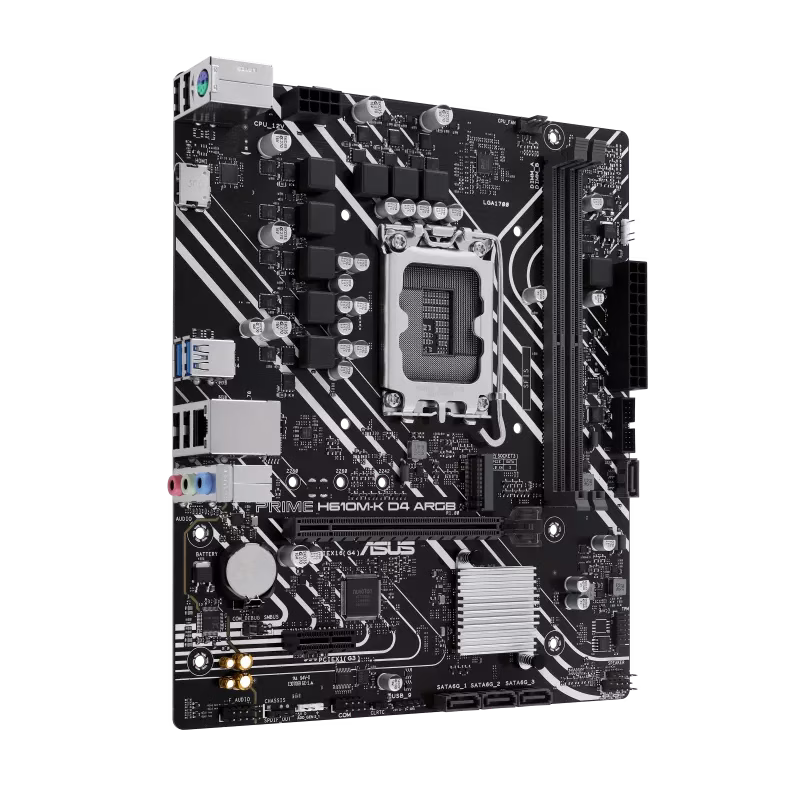

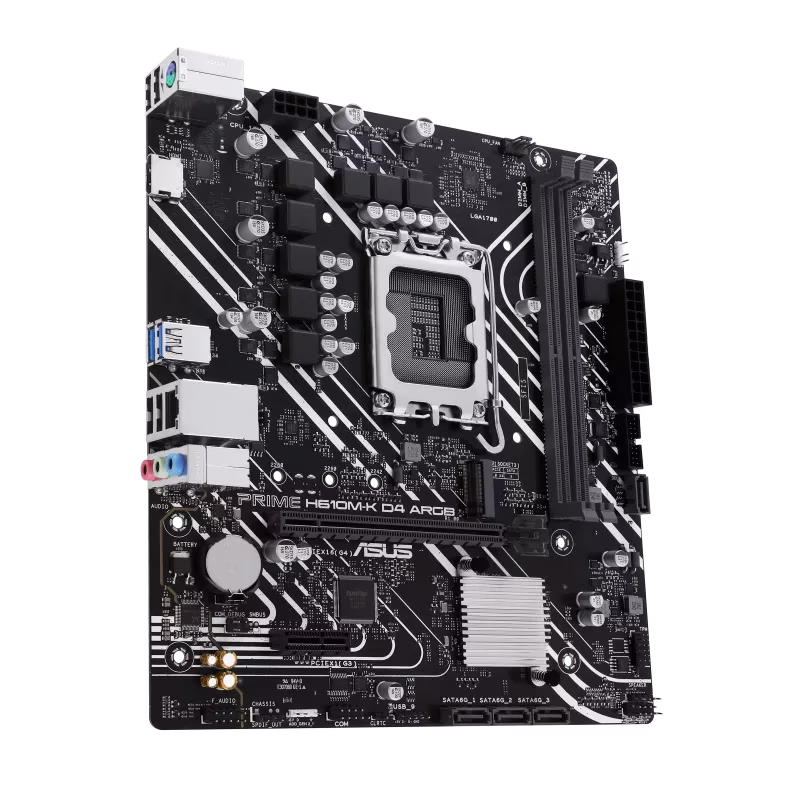

ASUS PRIME H610M-K D4 ARGB Intel H610 (LGA 1700) micro-ATX DDR4 Motherboard, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI, USB 5Gbps, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync | 90MB1HN0-M0EAY0
Model :
SKU : MB-ASU PRIME H610M-K D4 A
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Specification
| Model | PRIME H610M-K D4 ARGB |
|---|---|
| CPU | Intel?? Socket LGA1700 for Intel?? Core??? 14th/13th/12th Gen, Pentium?? Gold, and Celeron?? Processors Supports Intel?? Turbo Boost Technology 2.0 / 3.0* |
| Chipset | Intel?? H610 Chipset |
| Memory | 2 x DIMM, up to 64GB DDR4 (3200~2133 MHz), Non-ECC, Un-buffered Dual channel, Intel?? XMP supported* |
| Graphics | 1 x HDMI??? port (supports 4K@60Hz HDMI 2.1)** |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU dependent) 1 x PCIe 3.0 x1 (chipset) |
| Storage | 1 x M.2 slot (Key M, 2242/2260/2280, PCIe 3.0 x4) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB Ports | Rear: 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) Front: 1 x USB 5Gbps header (supports 2 ports), 1 x USB 2.0 header (supports 1 port) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Jack detection, Multi-streaming, Front panel jack-retasking - Up to 24-bit/192 kHz playback - Audio shielding, premium capacitors, dedicated PCB layers |

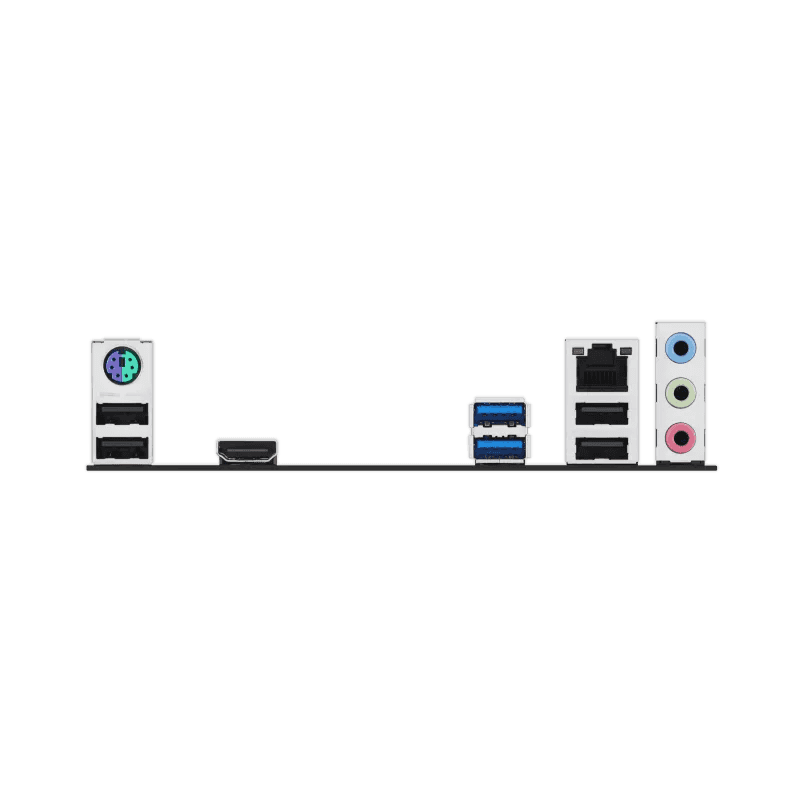

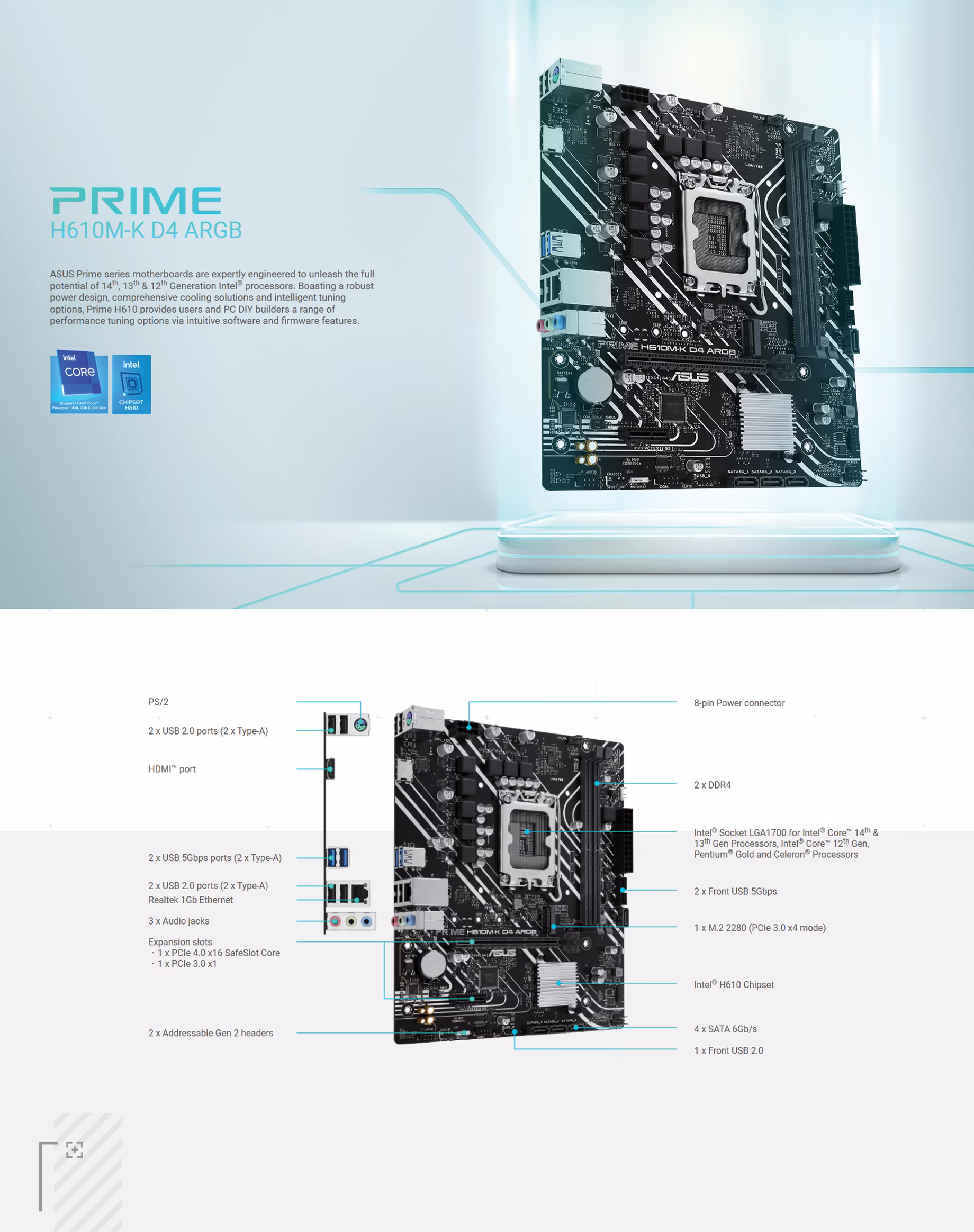

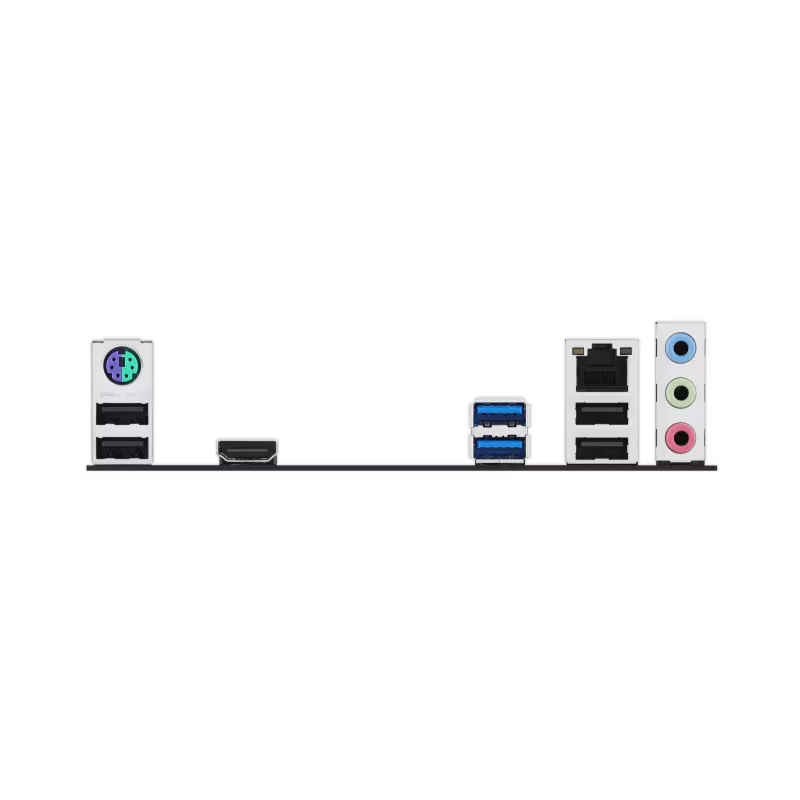

| Back Panel I/O | 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 1 x HDMI??? port 1 x Realtek 1Gb Ethernet 3 x Audio jacks 1 x PS/2 combo port |
| Internal I/O Connectors | Cooling: 1 x CPU fan header, 1 x Chassis fan header Power: 1 x 24-pin, 1 x 8-pin +12V Storage: 1 x M.2, 4 x SATA USB: 1 x USB 5Gbps header, 1 x USB 2.0 header Others: 2 x Addressable Gen 2, Clear CMOS, COM, F_AUDIO, S/PDIF Out, Speaker, SPI TPM, 10-1 pin panel |
| Special Features | ASUS 5X Protection III: DIGI+ VRM, LANGuard, SafeSlot Core, Overvoltage protection, stainless steel back I/O Q-Design: Q-DIMM, Q-LED Core, Q-Slot Thermal: Aluminum heatsink Aura Sync: Addressable Gen 2 headers |
| Software | Armoury Crate, Aura Creator, Fan Xpert, Two-Way AI Noise Cancelation AI Suite 3 (EPU, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 (60 Days), WinRAR (40 Days) |
| BIOS | 128 Mb UEFI AMI BIOS Features: CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables 1 x I/O shield 1 x M.2 anchor 1 x Quick start guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | micro-ATX (9.2" x 8.0") / (23.4 cm x 20.3 cm) |
