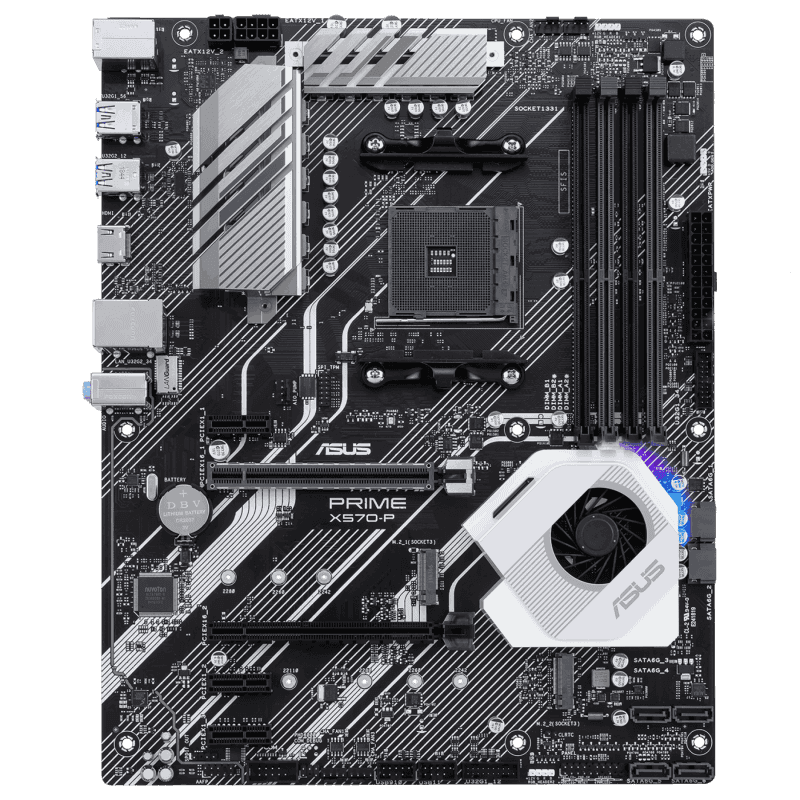

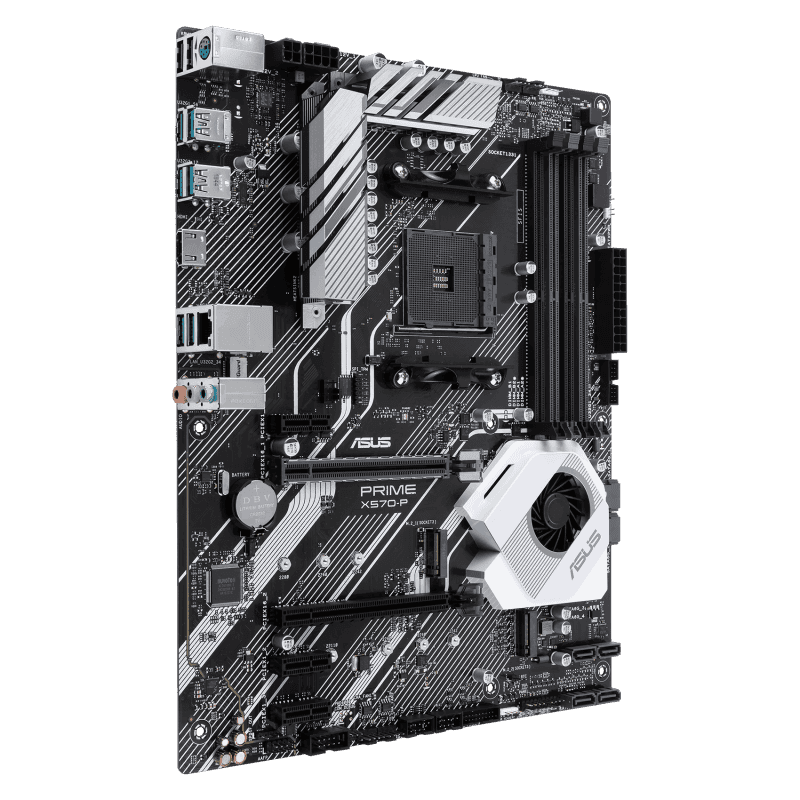

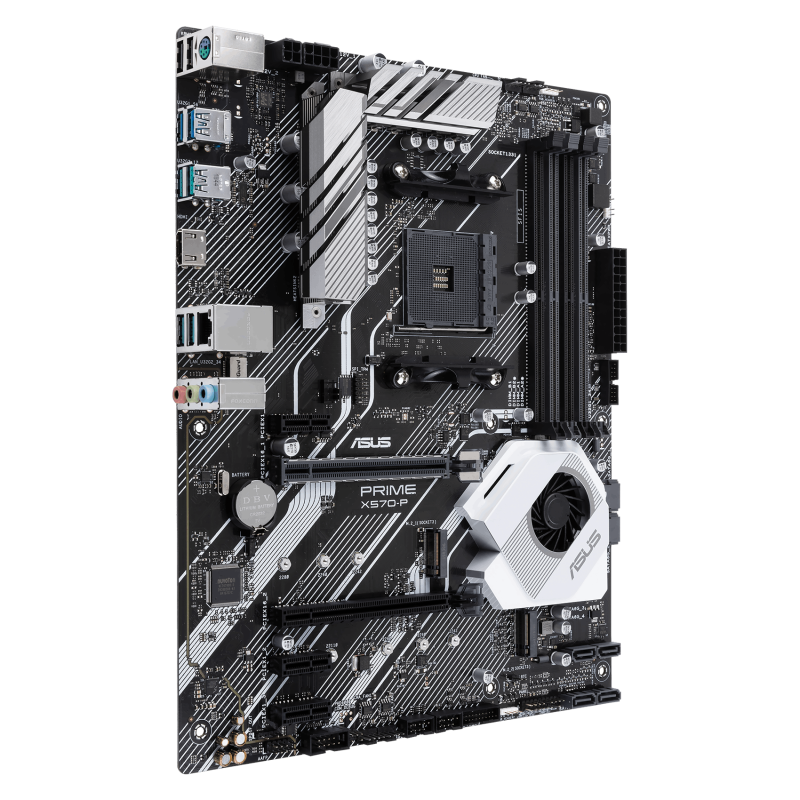

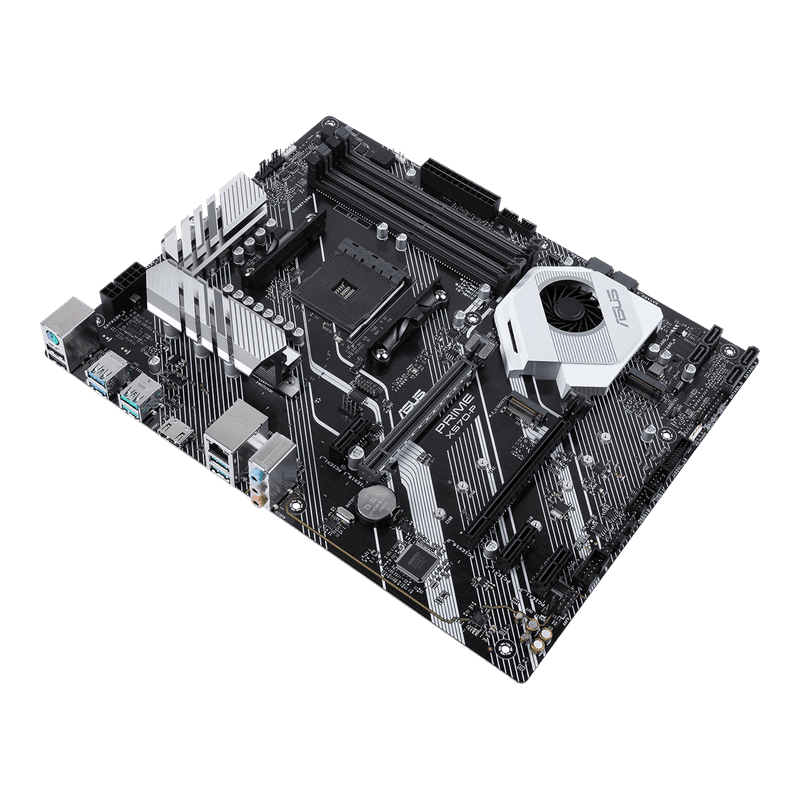

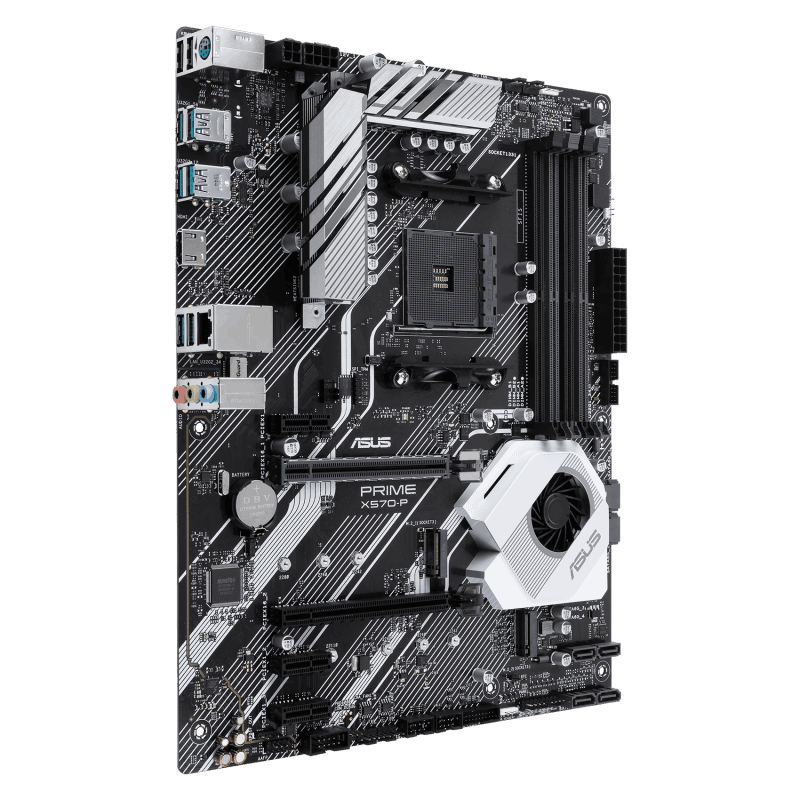

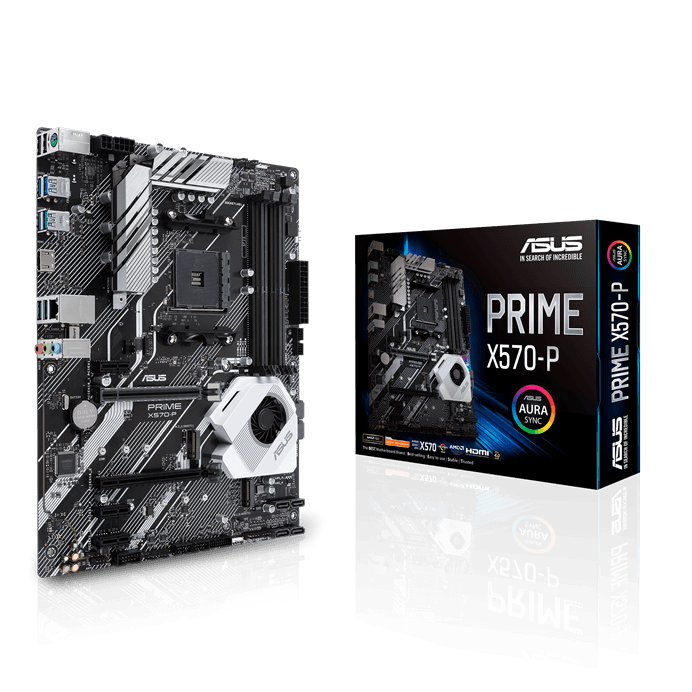

ASUS PRIME X570-P AMD AM4 ATX Motherboard, PCIe 4.0, 12 DrMOS power stages, DDR4 4400MHz, dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB header | 90MB11N0-M0EAY0
Model :
SKU : MB-ASUS PRIME X570-P
About this item
Description
ASUS PRIME X570-P AMD AM4 ATX Motherboard, PCIe 4.0, 12 DrMOS power stages, DDR4 4400MHz, dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB header | 90MB11N0-M0EAY0
| Category | Specification |
| Model | PRIME X570-P |
| CPU | AMD AM4 Socket for AMD Ryzen??? 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list * Due to CPU limitation, CPU cores supported varies by processors. |
| Chipset | AMD X570 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory capacity supported vary depending on the CPU you installed. |
| Graphic | Integrated Graphics in AMD Ryzen??? 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors VGA output support : HDMI port - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz |
| Multi-GPU Support | AMD Ryzen??? 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series/ Desktop Processors Supports AMD 2-Way CrossFireX??? Technology |
| Expansion Slots | AMD Ryzen??? 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen??? 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors: 1 x PCIe 3.0 x16 (x16 mode) AMD RyzenTM 3000 G-Series / 2000 G-Series Processors: 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset: 1 x PCIe 4.0 x16 (max at x4 mode), 3 x PCIe 4.0 x1 |
| Storage | AMD Ryzen??? 5000 Series/ 3000 Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen??? 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN | Realtek?? RTL8111H ASUS LAN Guard |
| Audio | Realtek S1200A 8-Channel High Definition Audio CODEC * - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback - Front panel audio connector (AAFP) Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese-made audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | AMD Ryzen??? 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *) AMD Ryzen??? 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A) AMD X570 chipset : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A) AMD X570 chipset : 4 x USB 3.2 Gen 1 port(s) (4 at mid-board) AMD X570 chipset : 5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board) * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with AMD Ryzen??? 5000 Series/ 3000 Series Desktop Processors. |
| Special Features | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM - Digital power design with Dr. MOS - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem??? - Improved DDR4 Stability ASUS EPU : - EPU AURA : - Aura RGB Strip Headers - Aura Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Armoury Crate ASUS Quiet Thermal Solution : - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |

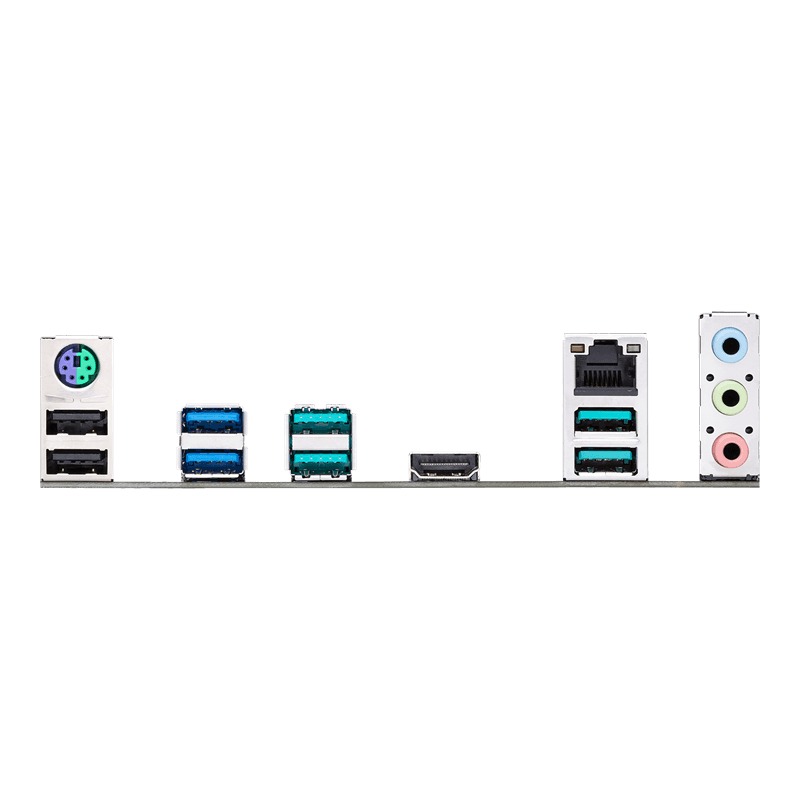

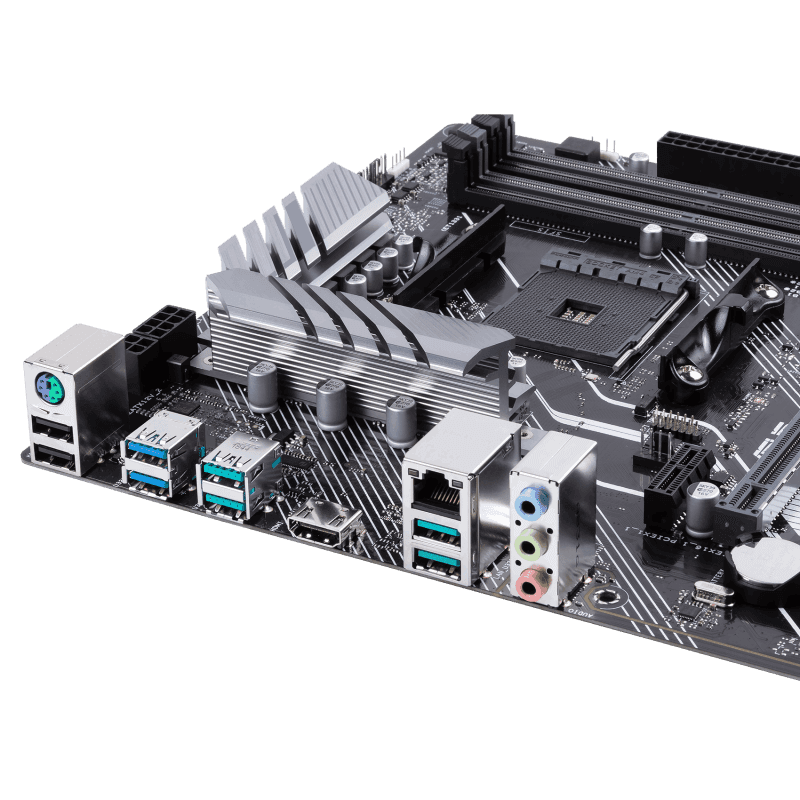

| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x PCH_FAN (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports |

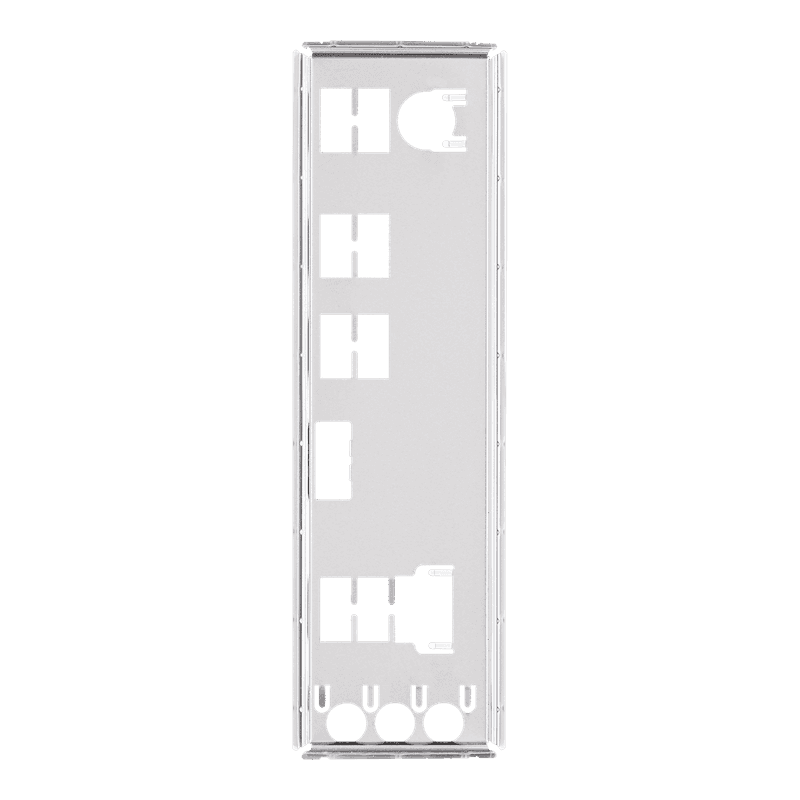

| Accessories | User??s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Extension cable for Addressable LED |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |
| Operating System | Windows?? 10 64-bit |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Specification
ASUS PRIME X570-P AMD AM4 ATX Motherboard, PCIe 4.0, 12 DrMOS power stages, DDR4 4400MHz, dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB header | 90MB11N0-M0EAY0
| Category | Specification |
| Model | PRIME X570-P |
| CPU | AMD AM4 Socket for AMD Ryzen??? 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors * Refer to www.asus.com for CPU support list * Due to CPU limitation, CPU cores supported varies by processors. |
| Chipset | AMD X570 |
| Memory | 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory capacity supported vary depending on the CPU you installed. |
| Graphic | Integrated Graphics in AMD Ryzen??? 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors VGA output support : HDMI port - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz |
| Multi-GPU Support | AMD Ryzen??? 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series/ Desktop Processors Supports AMD 2-Way CrossFireX??? Technology |
| Expansion Slots | AMD Ryzen??? 5000 Series/ 3000 Series Desktop Processors: 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen??? 5000 G-Series/ 4000 G-Series/ 2000 Series Desktop Processors: 1 x PCIe 3.0 x16 (x16 mode) AMD RyzenTM 3000 G-Series / 2000 G-Series Processors: 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset: 1 x PCIe 4.0 x16 (max at x4 mode), 3 x PCIe 4.0 x1 |
| Storage | AMD Ryzen??? 5000 Series/ 3000 Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen??? 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN | Realtek?? RTL8111H ASUS LAN Guard |
| Audio | Realtek S1200A 8-Channel High Definition Audio CODEC * - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback - Front panel audio connector (AAFP) Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese-made audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports | AMD Ryzen??? 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *) AMD Ryzen??? 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A) AMD X570 chipset : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A) AMD X570 chipset : 4 x USB 3.2 Gen 1 port(s) (4 at mid-board) AMD X570 chipset : 5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board) * The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with AMD Ryzen??? 5000 Series/ 3000 Series Desktop Processors. |
| Special Features | ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM - Digital power design with Dr. MOS - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem??? - Improved DDR4 Stability ASUS EPU : - EPU AURA : - Aura RGB Strip Headers - Aura Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Armoury Crate ASUS Quiet Thermal Solution : - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x PCH_FAN (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports |
| Accessories | User??s manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Extension cable for Addressable LED |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Manageability | WOL by PME, PXE |
| Operating System | Windows?? 10 64-bit |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
