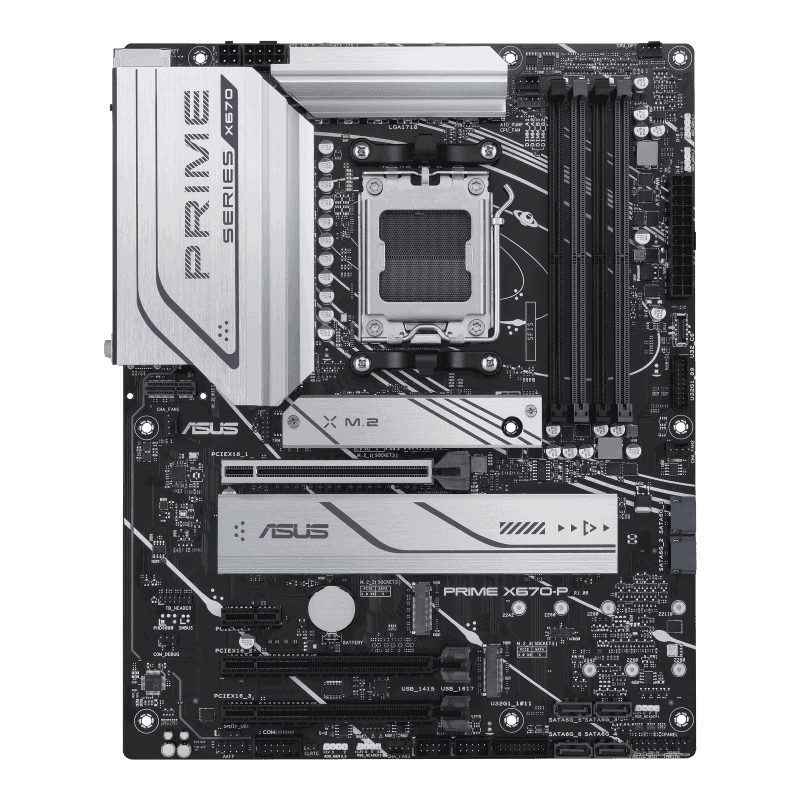

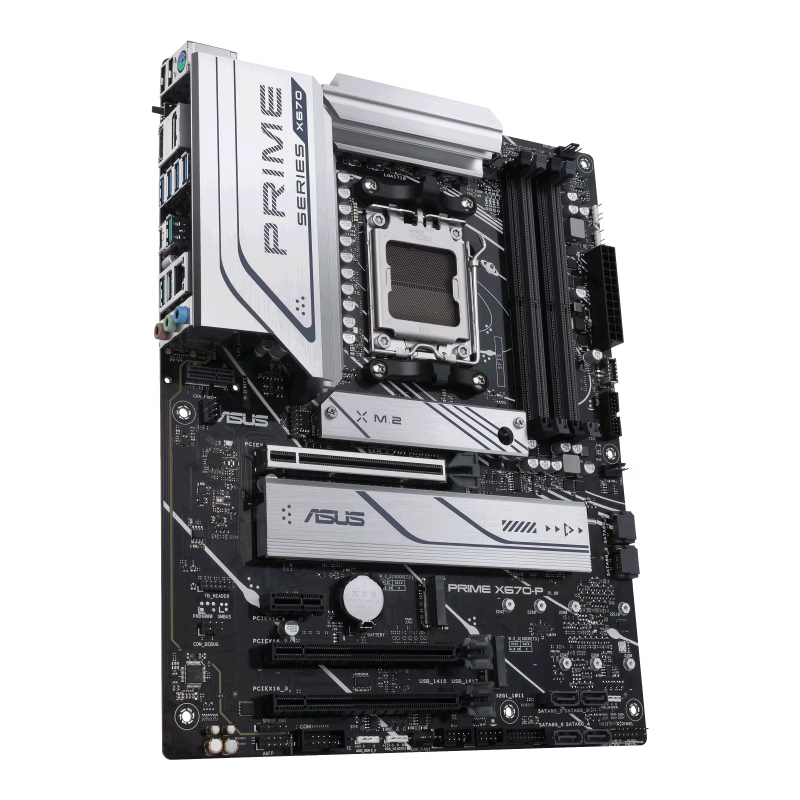

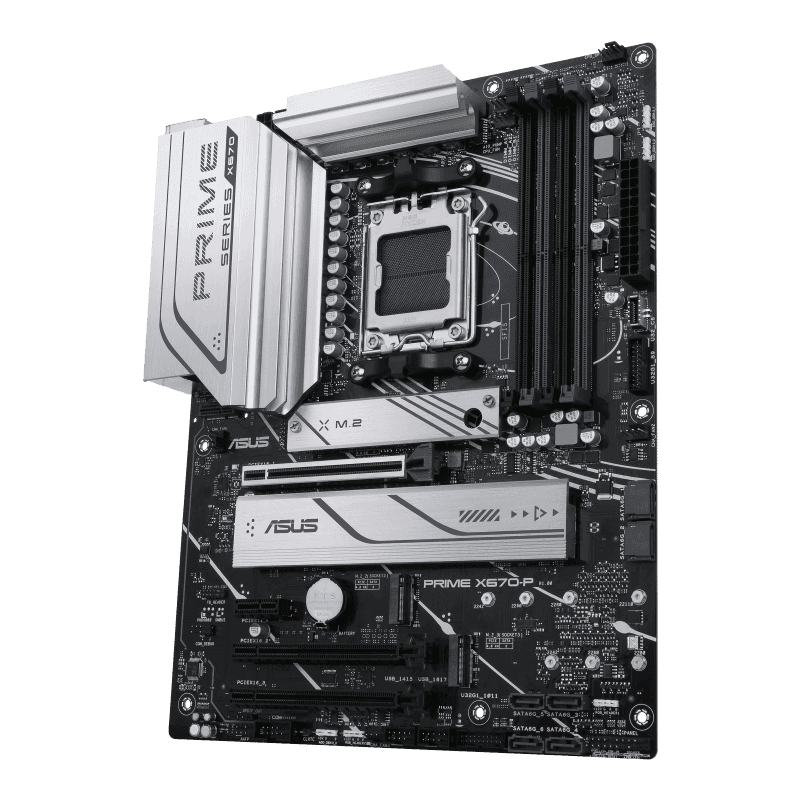

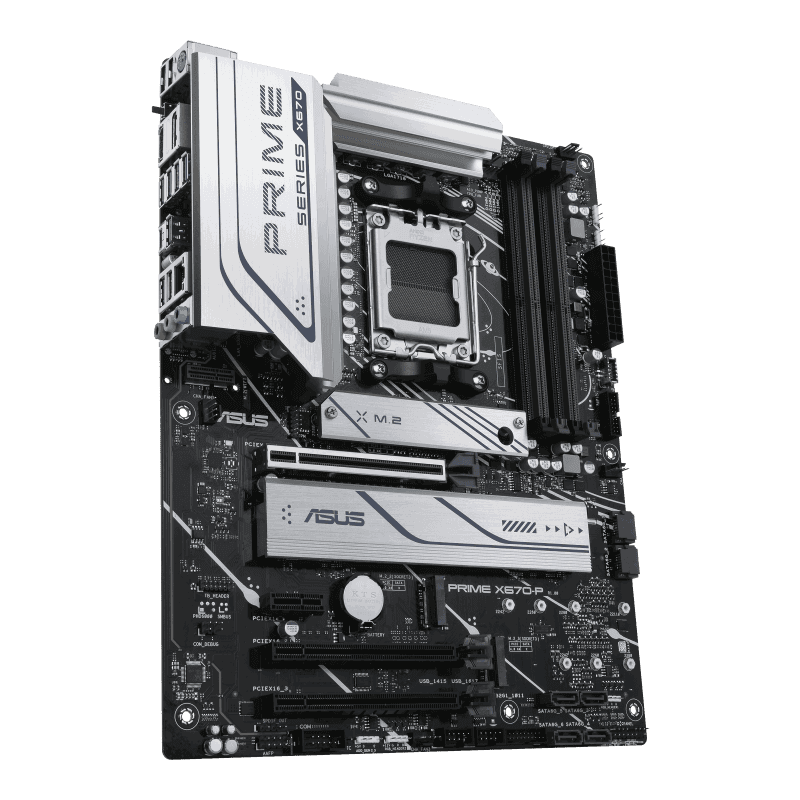

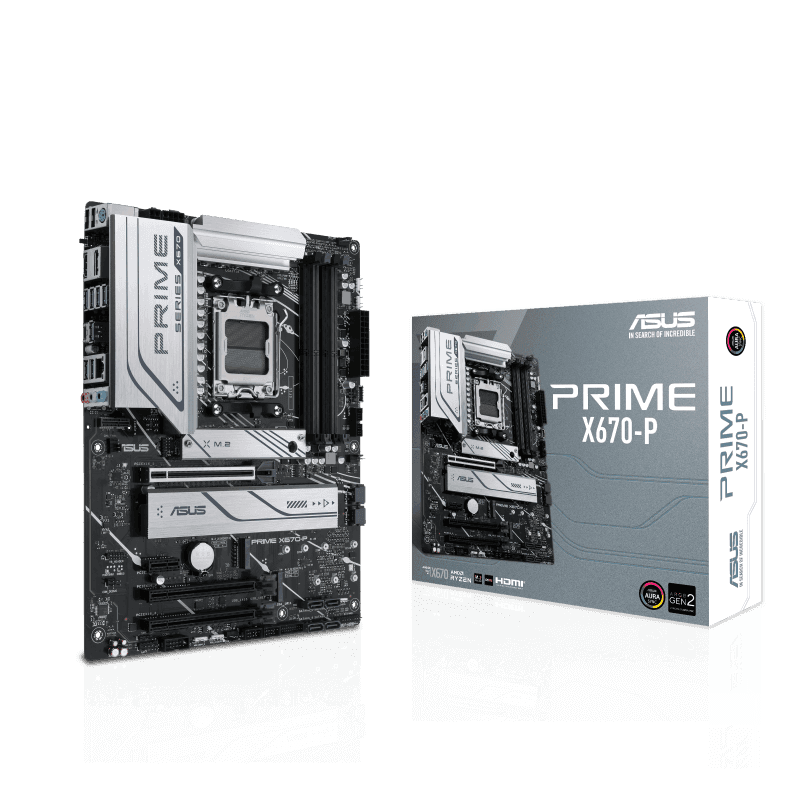

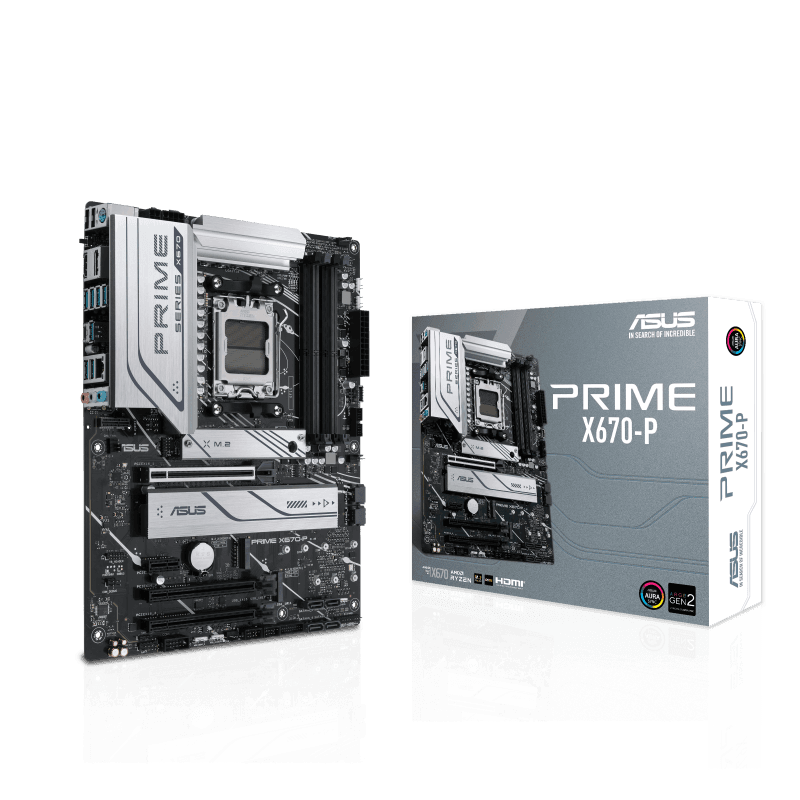

Asus Prime X670-P ATX DDR5 Motherboard, AMD Socket AM5, X670 Chipset, 4x DIMM Max 128GB Memory, Realtek 2.5Gb Ethernet, V-M.2 Slot Only, PCIe 4.0 x16 Slot, M.2 | 90MB1BU0-M0EAY0
Model :
SKU : MB-ASUS PRIME X670-P
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
Model: PRIME X670-P
CPU Specifications
| Processor (CPU) | AMD Socket AM5 for AMD Ryzen??? 7000 Series/8000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD X670 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO???) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI?? port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI?? 2.1. |
| Expansion Slots | AMD Ryzen??? 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen??? 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X670 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot*** * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. ** Specifications vary by CPU types. *** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. |
| Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen??? 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports*** * AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. *** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | V-M.2 slot only (Key E, PCIe)* * Wi-Fi module is sold separately. |
| USB | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports * USB Type-C?? power delivery output: max. 5V/3A |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

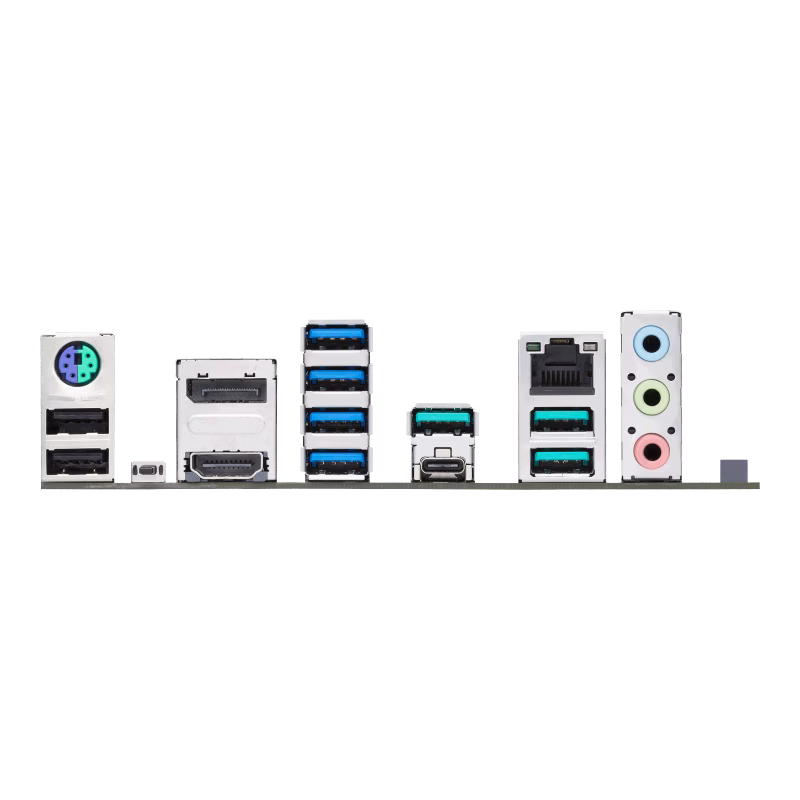

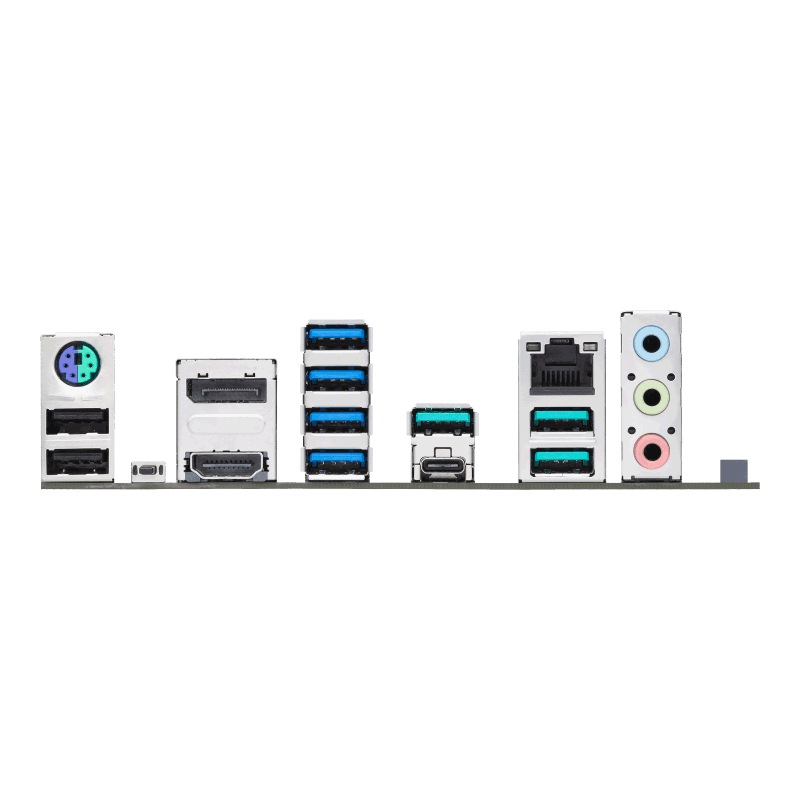

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI?? port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack??? button 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt??? (USB4??) header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - BIOS FlashBack??? LED - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

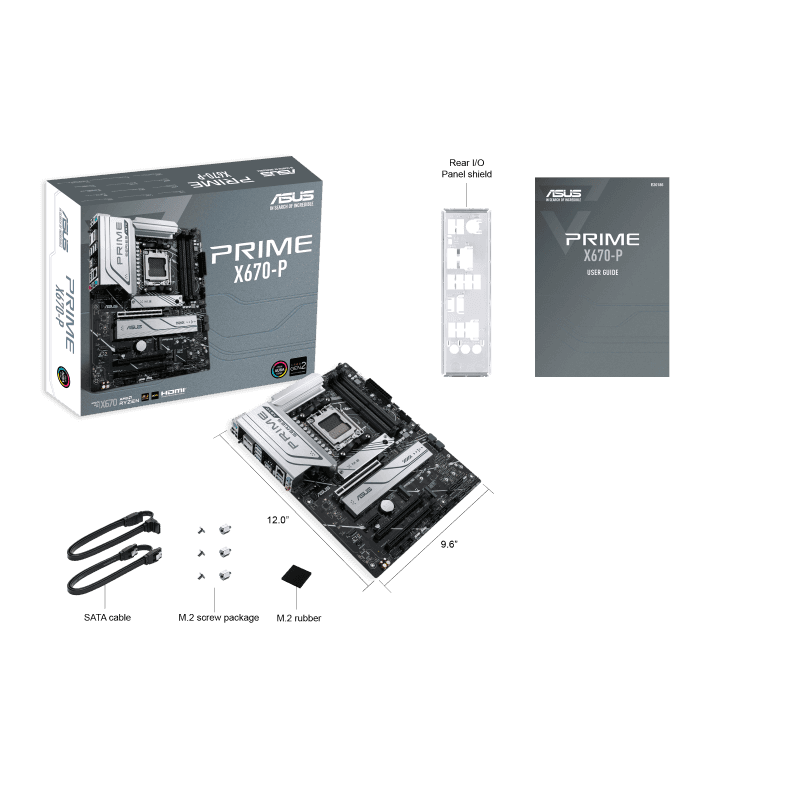

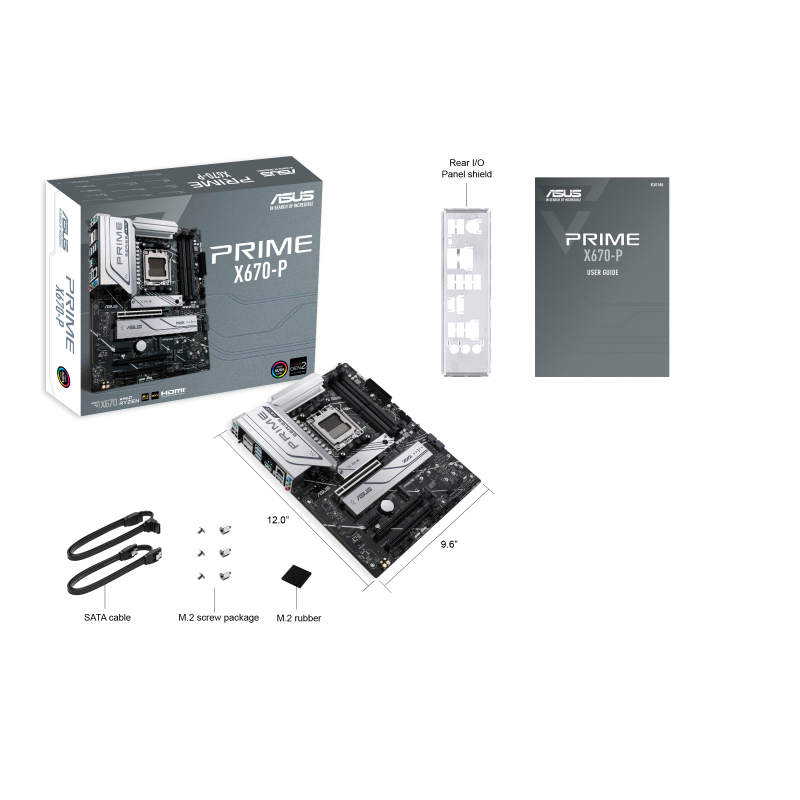

| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD Documentation 1 x User guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Specification
Model: PRIME X670-P
CPU Specifications
| Processor (CPU) | AMD Socket AM5 for AMD Ryzen??? 7000 Series/8000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD X670 Chipset |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO???) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI?? port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI?? 2.1. |
| Expansion Slots | AMD Ryzen??? 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen??? 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X670 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot*** * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. ** Specifications vary by CPU types. *** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. |
| Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen??? 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports*** * AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. *** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | V-M.2 slot only (Key E, PCIe)* * Wi-Fi module is sold separately. |
| USB | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports * USB Type-C?? power delivery output: max. 5V/3A |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI?? port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack??? button 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Miscellaneous | 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt??? (USB4??) header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - BIOS FlashBack??? LED - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD Documentation 1 x User guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
