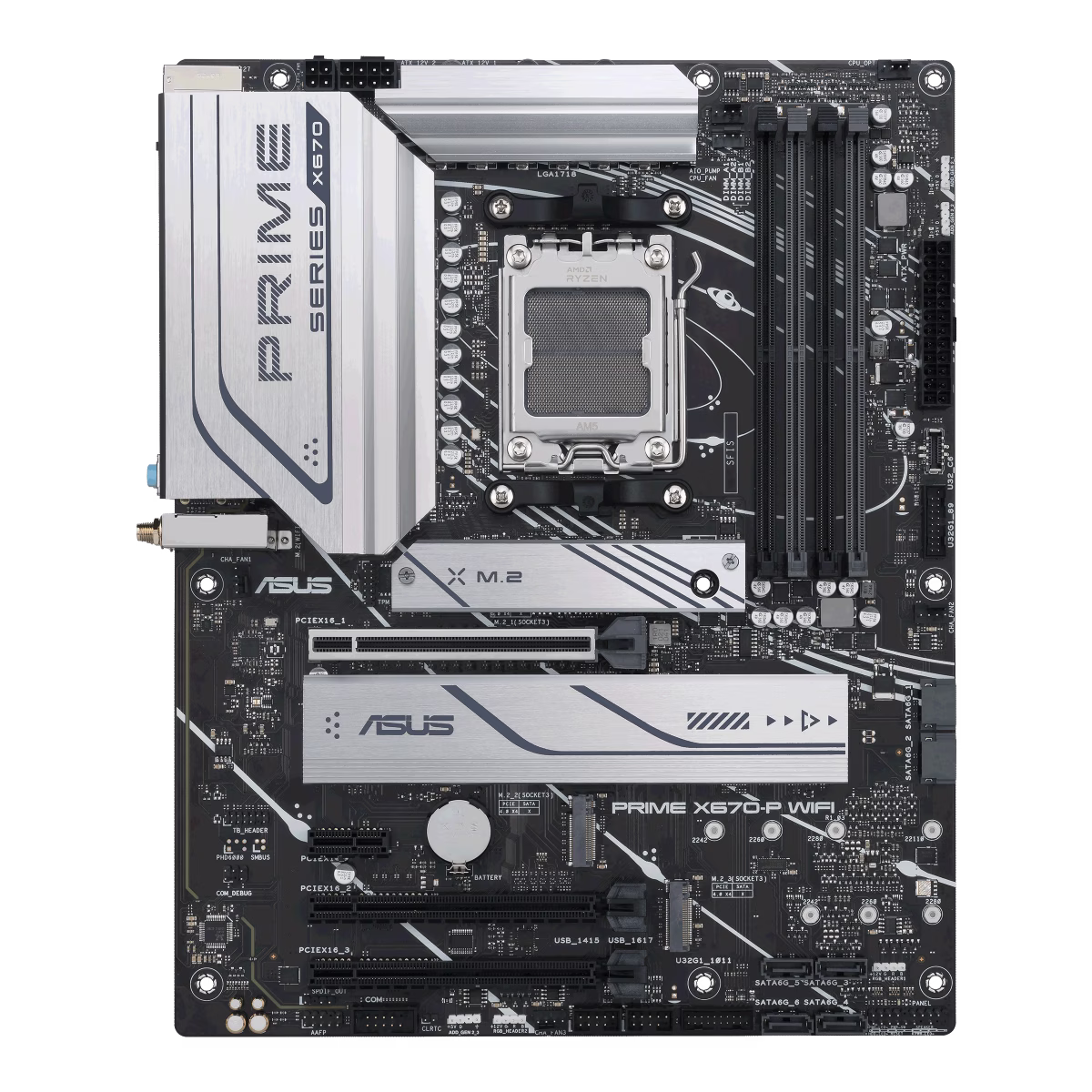

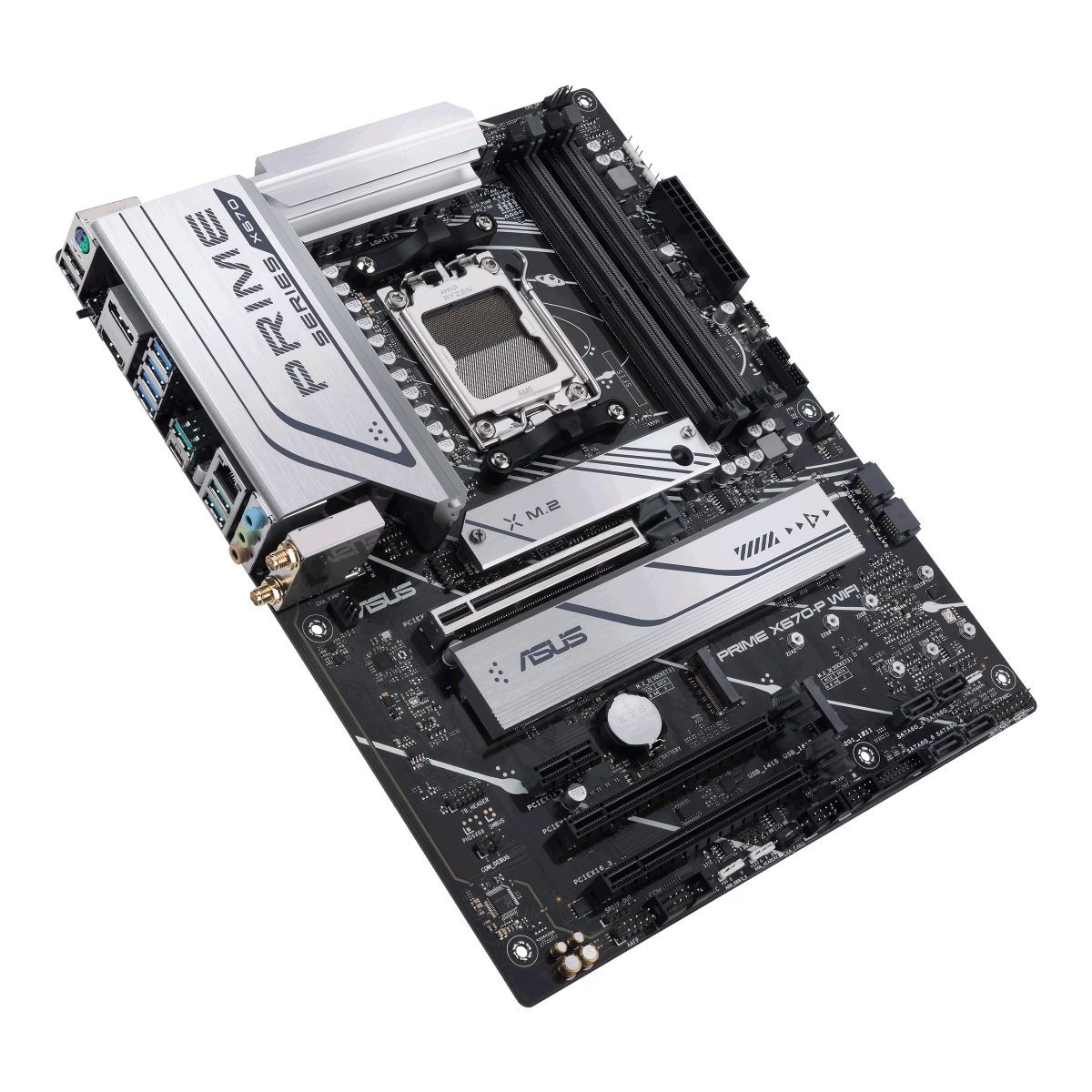

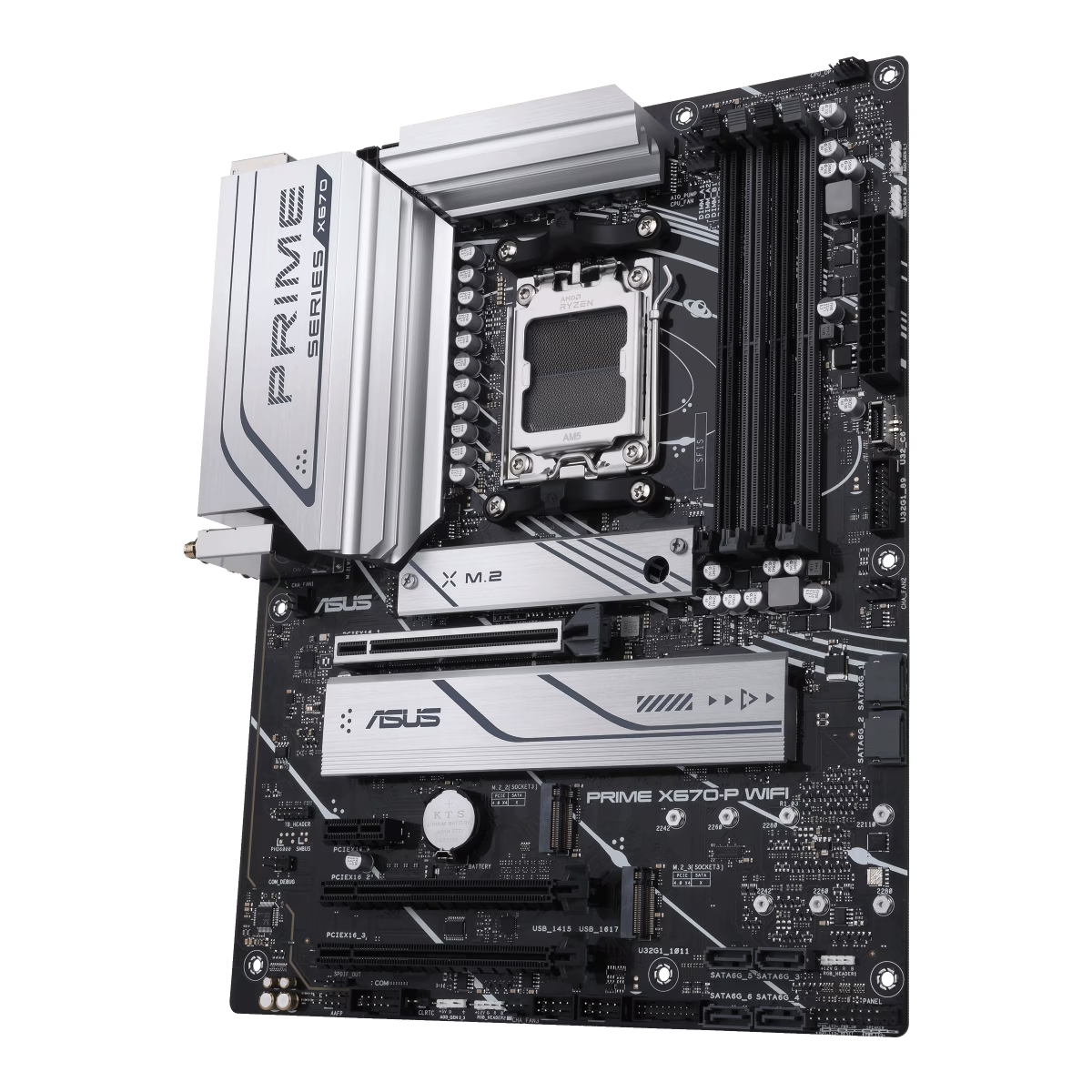

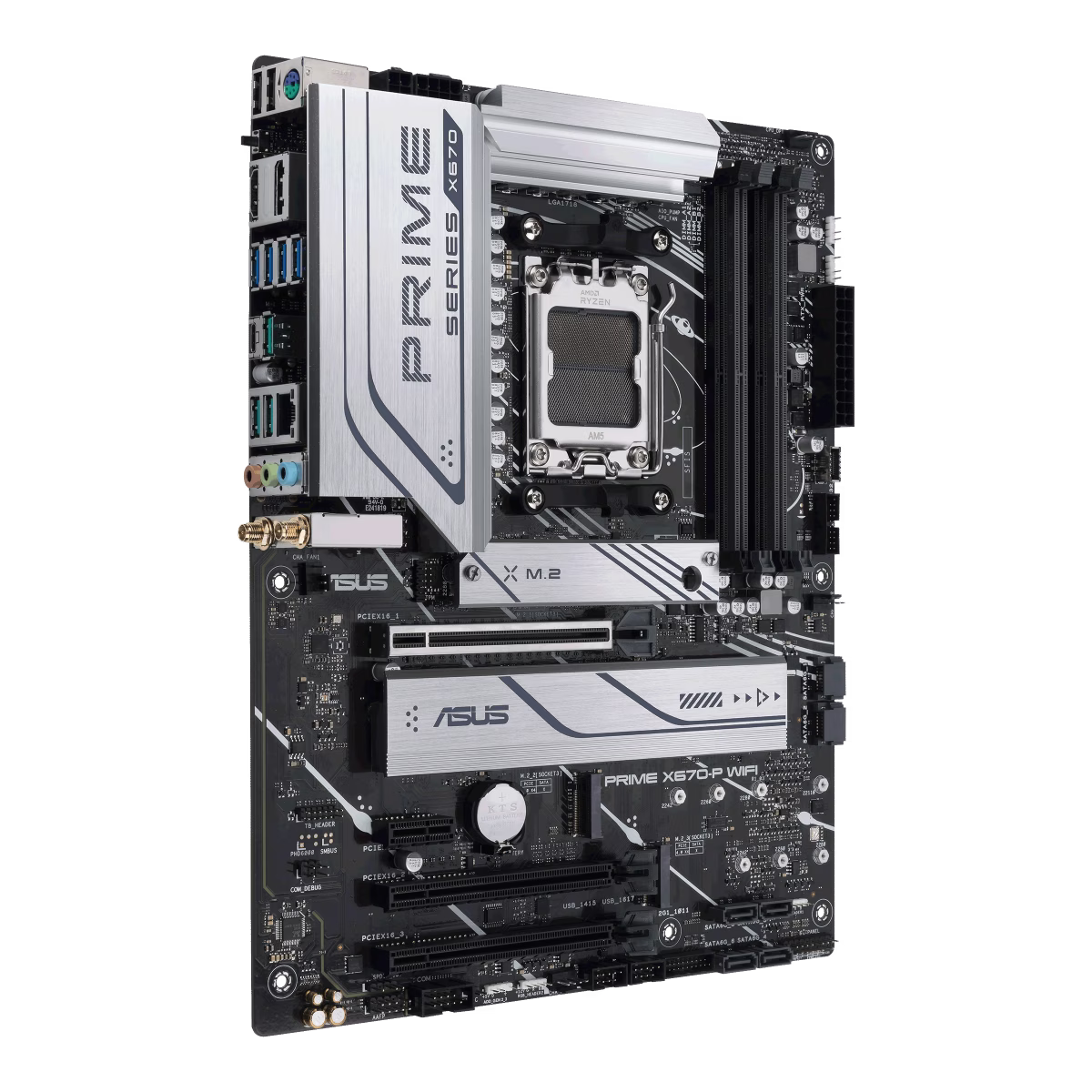

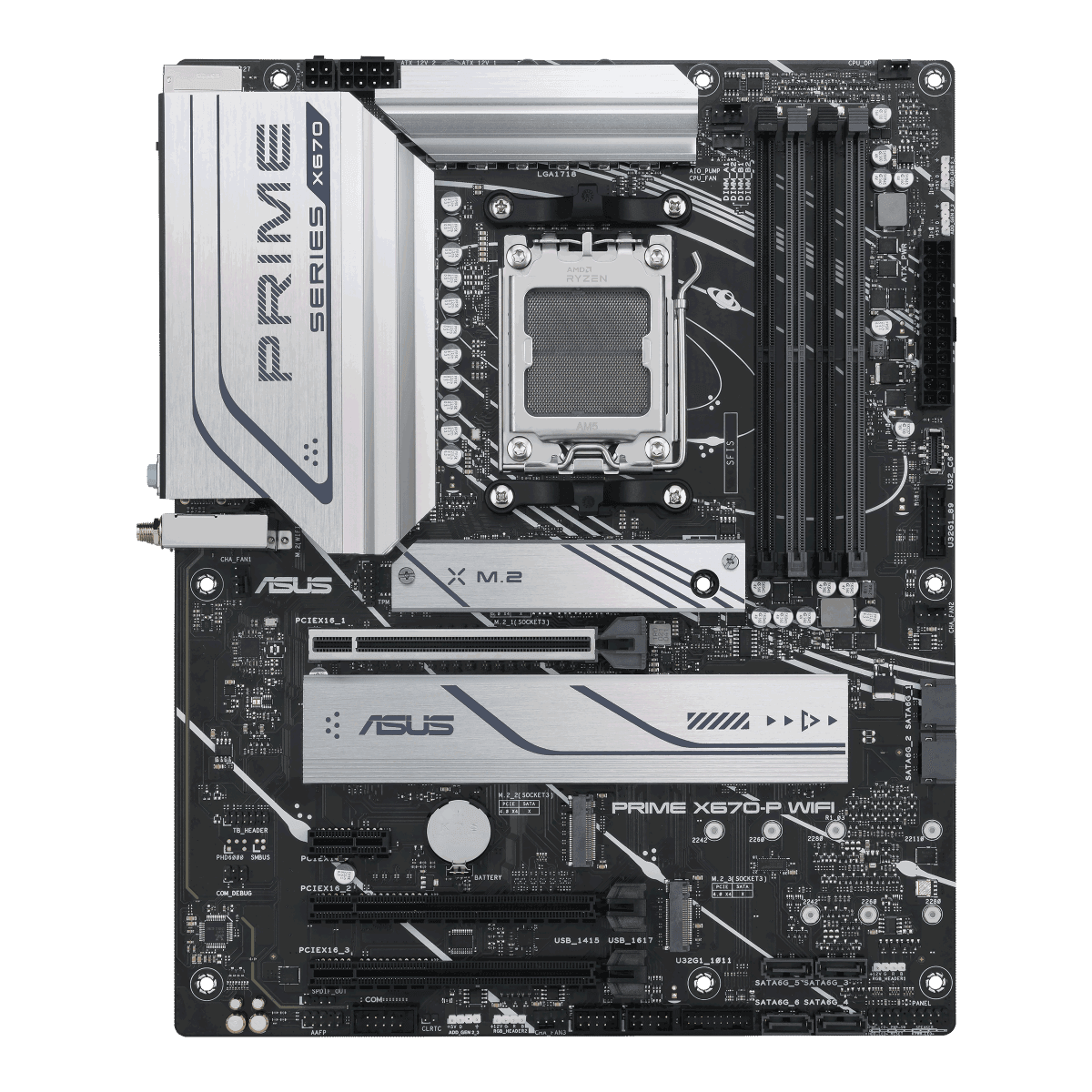

Asus PRIME X670-P WIFI DDR5 Motherboard, AM5, Gen 5 Slot for Storage, DDR5 Support, WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, Intelligent Control, Al Cooling II, Easy Customization | 90MB1BV0-M0EAY0
Model :
SKU : MB-ASUS PRIME X670-P WIFI
About this item
About this item
Description
The ASUS Prime X670-P WIFI is engineered for users who demand the high-bandwidth capabilities of the X670 chipset in a professional and clean aesthetic. This motherboard is fully compatible with the latest "Zen" architecture processors, providing the necessary lanes for PCIe 5.0 storage and high-frequency memory. Its signature silver-on-black design offers a sophisticated look that fits perfectly into modern home offices or high-end gaming setups.
Reliable Power & Comprehensive Cooling
To sustain the performance of multi-core Ryzen CPUs, the Prime X670-P WIFI features a 12+2 DrMOS power system that combines high-side and low-side MOSFETs into a single package. This ensures clean and efficient power delivery even under heavy workloads. Cooling is handled by massive VRM heatsinks and high-quality thermal pads, while the multiple M.2 heatsinks protect your NVMe drives from thermal throttling during intensive data transfers.
Next-Gen Speed: DDR5, PCIe 5.0, and USB 3.2
Step into the future of computing with DDR5 memory support, offering significantly faster data rates than previous generations. The board includes a dedicated PCIe 5.0 M.2 slot, allowing you to experience the blistering speeds of the latest NVMe SSDs. For external peripherals, the USB 3.2 Gen 2x2 Type-C® port provides up to 20Gbps bandwidth, perfect for high-speed external drives and professional hardware.
Connectivity and Smart Management
The inclusion of onboard WiFi 6 and Realtek 2.5Gb Ethernet ensures you have the fastest possible network path, whether gaming wirelessly or syncing large files over a local network. ASUS also provides the Armoury Crate and AI Cooling II software, which allows users to intelligently manage fan speeds, monitor system vitals, and customize Aura Sync RGB lighting across all compatible components with ease.
Why the ASUS Prime X670-P WIFI Stands Out
AM5 Native Support: Full compatibility with Ryzen 9000, 8000, and 7000 series desktop processors.
X670 Dual-Chipset Power: More PCIe lanes for high-speed storage and expansion.
PCIe 5.0 M.2 Ready: Prepare for storage speeds exceeding 10GB/s.
High-Speed Networking: Integrated WiFi 6 and 2.5Gb LAN for a lag-free experience.
Specification
| Model | PRIME X670-P WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen??? 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
| Chipset | AMD X670 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO???) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI?? port*** * Graphics specifications may vary between CPU types. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI?? 2.1. |
| Expansion Slots | AMD Ryzen??? 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD X670 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot** * Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/. ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. |
| Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports* AMD Ryzen??? 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports** * AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
| USB | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

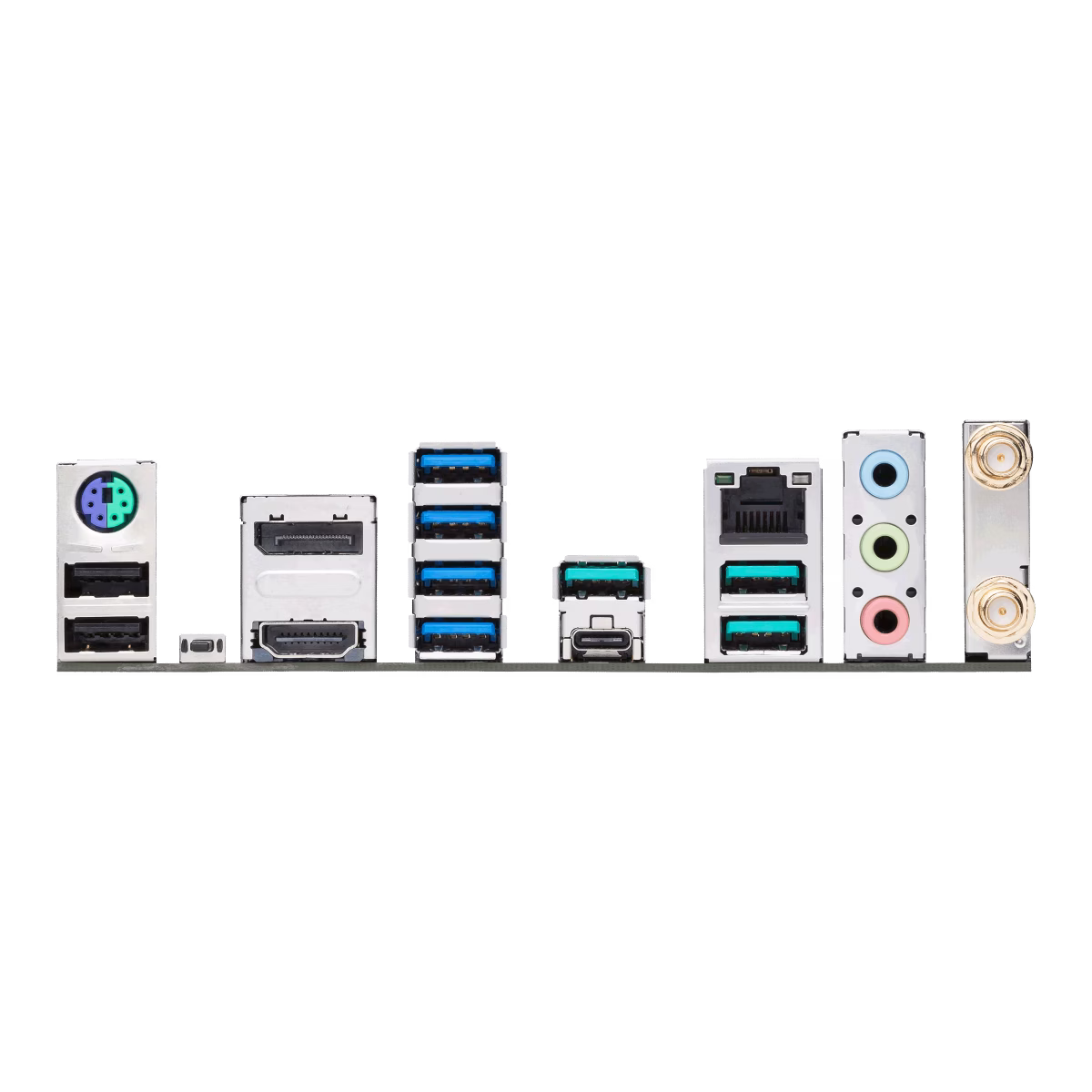

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C??) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI?? port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack??? button 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C??) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt??? (USB4??) header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - BIOS FlashBack??? LED - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

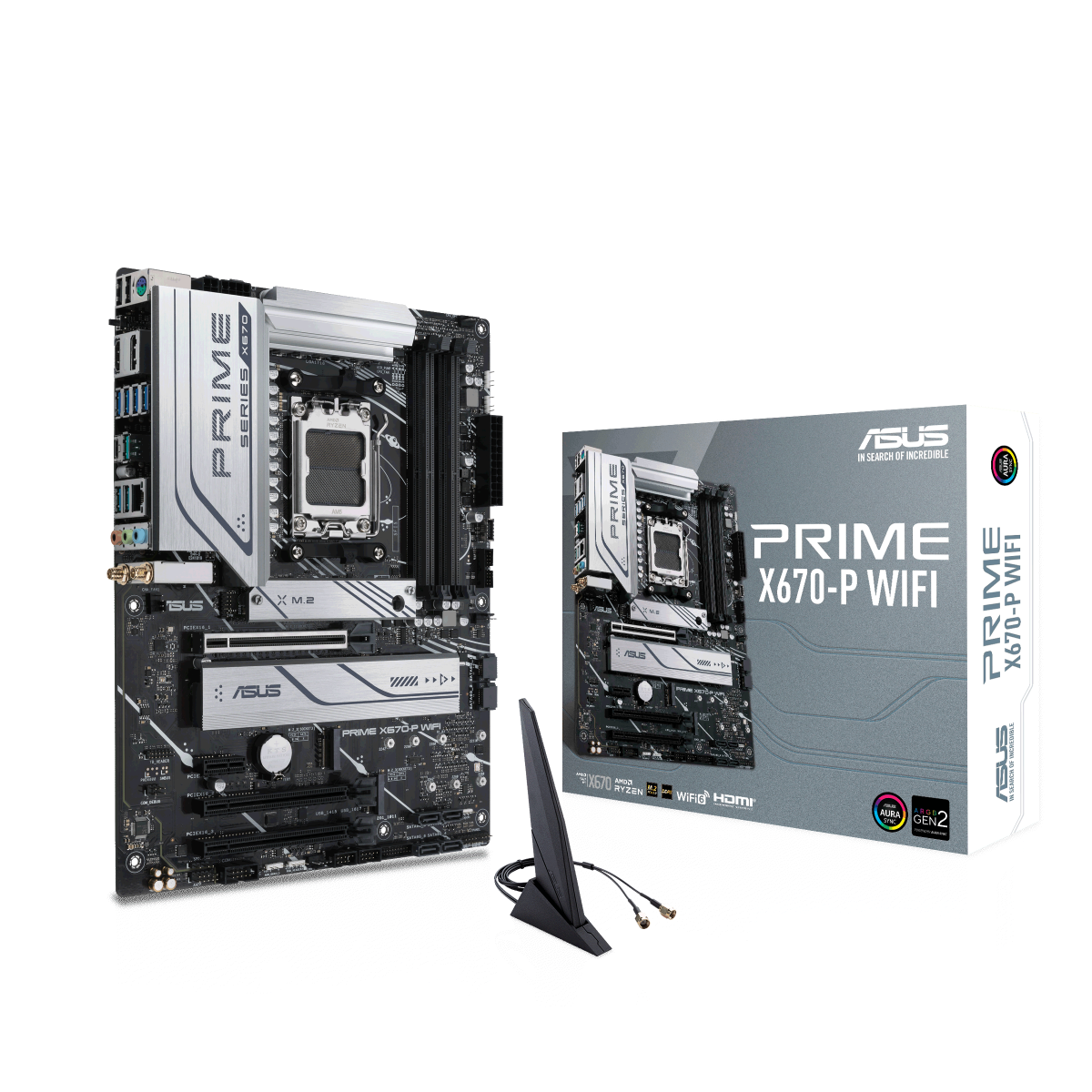

| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Rubber Package for M.2 2 x Screw Packages for M.2 SSD Documentation 1 x User guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
