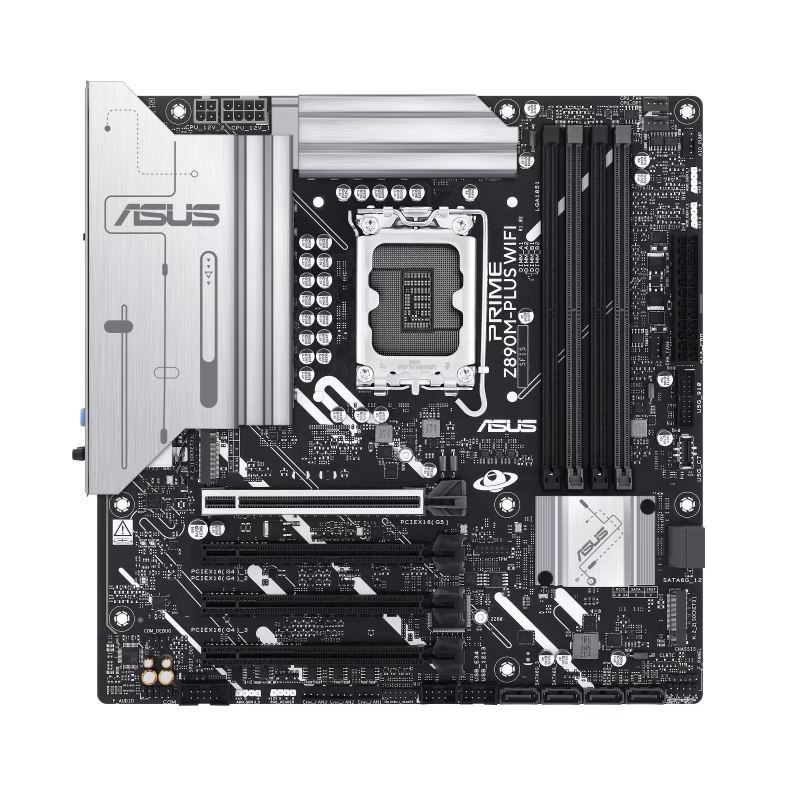

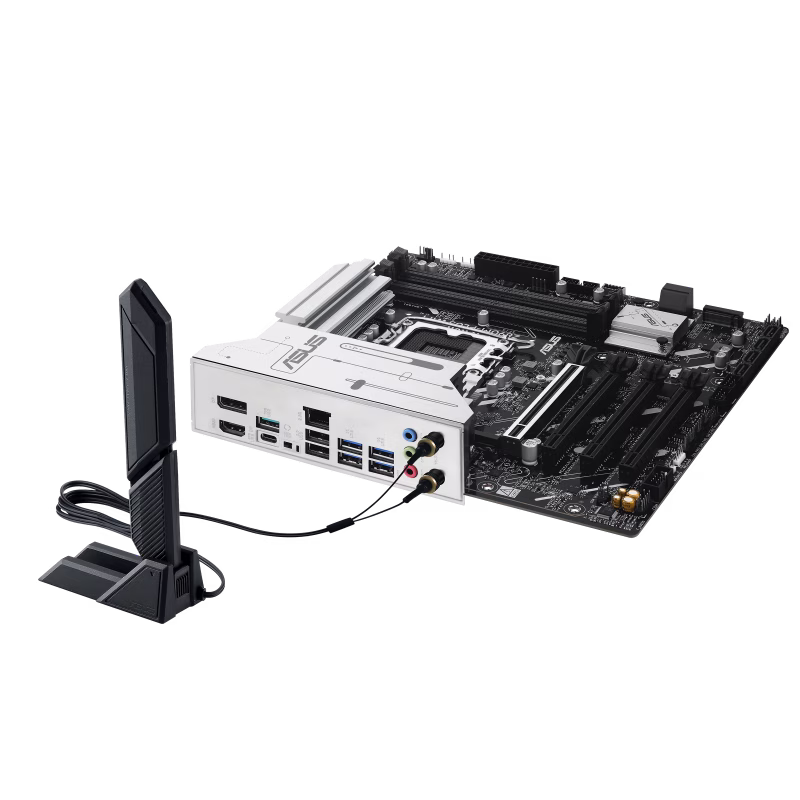

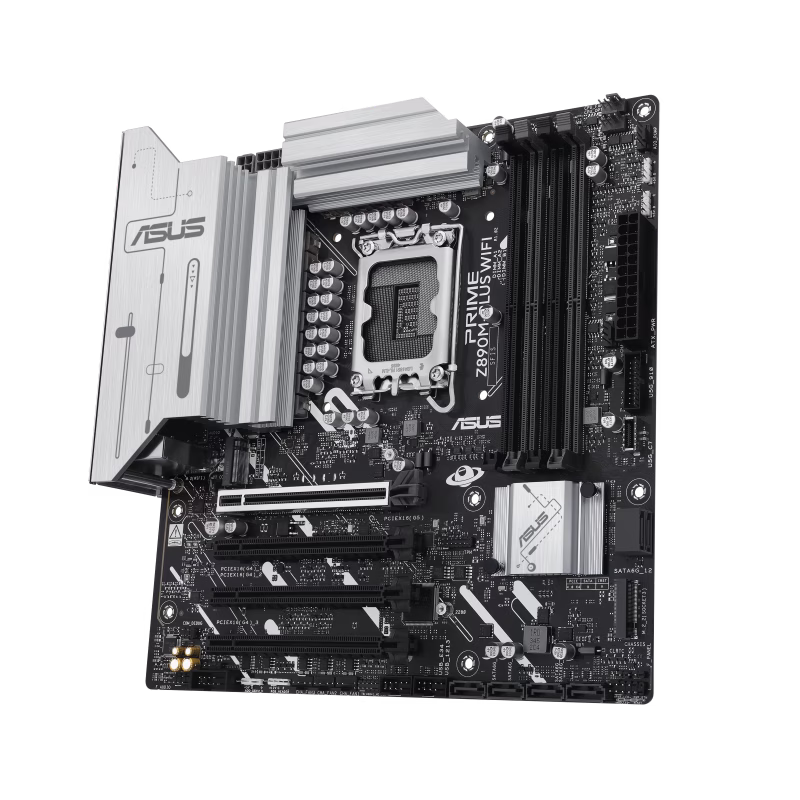

ASUS PRIME Z890M-PLUS WIFI LGA1851 mATX Motherboard, Z890 Chipset, 4 x DIMM slots, max. 192GB, DDR5, 3 x M.2 slots and 6 x SATA 6Gb/s, PCIe 5.0, Wi-Fi 7 & BT v5.4, USB 20Gbps Type-C | 90MB1J80-M0EAY0
Model :
SKU : MB-ASUS PRIM Z890M-PL WIF
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.4
Specification
| Model | PRIME Z890M-PLUS WIFI |
| CPU | Supports Intel?? Core??? Ultra Processors (Series 2), LGA1851* Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0** * Refer to ASUS Support for CPU support list. ** Intel?? Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel?? Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel?? Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMPIII) * Supported memory types and configurations vary; check ASUS Support for details. |
| Graphics | 1 x DisplayPort** 1 x HDMI??? port*** 1 x USB 20Gbps port (USB Type-C??) supports DisplayPort video output**** *Graphics specifications may vary between CPU types. Refer to Intel for updates. **Supports max. 4K@60Hz (DisplayPort 1.4). ***Supports 4K@60Hz (HDMI 2.1). ****Supports max. 4K@120Hz (DisplayPort 1.4). |
| Expansion Slots | 1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slots (support x1 mode) * Check the PCIe bifurcation table at ASUS Support for compatibility. |
| Storage | 3 x M.2 slots and 6 x SATA 6Gb/s ports* M.2_1 (Key M) supports PCIe 5.0 x4 mode. M.2_2 and M.2_3 (Key M) support PCIe 4.0 x4 mode. * Intel?? Rapid Storage Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* (2x2 Wi-Fi 7, 802.11be) Supports 2.4/5/6GHz frequency bands** Bluetooth?? v5.4*** * Wi-Fi features may vary depending on the OS; Windows 11 24H2+ is required for full Wi-Fi 7 functionality. ** Regulatory may vary by country. *** Check the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 8 ports): 1 x USB 20Gbps (Type-C?? with DP Alt mode) 1 x USB 10Gbps (Type-A) 4 x USB 5Gbps (Type-A) 2 x USB 2.0 (Type-A)** Front USB (Total 7 ports): 1 x USB 5Gbps (Type-C??) 1 x USB 5Gbps header (2 additional ports) 2 x USB 2.0 headers (4 additional ports)** * USB Type-C?? power delivery: max. 5V/3A. ** Bandwidth shared across ports. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports Jack-detection, Multi-streaming, and up to 24-Bit/192 kHz playback. * Requires a chassis with an HD audio module. |

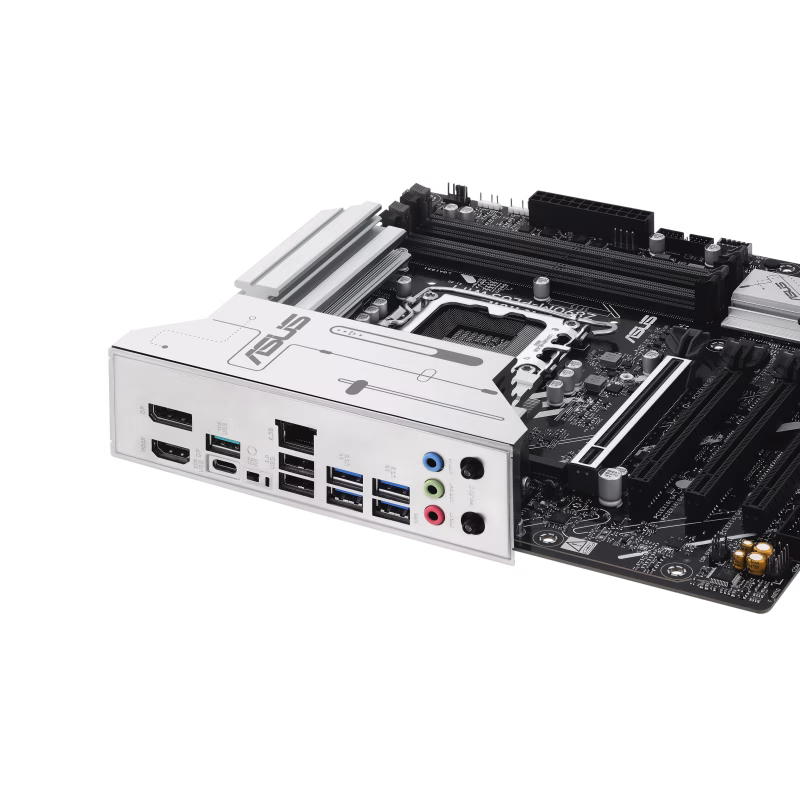

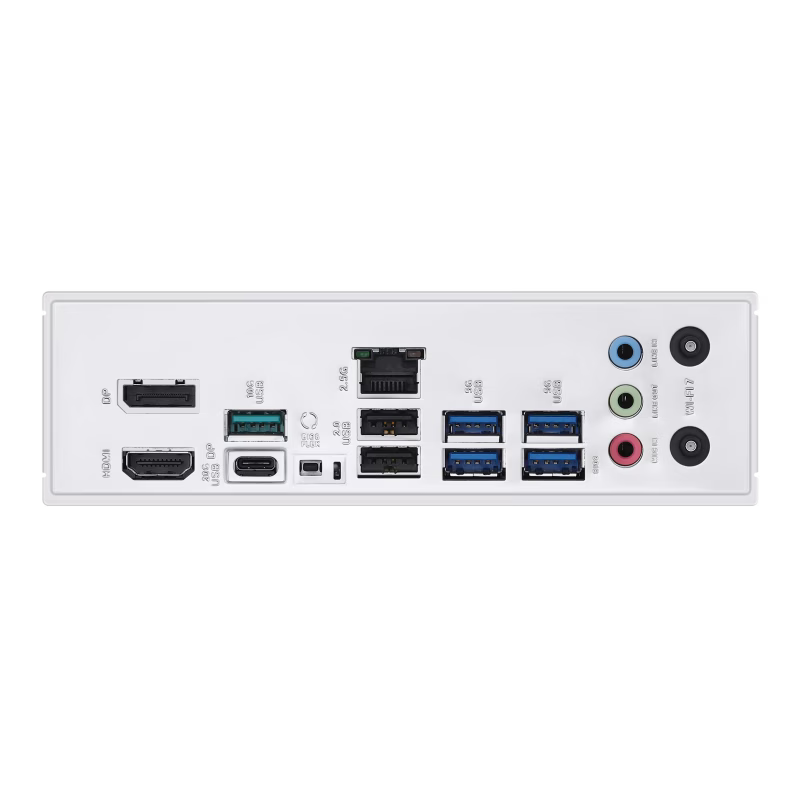

| Back Panel I/O Ports | 1 x USB 20Gbps (Type-C?? with DP Alt mode) 1 x USB 10Gbps (Type-A) 4 x USB 5Gbps (Type-A) 2 x USB 2.0 (Type-A) 1 x DisplayPort 1 x HDMI??? port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack??? button |
| Internal I/O Connectors | Fan and Cooling: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power: 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector Storage: 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB: 1 x USB 5Gbps (Type-C??) 1 x USB 5Gbps header (2 additional ports) 2 x USB 2.0 headers (4 additional ports) |
| Miscellaneous | 3 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Thunderbolt??? (USB4??) header |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless-Steel Back I/O) ASUS Q-Design (Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot) ASUS Thermal Solution (VRM heatsink design) ASUS EZ DIY (BIOS FlashBack??? button, pre-mounted I/O shield) Aura Sync (RGB headers) |
| Software Features | ASUS Exclusive Software (Armoury Crate, Fan Xpert 4, Power Saving, AI Advisor, DriverHub, GlideX, TurboV Core, ASUS CPU-Z, Norton 360 (60 Days Free Trial), WinRAR (40 Days Free Trial)) UEFI BIOS (EZ DIY, CrashFree BIOS 3, EZ Flash, UEFI BIOS EZ Mode, MyHotkey, NPU Boost for Intel K-series Processors only) |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX (24.4cm x 24.4cm) |
| Operating System | Windows?? 11/10 64-bit |
