Asus Pro WS W790E-SAGE SE LGA 4677 EEB Workstation Motherboard, Intel W790 Chipset, 8x DIMM DDR5 / 2048GB Max Memory, 3x M.2 Slots, 7x PCIe 5.0 Slot, Pre-Mounted I/O Shield | 90MB1C20-M0EAY0
Model :
SKU : MB-ASU PRO WS W790E-SAGE
About this item
About this item
Description
Performance, Productivity, Proven
The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.
Low-profile professionalism
With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790 series presents a professional, low-profile look for content creators.
Multi-GPU support
Pro WS W790E-SAGE SE features seven PCIe® 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.
8-pin and 6-pin power connectors
Additional PCIe 8-pin and 6-pin power connectors can add power output stability when creators and developers use many graphic cards onboard.
Reliability with supreme memory overclocking
The Pro WS W790E-SAGE SE supports 8-channel 1DPC DDR5 RDIMM ECC memory, allowing automatically to detect and correct data corruption, reducing the chance of system crashes. Being infused with deliberate memory trace layout, this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.
Specification
Asus Pro WS W790E-SAGE SE LGA 4677 EEB Workstation Motherboard, Intel W790 Chipset, 8x DIMM DDR5 / 2048GB Max Memory, 3x M.2 Slots, 7x PCIe 5.0 Slot, Pre-Mounted I/O Shield Specifications
| Model | Pro WS W790E-SAGE SE |
| CPU | Intel?? Socket LGA4677 for Xeon?? W-3400 and W-2400 Series Processors* Supports Intel?? Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list. |
| Chipset | Intel?? W790 Chipset |
| Memory | 8 x DIMM slots, Max. 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory* 8-Channel Memory Architecture Supports Intel?? Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ |
| Graphics | 1 x VGA port from AST2600 |
| Expansion Slots | Intel?? Xeon?? W-3400 Series Processors* 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)** Intel?? Xeon?? W-2400 Series Processors* 4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Please refer to the block diagrams in the Appendix for more details. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb/s ports* Intel?? Xeon?? W-3400 Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*** Intel?? W790 Chipet** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device 8 x SATA 6Gb/s ports * Supports Intel?? Virtual RAID on CPU (Intel?? VROC) and Intel Volume Management Device (Intel??VMD) ** Intel?? VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately. *** M.2_1 and M.2_2 slots will be disabled once an Intel?? Xeon?? W-2400 Series Processor is installed. |
| Ethernet | 1 x Intel?? dual 10Gb Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C??) 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C??) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C?? ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

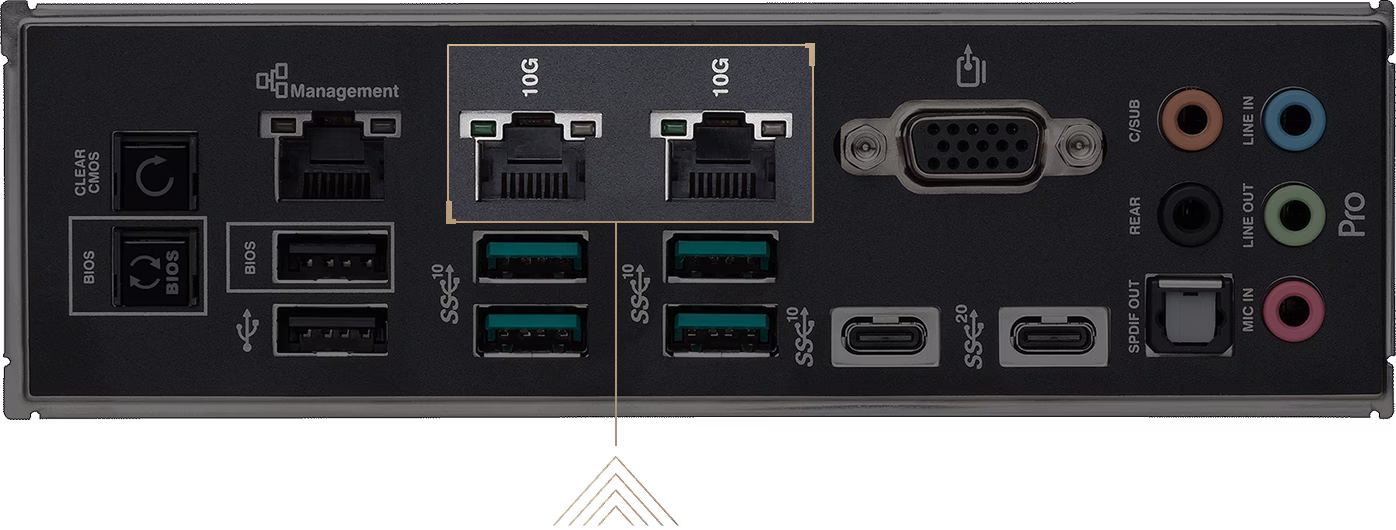

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C??) 2 x USB 2.0 port(s) (2 x Type-A) 1 x VGA port 2 x Intel?? dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack??? button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 5 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s) Power related 2 x 24-pin Main Power connector 4 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 2 x SlimSAS connector(s) 8 x SATA 6Gb/s ports 1 x VROC Key connector USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C?? ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x M.2 slot (Key E) 1 x ReTry button 1 x Safe Boot button 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header BMC Related 1 x BMC switch 1 x VGA switch 1 x BMC LAN fixed IP switch 1 x IPMI switch 2 x Q_PSU switch 2 x PSU SMBus header 1 x Front panel location LED header 1 x Location button header 1 x VPP_I2C header 1 x Micro SD card socket 1 x BMC_T_SENSOR header 1 x BMC LED 1 x Location LED 1 x Message LED header |
| Special Features | Extreme OC Kit - FlexKey button - LN2 Mode - ReTry button - Safe boot button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack??? button - BIOS FlashBack??? LED - Caterr1 LED - Box Headers - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection |
| Software Features | ASUS Exclusive Software Armoury Crate - Fan Xpert 4 AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR |
| UEFI BIOS | ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey |
| BIOS | 512 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE (UEFI mode) |
| Accessories | Cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x VRM Fan holder 1 x Q-connector 1 x M.2 Rubber Package(s) 1 x M.2 backplate Rubber Package(s) 1 x Screw package for M.2 Key E 1 x CPU guard for LGA 4677 E1A 1 x CPU guard for LGA 4677 E1B Documentation 1 x ACC Express Activation Key Card 1 x User guide |
| Operating System | Windows?? 11, Windows?? 10 64-bit |
| Form Factor | EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm) |
