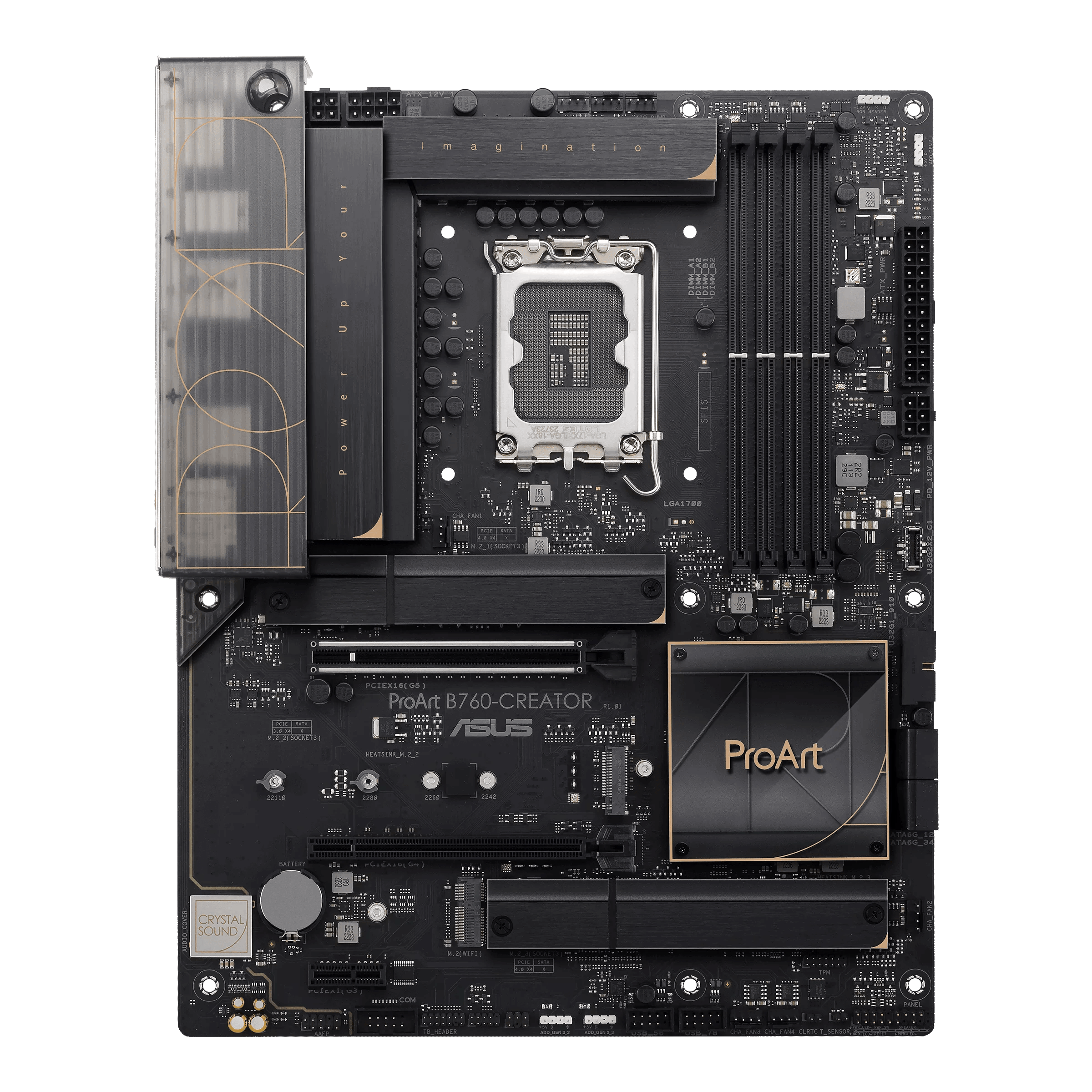

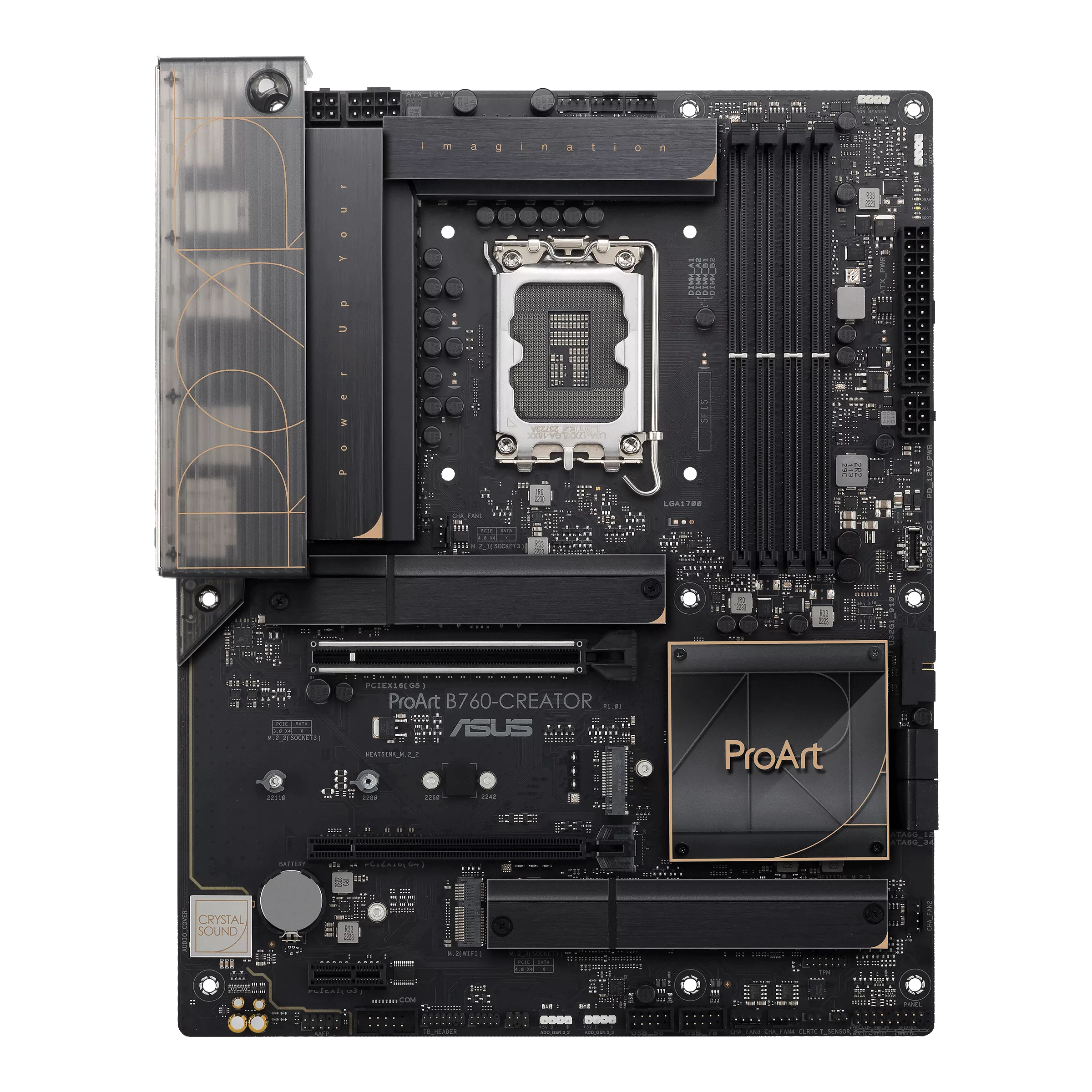

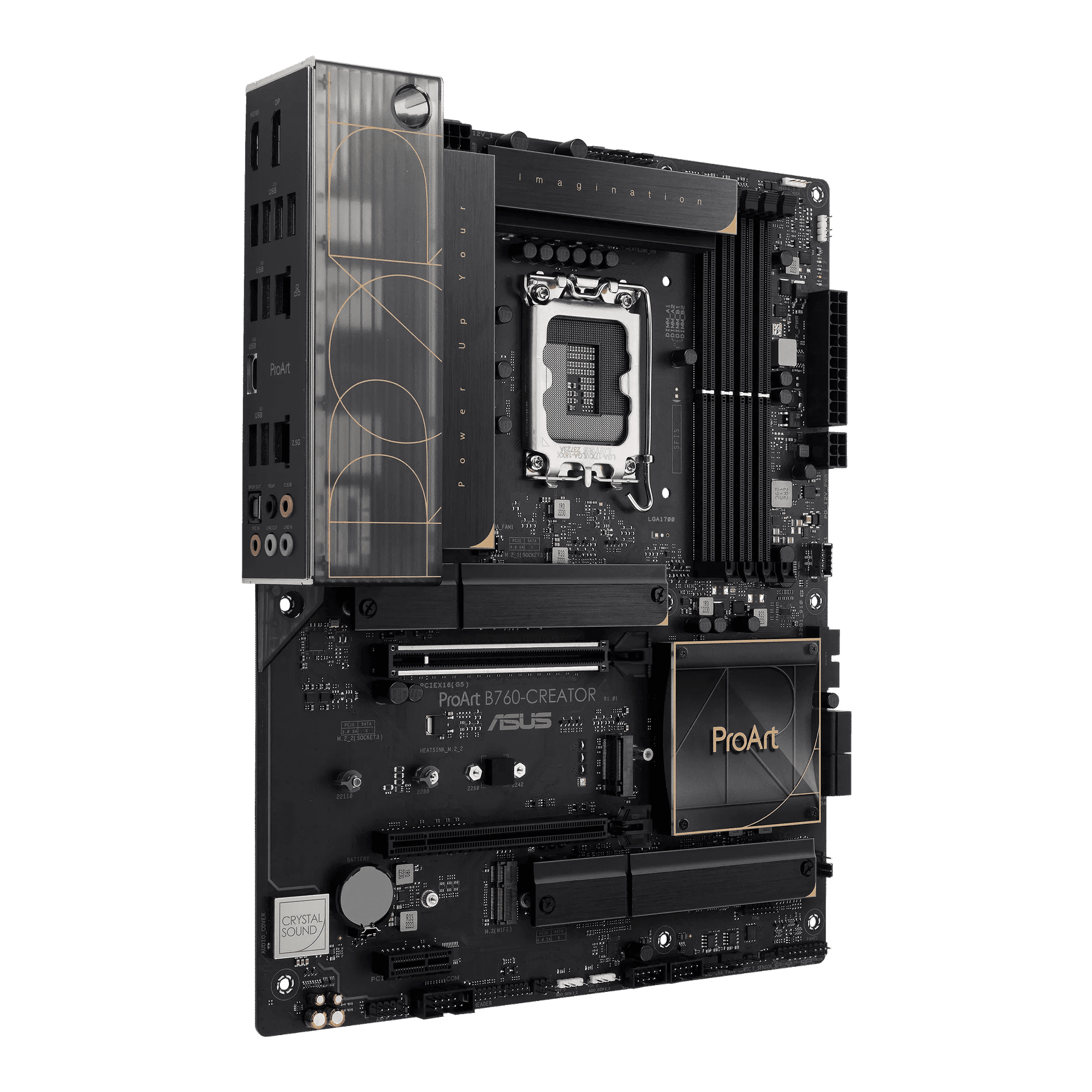

Asus ProArt B760-CREATOR DDR5 Motherboard, LGA1700 Socket, Intel B760 Chipset, M.2 Heatsink, PCIe 5.0, Thunderbolt 4 Header, 2.5G + 1G LAN, Max Memory 128GB 4xDIMM | 90MB1F20-M1EAY0
Model :
SKU : MB-ASUS PROART B760-CR D5
About this item
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
About this item
Description

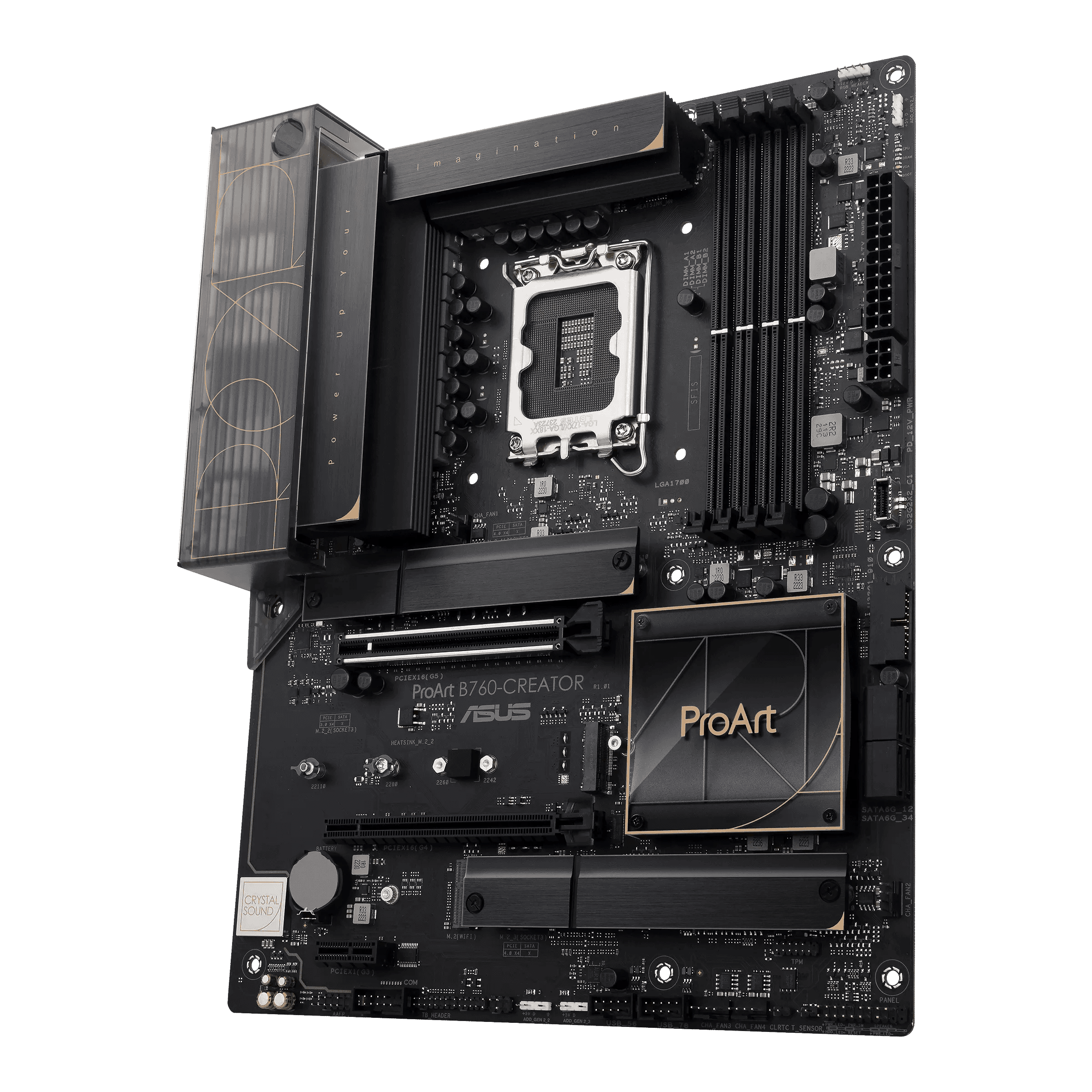

ProArt B760-Creator is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 14th, 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specification
ASUS ProArt B760-CREATOR Motherboard Specifications
| Category | Details |
|---|---|
| Model | ProArt B760-CREATOR |
| CPU Support | Intel® Socket LGA1700 Supports Intel® Core™ 14th/13th/12th Gen, Pentium® Gold & Celeron® CPUs Intel® 10 nm CPU support Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0* *Support varies by CPU |
| Chipset | Intel® B760 Chipset |
| Memory | 4 × DIMM, Max 192GB DDR5 Dual Channel Architecture Supports XMP & OptiMem II *Specs vary by CPU & configuration |
| Graphics | 1 × HDMI 2.1 (4K@60Hz) 1 × DisplayPort 1.4 (8K@60Hz) *Output depends on CPU |

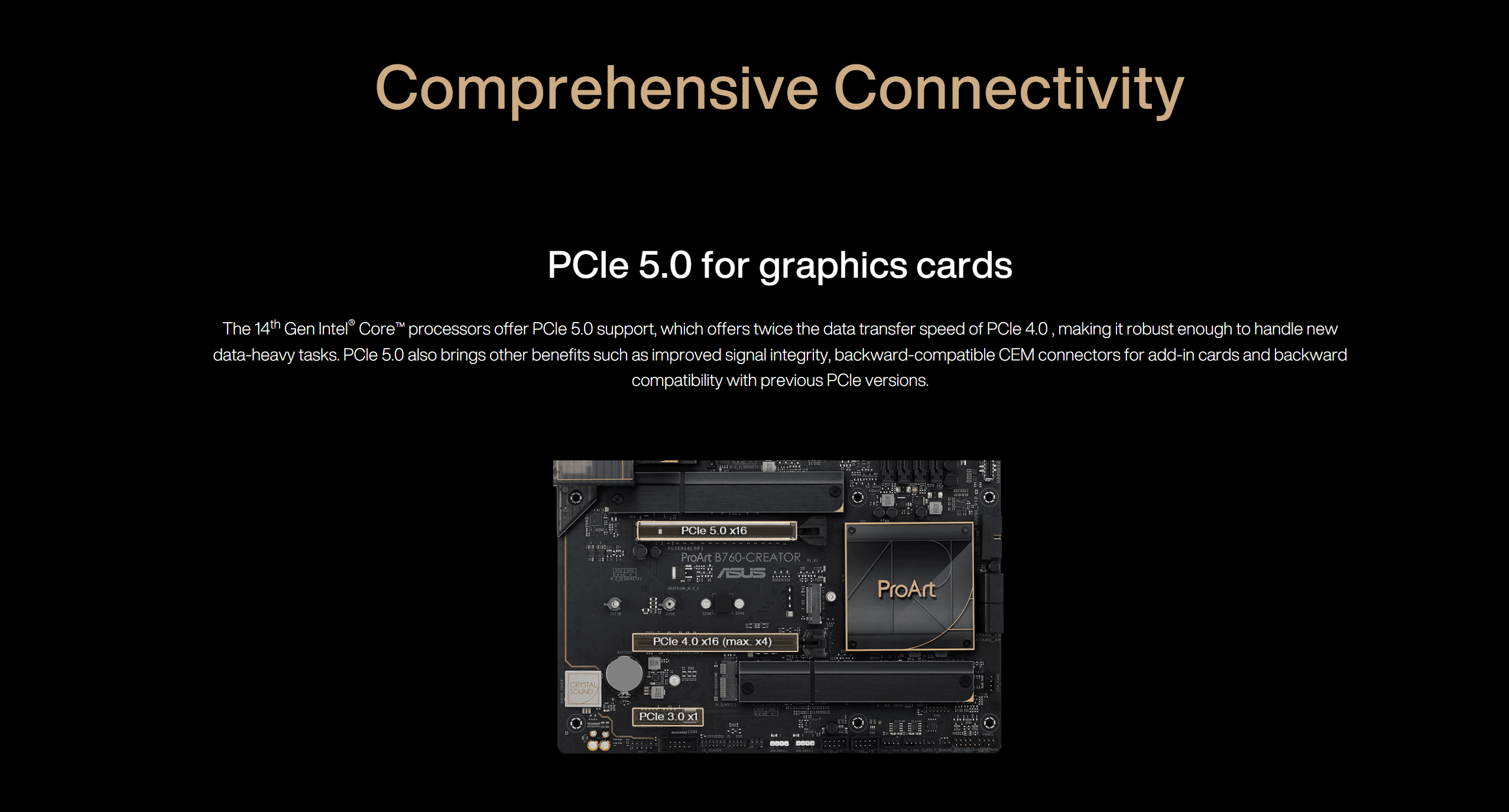

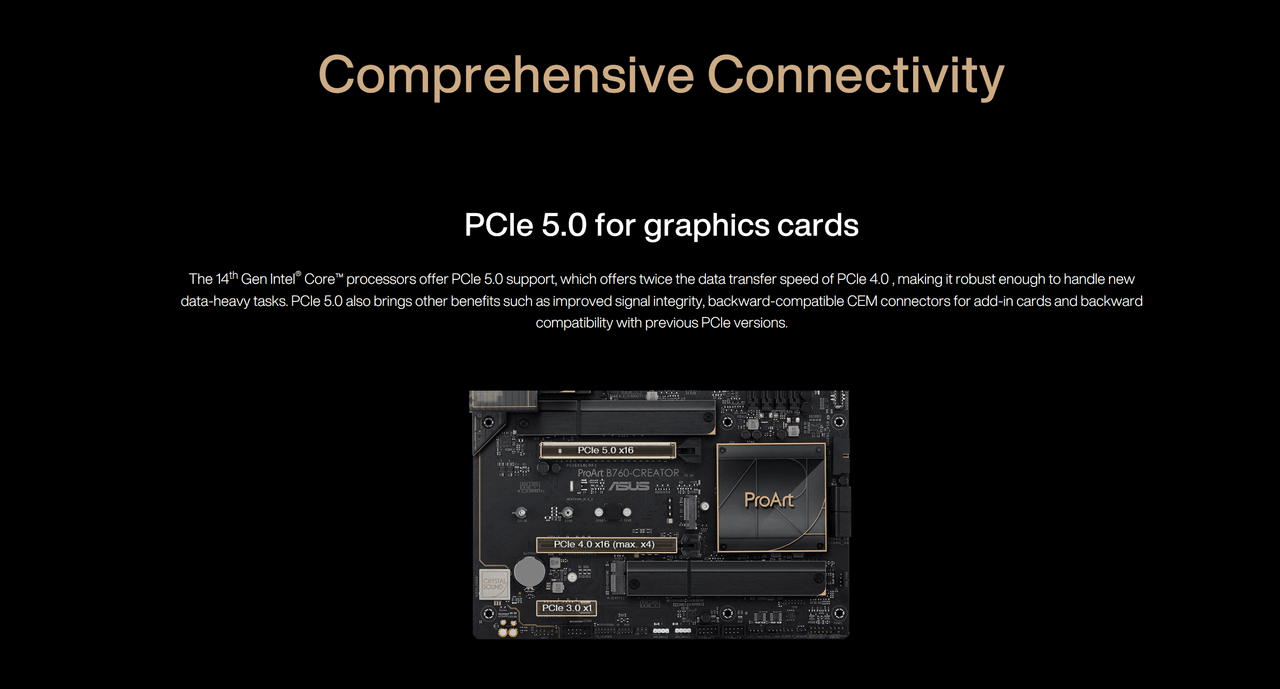

| Expansion Slots | 1 × PCIe 5.0/4.0/3.0 x16 (CPU) 1 × PCIe 4.0 x16 (x4 mode, chipset) 1 × PCIe 3.0 x1** **Disabled when M.2_2 runs PCIe x4 |

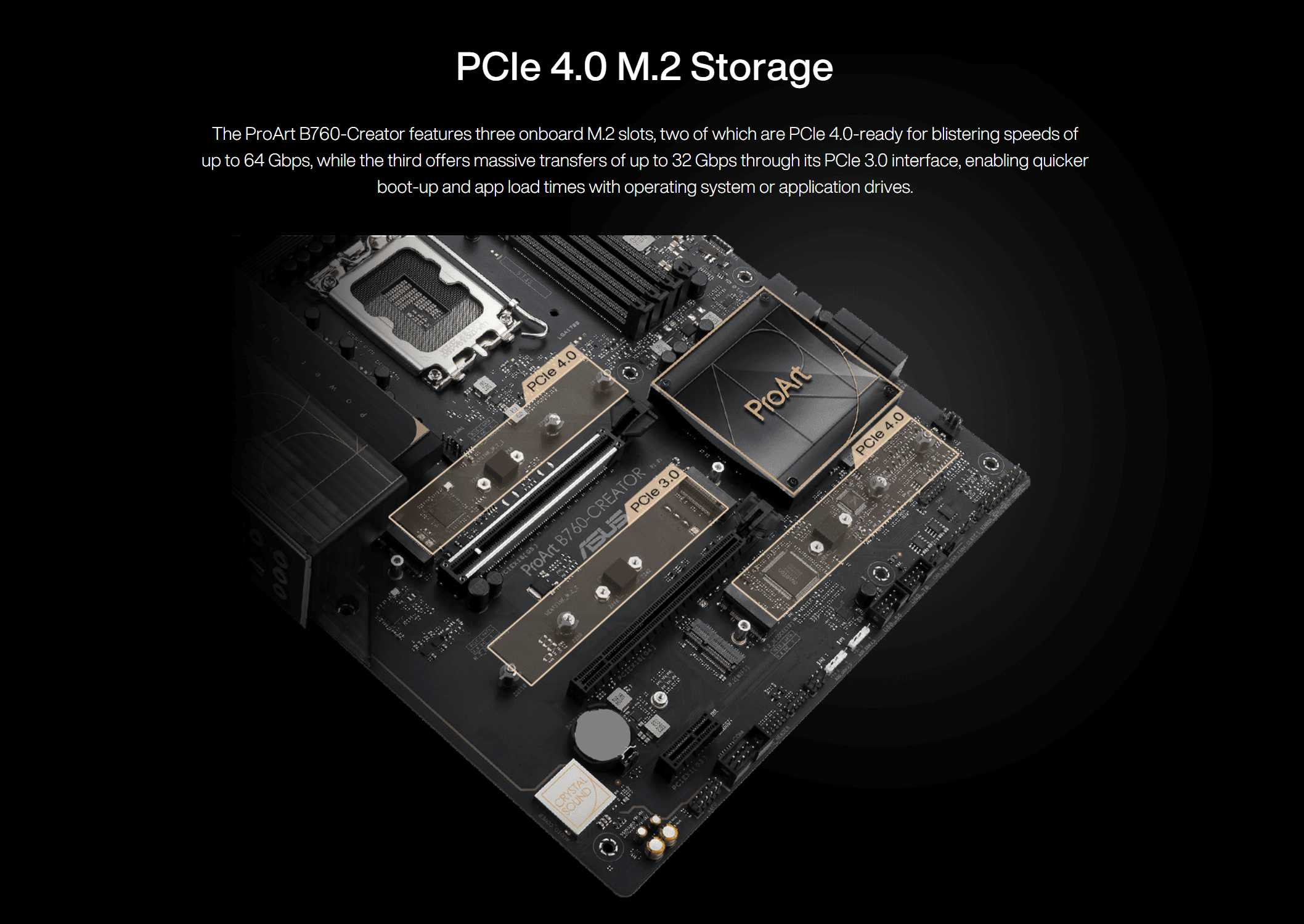

| Storage | 3 × M.2 Slots (Key M, 2242/2260/2280/22110) • M.2_1: PCIe 4.0 x4 (13th/12th Gen CPUs) • M.2_2: PCIe 3.0 x4* • M.2_3: PCIe 4.0 x4 4 × SATA 6Gb/s *Shares bandwidth with PCIe x1 & WiFi Key E |
| Ethernet | 1 × Realtek 2.5Gb LAN 1 × Intel® 1Gb LAN ASUS LANGuard |
| Wireless Support | M.2 Key E slot (Wi-Fi module sold separately) |
| Rear USB Ports | 1 × USB 3.2 Gen 2 Type-C (10Gbps) 4 × USB 3.2 Gen 1 Type-A (5Gbps) 4 × USB 2.0 Type-A |

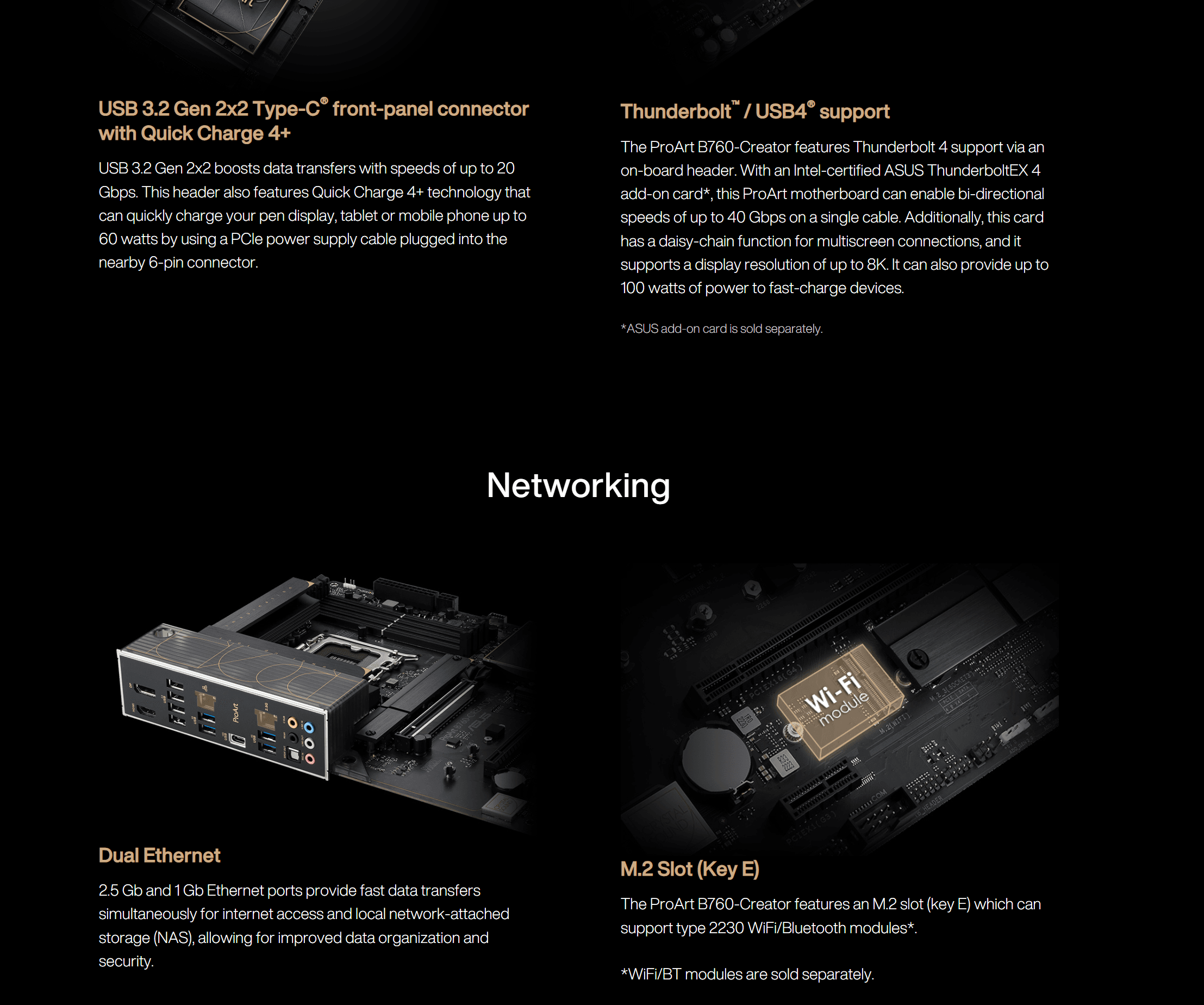

| Front USB | 1 × USB 3.2 Gen 2x2 (20Gbps) Type-C (60W PD/QC4+) 1 × USB 3.2 Gen 1 header (2 ports) 2 × USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround HD Audio CODEC 24-bit / 192 kHz playback Premium capacitors, isolated layers, de-pop circuit |

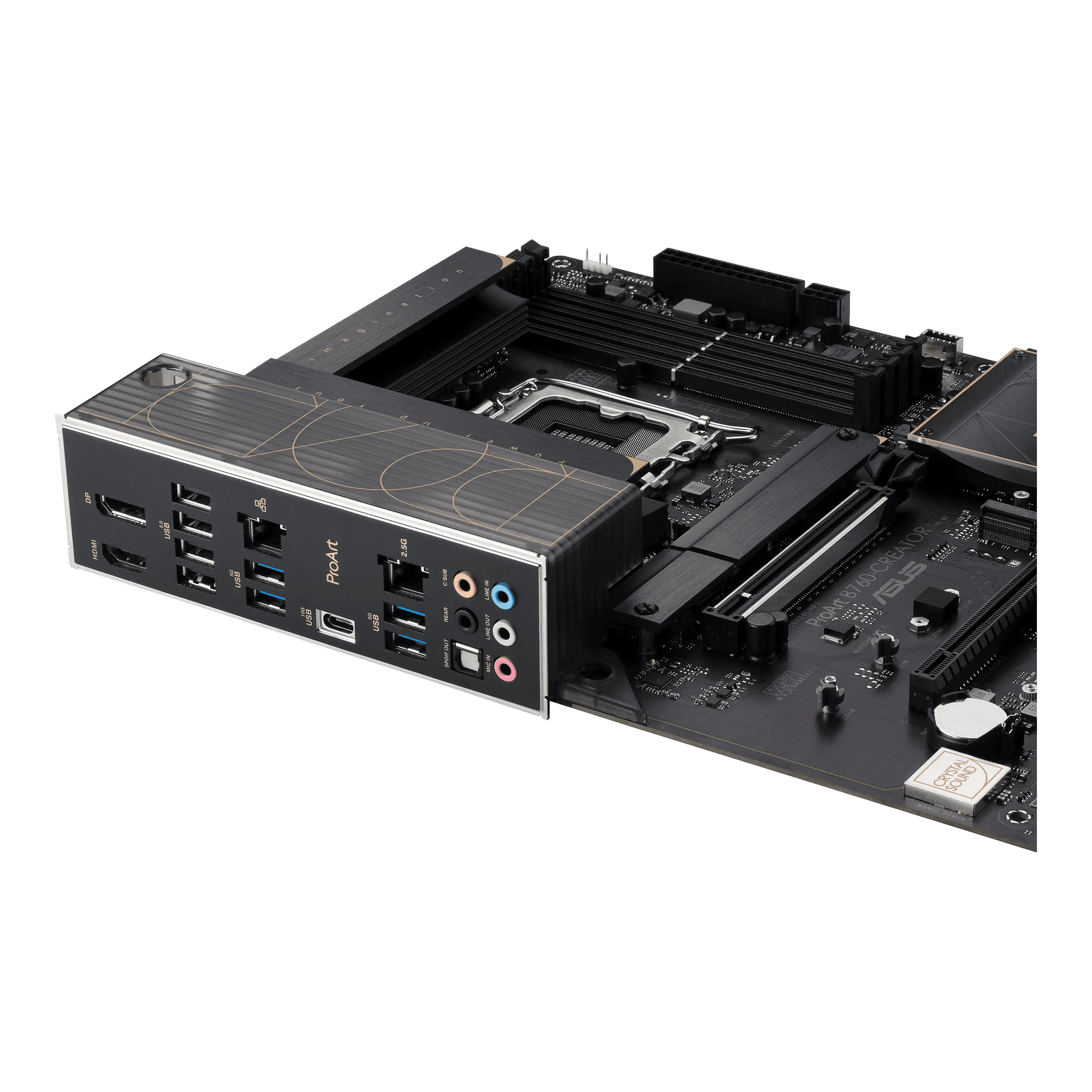

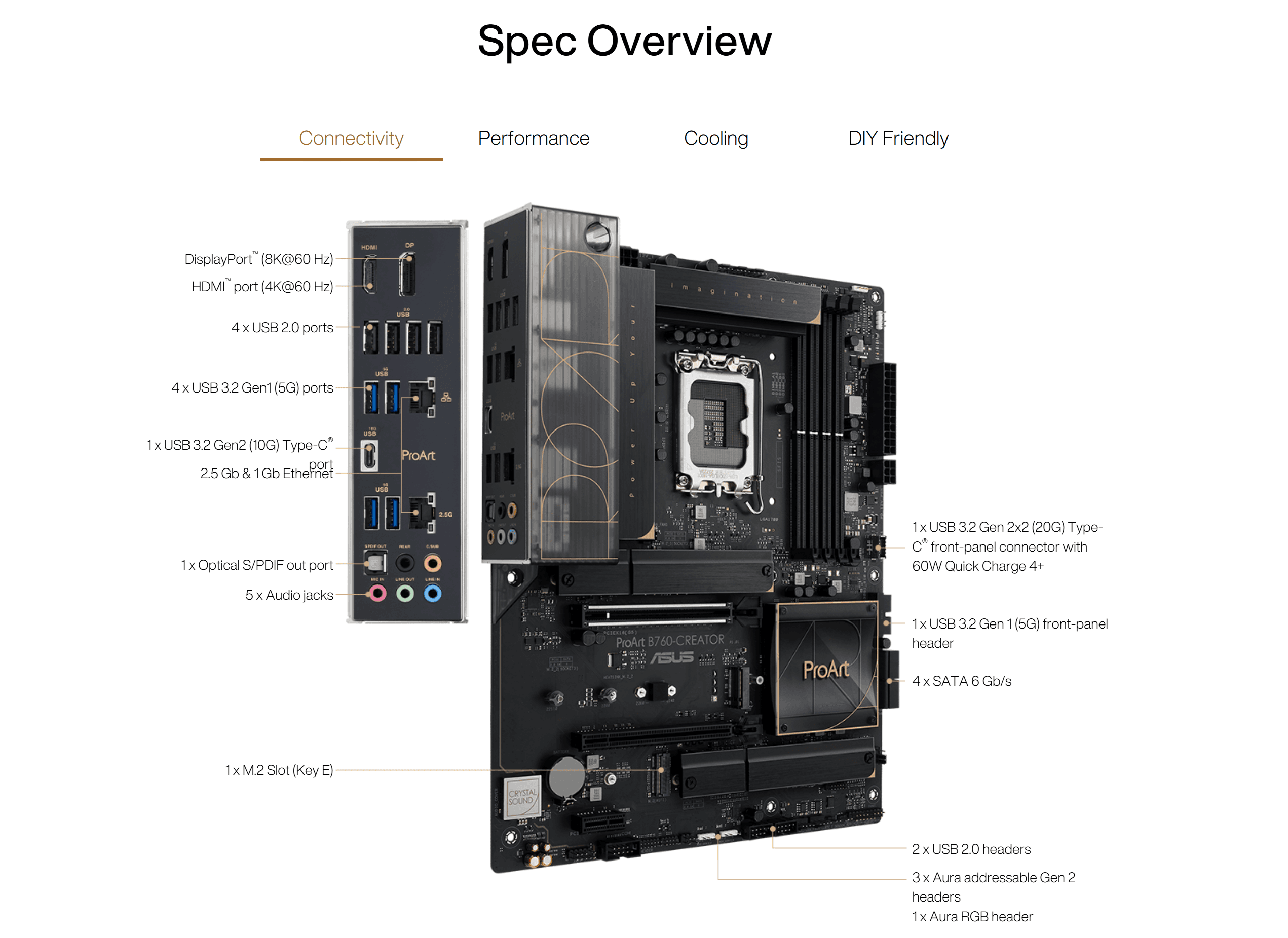

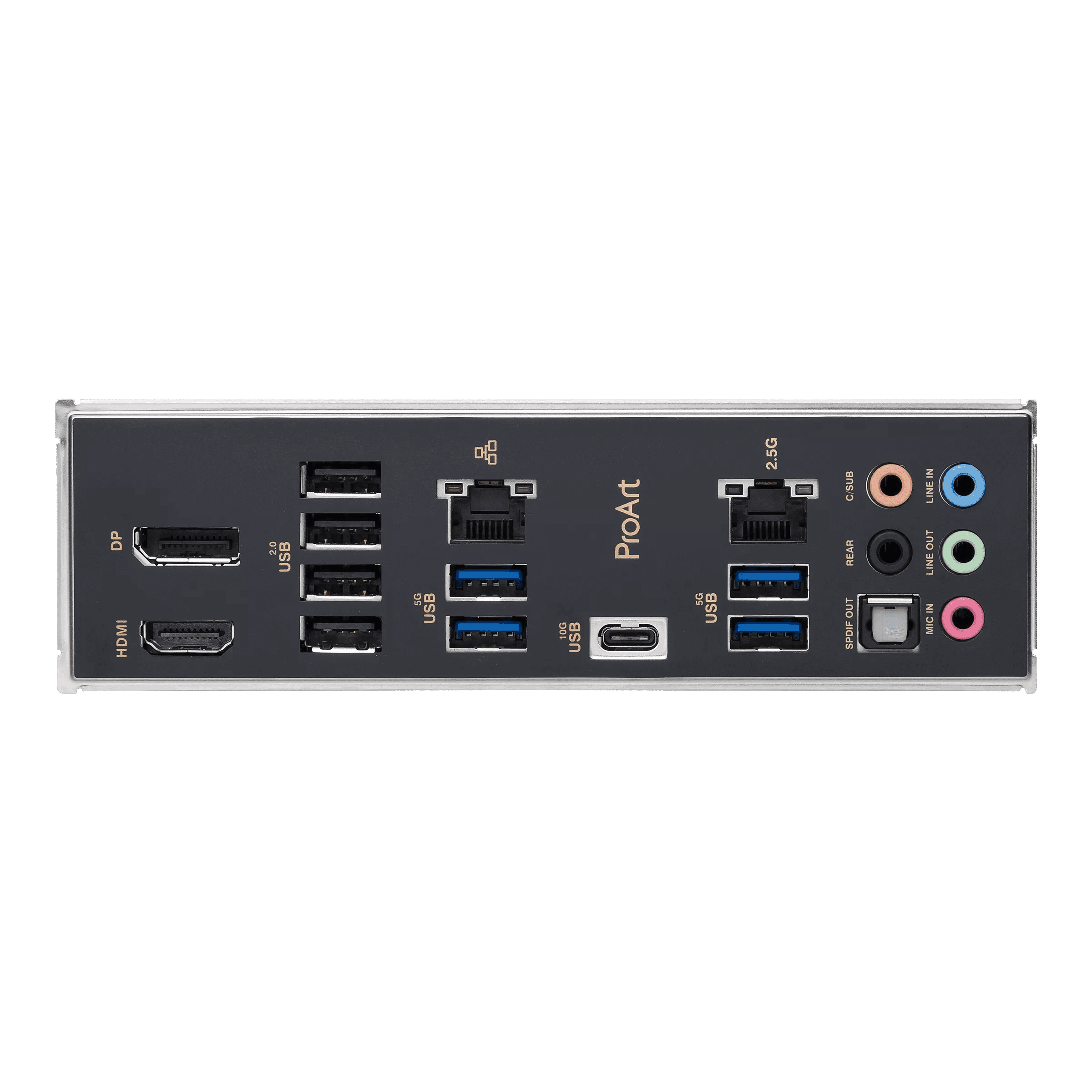

| Back Panel I/O | 1 × USB 3.2 Gen 2 Type-C 4 × USB 3.2 Gen 1 4 × USB 2.0 1 × HDMI 1 × DisplayPort 1 × 2.5Gb LAN 1 × 1Gb LAN 5 × Audio jacks 1 × Optical S/PDIF Out |
| Internal I/O | CPU/Chassis Fan headers (7 total) 24-pin ATX, 8-pin +12V, 4-pin +12V, 6-pin PD_12V 3 × M.2, 4 × SATA USB 20Gbps Type-C (60W PD/QC4+) USB 3.2 Gen1 header (2 ports) 2 × USB 2.0 headers (4 ports) RGB: 3 × ARGB Gen2, 1 × RGB header Clear CMOS, COM, TPM, Thermal Sensor, Thunderbolt header |
| Special Features | ASUS 5X Protection III ASUS Q-Design (Q-Latch, Q-LED, Q-Slot, etc.) VRM & M.2 Heatsinks ProCool power design AURA Sync RGB |

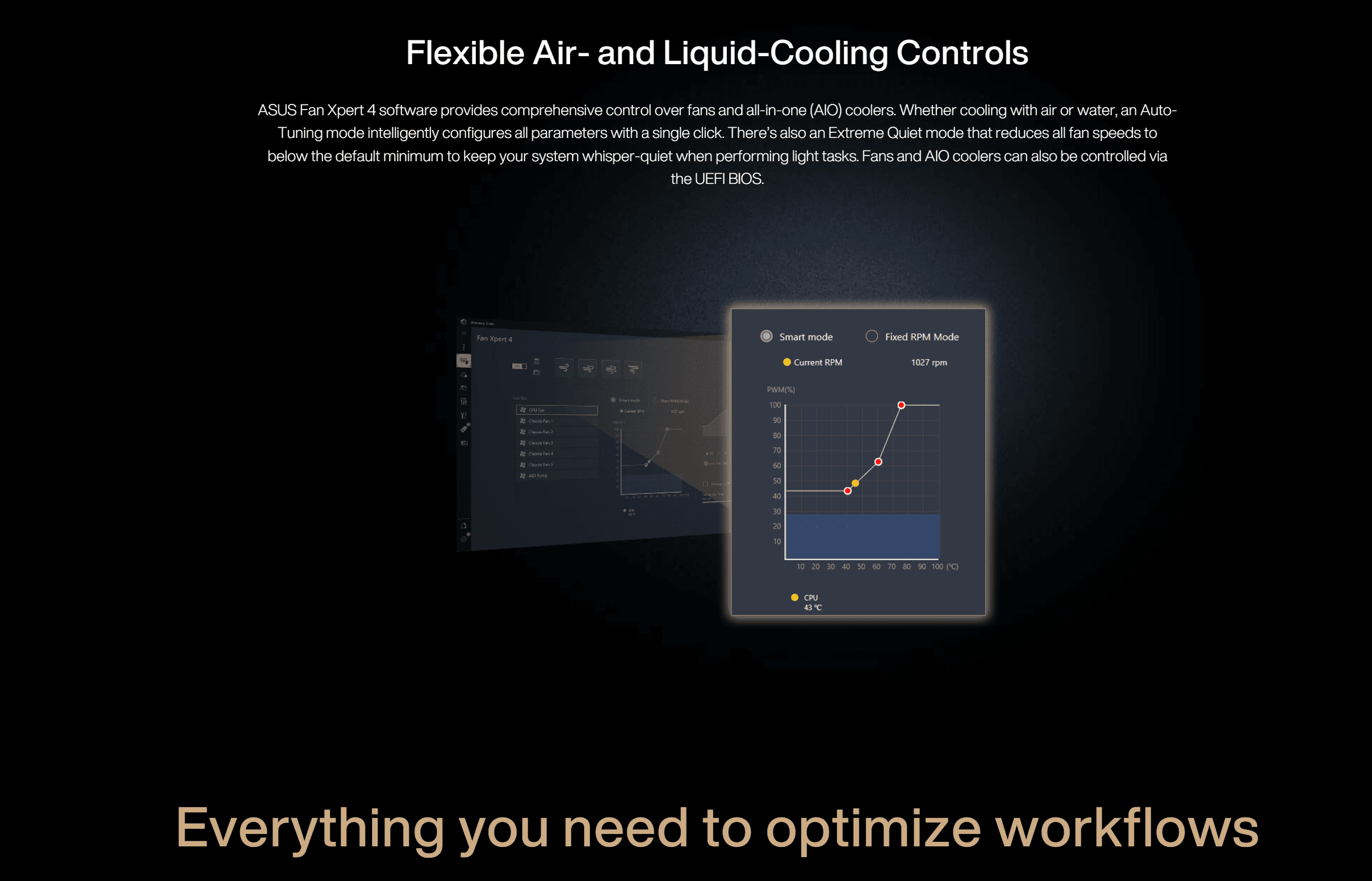

| Software | Armoury Crate, Fan Xpert 4, AURA Sync, AI Suite 3, CreationFirst, ProArt Creator Hub, Norton 360 (trial), WinRAR |
| BIOS | 128 Mb UEFI BIOS, EZ Flash 3, CrashFree BIOS 3 |
| Manageability | WOL, PXE |

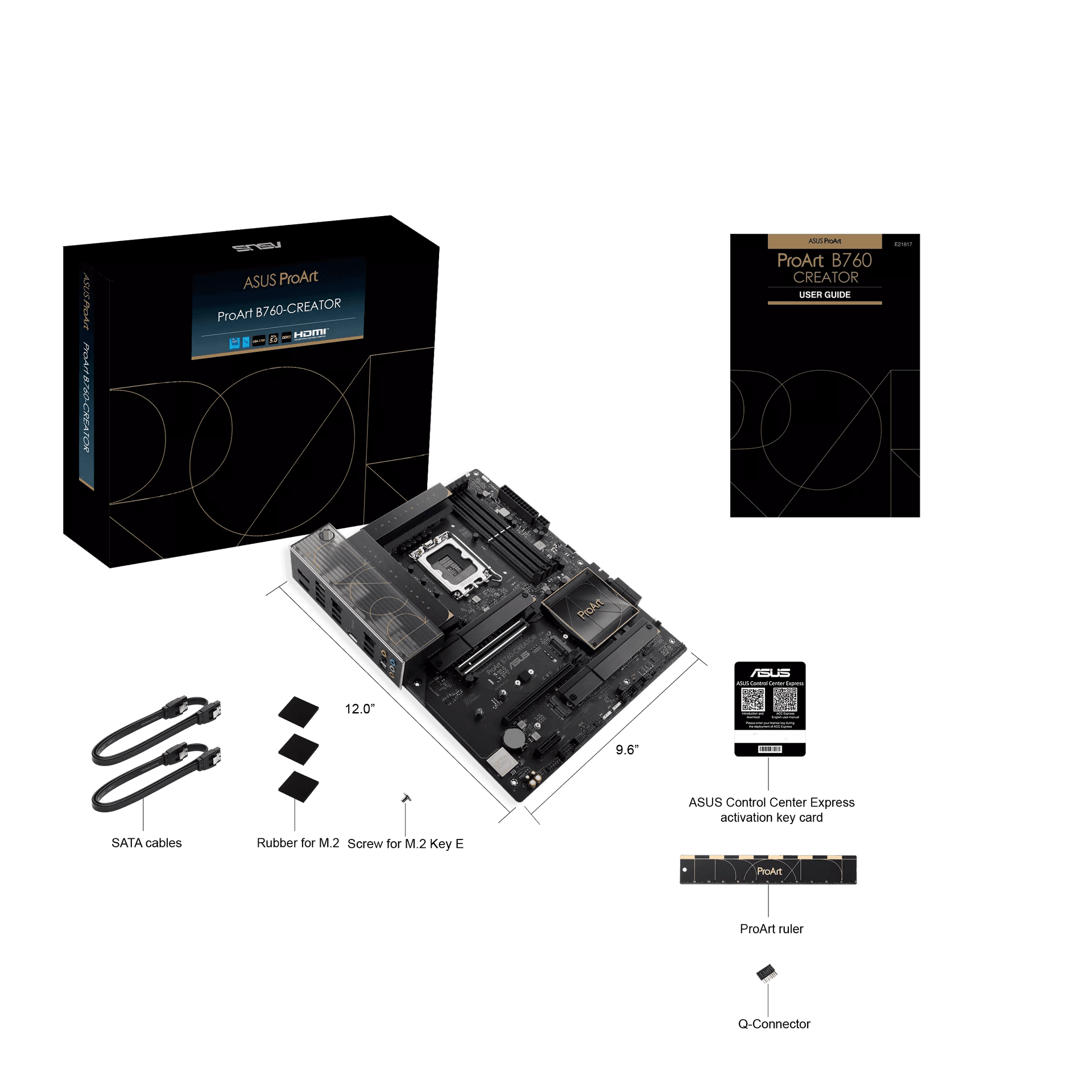

| Accessories | 2 × SATA cables 2 × M.2 rubber packages M.2 Key-E screw package ProArt ruler Q-Connector Activation key card User guide |
| Operating System | Windows 11/10 64-bit |
| Form Factor | ATX — 12 in × 9.6 in (30.5 × 24.4 cm) |
0
Inclusive of VAT
Delivery to
FREE scheduled delivery as soon as Loading...
Sold and shipped by: Adarc computers
1
Home/PC Components/Motherboards/Asus ProArt B760-CREATOR DDR5 Motherboard, LGA1700...
Similar Products

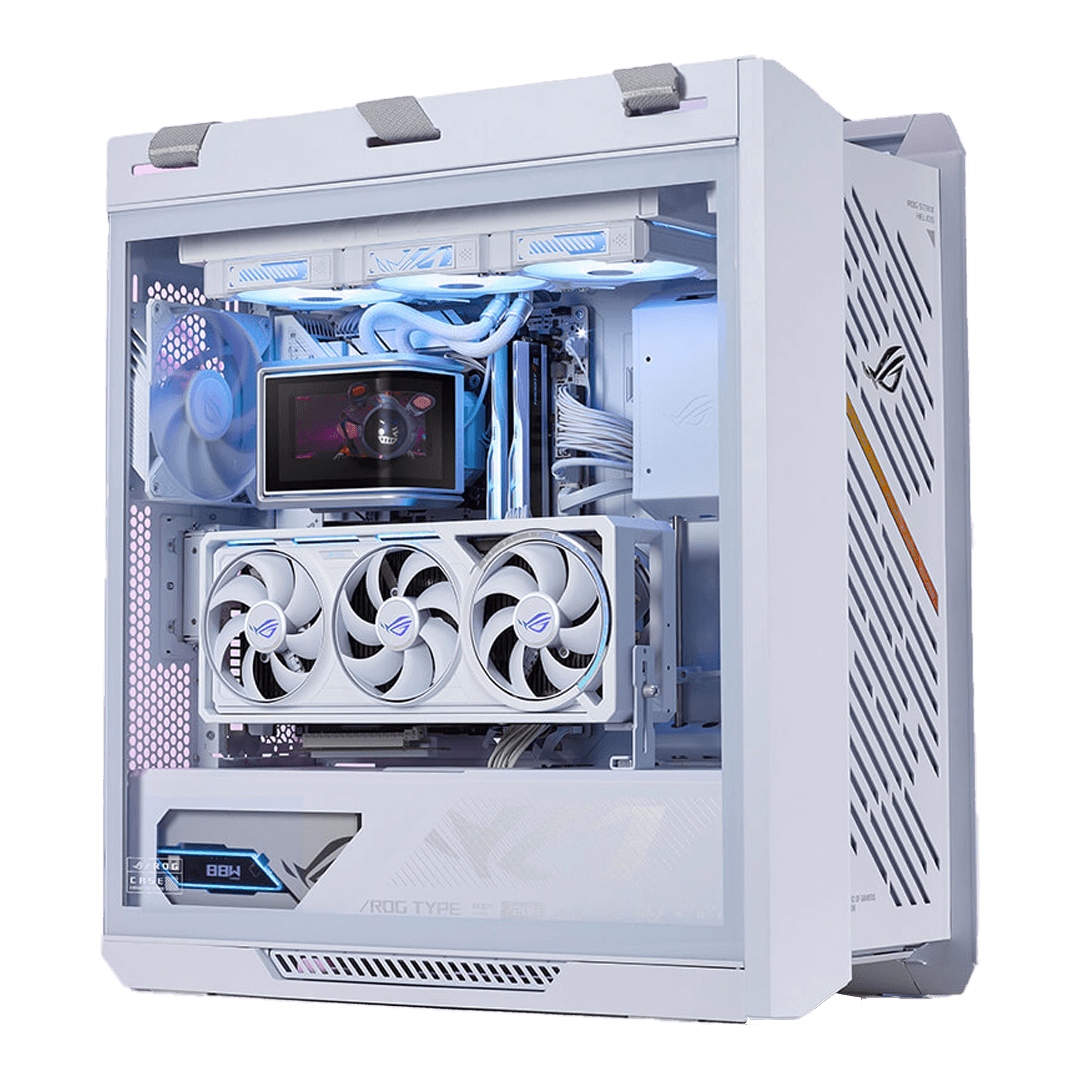

APEX Gaming & Creator Workstation PC, Intel Core Ultra 9 285K, ROG RTX 5090 32GB White OC, 64GB DDR5 6400, 2TB Gen5 SSD, 1200W
25999.00

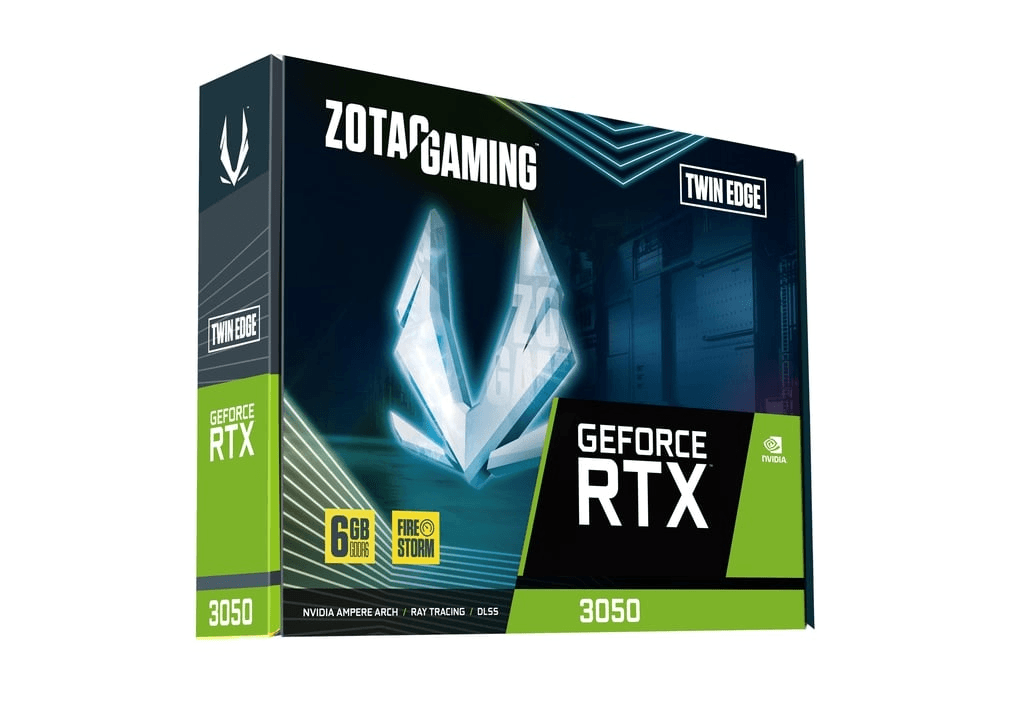

ZOTAC GAMING GeForce RTX 3050 6GB GDDR6 Twin Edge Graphics Card, ZT-A30510H-10L. 2304 Cores; Boost: 1477 MHz; 6GB GDDR6 / 14 Gbps / 96-bit.
